13.01.00 - INTAKE MANIFOLD

Lamborghini Diablo SV (1999) Intake Manifold Parts Diagram

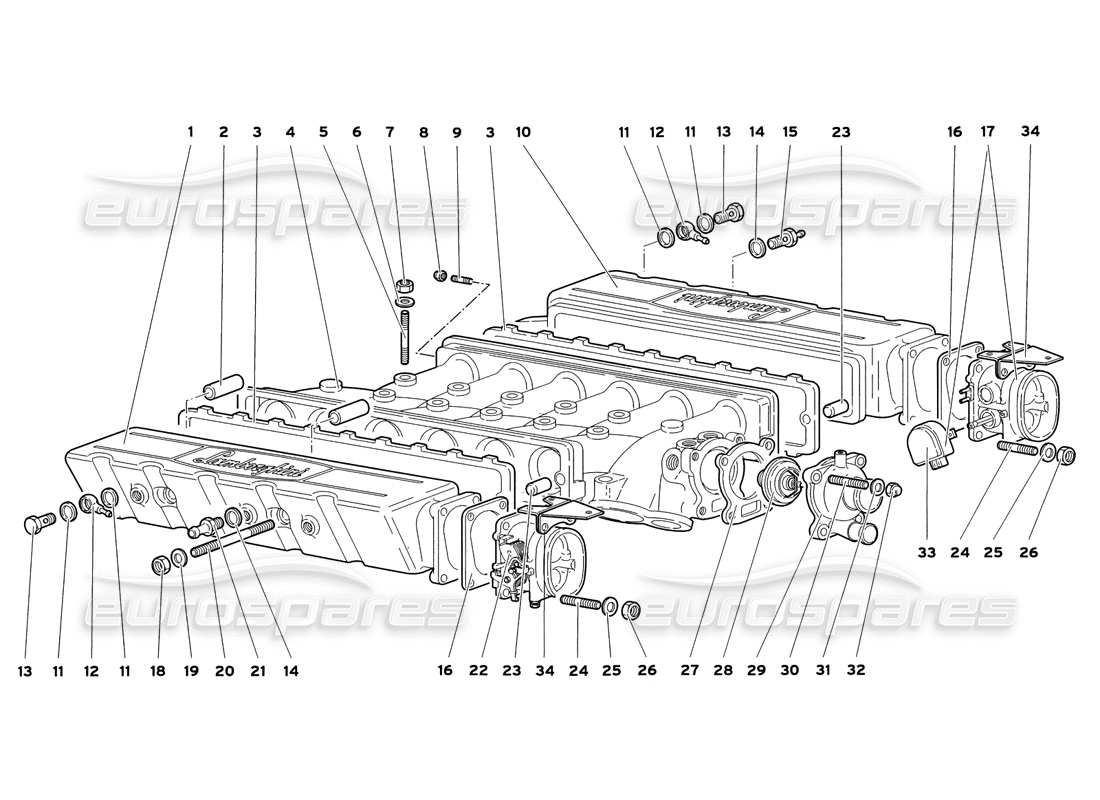

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 0013001063
RIGHT COVER
RIGHT COVER
from £3,333.20
from £3,333.20
# 002
MPN: 0013001226
SPACER
DISTANZIALE
from £27.41
from £27.41
# 003
MPN: 001323717
GASKET
Guarnizione
from £32.64
from £32.64
# 004
MPN: 490132008
Inlet Manifold
COLLETTORE ASPIRAZIONE
from £4,609.85
from £4,609.85
# 005
MPN: 008300614
STUD
PRIGIONIERO
Supersession
Supersession
# 006
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 007
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 008
MPN: 008200605
NUT
DADO
from £1.89
from £1.89
# 009
MPN: 008300613
STUD
PRIGIONIERO
from £3.07
from £3.07
# 010
MPN: 0013001062
LEFT COVER
COPERCHIO SX
from £3,333.20
from £3,333.20
# 011
MPN: 008401621
WASHER
RONDELLA
Supersession
Supersession
# 012
MPN: 0013001440
CONNECTION
RACCORDO
from £7.10
from £7.10
# 013
MPN: 0013001439
SCREW
VITE
from £13.31
from £13.31
# 014
MPN: 008401621
WASHER
RONDELLA
Supersession
Supersession
# 015
MPN: 001330455
CONNECTION
RACCORDO
from £20.86
from £20.86
# 016
MPN: 001326311
GASKET
Guarnizione
from £13.85
from £13.85
# 017
MPN: 001326293
L. THROTTLE HOLDER
CORPO FARFALLATO SX
from £891.30
from £891.30
# 018
MPN: 008201003
NUT
DADO
from £2.06
from £2.06
# 019
MPN: 008401008
WASHER
RONDELLA
Supersession
Supersession
# 020
MPN: 008301043
STUD
PRIGIONIERO
from £3.28
from £3.28
# 021
MPN: 001330882
CONNECTION
RACCORDO
Supersession
Supersession
# 022
MPN: 001326181
R. THROTTLE HOLDER
CORPO FARFALLATO DX
from £734.08
from £734.08
# 023
MPN: WHT003577
DOWEL
GRAND
from £1.16
from £1.16
# 024
MPN: WHT003028
STUD
PRIGIONIERO
from £12.54
from £12.54
# 025
MPN: 008410810
WASHER
RONDELLA
Supersession
Supersession
# 026
MPN: N01100845
NUT
DADO
from £0.47
from £0.47
This part replaces part number 008200801 - and 2 more. Click to view details
# 027
MPN: 001732808
GASKET
Guarnizione
from £14.77
from £14.77
# 028
MPN: 001726644
THERMOSTAT
TERMOSTATO
from £689.36
from £689.36
# 029
MPN: 001732806
COVER
COPERCHIO
from £371.65
from £371.65
# 030
MPN: 008300803
STUD
PRIGIONIERO
from £7.78
from £7.78
# 031
MPN: 008410810
WASHER
RONDELLA
Supersession
Supersession
# 032
MPN: 008200816
NUT
DADO
from £2.90
from £2.90
# 033
MPN: 001327641
POTENTIOMETER
POTENZIOMETRO
from £107.79
from £107.79
# 034
MPN: 001335307
BRACKET
STAFFA
from £17.42
from £17.42
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
