lamborghini diablo sv (1999) crankcase parts diagram

18.01.00 - crankcase

Lamborghini Diablo SV (1999) Crankcase Parts Diagram

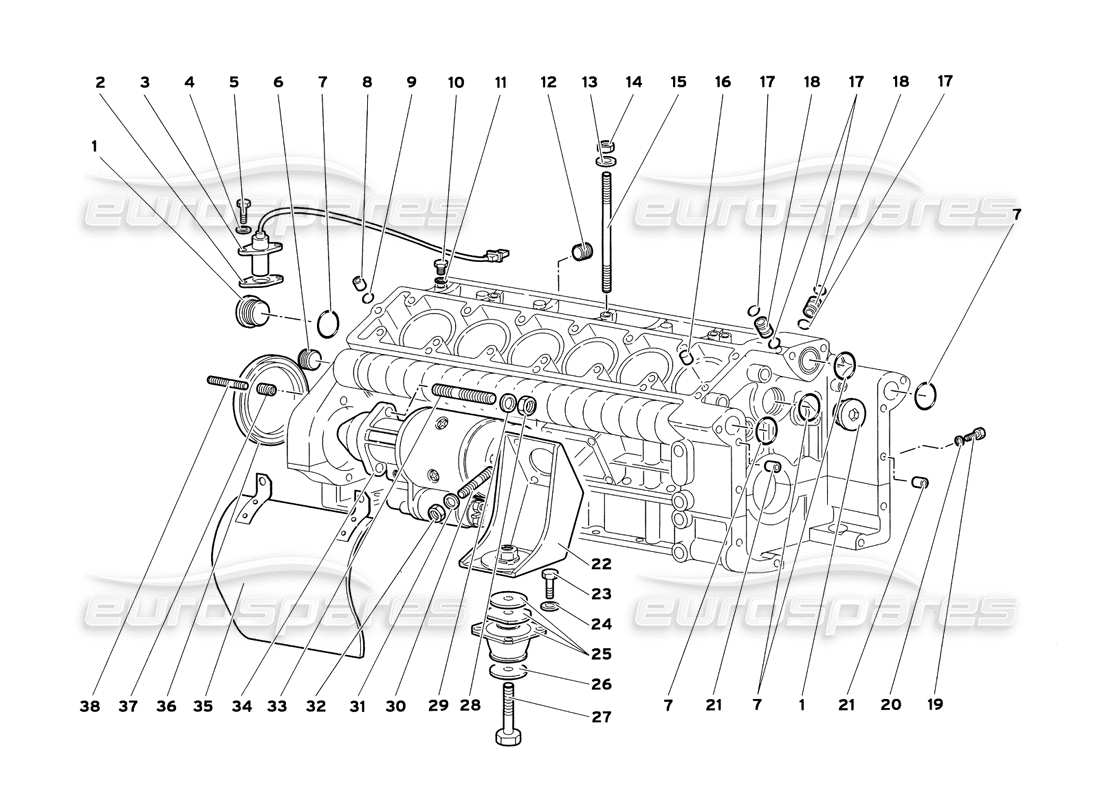

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 001830023
        PLUG
        TAPPO
        Supersession
        Supersession
        # 002
        MPN: 001628602
        SHIM
        SPESSORE Dl REGISTRO 0,4 MM
        Supersession
        Supersession
        # 002
        MPN: 07M103899
        SHIM
        SPESSORE Dl REGISTRO 0,2 MM
        from £3.34
        from £3.34
        # 003
        MPN: 07M905381
        TIMING SENSOR
        from £393.41
        from £393.41
        This part replaces part number 001628403
        # 004
        MPN: 008410502
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 005
        MPN: N01020717
        SCREW
        VITE
        from £0.47
        from £0.47
        This part replaces part number 008100504
        # 006
        MPN: 008933503
        PLUG
        TAPPO
        # 007
        MPN: 008603503
        SEAL
        ANELLO TENUTA
        from £2.61
        from £2.61
        This part replaces part number 008603501
        # 008
        MPN: 001832161
        DOWEL
        GRAND
        from £242.94
        from £242.94
        # 009
        MPN: 008601106
        SEAL
        ANELLO TENUTA
        # 010
        MPN: 008101402
        PLUG
        TAPPO
        from £18.20
        from £18.20
        # 011
        MPN: 008401425
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 012
        MPN: 008931209
        PLUG
        TAPPO
        # 013
        MPN: 008400801
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 014
        MPN: 008200809
        NUT
        DADO
        Supersession
        Supersession
        # 015
        MPN: 008300891
        STUD
        PRIGIONIERO
        from £9.47
        from £9.47
        # 017
        MPN: 008600705
        SEAL
        ANELLO TENUTA
        # 018
        MPN: 001833995
        DOWEL
        GRANO
        from £20.15
        from £20.15
        # 019
        MPN: 008100620
        BOLT
        VITE
        from £3.65
        from £3.65
        # 020
        MPN: WHT003041
        WASHER
        RONDELLA
        from £0.54
        from £0.54
        This part replaces part number 008400609 - and 1 more. Click to view details
        # 021
        MPN: 008851304
        DOWEL
        GRANO
        from £39.64
        from £39.64
        # 022
        MPN: 001835941
        SUPPORT
        SUPPORTO
        from £195.68
        from £195.68
        # 023
        MPN: 008101031
        SCREW
        VITE
        Supersession
        Supersession
        # 024
        MPN: 008411014
        WASHER
        RONDELLA
        from £0.51
        from £0.51
        # 025
        MPN: 400199703A
        FLEXIBLE SUPPORT
        SUPPORTO ELASTICO
        from £256.80
        from £256.80
        This part replaces part number 400199703
        # 026
        MPN: 001831606
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 027
        MPN: 004131471
        SCREW
        VITE
        from £21.18
        from £21.18
        # 028
        MPN: 001832869
        NUT
        DADO
        # 029
        MPN: 008411213
        WASHER
        RONDELLA
        from £1.41
        from £1.41
        # 030
        MPN: 008300814
        STUD
        PRIGIONIERO
        from £4.15
        from £4.15
        # 031
        MPN: 008410806
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 032
        MPN: N01100845
        NUT
        DADO
        from £0.47
        from £0.47
        This part replaces part number 008200801 - and 2 more. Click to view details
        # 033
        MPN: 008301249
        STUD
        PRIGIONIERO
        from £9.63
        from £9.63
        # 034
        MPN: 07M911023
        STARTER MOTOR
        from £3,951.42
        from £3,951.42
        # 035
        MPN: 001635959
        SHIELD
        PROTEZIONE
        from £405.17
        from £405.17
        # 036
        MPN: 07M103089
        SEAL
        from £134.88
        from £134.88
        # 038
        MPN: WHT003028
        STUD
        PRIGIONIERO
        from £12.54
        from £12.54
