lamborghini diablo sv (1999) oil sump parts diagram

18.03.00 - oil sump

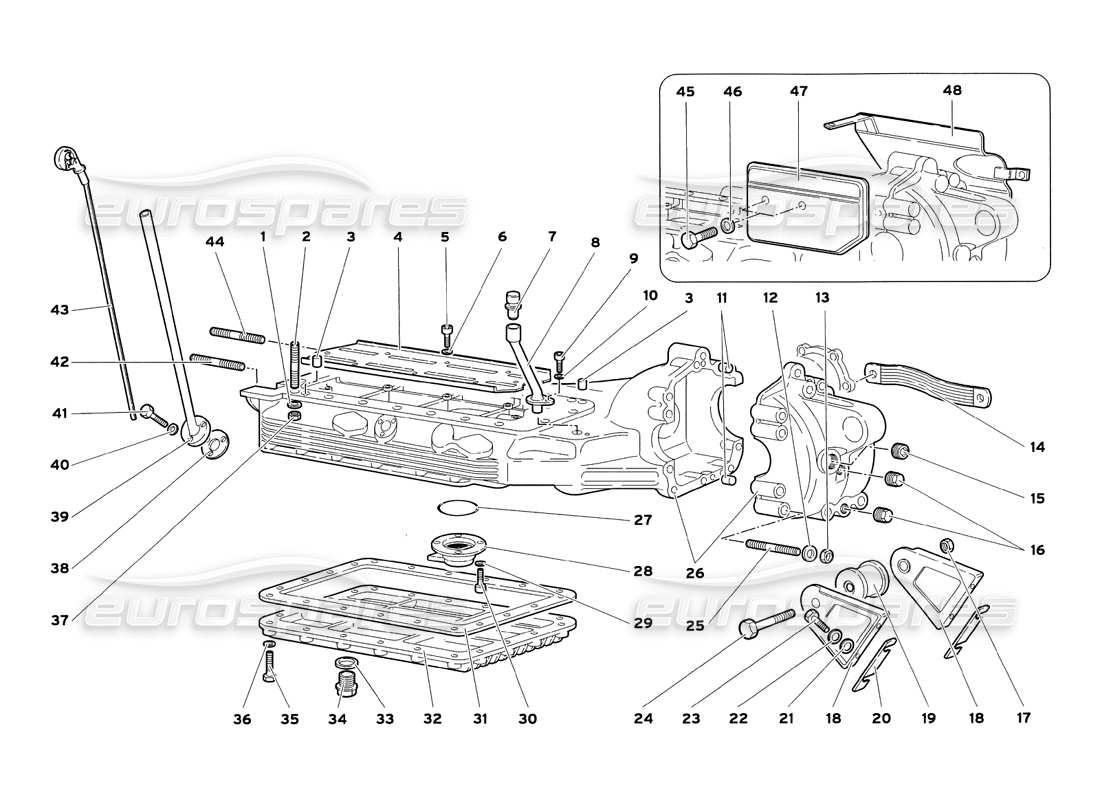

Lamborghini Diablo SV (1999) Oil Sump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 008410810
      WASHER
      RONDELLA
      Supersession
      Supersession
      # 002
      MPN: 008300806
      STUD
      PRIGIONIERO 70 MM
      from £3.48
      from £3.48
      # 002
      MPN: 008300897
      STUD
      PRIGIONIERO 106 MM
      from £9.37
      from £9.37
      # 002
      MPN: WHT003031
      STUD
      PRIGIONIERO 28 MM
      from £5.85
      from £5.85
      This part replaces part number 008300839
      # 003
      MPN: 008850806
      DOWEL
      GRANO
      Supersession
      Supersession
      # 004
      MPN: 001827775
      PLATE
      PARATIA ANTISBATTIMENTO
      from £53.81
      from £53.81
      # 005
      MPN: 008700644
      SCREW
      VITE
      Supersession
      Supersession
      # 006
      MPN: 008410602
      WASHER
      RONDELLA
      from £27.52
      from £27.52
      # 007
      MPN: 0B9507141
      VENT PIPE
      SFIATO OLIO
      from £41.85
      from £41.85
      # 008
      MPN: 0023001636
      PIPE
      Tubo
      from £55.23
      from £55.23
      # 009
      MPN: 008700547
      SCREW
      VITE
      from £0.51
      from £0.51
      # 010
      MPN: 008410503
      WASHER
      RONDELLA
      Supersession
      Supersession
      # 011
      MPN: 008850806
      DOWEL
      GRANO
      Supersession
      Supersession
      # 012
      MPN: WHT000768
      WASHER
      from £1.17
      from £1.17
      This part replaces part number 008410806 - and 1 more. Click to view details
      # 013
      MPN: N10155210
      NUT
      DADO
      from £1.21
      from £1.21
      This part replaces part number 008201001
      # 014
      MPN: 001604328
      GROUND CABLE
      CAVO MASSA
      Supersession
      Supersession
      # 015
      MPN: 008932602
      PLUG
      TAPPO
      from £2.20
      from £2.20
      # 016
      MPN: 086301141A
      MAGNETIC PLUG
      TAPPO MAGNETICO
      from £22.53
      from £22.53
      # 017
      MPN: 008201416
      NUT
      DADO
      from £1.21
      from £1.21
      # 018
      MPN: 004126765
      BRACKET
      STAFFA
      from £172.46
      from £172.46
      # 019
      MPN: 0B9501144
      SUPPORT MOUNT
      from £116.72
      from £116.72
      This part replaces part number 008921408 - and 1 more. Click to view details
      # 019
      MPN: 0B9501144
      SUPPORT MOUNT
      from £116.72
      from £116.72
      This part replaces part number 008921408 - and 1 more. Click to view details
      # 020
      MPN: 004126766
      SHIM
      SPESSORE DI REGISTRO
      # 021
      MPN: 008400801
      WASHER
      RONDELLA
      Supersession
      Supersession
      # 022
      MPN: 008410806
      WASHER
      RONDELLA
      Supersession
      Supersession
      # 023
      MPN: 008100862
      SCREW
      VITE
      from £0.53
      from £0.53
      # 024
      MPN: 008101430
      SCREW
      VITE
      from £2.20
      from £2.20
      # 025
      MPN: 0018001643
      STUD
      PRIGIONIERO
      from £8.13
      from £8.13
      # 026
      MPN: 450132001
      oil sump
      COPPA OLIO
      from £5,791.33
      from £5,791.33
      # 027
      MPN: 008609302
      SEAL
      ANELLO TENUTA
      # 028
      MPN: 001832017
      FLANGE
      FLANGIA
      from £206.04
      from £206.04
      # 029
      MPN: 008410602
      WASHER
      RONDELLA
      from £28.28
      from £28.28
      # 030
      MPN: 008700644
      SCREW
      VITE
      Supersession
      Supersession
      # 031
      MPN: 001826521
      GASKET
      Guarnizione
      from £78.27
      from £78.27
      # 032
      MPN: 001831852
      LOWER COVER
      COPERCHIOINFERIORE
      from £312.14
      from £312.14
      # 033
      MPN: 008402202
      WASHER
      RONDELLA
      from £2.69
      from £2.69
      # 034
      MPN: 008932211
      DRAIN PLUG
      TAPPO Dl SCARICO
      from £14.53
      from £14.53
      This part replaces part number 008932206
      # 035
      MPN: 008100603
      SCREW
      VITE
      from £0.84
      from £0.84
      # 036
      MPN: 008410602
      WASHER
      RONDELLA
      from £25.25
      from £25.25
      # 037
      MPN: N01100845
      NUT
      DADO
      from £0.47
      from £0.47
      This part replaces part number 008200801 - and 2 more. Click to view details
      # 038
      MPN: 001830006
      GASKET
      Guarnizione
      from £4.67
      from £4.67
      # 039
      MPN: 001837263
      PIPE
      TUBO PORTA ASTA
      from £65.34
      from £65.34
      # 040
      MPN: 008410602
      WASHER
      RONDELLA
      from £28.47
      from £28.47
      # 041
      MPN: 008100601
      SCREW
      VITE
      Supersession
      Supersession
      # 042
      MPN: 008300808
      STUD
      use : WHT003027
      Supersession
      Supersession
      # 043
      MPN: 001837261
      LEVEL ROD
      ASTA LIVELLO
      from £195.41
      from £195.41
      # 044
      MPN: WHT003028
      STUD
      PRIGIONIERO
      from £12.54
      from £12.54
      # 045
      MPN: 008100830
      SCREW
      (Valid for USA - July 1999) VITE
      from £0.53
      from £0.53
      # 045
      MPN: 008100830
      SCREW
      (Valid for CANADA - July 1999) VITE
      from £0.53
      from £0.53
      # 046
      MPN: 008400801
      WASHER
      (Valid for USA - July 1999) RONDELLA
      Supersession
      Supersession
      # 046
      MPN: 008400801
      WASHER
      (Valid for CANADA - July 1999) RONDELLA
      Supersession
      Supersession
      # 047
      MPN: 001836047
      PLATE
      (Valid for USA - July 1999) PARATIA
      from £252.88
      from £252.88
      # 047
      MPN: 001836047
      PLATE
      (Valid for CANADA - July 1999) PARATIA
      from £252.88
      from £252.88
      # 048
      MPN: 001836048
      PLATE
      (Valid for USA - July 1999) PARATIA
      from £252.88
      from £252.88
      # 048
      MPN: 001836048
      PLATE
      (Valid for CANADA - July 1999) PARATIA
      from £252.88
      from £252.88
