24.05.00 - Main Shaft

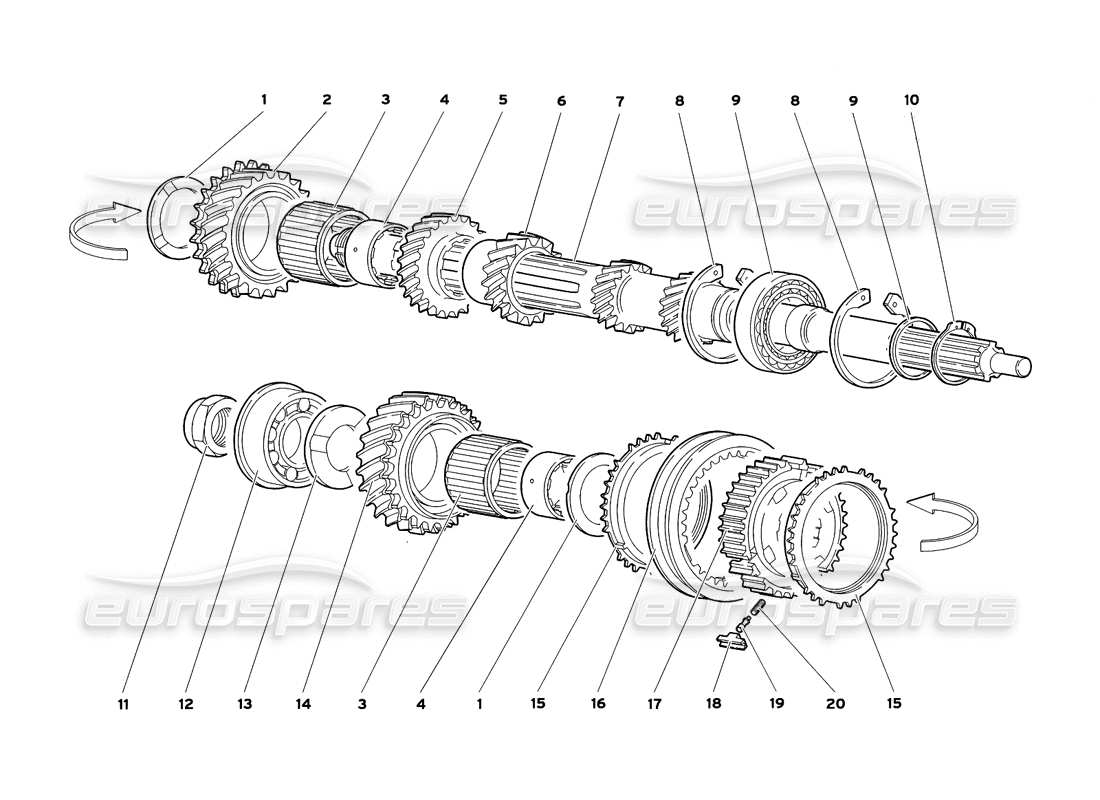

Lamborghini Diablo SV (1999) Main Shaft Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 002424864
SPACER
DISTANZIALE
from £105.93
from £105.93
# 002
MPN: 0024001637
GEAR
INGRANAGGIO 4° MARCIA
# 003
MPN: 008524701
ROLLER CAGE
GABBIA A RULLI
from £30.10
from £30.10
# 004
MPN: 002420124
SPLINED BUSHING
BOCCOLA DENTATA
from £286.21
from £286.21
# 005
MPN: 002424873
GEAR
INGRANAGGIO 3° MARCIA
from £161.26
from £161.26
# 006
MPN: 002427097
GEAR
INGRANAGGIO 2° MARCIA
from £158.36
from £158.36
# 007
MPN: 002430938
Main Shaft
ALBERO PRIMARIO
from £669.10
from £669.10
# 008
MPN: 008578001
RETAINER RING
ANELLO RITEGNO
from £3.72
from £3.72
# 009
MPN: 008524010
BEARING
CUSCINETTO
Supersession
Supersession
# 010
MPN: 002424859
RING
ANELLO
from £14.88
from £14.88
# 011
MPN: 002431824
NUT
DADO
from £169.56
from £169.56
# 012
MPN: 008503006
BEARING
CUSCINETTO
from £356.53
from £356.53
This part replaces part number 008503004
# 013
MPN: 002424861
SPACER
DISTANZIALE
from £82.75
from £82.75
# 014
MPN: 0024001212
GEAR
INGRANAGGIO 5° MARCIA
from £275.27
from £275.27
# 015
MPN: 002421416
FRICTION RING
ANELLO SINCRONIZZATORE
from £677.96
from £677.96
# 016
MPN: 002425150
SELECTION-GEAR CHA.
ANELLO INNESTO
from £870.57
from £870.57
# 017
MPN: 002421680
SYNCHRONIZER
CORPO SINCRONIZZATORE
from £203.56
from £203.56
# 018
MPN: 002421420
BRAKE PAD
PATTING
from £16.69
from £16.69
# 019
MPN: 002421419
PIN
PERNO
from £19.58
from £19.58
# 020
MPN: 002421418
SPRING
MOLLA
from £38.05
from £38.05
