3132.02.00 - Electrohydraulic ABS ECU

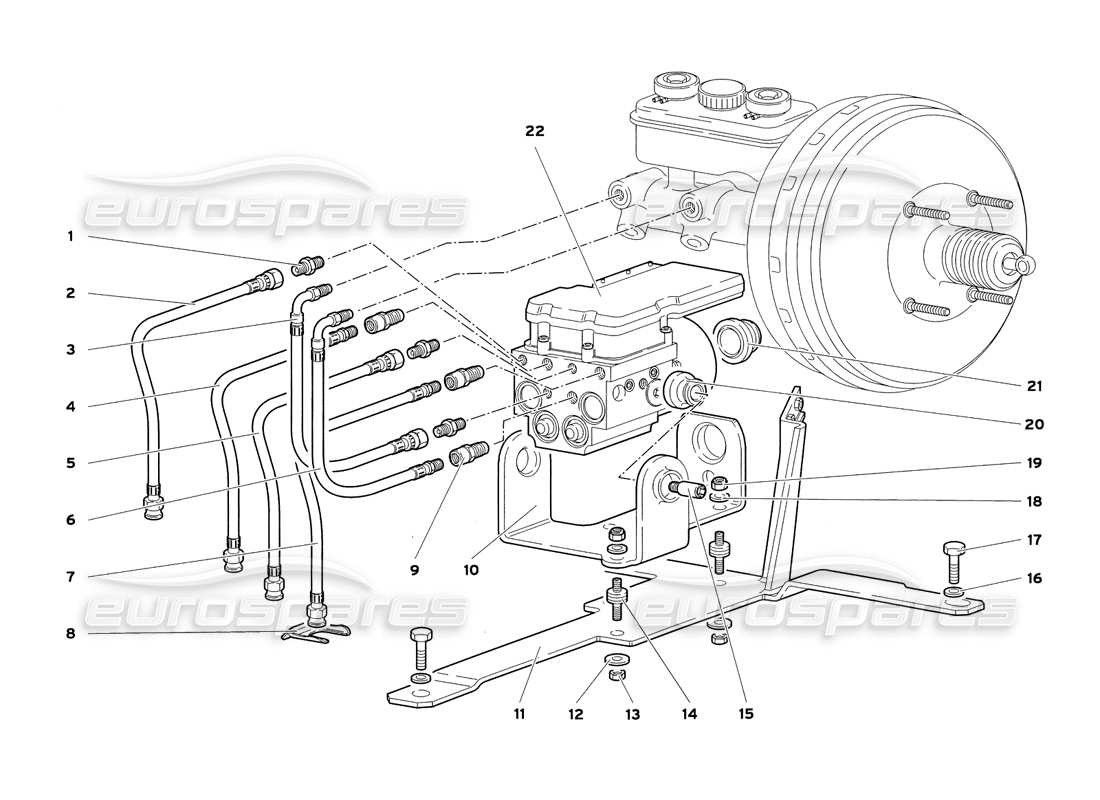

Lamborghini Diablo SV (1999) Electrohydraulic ABS ECU Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0031001088
CONNECTION
RACCORDO
# 002
MPN: 0032001097
FLEX. HOSE
TUBO FLESSIBILE
from £34.16
from £34.16
# 002
MPN: 0032001508
FLEX. HOSE
(Valid for GB - July 1999) TUBO FLESSIBILE
from £59.06
from £59.06
# 002
MPN: 0032001508
FLEX. HOSE
(Valid for AUSTRALIA - July 1999) TUBO FLESSIBILE
from £59.06
from £59.06
# 003
MPN: 0032001096
FLEX. HOSE
TUBO FLESSIBILE
from £89.49
from £89.49
# 003
MPN: 0032001504
FLEX. HOSE
(Valid for GB - July 1999) TUBO FLESSIBILE
from £50.58
from £50.58
# 003
MPN: 0032001504
FLEX. HOSE
(Valid for AUSTRALIA - July 1999) TUBO FLESSIBILE
from £50.58
from £50.58
# 004
MPN: 0032001101
FLEX. HOSE
TUBO FLESSIBILE
from £35.58
from £35.58
# 004
MPN: 0032001507
FLEX. HOSE
(Valid for GB - July 1999) TUBO FLESSIBILE
from £43.62
from £43.62
# 004
MPN: 0032001507
FLEX. HOSE
(Valid for AUSTRALIA - July 1999) TUBO FLESSIBILE
from £43.62
from £43.62
# 005
MPN: 0031001091
FLEX. HOSE
TUBO FLESSIBILE
from £32.84
from £32.84
# 005
MPN: 0031001506
FLEX. HOSE
(Valid for GB - July 1999) TUBO FLESSIBILE
from £59.06
from £59.06
# 005
MPN: 0031001506
FLEX. HOSE
(Valid for AUSTRALIA - July 1999) TUBO FLESSIBILE
from £59.06
from £59.06
# 006
MPN: 0031001090
FLEX. HOSE
TUBO FLESSIBILE
from £32.84
from £32.84
# 006
MPN: 0031001503
FLEX. HOSE
(Valid for GB - July 1999) TUBO FLESSIBILE
from £59.06
from £59.06
# 006
MPN: 0031001503
FLEX. HOSE
(Valid for AUSTRALIA - July 1999) TUBO FLESSIBILE
from £59.06
from £59.06
# 007
MPN: 0031001094
FLEX. HOSE
TUBO FLESSIBILE
from £62.43
from £62.43
# 007
MPN: 0031001505
FLEX. HOSE
(Valid for GB - July 1999) TUBO FLESSIBILE
from £43.62
from £43.62
# 007
MPN: 0031001505
FLEX. HOSE
(Valid for AUSTRALIA - July 1999) TUBO FLESSIBILE
from £43.62
from £43.62
# 008
MPN: 003130840
PLATE
Piastrina
from £16.77
from £16.77
# 009
MPN: 410614185
CONNECTION
RACCORDO
from £26.51
from £26.51
# 010
MPN: 0031001291
BRACKET
STAFFA
# 011
MPN: 0031001083
SUPPORT
SUPPORTO
from £110.69
from £110.69
# 011
MPN: 0031001552
SUPPORT
(Valid for GB - July 1999) SUPPORTO
from £63.02
from £63.02
# 011
MPN: 0031001552
SUPPORT
(Valid for AUSTRALIA - July 1999) SUPPORTO
from £63.02
from £63.02
# 012
MPN: 008400607
WASHER
RONDELLA
Supersession
Supersession
# 013
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 014
MPN: 008920602
ELASTIC SUPPORT
SUPPORTO ELASTICO
from £8.91
from £8.91
# 015
MPN: 0031001000
PIN
PERNO
# 016
MPN: 008410819
WASHER
RONDELLA
from £1.46
from £1.46
# 017
MPN: N01029315
SCREW
VITE
from £0.83
from £0.83
# 018
MPN: 008410612
WASHER
RONDELLA
Supersession
Supersession
# 019
MPN: N01100637
NUT
DADO
from £0.53
from £0.53
This part replaces part number 008200604
# 020
MPN: 0031001001
ELASTIC SUPPORT
SUPPORTO ELASTICO
# 021
MPN: 0031000999
ELASTIC SUPPORT
SUPPORTO ELASTICO
# 022
MPN: 0031000998
ABS ECU
CENTRALINA ABS
from £3,073.51
from £3,073.51
