lamborghini diablo sv (1999) steering parts diagram

43.03.00 - Steering

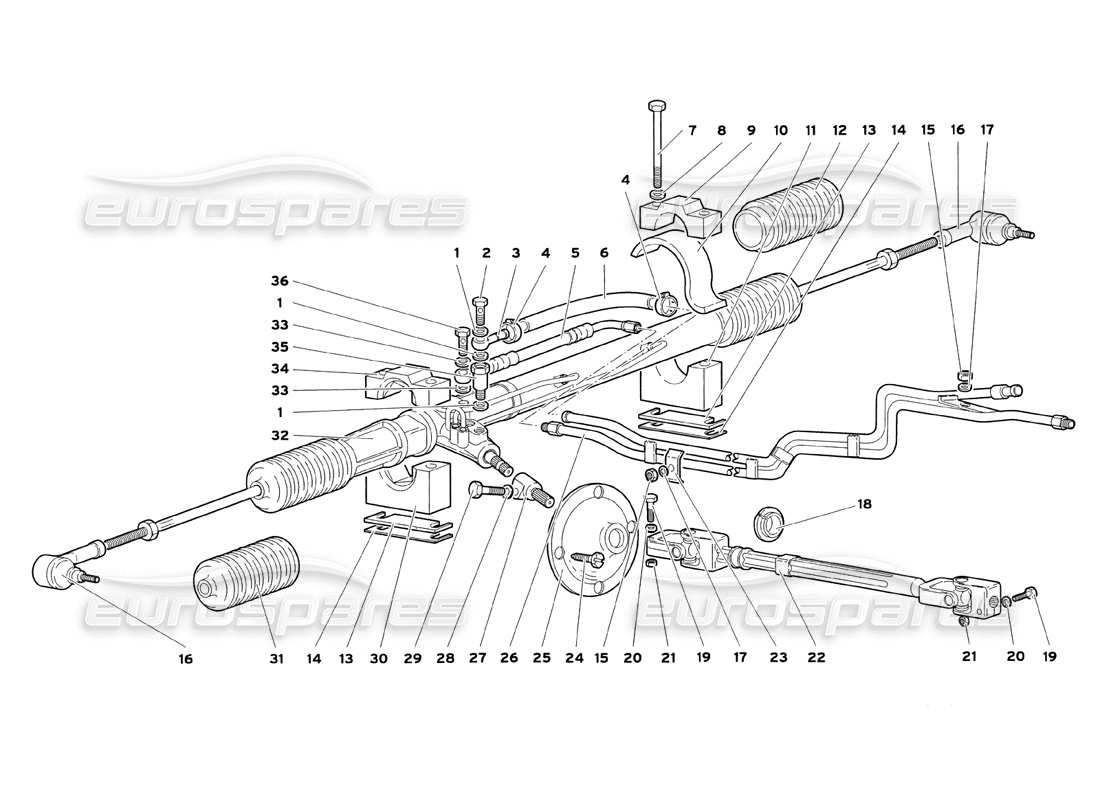

Lamborghini Diablo SV (1999) Steering Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008401621
WASHER
RONDELLA
Supersession
Supersession
# 002
MPN: 003101941
SCREW
Vite forata
from £2.64
from £2.64
# 003
MPN: 004033471
CONNECTION
RACCORDO
# 004
MPN: 008831320
STRAP
FASCETTA
from £2.18
from £2.18
# 005
MPN: 004033464
PIPE
Tubo
from £297.44
from £297.44
# 006
MPN: 004033459
PIPE
Tubo
from £16.88
from £16.88
# 007
MPN: 008101076
SCREW
VITE
from £1.93
from £1.93
# 008
MPN: 008401007
WASHER
RONDELLA
from £0.53
from £0.53
# 009
MPN: 410422761A
RETAINER
CAVALLOTTO
from £205.91
from £205.91
# 010
MPN: 004331587
FLEX PAD
THICKNESS IN COMMA
Supersession
Supersession
# 011
MPN: 004333655
SUPPORT
SUPPORTO
from £215.73
from £215.73
# 012
MPN: 410419831
BOOT
CUFFIA
from £777.32
from £777.32
This part replaces part number 004335023
# 013
MPN: 004333658
SHIM
SPESSORE Dl REGISTRO 1 MM
from £5.94
from £5.94
# 014
MPN: 004333657
SHIM
SPESSORE Dl REGISTRO 0,5 MM
from £9.21
from £9.21
# 015
MPN: N0211963
NUT
DADO
from £0.52
from £0.52
# 016
MPN: 400419811A
COUPLING HEAD
TESTA GIUNTO SFERICO
from £832.66
from £832.66
This part replaces part number 004334555
# 017
MPN: WHT001187
WASHER
RONDELLA
from £0.54
from £0.54
This part replaces part number 008400502
# 018
MPN: 0043002396
BUSHING
BOCCOLA
from £62.18
from £62.18
# 019
MPN: 008700843
SCREW
VITE
from £2.55
from £2.55
# 020
MPN: 008410823
WASHER
RONDELLA
from £0.53
from £0.53
# 021
MPN: 008200809
NUT
DADO
Supersession
Supersession
# 022
MPN: 0043002198
JOINTED SHAFT
ALBERO SNODATO
Supersession
Supersession
# 023
MPN: 004033480
PLATE
Piastrina
# 024
MPN: 008700673
SCREW
VITE
from £6.62
from £6.62
# 025
MPN: 410422326
GASKET
Guarnizione
from £140.51
from £140.51
# 026
MPN: 004038062
PIPE
Tubo
from £257.03
from £257.03
# 027
MPN: 004332458
CONNECTION
CONNESSIONE
from £220.55
from £220.55
# 028
MPN: 008410820
WASHER
RONDELLA
Supersession
Supersession
# 029
MPN: 008100831
SCREW
VITE
from £0.54
from £0.54
# 030
MPN: 004333656
SUPPORT
SUPPORTO
Supersession
Supersession
# 031
MPN: 410419831
BOOT
CUFFIA
from £777.32
from £777.32
This part replaces part number 004335023
# 032
MPN: 410419063
LHD STEERING RACK
(power steering model)
from £2,727.95
from £2,727.95
This part replaces part number 004333375
# 033
MPN: 008401408
WASHER
RONDELLA
from £1.29
from £1.29
# 034
MPN: 410422874
RETAINER
CAVALLOTTO
from £468.64
from £468.64
# 035
MPN: 004033458
CONNECTION
RACCORDO
# 036
MPN: 005124347
CONNECTION
RACCORDO
Supersession
Supersession
