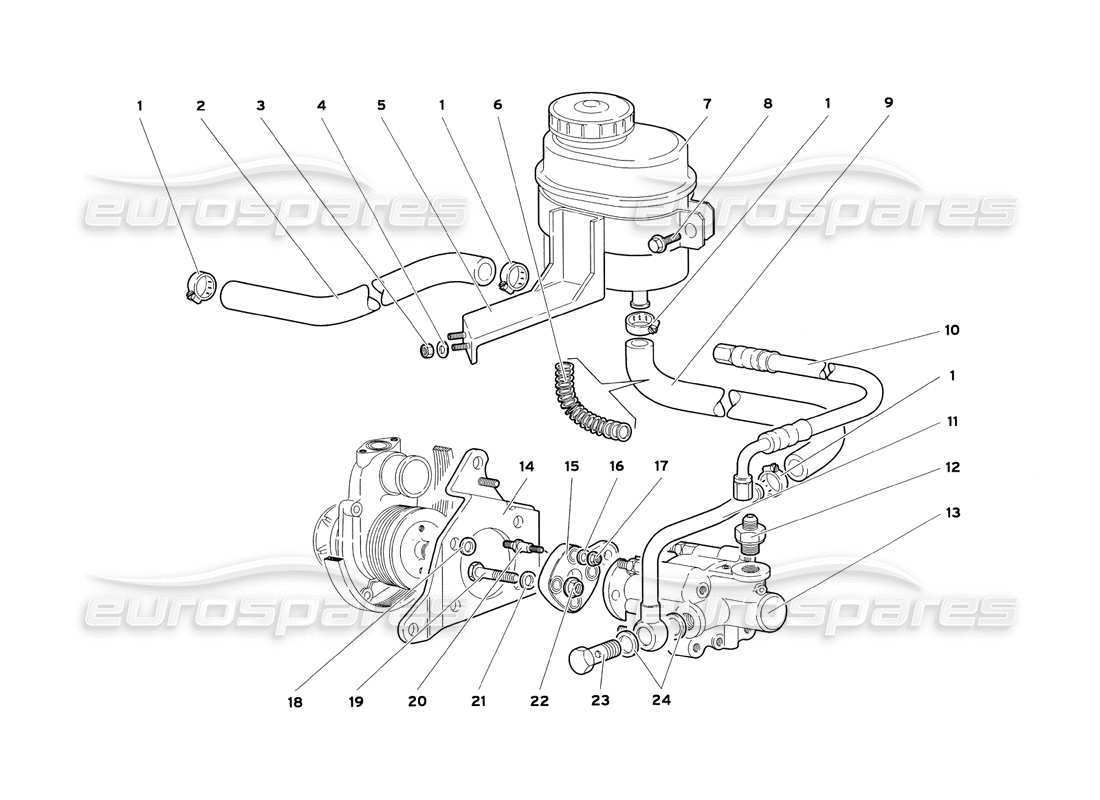

43.04.00 - Steering
Lamborghini Diablo SV (1999) Steering Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008831524
STRAP
FASCETTA
# 002
MPN: 004033461
PIPE
Tubo
from £7.89
from £7.89
# 003
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 004
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 005
MPN: 004034058
SUPPORT
SUPPORTO
from £87.89
from £87.89
# 006
MPN: 410201212
SPRING
MOLLA
from £24.51
from £24.51
# 007
MPN: 004033456
OIL RESERVOIR
SERBATOIO OLIO
from £300.14
from £300.14
# 008
MPN: 008700663
SCREW
VITE
from £0.54
from £0.54
# 009
MPN: 004033457
PIPE
Tubo
from £31.09
from £31.09
# 010
MPN: 004033465
PIPE
Tubo
from £284.48
from £284.48
# 011
MPN: 004033467
CONNECTION
RACCORDO
from £58.87
from £58.87
# 012
MPN: 004033472
CONNECTION
RACCORDO
from £10.74
from £10.74
# 013
MPN: 004036816
oil pump
OIL PUMP
from £2,624.19
from £2,624.19
This part replaces part number 004032364
# 014
MPN: 004037040
SUPPORT
SUPPORTO
from £75.78
from £75.78
# 015
MPN: 001737220
FLEXIBLE JOINT
GIUNTO ELASTICO
Supersession
Supersession
# 016
MPN: WHT003040
WASHER
RONDELLA
from £4.55
from £4.55
# 017
MPN: N0211963
NUT
DADO
from £0.53
from £0.53
# 018
MPN: 008400816
WASHER
RONDELLA
Supersession
Supersession
# 019
MPN: 004037039
SCREW
VITE
from £27.16
from £27.16
# 020
MPN: 001737044
PIN
PERNO
from £117.74
from £117.74
# 021
MPN: 008400816
WASHER
RONDELLA
Supersession
Supersession
# 022
MPN: N90226404
NUT
DADO
from £1.26
from £1.26
# 023
MPN: 004009760
SCREW
Vite forata
Supersession
Supersession
# 024
MPN: 008401819
WASHER
RONDELLA
Supersession
Supersession
