52.02.00 - Rear Suspension

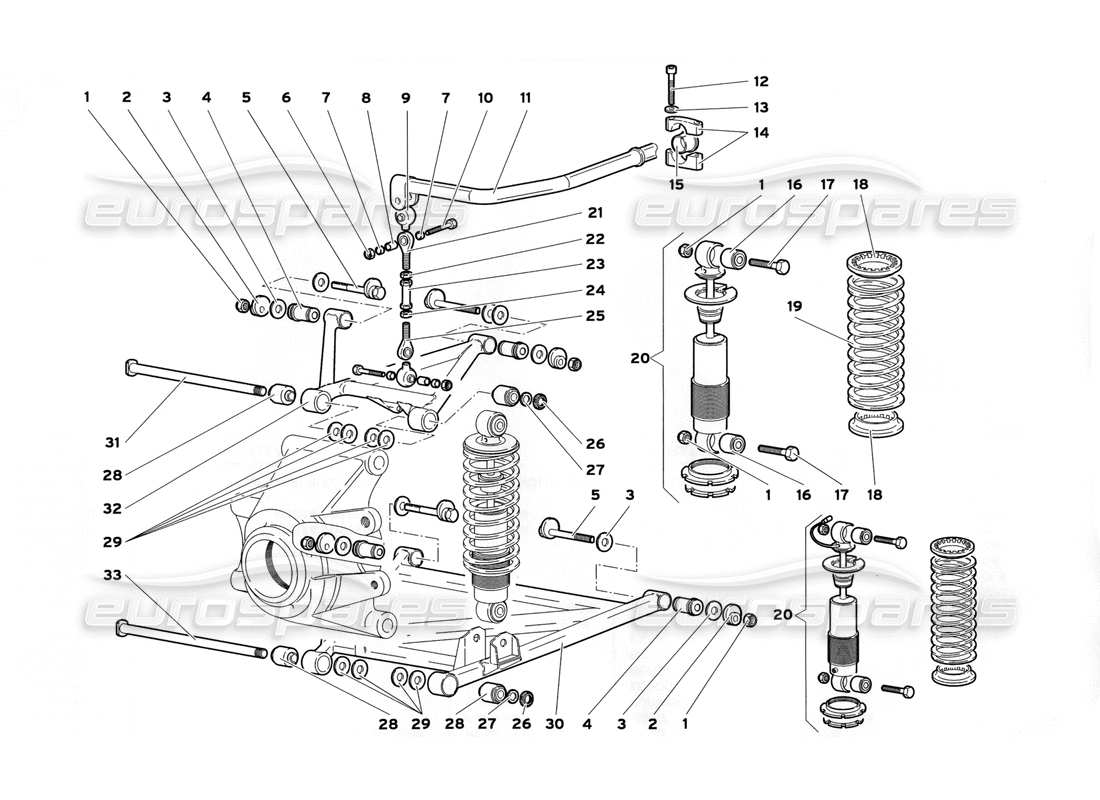

Lamborghini Diablo SV (1999) Rear Suspension Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: WHT003355
NUT USE (WHT003355)
DADO
from £13.28
from £13.28
# 002
MPN: 410407127A
BOLT
ECCENTRICO
from £608.71
from £608.71
This part replaces part number 005231923
# 003
MPN: 005133488
SHIM
SPESSORE1,5 MM
Supersession
Supersession
# 003
MPN: 410407295
SHIM
SPESSORE1 MM
from £2.73
from £2.73
# 003
MPN: 410407295B
SHIM
SPESSORE2 MM
from £2.39
from £2.39
# 003
MPN: 410407295C
SHIM
SPESSORE 2,5 MM
from £2.64
from £2.64
# 003
MPN: 410407295D
SHIM
SPESSORE3 MM
from £17.99
from £17.99
# 004
MPN: 008921206
RESILIENT BUSHING
BOCCOLA ELASTICA
from £29.93
from £29.93
# 005
MPN: 410407127A
BOLT
PERNO CON ECCENTRICO
from £608.71
from £608.71
This part replaces part number 005231923
# 006
MPN: 008200809
NUT
DADO
Supersession
Supersession
# 007
MPN: 005227297
BUSHING
BOCCOLA
from £18.21
from £18.21
# 008
MPN: 005227298
BUSHING
BOCCOLA
from £11.08
from £11.08
# 009
MPN: 005109714
BOOT
CUFFIA
from £16.55
from £16.55
# 010
MPN: 008100807
SCREW
VITE
from £0.51
from £0.51
# 011
MPN: 005234393
TORSION BAR
BARRA TORSIONE
from £2,168.12
from £2,168.12
# 012
MPN: WHT002960
SCREW
VITE
from £5.31
from £5.31
# 013
MPN: 008410602
WASHER
RONDELLA
from £27.52
from £27.52
# 014
MPN: 005230258
RETAINER
CAVALLOTTO
from £195.68
from £195.68
# 015
MPN: 005238302
BUSHING
BOCCOLA
from £88.31
from £88.31
This part replaces part number 005230804
# 016
MPN: 410512383
RESILIENT BUSHING
from £356.24
from £356.24
# 017
MPN: 008101269
SCREW
VITE
Supersession
Supersession
# 018
MPN: 410512385
RUBBER RING
from £32.34
from £32.34
# 019
MPN: 005226157
SPRING
MOLLA
from £239.61
from £239.61
# 020
MPN: 005233166
SHOCK ABSORBER (LIFTING SYSTEM)
use part number 0R1320014 kit
from £3,426.33
from £3,426.33

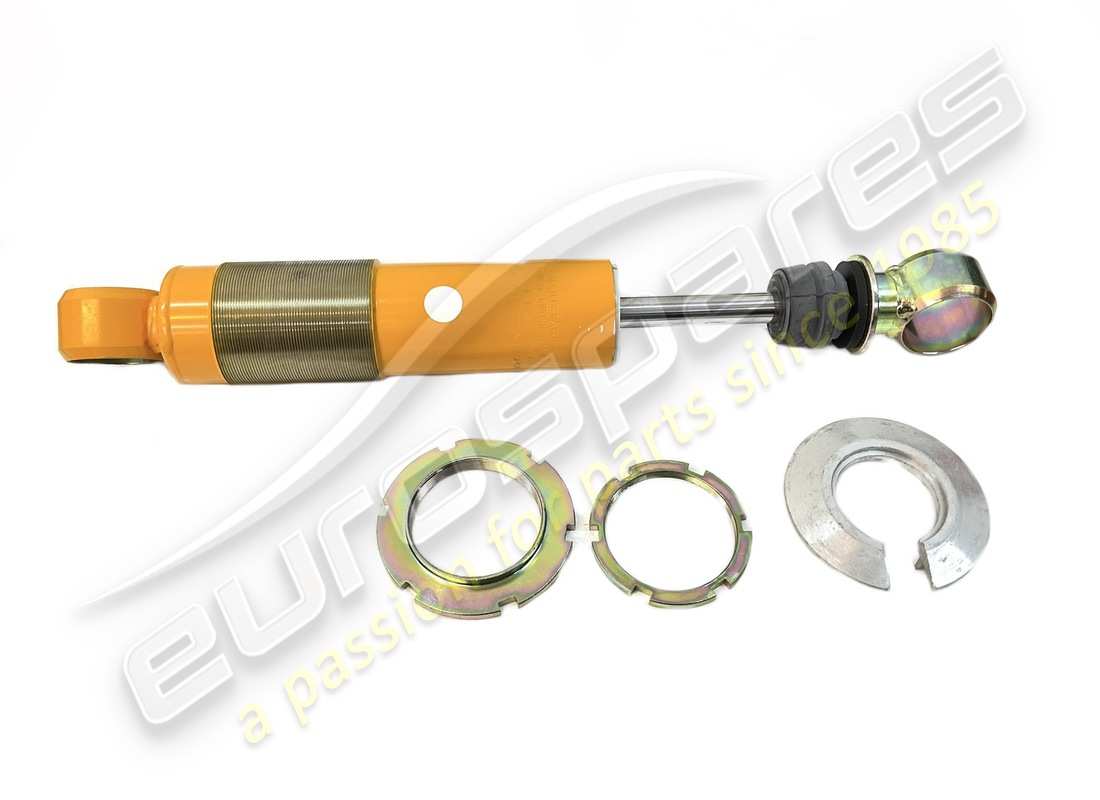

# 020
MPN: 005233269
SHOCK ABSORBER
AMMORTIZZATORE
from £477.57
from £477.57
# 021
MPN: 417801931A
BALL JOINT
GIUNTO SFERICO
from £160.39
from £160.39
This part replaces part number 005206963 - and 1 more. Click to view details
# 022
MPN: 008201034
NUT
DADO
Supersession
Supersession
# 023
MPN: 005209770
TIE ROD
TIRANTE
from £154.04
from £154.04
# 024
MPN: 008201035
NUT
DADO
from £0.91
from £0.91
# 025
MPN: 005227295
BALL JOINT
GIUNTO SFERICO
from £72.47
from £72.47
# 026
MPN: 008251702
PLUG
GHIERA
from £2.41
from £2.41
This part replaces part number 008251701
# 027
MPN: 008401708
WASHER
RONDELLA
from £1.58
from £1.58
# 028
MPN: 005225207
RESILIENT BUSHING
BOCCOLA ELASTICA
from £127.10
from £127.10
# 029
MPN: 008401710
WASHER
RONDELLA
from £26.12
from £26.12
# 030
MPN: 005225906
ARM
BRACCIO INFERIORE DX
from £1,119.71
from £1,119.71
# 030
MPN: 005225907
ARM
BRACCIO INFERIORE SX
from £1,111.07
from £1,111.07
# 031
MPN: 005225204
PIN
PERNO
from £57.79
from £57.79
# 032
MPN: 005225908
RH UPPER SUSPENSION ARM
from £1,344.52
from £1,344.52
# 032
MPN: 005225909
ARM
BRACCIO SUPERIORE SX
from £1,539.06
from £1,539.06
# 033
MPN: 005225205
PIN
PERNO
from £57.79
from £57.79
