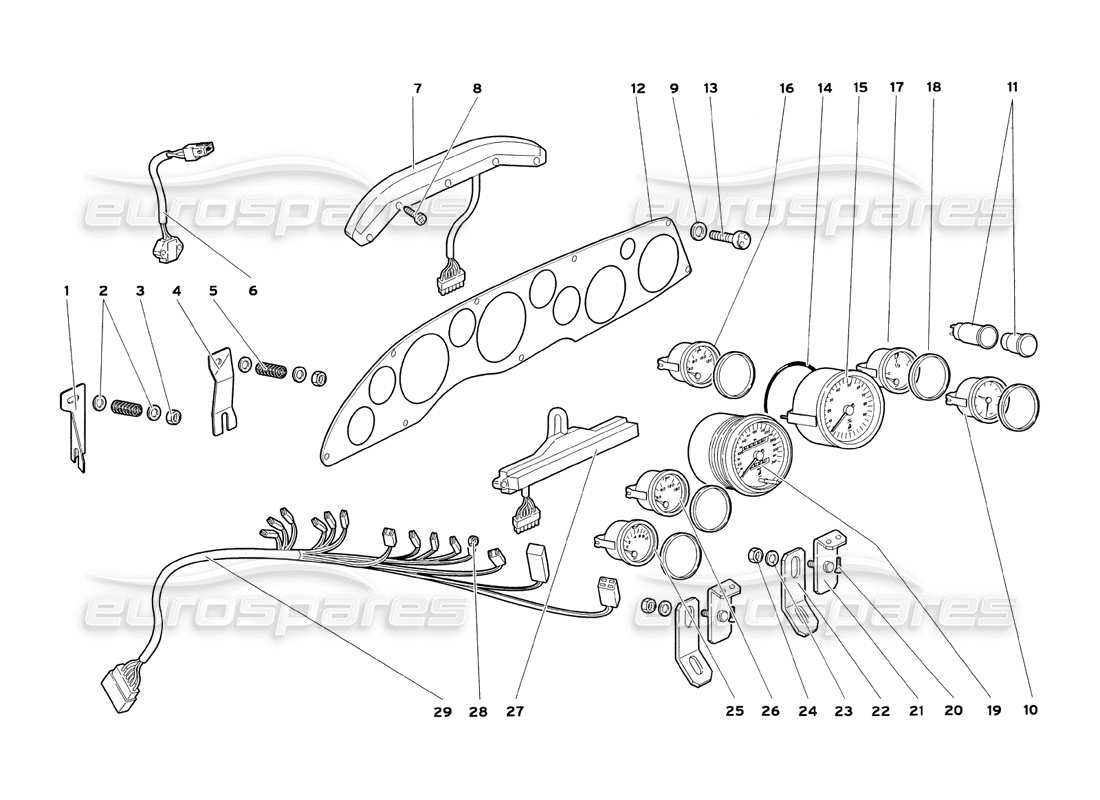

60.01.00 - dashboard instruments

Lamborghini Diablo SV (1999) Dashboard Instruments Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009414415
LEFT BRACKET
STAFFA SX
from £43.53
from £43.53
# 001
MPN: 009414422
LEFT BRACKET
(Valid for GB - July 1999) STAFFA SX
from £30.68
from £30.68
# 001
MPN: 009414422
LEFT BRACKET
(Valid for AUSTRALIA - July 1999) STAFFA SX
from £30.68
from £30.68
# 002
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 003
MPN: N01100637
NUT
DADO
from £0.53
from £0.53
This part replaces part number 008200604
# 004
MPN: 009414414
RIGHT BRACKET
STAFFA DX
from £27.82
from £27.82
# 004
MPN: 009414435
RIGHT BRACKET
(Valid for GB - July 1999) STAFFA DX
from £21.27
from £21.27
# 004
MPN: 009414435
RIGHT BRACKET
(Valid for AUSTRALIA - July 1999) STAFFA DX
from £21.27
from £21.27
# 005
MPN: 009414416
SPRING
MOLLA
from £11.77
from £11.77
# 006
MPN: 004526662
TEMPERATURE SENS.
SENSORE TEMPERATURA ESTERNA
from £135.31
from £135.31
# 007
MPN: 0060002492
WARNING LIGHTS
GRUPPO SPIE
from £266.15
from £266.15
# 008
MPN: 008700449
SCREW
VITE
from £1.87
from £1.87
# 009
MPN: 008220306
SPRING
MOLLA
from £2.20
from £2.20
# 010
MPN: 0060002603
CLOCK
OROLOGIO
from £399.63
from £399.63
# 011
MPN: 005933188
CIGAR LIGHTER
ACCENDISIGARI
from £14.55
from £14.55
# 012
MPN: 0060002596
INSTRUMENT PANEL
PLANCIA PORTASTRUMENTI
from £223.86
from £223.86
# 012
MPN: 0060002617
INSTRUMENT PANEL
(Valid for GB - July 1999) PLANCIA PORTASTRUMENTI
from £223.86
from £223.86
# 012
MPN: 0060002617
INSTRUMENT PANEL
(Valid for AUSTRALIA - July 1999) PLANCIA PORTASTRUMENTI
from £223.86
from £223.86
# 013
MPN: 008700347
SCREW
VITE
from £17.55
from £17.55
# 014
MPN: 008609802
RUBBER RING
ANELLO COMMA
from £0.54
from £0.54
# 015
MPN: 0060002598
REVOLUTION COUNT.
CONTAGIRI
from £304.16
from £304.16
# 016
MPN: 0060002601
WATER TEMP. GAUGE
INDICATORE TEMPERATURA ACQUA
from £95.35
from £95.35
# 017
MPN: 0060002602
FUEL LEVEL GAUGE
INDICATORE LIVELLO CARBURANTE
from £189.00
from £189.00
# 018
MPN: 006030886
SPACER
DISTANZIALE
from £31.01
from £31.01
# 019
MPN: 0060002597
SPEEDOMETER - KM
CONTACHILOMETRI
from £1,772.53
from £1,772.53
# 019
MPN: 0060002604
SPEEDOMETER-MILES
(Valid for USA - July 1999) CONTAMIGLIA
from £1,397.91
from £1,397.91
# 019
MPN: 0060002604
SPEEDOMETER-MILES
(Valid for GB - July 1999) CONTAMIGLIA
from £1,397.91
from £1,397.91
# 020
MPN: 008700457
SCREW
VITE
from £0.53
from £0.53
# 021
MPN: 009414433
BRACKET
STAFFA
from £39.72
from £39.72
# 022
MPN: 009414432
BRACKET
STAFFA
from £20.36
from £20.36
# 023
MPN: 008400509
WASHER
RONDELLA
from £0.53
from £0.53
# 024
MPN: 008200501
NUT
DADO
Supersession
Supersession
# 025
MPN: 0060002599
OIL PRESSURE GAUGE
INDICATORE PRESSIONE OLIO
from £95.35
from £95.35
# 026
MPN: 0060002600
OIL TEMPERA. GAUGE
INDICATORE TEMPERATURA OLIO
from £349.89
from £349.89
# 027
MPN: 0060002493
WARNING LIGHTS
GRUPPO SPIE
from £266.15
from £266.15
# 028
MPN: WHT002959
NUT
DADO
from £0.56
from £0.56
# 029
MPN: 0061002126
ELECT CABLE
DASHBOARD WIRING
from £153.80
from £153.80
