62.03.01 - Fuel System (for Cars With Fast Fuel Insertion)

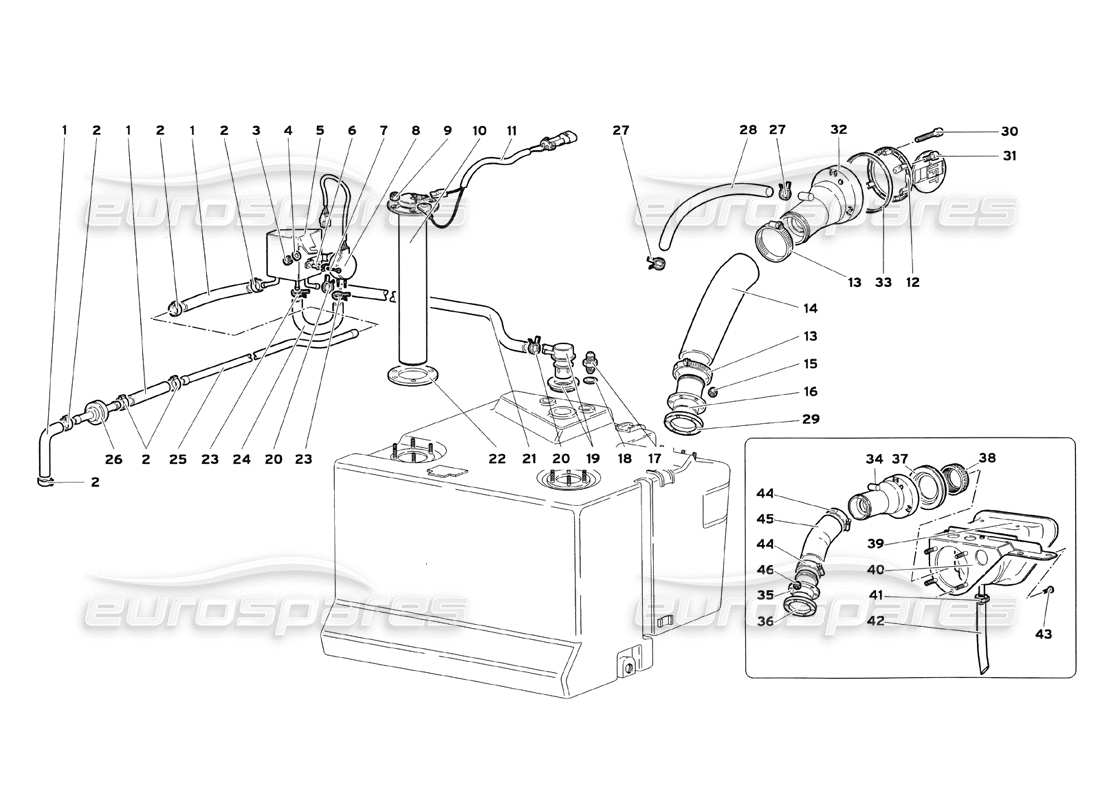

Lamborghini Diablo SV (1999) Fuel System (for Cars With Fast Fuel Insertion) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0062001398
PIPE
(Valid for cars with fast fuel intake) TUBO
from £8.42
from £8.42
# 002
MPN: 008831528
STRAP
(Valid for cars with fast fuel intake) FASCETTA
Supersession
Supersession
# 003
MPN: 008200606
NUT
(Valid for cars with fast fuel intake) DADO
Supersession
Supersession
# 004
MPN: 008400606
WASHER
(Valid for cars with fast fuel intake) RONDELLA
Supersession
Supersession
# 005
MPN: 0062001351
SEGREGATOR
(Valid for cars with fast fuel intake) SEPARATORE VAPORI BENZ.
from £180.72
from £180.72
# 006
MPN: 0062001396
RUBBER BUSHING
(Valid for cars with fast fuel intake) BOCCOLA COMMA
from £1.41
from £1.41
# 007
MPN: 008700346
SCREW
(Valid for cars with fast fuel intake) VITE
from £0.53
from £0.53
# 008
MPN: 400906206
SENSOR
(Valid for cars with fast fuel intake) SENSORE
from £877.40
from £877.40
# 009
MPN: N0211963
NUT
(Valid for cars with fast fuel intake) DADO
from £0.51
from £0.51
# 010
MPN: 006229648
FUEL LEVEL GAUGE
(Valid for cars with fast fuel intake) INDICATORE LIVELLO CARBUR.
from £215.57
from £215.57
# 011
MPN: 006135126
ELECT CABLE
(Valid for cars with fast fuel intake) CABLAGGIO GALLEGGIANTE
from £6.06
from £6.06
# 012
MPN: 009490521
TANK CAP
(Valid for cars with fast fuel intake) TAPPO SERBATOIO
from £156.70
from £156.70
# 013
MPN: 008834501
STRAP
(Valid for cars with fast fuel intake) FASCETTA
Supersession
Supersession
# 014
MPN: 0062004930
PIPE
(Valid for cars with fast fuel intake) TUBO
# 015
MPN: WHT002959
NUT
(Valid for cars with fast fuel intake) DADO
from £0.53
from £0.53
# 016
MPN: 0062004914
UNION
(Valid for cars with fast fuel intake) BOCCHETTONE
from £185.31
from £185.31
# 017
MPN: 0062001267
CONNECTION
(Valid for cars with fast fuel intake) RACCORDO
from £21.27
from £21.27
# 018
MPN: 008401425
WASHER
(Valid for cars with fast fuel intake) RONDELLA
Supersession
Supersession
# 019
MPN: 0062001272
ROLL OVER VALVE
(Valid for cars with fast fuel intake) VALVOLA ROLL OVER
from £213.92
from £213.92
# 020
MPN: 008830131
STRAP
(Valid for cars with fast fuel intake) FASCETTA
Supersession
Supersession
# 021
MPN: 0062001160
PIPE
(Valid for cars with fast fuel intake) TUBO
from £8.71
from £8.71
# 022
MPN: 006229649
GASKET
(Valid for cars with fast fuel intake) GUARNIZIONE
from £9.77
from £9.77
# 023
MPN: 008830128
STRAP
(Valid for cars with fast fuel intake) FASCETTA
Supersession
Supersession
# 024
MPN: 0062001397
PIPE
(Valid for cars with fast fuel intake) TUBO
from £3.65
from £3.65
# 025
MPN: 006237081
PIPE
(Valid for cars with fast fuel intake) TUBO
from £28.19
from £28.19
# 026
MPN: 0062001313
VALVE
(Valid for cars with fast fuel intake) VALVOLA
from £20.02
from £20.02
# 027
MPN: 008830214
STRAP
(Valid for cars with fast fuel intake) FASCETTA
from £2.37
from £2.37
# 028
MPN: 0062005001
PIPE
(Valid for cars with fast fuel intake) TUBO SFIATO
from £20.78
from £20.78
# 029
MPN: 006205360
GASKET
(Valid for cars with fast fuel intake) GUARNIZIONE
from £34.74
from £34.74
# 030
MPN: 008740505
SCREW
(Valid for cars with fast fuel intake) VITE
from £0.53
from £0.53
# 031
MPN: 008740512
DOWEL
(Valid for cars with fast fuel intake) GRANO
from £0.53
from £0.53
# 032
MPN: 0062004824
UNION
(Valid for cars with fast fuel intake) BOCCHETTONE
from £1,198.07
from £1,198.07
# 033
MPN: 009490527
GASKET
(Valid for cars with fast fuel intake) GUARNIZIONE
from £54.15
from £54.15
# 034
MPN: 0062004922
UNION
(Valid for cars with fast fuel intake) (Valid for USA - July 1999) BOCCHETTONE
from £532.29
from £532.29
# 034
MPN: 0062004922
UNION
(Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) BOCCHETTONE
from £532.29
from £532.29
# 035
MPN: 006237497
UNION
(Valid for USA - July 1999) (Valid for cars with fast fuel intake) BOCCHETTONE
from £80.84
from £80.84
# 035
MPN: 006237497
UNION
(Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) BOCCHETTONE
from £80.84
from £80.84
# 036
MPN: 006205360
GASKET
(Valid for USA - July 1999) (Valid for cars with fast fuel intake) GUARNIZIONE
from £34.74
from £34.74
# 036
MPN: 006205360
GASKET
(Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) GUARNIZIONE
from £34.74
from £34.74
# 037
MPN: 009409215
GASKET
(Valid for USA - July 1999) (Valid for cars with fast fuel intake) GUARNIZIONE
from £20.65
from £20.65
This part replaces part number 009404215
# 037
MPN: 009409215
GASKET
(Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) GUARNIZIONE
from £20.65
from £20.65
This part replaces part number 009404215
# 038
MPN: 0062006258
TANK CAP
(Valid for USA - July 1999) (Valid for cars with fast fuel intake) TAPPO SERBATOIO
# 038
MPN: 0062006258
TANK CAP
(Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) TAPPO SERBATOIO
# 039
MPN: 0066001581
CASE
(Valid for USA - July 1999) (Valid for cars with fast fuel intake) SCATOLA
from £69.15
from £69.15
# 039
MPN: 0066001581
CASE
(Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) SCATOLA
from £69.15
from £69.15
# 040
MPN: 0066001339
SUPPORT
(Valid for USA - July 1999) (Valid for cars with fast fuel intake) SUPPORTO
from £149.66
from £149.66
# 040
MPN: 0066001339
SUPPORT
(Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) SUPPORTO
from £149.66
from £149.66
# 041
MPN: 008832205
STRAP
(Valid for USA - July 1999) (Valid for cars with fast fuel intake) FASCETTA
from £12.98
from £12.98
# 041
MPN: 008832205
STRAP
(Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) FASCETTA
from £12.98
from £12.98
# 042
MPN: 009490516
PIPE
(Valid for USA - July 1999) (Valid for cars with fast fuel intake) TUBO
from £8.38
from £8.38
# 042
MPN: 009490516
PIPE
(Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) TUBO
from £8.38
from £8.38
# 043
MPN: 008700685
SCREW
(Valid for USA - July 1999) (Valid for cars with fast fuel intake) VITE
Supersession
Supersession
# 043
MPN: 008700685
SCREW
(Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) VITE
Supersession
Supersession
# 044
MPN: 008834501
STRAP
(Valid for USA - July 1999) (Valid for cars with fast fuel intake) FASCETTA
Supersession
Supersession
# 044
MPN: 008834501
STRAP
(Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) FASCETTA
Supersession
Supersession
# 045
MPN: 006237500
PIPE
(Valid for USA - July 1999) (Valid for cars with fast fuel intake) TUBO
from £252.88
from £252.88
# 045
MPN: 006237500
PIPE
(Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) TUBO
from £252.88
from £252.88
# 046
MPN: WHT002959
NUT
(Valid for USA - July 1999) (Valid for cars with fast fuel intake) DADO
from £0.53
from £0.53
# 046
MPN: WHT002959
NUT
(Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) DADO
from £0.53
from £0.53
