62.04.00 - Fuel System (With Adapter Code 0062001647 See Table 62.02.00) (for Cars Without Fast Fuel Insertion)

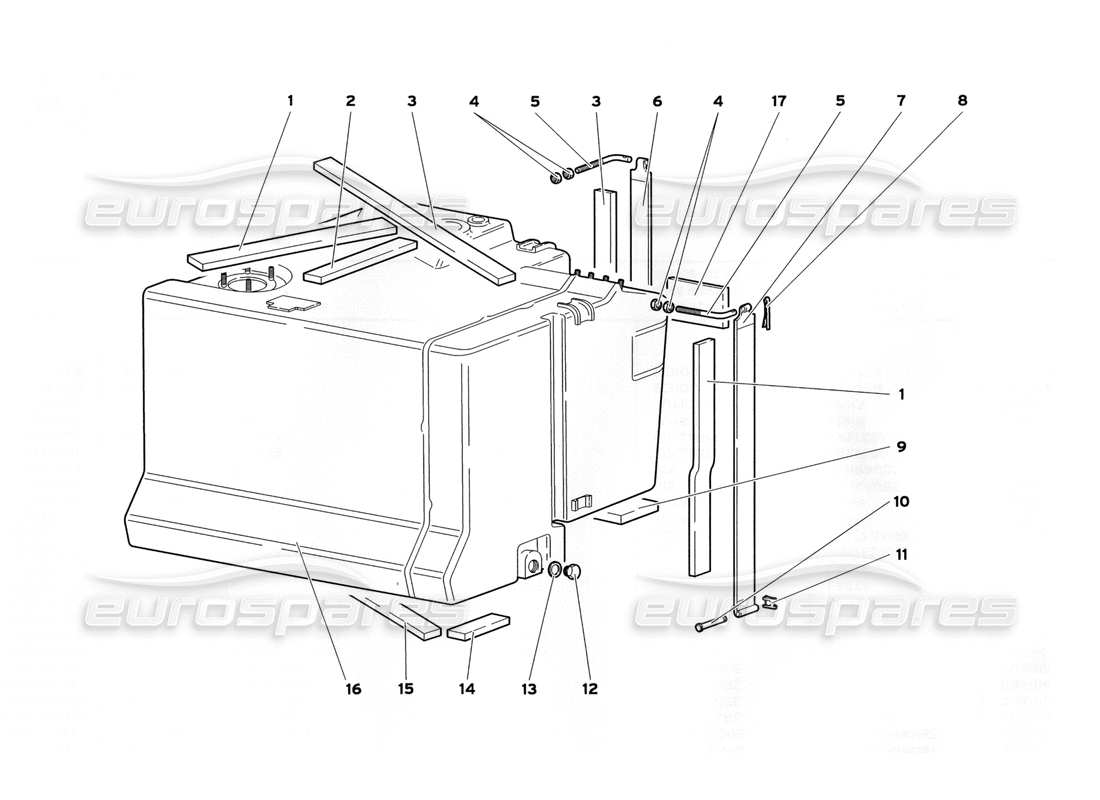

Lamborghini Diablo SV (1999) Fuel System (With Adapter Code 0062001647 See Table 62.02.00) (for Cars Without Fast Fuel Insertion) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 006231704
SHIELD
(Valid for cars without fast fuel intake) PROTEZIONE
from £46.19
from £46.19
# 002
MPN: 006237956
SHIELD
(Valid for cars without fast fuel intake) PROTEZIONE
# 003
MPN: 410201644
SHIELD
(Valid for cars without fast fuel intake) PROTEZIONE
from £10.59
from £10.59
# 004
MPN: N01100845
NUT
(Valid for cars without fast fuel intake) DADO
from £0.47
from £0.47
This part replaces part number 008200801 - and 2 more. Click to view details
# 005
MPN: 006226884
TIE ROD
(Valid for cars without fast fuel intake) TIRANTE
# 006
MPN: 006237360
STRAP
(Valid for cars without fast fuel intake) FASCETTA
from £48.93
from £48.93
# 007
MPN: 006229506
STRAP
(Valid for cars without fast fuel intake) FASCETTA
from £24.67
from £24.67
# 008
MPN: 008820304
SPLIT PIN
(Valid for cars without fast fuel intake) COPIGLIA
Supersession
Supersession
# 009
MPN: 006231701
SHIELD
(Valid for cars without fast fuel intake) PROTEZIONE
from £36.90
from £36.90
# 010
MPN: 006233763
PIN
(Valid for cars without fast fuel intake) PERNO
from £6.28
from £6.28
# 011
MPN: 008580604
CLIP
(Valid for cars without fast fuel intake) MOLLETTA
from £1.42
from £1.42
# 012
MPN: 008931203
PLUG
(Valid for cars without fast fuel intake) TAPPO
from £9.44
from £9.44
# 013
MPN: WHT003362
WASHER
(Valid for cars without fast fuel intake) RONDELLA
from £0.92
from £0.92
# 014
MPN: 006231706
SHIELD
(Valid for cars without fast fuel intake) PROTEZIONE
from £25.87
from £25.87
# 015
MPN: 006231702
SHIELD
(Valid for cars without fast fuel intake) PROTEZIONE
from £3.07
from £3.07
# 016
MPN: 0062001156
FUEL TANK
(Valid for cars without fast fuel intake) SERBATOIO BENZINA
from £2,064.49
from £2,064.49
# 016
MPN: 0062001895
FUEL TANK
(Valid for cars without fast fuel intake) (With adaptor code 0062001647) SERBATOIO BENZINA
from £2,239.43
from £2,239.43
# 017
MPN: 006237368
SHIELD
(Valid for cars without fast fuel intake) PROTEZIONE
from £12.19
from £12.19
