66.01.01 - Rear Coque Elements (Alternative To Table 66.01.00)

Lamborghini Diablo SV (1999) Rear Coque Elements (Alternative To Table 66.01.00) Parts Diagram

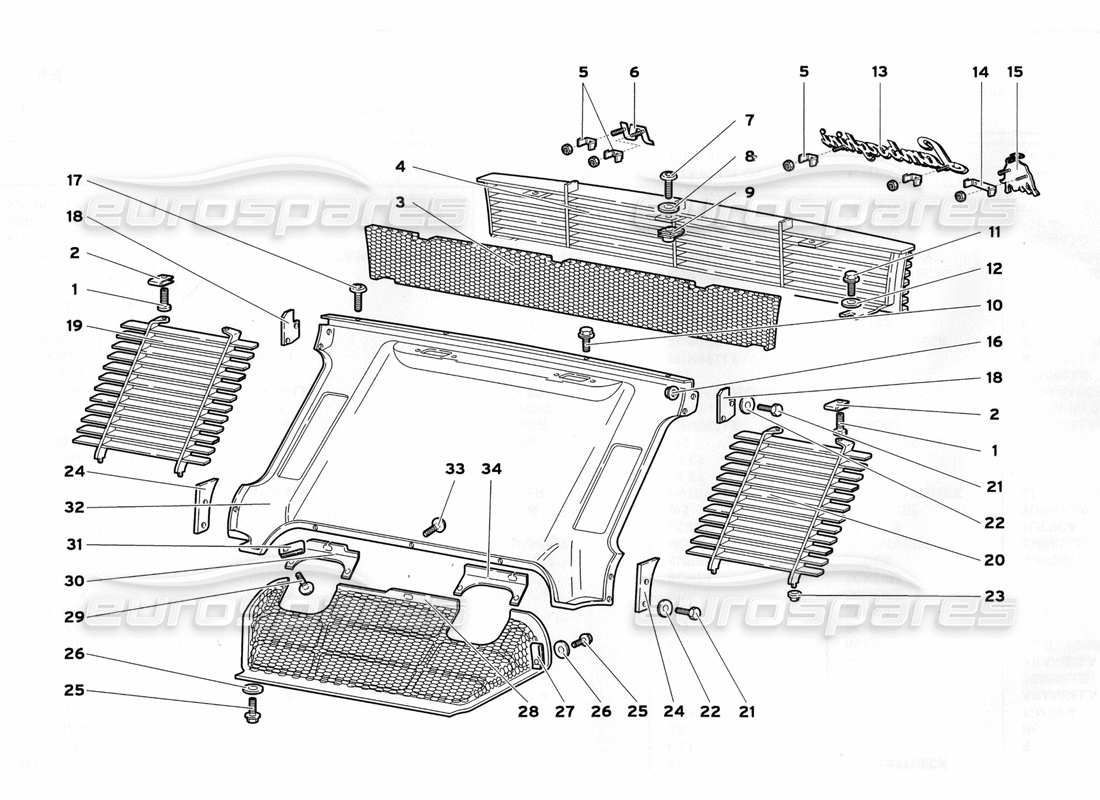

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 008700437
    SCREW
    (Alternative to table 66_01_00) VITE
    Supersession
    Supersession
    # 002
    MPN: WHT000916A
    CLIP
    (Alternative to table 66_01_00) MOLLETTA
    from £9.30
    from £9.30
    # 003
    MPN: 009430159
    NET
    (Alternative to table 66_01_00) RETE
    from £155.46
    from £155.46
    # 004
    MPN: 0066004330
    GRILLE
    (Alternative to table 66_01_00) GRIGLIA
    from £1,599.59
    from £1,599.59
    This part replaces part number 009430154
    # 005
    MPN: 0066003563
    SUPPORT
    (Alternative to table 66_01_00) SUPPORTO
    from £7.92
    from £7.92
    # 006
    MPN: 0094004128
    ORNAMENT
    (Alternative to table 66_01_00) FREGIO SV
    from £67.33
    from £67.33
    # 007
    MPN: 008740685
    SCREW
    (Alternative to table 66_01_00) VITE
    from £12.06
    from £12.06
    # 008
    MPN: 008400624
    WASHER
    (Alternative to table 66_01_00) RONDELLA
    from £2.68
    from £2.68
    # 009
    MPN: N90327506
    CLIP
    (Alternative to table 66_01_00) MOLLETTA
    from £0.61
    from £0.61
    # 010
    MPN: N10718801
    SCREW
    (Alternative to table 66_01_00) VITE
    from £0.61
    from £0.61
    # 011
    MPN: 008700444
    SCREW
    (Alternative to table 66_01_00) VITE
    from £0.53
    from £0.53
    # 012
    MPN: 008400508
    WASHER
    (Alternative to table 66_01_00) RONDELLA
    Supersession
    Supersession
    # 013
    MPN: 0094004121
    ORNAMENT
    (Alternative to table 66_01_00) FREGIO Lamborghini
    from £98.67
    from £98.67
    # 014
    MPN: 0063004142
    SUPPORT
    (Alternative to table 66_01_00) SUPPORTO
    # 015
    MPN: 0094004122
    ORNAMENT
    (Alternative to table 66_01_00) FREGIO TORO
    from £80.84
    from £80.84
    # 016
    MPN: 008200614
    NUT
    (Alternative to table 66_01_00) DADO
    Supersession
    Supersession
    # 017
    MPN: 008700685
    SCREW
    (Alternative to table 66_01_00) VITE
    Supersession
    Supersession
    # 018
    MPN: 009410205
    SPACER
    (Alternative to table 66_01_00) DISTANZIALE
    from £7.01
    from £7.01
    # 019
    MPN: 009430103
    GRILLE
    (Alternative to table 66_01_00) GRIGLIA DX
    from £2,010.29
    from £2,010.29
    # 020
    MPN: 009430168
    GRILLE
    (Alternative to table 66_01_00) GRIGLIA SX
    from £551.65
    from £551.65
    # 021
    MPN: 008100621
    SCREW
    (Alternative to table 66_01_00) VITE
    from £1.11
    from £1.11
    # 022
    MPN: 008400607
    WASHER
    (Alternative to table 66_01_00) RONDELLA
    Supersession
    Supersession
    # 023
    MPN: 0066002463
    BUSHING
    (Alternative to table 66_01_00) BOCCOLA
    from £1.19
    from £1.19
    # 024
    MPN: 009410206
    SPACER
    (Alternative to table 66_01_00) DISTANZIALE
    from £28.15
    from £28.15
    # 025
    MPN: 008700449
    SCREW
    (Alternative to table 66_01_00) VITE
    from £1.93
    from £1.93
    # 026
    MPN: 008400623
    WASHER
    (Alternative to table 66_01_00) RONDELLA
    Supersession
    Supersession
    # 027
    MPN: N90834301
    CLIP
    from £0.69
    from £0.69
    # 028
    MPN: 009430145
    GRILLE
    (Alternative to table 66_01_00) GRIGLIA
    from £1,067.84
    from £1,067.84
    # 029
    MPN: 008700455
    SCREW
    (Alternative to table 66_01_00) VITE
    Supersession
    Supersession
    # 030
    MPN: 009430144
    RIGHT PLATE
    (Alternative to table 66_01_00) LAMIERINO DX
    from £26.74
    from £26.74
    # 031
    MPN: 008220402
    CLIP
    (Alternative to table 66_01_00) MOLLETTA
    from £2.78
    from £2.78
    # 032
    MPN: 009410200
    REAR PANEL
    (Alternative to table 66_01_00) ELEMENTO SCOCCA POSTERIORE
    from £695.00
    from £695.00
    # 033
    MPN: 008700685
    SCREW
    (Alternative to table 66_01_00) VITE
    Supersession
    Supersession
    # 034
    MPN: 0094320146
    LEFT PLATE
    (Alternative to table 66_01_00) LAMIERINO SX
