71.01.01 - Windscreen wiper

Lamborghini Diablo SV (1999) Windscreen Wiper Parts Diagram

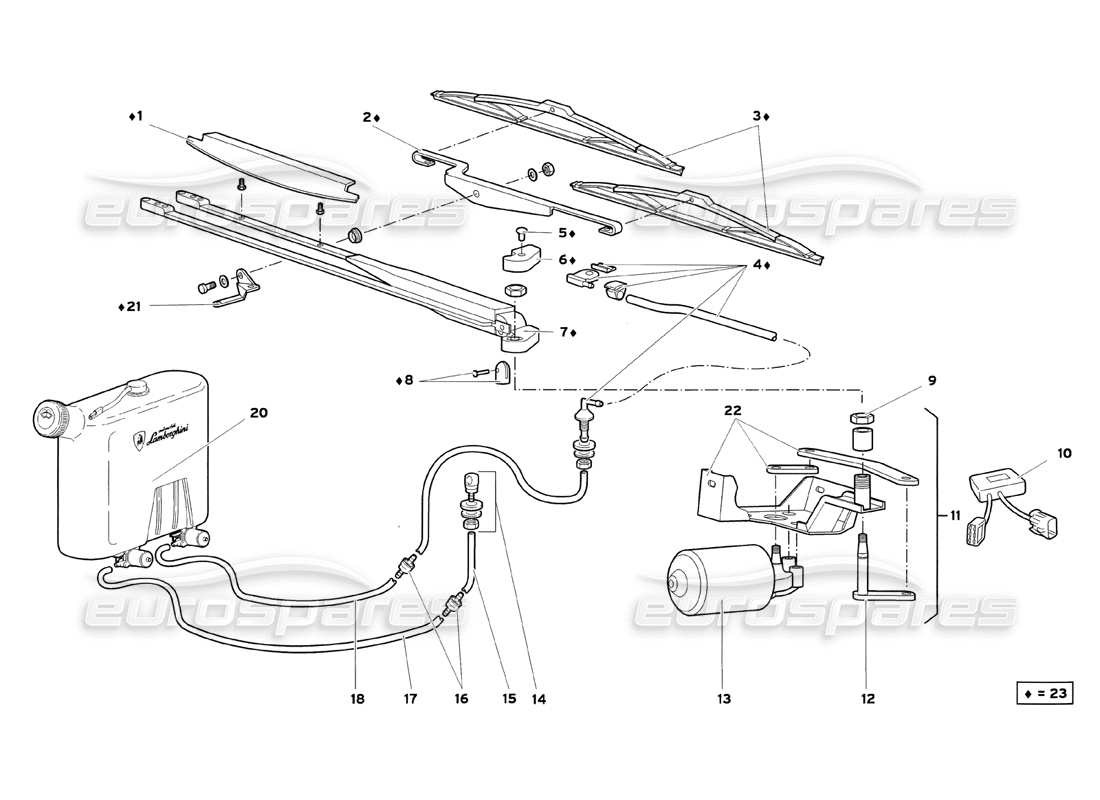

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 0071003279
    FIN
    (Two brush system) ALETTA
    from £21.88
    from £21.88
    # 002
    MPN: 0071003213
    FORK
    (Two brush system) FORCELLA
    # 003
    MPN: 0071003278
    WIPER BRUSH
    (Two brush system) SPAZZOLA TERGICRISTALLO
    from £21.97
    from £21.97
    # 004
    MPN: 418955215
    Windscreen Washer
    (Two brush system) LAVAPARABREZZA
    from £82.75
    from £82.75
    # 005
    MPN: WHT003302
    SCREW
    from £1.27
    from £1.27
    # 006
    MPN: 009420137
    SHIELD
    (Two brush system) PROTEZIONE
    Supersession
    Supersession
    # 007
    MPN: 0071003277
    WIPER ARM
    (Two brush system) BRACCIO TERGITORE
    from £606.12
    from £606.12
    # 008
    MPN: 0071003938
    COUPLING
    (Two brush system) TESTA SNODATA
    # 009
    MPN: 008200828
    NUT
    (Two brush system) DADO
    # 010
    MPN: 006138108
    INTERMITTENCE
    (Two brush system) INTERMITTENZA
    from £502.44
    from £502.44
    # 011
    MPN: 0071003921
    WIPER GEAR MOTOR
    (Two brush system) MOTORIDUTTORE TERGI COMPL.
    from £359.84
    from £359.84
    # 012
    MPN: 0071003920
    PIN
    (Two brush system) PERNO
    # 013
    MPN: 009420112
    wiper motor
    (Two brush system) MOTORING TERGI
    from £378.90
    from £378.90
    # 014
    MPN: 400955985
    WASHER JET
    (Two brush system) UGELLO
    from £3.50
    from £3.50
    This part replaces part number 009420207
    # 015
    MPN: 009420228
    PIPE
    (Two brush system) TUBO
    # 016
    MPN: 009420210
    VALVE
    (Two brush system) VALVOLA
    from £3.60
    from £3.60
    # 017
    MPN: 009420201
    PIPE
    (Two brush system) TUBO
    from £8.46
    from £8.46
    # 018
    MPN: 009420201
    PIPE
    (Two brush system) TUBO
    from £8.46
    from £8.46
    # 019
    MPN: 009420211
    PIPE
    (Two brush system) TUBO
    from £4.25
    from £4.25
    # 020
    MPN: 009420219
    WATER RESERVOIR
    (Two brush system) SERBATOIO LAVACRISTALLO
    from £517.37
    from £517.37
    # 021
    MPN: 0071003164
    BRACKET
    (Two brush system) STAFFA
    # 022
    MPN: 0071003919
    LEVER
    (Two brush system) GRUPPO LEVE
    # 023
    MPN: 0071003276
    WIND SCREEN WIPER KIT
    (Includes all parts marked - ?) (Two brush system) KIT TERGICRISTALLO
    from £903.55
    from £903.55
    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
