72.02.00 - Doors

Lamborghini Diablo SV (1999) Doors Parts Diagram

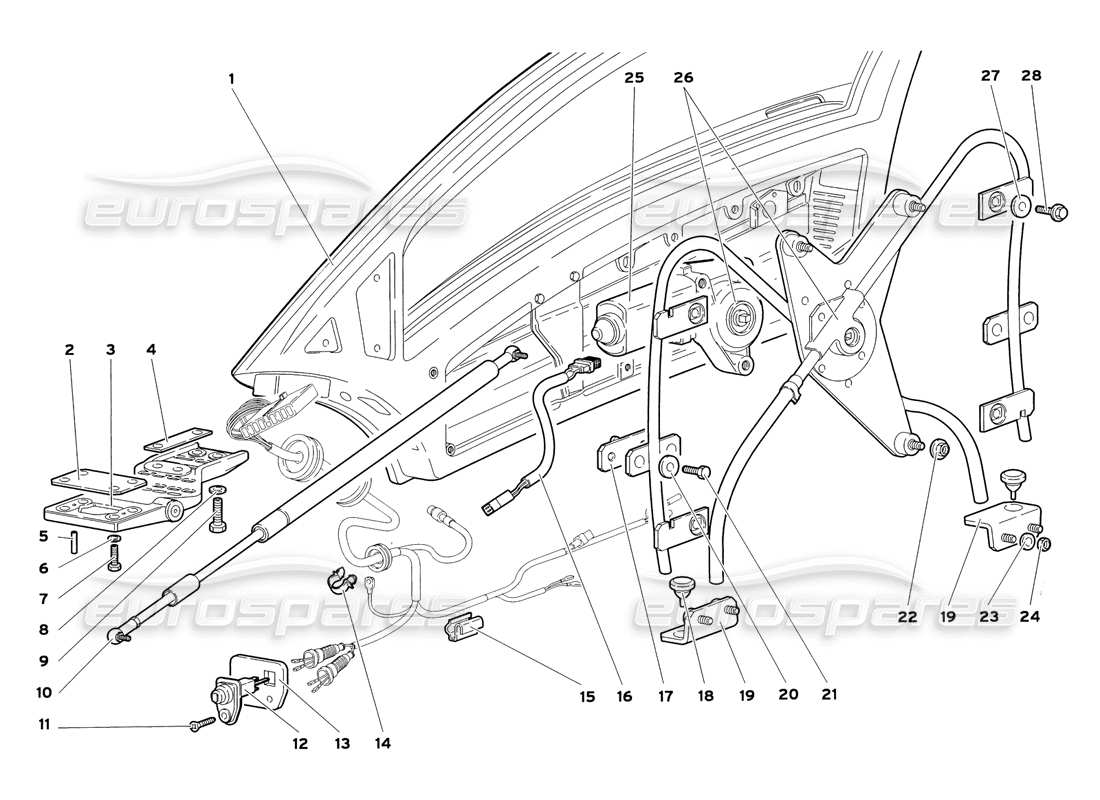

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009421055
RIGHT DOOR
PORTA DX
from £3,002.83
from £3,002.83
# 001
MPN: 009421056
LEFT DOOR
PORTA SX
from £5,459.69
from £5,459.69
# 002
MPN: 004132051
SHIM
SPESSORE 0,8 MM
Supersession
Supersession
# 002
MPN: 004132052
SHIM
SPESSORE1 MM
Supersession
Supersession
# 002
MPN: 004132053
SHIM
SPESSORE 1,2 MM
Supersession
Supersession
# 002
MPN: 004132054
SHIM
SPESSORE 1,5 MM
Supersession
Supersession
# 003
MPN: 009421030
LEFT HINGE
CERNIERA SX
from £1,203.87
from £1,203.87
# 003
MPN: 410831402
RIGHT HINGE
CERNIERA DX
from £699.50
from £699.50
This part replaces part number 009421359
# 004
MPN: 009421380
SHIM
SPESSORE 1 MM
Supersession
Supersession
# 004
MPN: 009421381
SHIM
SPESSORE 1,5 MM
from £17.75
from £17.75
# 005
MPN: 008900401
PIN
SPINA ELASTICA
from £0.53
from £0.53
# 006
MPN: 008400801
WASHER
RONDELLA
Supersession
Supersession
# 007
MPN: 008100821
SCREW
VITE
Supersession
Supersession
# 008
MPN: 008411015
WASHER
RONDELLA
from £7.05
from £7.05
# 009
MPN: 008101008
SCREW
VITE
from £9.69
from £9.69
# 010
MPN: 009421031
DOOR STRUT
MARTINETTO
from £65.04
from £65.04
# 011
MPN: WHT003304
SCREW
VITE
from £0.53
from £0.53
# 012
MPN: 005934450
SWITCH
INTERRUTTORE
from £13.56
from £13.56
# 013
MPN: 005934447
PLATE
Piastrina
from £46.85
from £46.85
# 014
MPN: 008830411
CLIP
MOLLETTA
from £0.83
from £0.83
# 015
MPN: 008830302
STRAP
FAS C ETTA
Supersession
Supersession
# 016
MPN: 009421606
ELECT CABLE
CABLAGGIO
from £15.85
from £15.85
# 017
MPN: 009421607
BRACKET
STAFFA
from £37.32
from £37.32
# 018
MPN: 009421408
RUBBER BUMPER
PARACOLPI COMMA
from £19.59
from £19.59
# 019
MPN: 009421406
RIGHT DOOR PLATE
PIASTRINA PORTA DX
from £30.39
from £30.39
# 019
MPN: 009421407
LEFT DOOR PLATE
PIASTRINA PORTA SX
from £6.02
from £6.02
# 020
MPN: WHT003040
WASHER
RONDELLA
from £4.55
from £4.55
# 021
MPN: N01020717
SCREW
VITE
from £0.47
from £0.47
This part replaces part number 008100504
# 022
MPN: 008200614
NUT
DADO
Supersession
Supersession
# 023
MPN: WHT003040
WASHER
RONDELLA
from £4.55
from £4.55
# 024
MPN: N0211963
NUT
DADO
from £0.48
from £0.48
# 025
MPN: 009421604
RIGHT ELECT MOTOR
MOTORING DX
from £307.60
from £307.60
# 025
MPN: 009421605
LEFT ELECT MOTOR
MOTORING SX
from £307.60
from £307.60
# 026
MPN: 009421600
RIGHT KIT WIND. REGUL
RIGHT WINDOW REGULATOR KIT
from £393.41
from £393.41
# 026
MPN: 009421601
LEFT KIT WINDOW REG.
KIT ALZACRISTALLO SX
from £1,296.97
from £1,296.97
# 027
MPN: 008400607
WASHER
RONDELLA
Supersession
Supersession
# 028
MPN: 008700663
SCREW
VITE
from £0.51
from £0.51
