72.03.00 - Doors

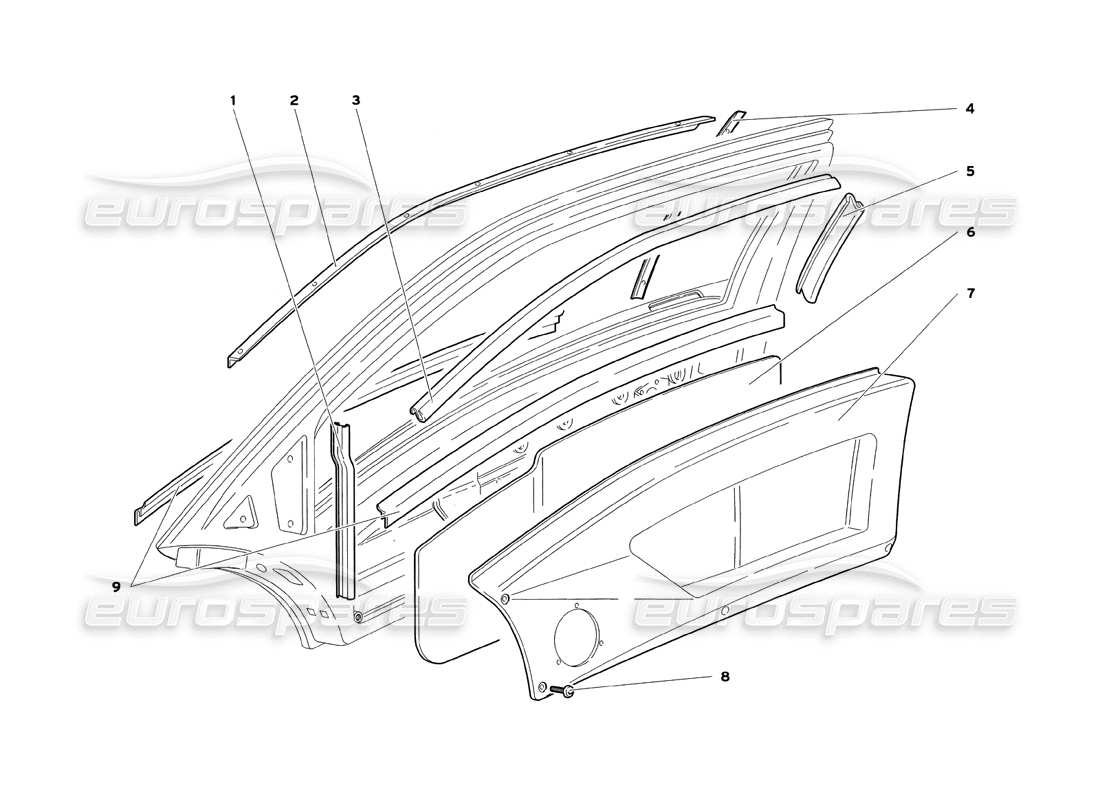

Lamborghini Diablo SV (1999) Doors Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 009421716
GASKET
Guarnizione
from £13.41
from £13.41
# 002
MPN: 009421402
RIGHT CHANNEL
PROFILATO DX
from £310.42
from £310.42
# 002
MPN: 009421403
LEFT CHANNEL
PROFILATO SX
from £310.42
from £310.42
# 003
MPN: 009421714
GASKET
Guarnizione
from £238.65
from £238.65
# 004
MPN: 009421404
RIGHT CHANNEL
PROFILATO DX
from £282.73
from £282.73
# 004
MPN: 009421405
LEFT CHANNEL
PROFILATO SX
from £135.98
from £135.98
# 005
MPN: 009421715
GASKET
Guarnizione
from £109.38
from £109.38
# 006
MPN: 0072001665
SHIELD
(Valid for GB - July 1999) PROTEZIONE DX
from £37.82
from £37.82
# 006
MPN: 0072001665
SHIELD
(Valid for AUSTRALIA - July 1999) PROTEZIONE DX
from £37.82
from £37.82
# 006
MPN: 0072001666
SHIELD
(Valid for GB - July 1999) PROTEZIONE SX
from £37.82
from £37.82
# 006
MPN: 0072001666
SHIELD
(Valid for AUSTRALIA - July 1999) PROTEZIONE SX
from £37.82
from £37.82
# 006
MPN: 009421573
SHIELD
PROTEZIONEDX
from £41.30
from £41.30
# 006
MPN: 009421574
SHIELD
PROTEZIONE SX
from £41.30
from £41.30
# 007
MPN: 0072002569
RIGHT PANEL
PANNELLO DX
from £640.08
from £640.08
# 007
MPN: 0072002570
LEFT PANEL
PANNELLO SX
from £640.08
from £640.08
# 007
MPN: 0072004094
RIGHT PANEL
(Valid for GB - July 1999) PANNELLO DX
from £612.72
from £612.72
# 007
MPN: 0072004094
RIGHT PANEL
(Valid for AUSTRALIA - July 1999) PANNELLO DX
from £612.72
from £612.72
# 007
MPN: 0072004095
LEFT PANEL
(Valid for GB - July 1999) PANNELLO SX
from £612.72
from £612.72
# 007
MPN: 0072004095
LEFT PANEL
(Valid for AUSTRALIA - July 1999) PANNELLO SX
from £612.72
from £612.72
# 008
MPN: 008700685
SCREW
VITE
Supersession
Supersession
# 009
MPN: 009421700
GASKET
Guarnizione
from £515.33
from £515.33
