lamborghini diablo sv (1999) engine hood (valid for gb and australia - july 1999) parts diagram

74.76.79.01.00 - Engine Hood (Valid for GB and Australia - July 1999)

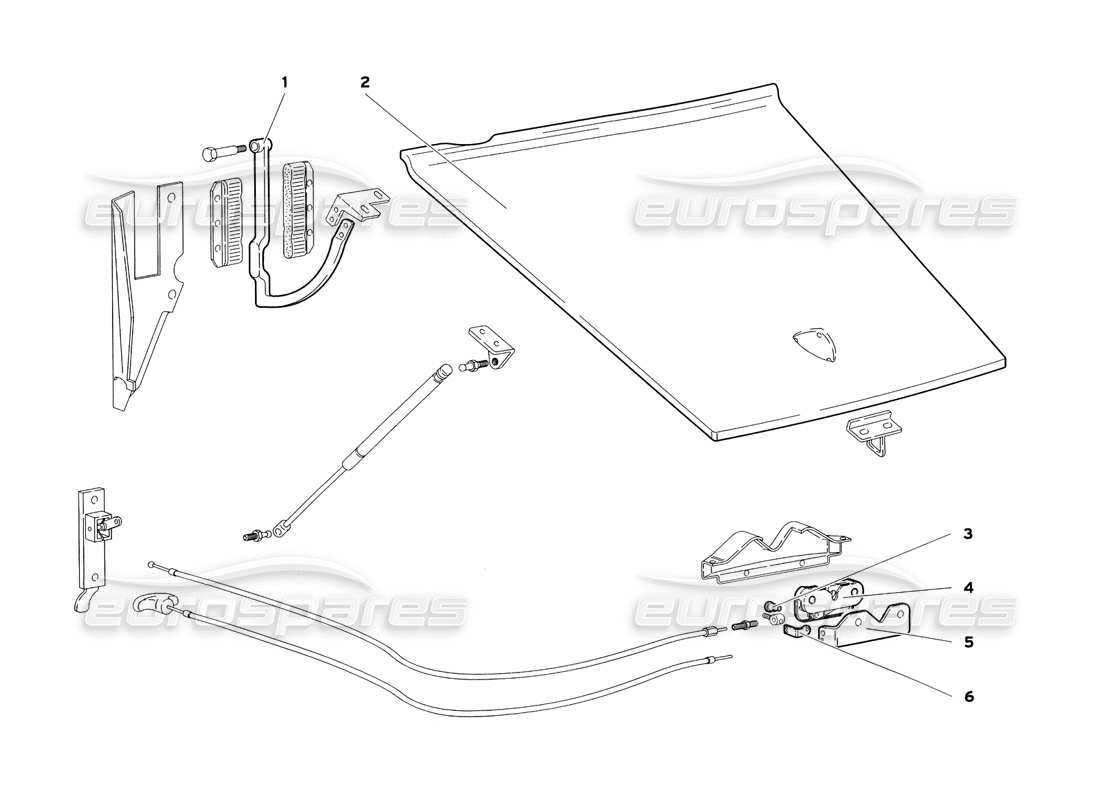

Lamborghini Diablo SV (1999) Engine Hood (Valid for GB and Australia - July 1999) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009459324
RIGHT HINGE
(Valid for GB and AUSTRALIA - July 1999) CERNIERA DX
# 001
MPN: 009459326
LEFT HINGE
(Valid for GB and AUSTRALIA - July 1999) CERNIERASX
# 002
MPN: 009459008
FRONT BONNET
(Valid for GB and AUSTRALIA - July 1999) COFANO ANTERIORE
from £1,538.00
from £1,538.00
This part replaces part number 009459012
# 003
MPN: 009459222
PIN
(Valid for GB and AUSTRALIA - July 1999) PERNO
from £14.06
from £14.06
# 004
MPN: 009459219
lock
(Valid for GB and AUSTRALIA - July 1999) SERRATURA
from £112.76
from £112.76
# 005
MPN: 009459220
SPACER
(Valid for GB and AUSTRALIA - July 1999) DISTANZIALE
from £44.44
from £44.44
# 006
MPN: 009459221
SUPPORT
(Valid for GB and AUSTRALIA - July 1999) SUPPORTO
from £18.41
from £18.41
