92.01.00 - Engine Hood (for Cars With Fast Cooling)

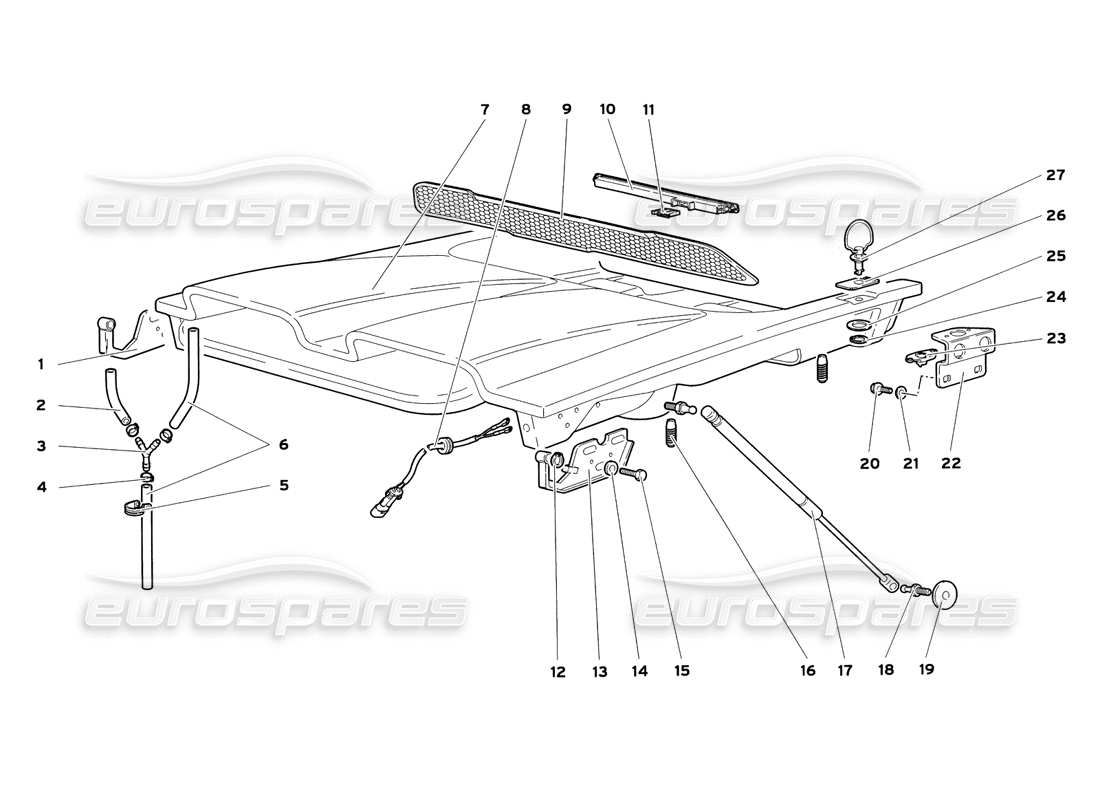

Lamborghini Diablo SV (1999) Engine Hood (for Cars With Fast Cooling) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009460322
RIGHT HINGE
(Valid for cars with fast closing hood) CERNIERA DX
from £43.94
from £43.94
# 002
MPN: 009490116
PIPE
(Valid for cars with fast closing hood) TUBO
from £8.87
from £8.87
# 003
MPN: 006108392
CONNECTION
(Valid for cars with fast closing hood) RACCORDO 3 VIE
from £2.27
from £2.27
# 004
MPN: 008831528
STRAP
(Valid for cars with fast closing hood) FASCETTA
Supersession
Supersession
# 005
MPN: 008831515
STRAP
(Valid for cars with fast closing hood) FASCETTA
from £5.63
from £5.63
# 006
MPN: 009490115
PIPE
(Valid for cars with fast closing hood) TUBO
from £8.42
from £8.42
# 007
MPN: 009460015
Engine Bonnet
(Valid for cars with fast closing hood) COFANO MOTORE
from £3,934.13
from £3,934.13
# 008
MPN: 006135191
ELECT CABLE
(Valid for cars with fast closing hood) CABLAGGIO
from £17.09
from £17.09
# 009
MPN: 009430172
NET
(Valid for cars with fast closing hood) RETE
from £414.56
from £414.56
# 010
MPN: 410945249A
CENTRAL BRAKE LIGHT
use part number: 0R1470010
from £112.40
from £112.40
# 010
MPN: 410945249A
CENTRAL BRAKE LIGHT
from £112.40
from £112.40
# 011
MPN: 006132280
CONNECTION
(Valid for cars with fast closing hood) CONNESSIONE
from £6.43
from £6.43
# 012
MPN: 008580801
RETAINER RING
(Valid for cars with fast closing hood) ANELLO RITEGNO
from £0.53
from £0.53
# 013
MPN: 009460323
LEFT HINGE
(Valid for cars with fast closing hood) CERNIERA SX
from £72.81
from £72.81
# 014
MPN: 008400656
WASHER
(Valid for cars with fast closing hood) RONDELLA
# 015
MPN: 008100656
SCREW
(Valid for cars with fast closing hood) VITE
from £2.74
from £2.74
# 016
MPN: 009460214
RUBBER BUMPER
(Valid for cars with fast closing hood) PARACOLPI COMMA
from £4.88
from £4.88
# 017
MPN: 0092004388
ENGINE COVER STRUT
(Valid for cars with fast closing hood) MARTINETTO
from £136.81
from £136.81
# 018
MPN: 009459305
BALL PIN
(Valid for cars with fast closing hood) PERNO GIUNTO SFERICO
from £1.60
from £1.60
# 019
MPN: WHT001942
WASHER
(Valid for cars with fast closing hood) RONDELLA
from £2.18
from £2.18
# 020
MPN: 008100601
SCREW
(Valid for cars with fast closing hood) VITE
Supersession
Supersession
# 021
MPN: 008410602
WASHER
(Valid for cars with fast closing hood) RONDELLA
from £28.28
from £28.28
# 022
MPN: 009460219
SUPPORT
(Valid for cars with fast closing hood) SUPPORTO
from £64.86
from £64.86
# 023
MPN: 009411615
CLIP
(Valid for cars with fast closing hood) FERMAGLIO
from £21.40
from £21.40
# 024
MPN: 008581101
RETAINER RING
(Valid for cars with fast closing hood) ANELLO RITEGNO
from £3.65
from £3.65
# 025
MPN: 003230722
WASHER
(Valid for cars with fast closing hood) RONDELLA
from £0.72
from £0.72
# 026
MPN: 009460017
ADHESIV
(Valid for cars with fast closing hood) ADESIVO CLOSED
from £13.61
from £13.61
# 027
MPN: 009460018
lock
(Valid for cars with fast closing hood) CHIUSURA RAPIDA
from £28.07
from £28.07
