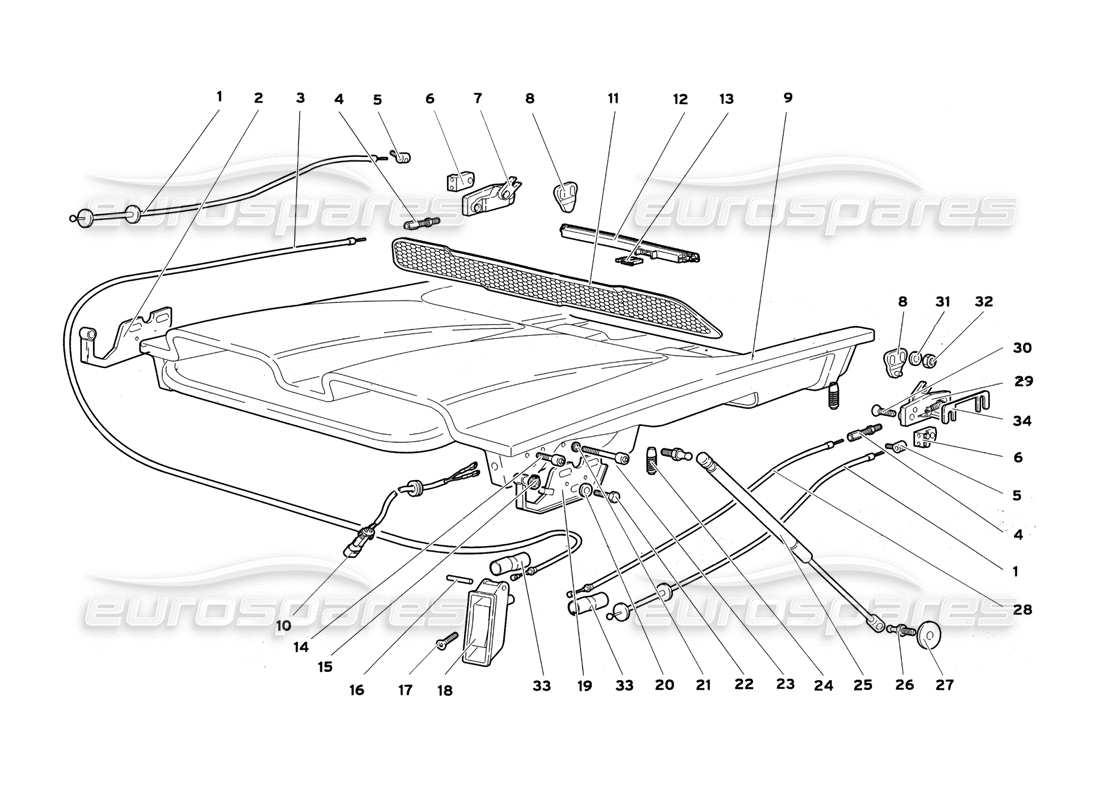

92.01.01 - Engine Hood (for Cars Without Fast Cooling)
Lamborghini Diablo SV (1999) Engine Hood (for Cars Without Fast Cooling) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 009460003
CABLE
(Valid for cars without fast closing hood) CAVO EMERGENZA
from £16.22
from £16.22
# 002
MPN: 009460322
RIGHT HINGE
(Valid for cars without fast closing hood) CERNIERA DX
from £43.94
from £43.94
# 003
MPN: 009460006
RIGHT CABLE
(Valid for cars without fast closing hood) CAVO DX
from £29.06
from £29.06
# 004
MPN: 009460213
ADJUSTABLE SCREW
(Valid for cars without fast closing hood) VITE REGOLAZIONE
# 005
MPN: 009460210
CLAMP
(Valid for cars without fast closing hood) MORSETTO
Supersession
Supersession
# 006
MPN: 009460212
DOUBLE CLAMP
USE 410814333
# 007
MPN: 009460200
lock
(Valid for cars without fast closing hood) SERRATURA DX
from £407.93
from £407.93
# 008
MPN: 009460201
LOCK STRIKER
(Valid for cars without fast closing hood) RISCONTRO
from £78.52
from £78.52
# 009
MPN: 0092003867
Engine Bonnet
(Valid for cars without fast closing hood) COFANO MOTORE
from £9,024.86
from £9,024.86
# 010
MPN: 006135191
ELECT CABLET-
(Valid for cars without fast closing hood) CABLAGGIO
from £17.09
from £17.09
# 011
MPN: 009430172
NET
(Valid for cars without fast closing hood) RETE
from £414.56
from £414.56
# 012
MPN: 410945249A
CENTRAL BRAKE LIGHT
use part number: 0R1470010
from £112.40
from £112.40
# 012
MPN: 410945249A
CENTRAL BRAKE LIGHT
from £112.40
from £112.40
# 013
MPN: 006132280
CONNECTION
(Valid for cars without fast closing hood) CONNESSIONE
from £6.43
from £6.43
# 014
MPN: 008700547
SCREW
(Valid for cars without fast closing hood) VITE
from £0.51
from £0.51
# 015
MPN: 008580801
RETAINER RING
(Valid for cars without fast closing hood) ANELLO RITEGNO
from £0.53
from £0.53
# 016
MPN: 008850304
PIN
(Valid for cars without fast closing hood) SPINA
from £1.40
from £1.40
# 017
MPN: 008700539
SCREW
(Valid for cars without fast closing hood) VITE
Supersession
Supersession
# 018
MPN: 410823537
HANDLE
from £766.08
from £766.08
# 019
MPN: 009460323
LEFT HINGE
(Valid for cars without fast closing hood) CERNIERA SX
from £72.81
from £72.81
# 020
MPN: 008400656
WASHER
(Valid for cars without fast closing hood) RONDELLA
# 021
MPN: 008400510
WASHER
(Valid for cars without fast closing hood) RONDELLA
Supersession
Supersession
# 022
MPN: 008100656
SCREW
(Valid for cars without fast closing hood) VITE
from £2.74
from £2.74
# 023
MPN: 008700549
SCREW
(Valid for cars without fast closing hood) VITE
from £1.36
from £1.36
# 024
MPN: 009460214
RUBBER BUMPER
(Valid for cars without fast closing hood) PARACOLPI COMMA
from £4.88
from £4.88
# 025
MPN: 0092004388
ENGINE COVER STRUT
(Valid for cars without fast closing hood) MARTINETTO
from £136.81
from £136.81
# 026
MPN: 009459305
BALL PIN
(Valid for cars without fast closing hood) PERNO GIUNTO SFERICO
from £1.60
from £1.60
# 027
MPN: WHT001942
WASHER
(Valid for cars without fast closing hood) RONDELLA
from £2.18
from £2.18
# 028
MPN: 009460007
RIGHT CABLE
(Valid for cars without fast closing hood) CAVO SX
from £29.06
from £29.06
# 029
MPN: 009460202
lock
(Valid for cars without fast closing hood) SERRATURA SX
from £245.42
from £245.42
# 030
MPN: 008700613
SCREW
(Valid for cars without fast closing hood) VITE
from £0.53
from £0.53
# 031
MPN: 008400606
WASHER
(Valid for cars without fast closing hood) RONDELLA
Supersession
Supersession
# 032
MPN: N02214812
NUT
(Valid for cars without fast closing hood) DADO
from £1.10
from £1.10
This part replaces part number 008200612
# 033
MPN: 009421385
LINER
(Valid for cars without fast closing hood) GUAINA
# 034
MPN: 009460215
SPACER
(Valid for cars without fast closing hood) DISTANZIALE
from £2.53
from £2.53
# 034
MPN: 009460216
SPACER
(Valid for cars without fast closing hood) DISTANZIALE
from £3.65
from £3.65
