lamborghini diablo vt (1994) accelerator cables parts diagram

009 - accelerator cables

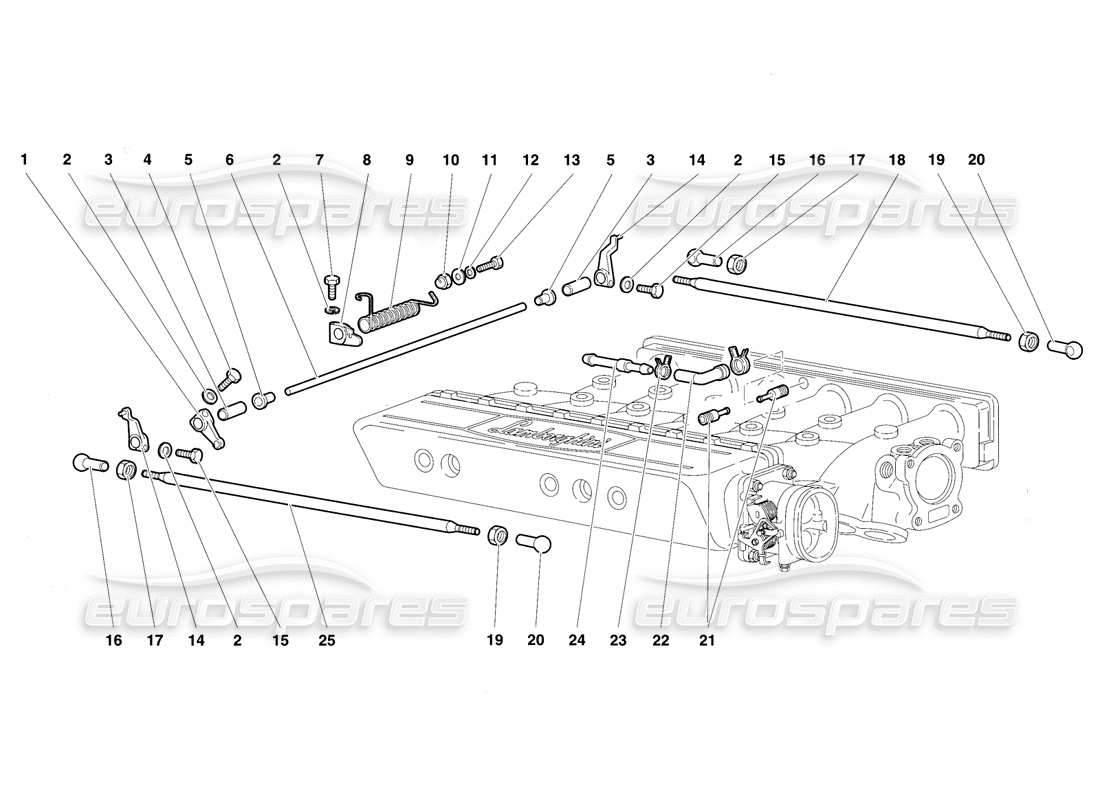

Lamborghini Diablo VT (1994) Accelerator Cables Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 001301093
    LEVER
    LEVA
    from £143.10
    from £143.10
    # 002
    MPN: WHT003053
    LOCK WASHER
    RONDELLA
    from £2.01
    from £2.01
    This part replaces part number 008410603
    # 003
    MPN: 001323136
    SPACER
    DISTANZIALE
    from £8.58
    from £8.58
    # 004
    MPN: 008100621
    SCREW
    VITE
    from £1.11
    from £1.11
    # 005
    MPN: 008801204
    BUSHING
    BOCCOLA
    from £5.85
    from £5.85
    # 006
    MPN: 001323135
    SMALL SHAFT
    ALBERINO
    from £20.78
    from £20.78
    # 007
    MPN: 008100607
    SCREW
    VITE
    from £3.65
    from £3.65
    # 008
    MPN: 001331005
    LEVER
    LEVA
    from £23.97
    from £23.97
    # 009
    MPN: 001310961
    SPRING
    MOLLA
    from £50.59
    from £50.59
    # 010
    MPN: 008200605
    NUT
    DADO
    from £1.89
    from £1.89
    # 011
    MPN: 008400606
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 012
    MPN: 008410602
    WASHER
    RONDELLA
    from £28.85
    from £28.85
    # 013
    MPN: 008100625
    BOLT
    from £86.29
    from £86.29
    # 014
    MPN: 001311580
    LEVER
    LEVA
    from £208.10
    from £208.10
    # 015
    MPN: 008100618
    SCREW
    VITE
    Supersession
    Supersession
    # 016
    MPN: 001300804
    COUPLING HEAD
    TESTA GIUNTO SFERICO
    from £7.38
    from £7.38
    # 017
    MPN: 008200501
    NUT
    DADO
    Supersession
    Supersession
    # 018
    MPN: 001328014
    LEFT TIE ROD
    TIRANTE SINISTRO
    from £228.28
    from £228.28
    # 019
    MPN: N10690001
    NUT
    DADO
    from £318.19
    from £318.19
    # 020
    MPN: 001308539
    COUPLING HEAD
    TESTA GIUNTO SFERICO
    # 021
    MPN: 001328721
    CONNECTION
    RACCORDO
    from £12.66
    from £12.66
    # 022
    MPN: 07L131756
    CONNECTION
    RACCORDO
    from £17.17
    from £17.17
    This part replaces part number 001329321
    # 023
    MPN: 008830122
    STRAP
    FASCETTA
    from £0.53
    from £0.53
    # 024
    MPN: 001329319
    CONNECTION
    RACCORDO
    from £0.76
    from £0.76
    # 025
    MPN: 001328016
    RIGHT TIE ROD
    TIRANTE DESTRO
    from £323.35
    from £323.35
