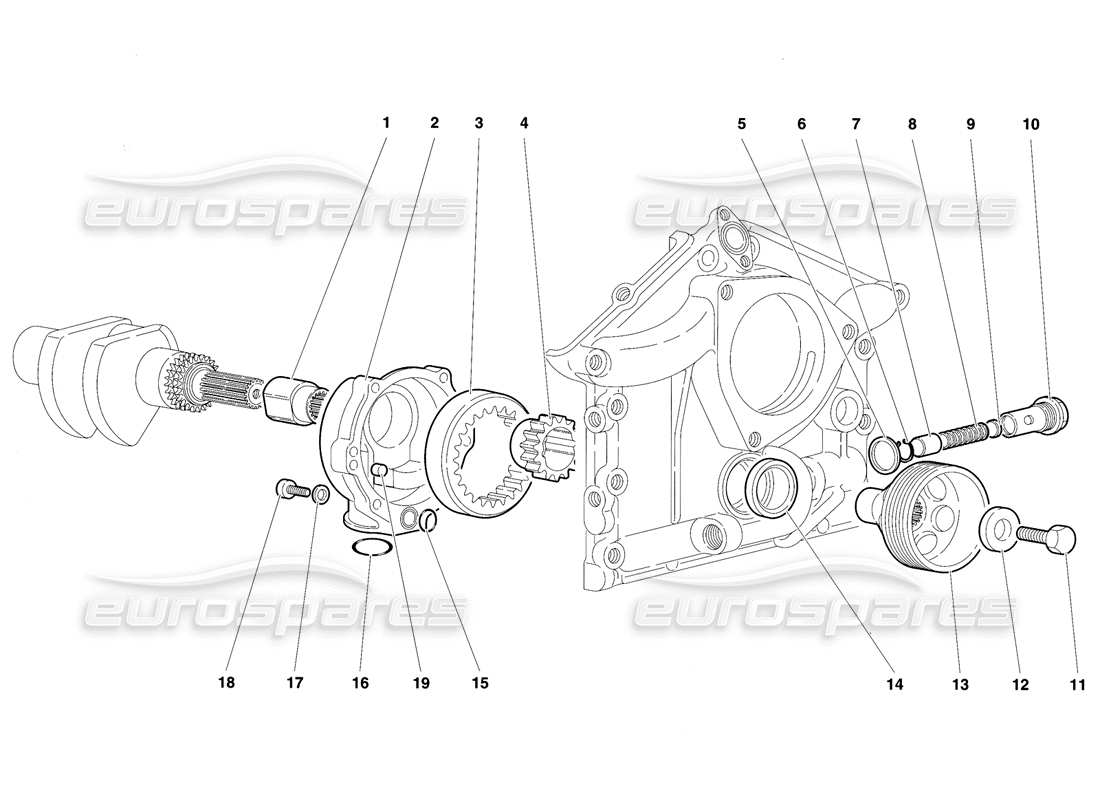

Lamborghini Diablo VT (1994) Engine Oil Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 001532187
COUPLING
GIUNTO
from £144.27
from £144.27
# 002
MPN: 001532874
COVER
COPERCHIO POMPA OLIO
from £1,673.09
from £1,673.09
# 003
MPN: 001528526
DRIVEN GEAR
INGRANAGGIO CONDOTTO
from £2,935.04
from £2,935.04
# 004
MPN: 001528525
GEAR
INGRANAGGIO CONDUTTORE
from £305.22
from £305.22
# 005
MPN: 008403006
WASHER
RONDELLA
from £6.39
from £6.39
# 006
MPN: 008571901
RETAINER RING
ANELLO RITEGNO
from £3.65
from £3.65
# 007
MPN: 001232216
BUSHING
BUSSOLA
from £74.12
from £74.12
# 008
MPN: 001519888
SPRING
MOLLA
from £15.72
from £15.72
# 009
MPN: 001232217
SPACER
DISTANZIALE
from £4.27
from £4.27
# 010
MPN: 001232215
BODY
CORPO VALV.REGOLATR.PBESS
from £164.17
from £164.17
# 011
MPN: 008101641
SCREW
VITE
from £190.83
from £190.83
# 012
MPN: 001433466
WASHER
RONDELLA
from £54.90
from £54.90
# 013
MPN: 001432192
PULLEY
PULEGGIA
from £1,054.87
from £1,054.87
# 014
MPN: 008613702
SEAL
ANELLO TENUTA
from £36.37
from £36.37
# 015
MPN: 008601705
SEAL
ANELLO TENUTA
from £0.51
from £0.51
# 016
MPN: 008603503
SEAL
ANELLO TENUTA
from £2.61
from £2.61
This part replaces part number 008603501
# 017
MPN: 008410602
WASHER
RONDELLA
from £27.90
from £27.90
# 018
MPN: 008700627
SCREW
VITE
Supersession
Supersession
# 019
MPN: WHT003577
DOWEL
GRANO
from £1.23
from £1.23
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
