022 - Radiators and Electro-Fans

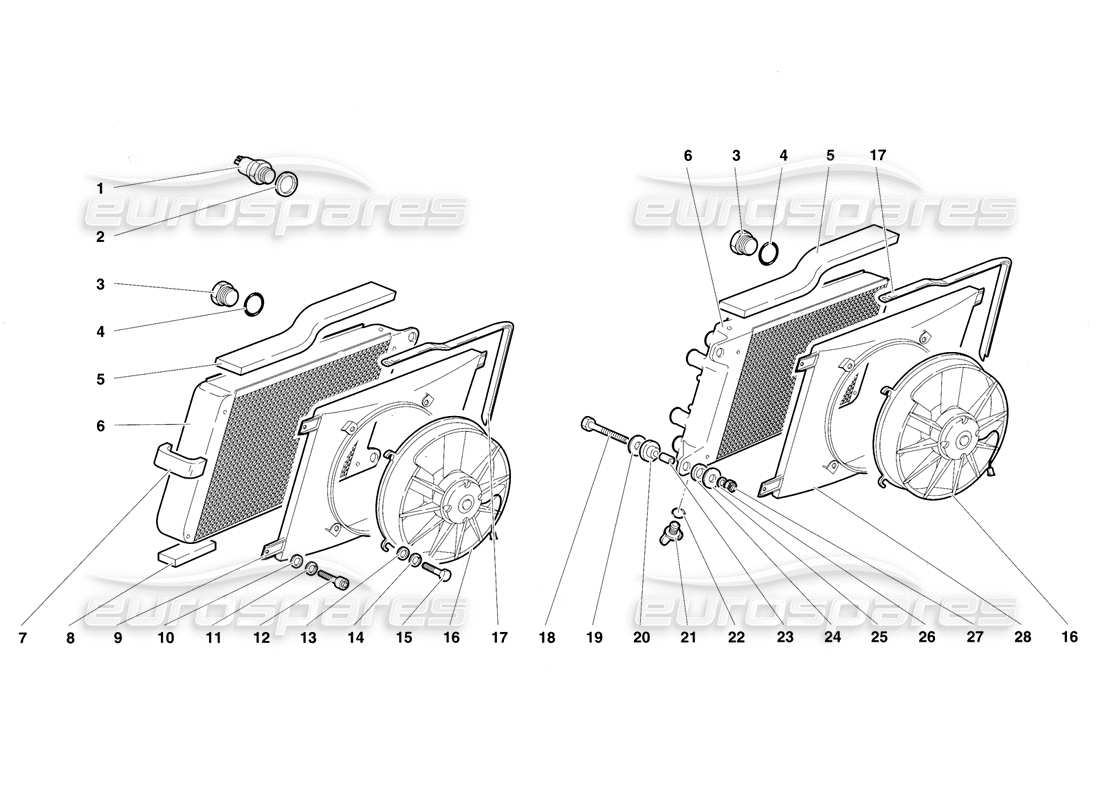

Lamborghini Diablo VT (1994) Radiators and Electro-Fans Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001724565/B
FAN SWITCH
(Three terminals)
from £79.40
from £79.40
# 002
MPN: 008402202
WASHER
RONDELLA
from £2.69
from £2.69
# 003
MPN: 008932202
PLUG
TAPPO
from £49.83
from £49.83
# 004
MPN: 008602002
SEAL
ANELLO TENUTA
from £14.31
from £14.31
# 005
MPN: 004531592
GASKET
Guarnizione
from £5.89
from £5.89
# 006
MPN: 001731654
RADIATOR
RADIATORE
from £2,542.05
from £2,542.05
# 007
MPN: 001733004
GASKET
Guarnizione
from £13.61
from £13.61
# 008
MPN: 001731451
GASKET
Guarnizione
from £9.25
from £9.25
# 009
MPN: 410121333
LEFT CONVEYOR
CONVOGLIATORE SINISTRO
Supersession
Supersession
# 010
MPN: 008400607
WASHER
RONDELLA
Supersession
Supersession
# 011
MPN: 008410611
WASHER
RONDELLA
from £0.51
from £0.51
# 012
MPN: 008700614
SCREW
VITE
Supersession
Supersession
# 013
MPN: WHT003040
WASHER
RONDELLA
from £4.55
from £4.55
# 014
MPN: 008410502
WASHER
RONDELLA
Supersession
Supersession
# 015
MPN: 008100502
SCREW
VITE
from £0.51
from £0.51
# 016
MPN: 0017017063
ELECTROFAN
from £225.53
from £225.53
This part replaces part number 001734039
# 017
MPN: 410121539
RUBBER WEATHER-
PROFILATO COMMA
from £35.11
from £35.11
# 018
MPN: 008100824
SCREW
VITE
from £0.89
from £0.89
# 019
MPN: 008400801
WASHER
RONDELLA
Supersession
Supersession
# 020
MPN: 001733266
RUBBER BUSHING
BOCCOLA GOMMA
from £4.20
from £4.20
# 021
MPN: 410121299
PLUG
TAPPO
from £140.51
from £140.51
# 022
MPN: 008600901
SEAL
use : WHT003058
Supersession
Supersession
# 023
MPN: 001733267
BUSHING
BOCCOLA
from £7.26
from £7.26
# 024
MPN: WHT001189
RUBBER RING
from £2.38
from £2.38
This part replaces part number 001707163
# 025
MPN: WHT001942
WASHER
RONDELLA
from £2.06
from £2.06
# 026
MPN: 008400806
WASHER
RONDELLA
Supersession
Supersession
# 027
MPN: 008200804
NUT
DADO
from £0.71
from £0.71
# 028
MPN: 410121334A
RIGHT CONVEYOR
CONVOGLIATORE DESTRO
from £535.00
from £535.00
