026 - clutch

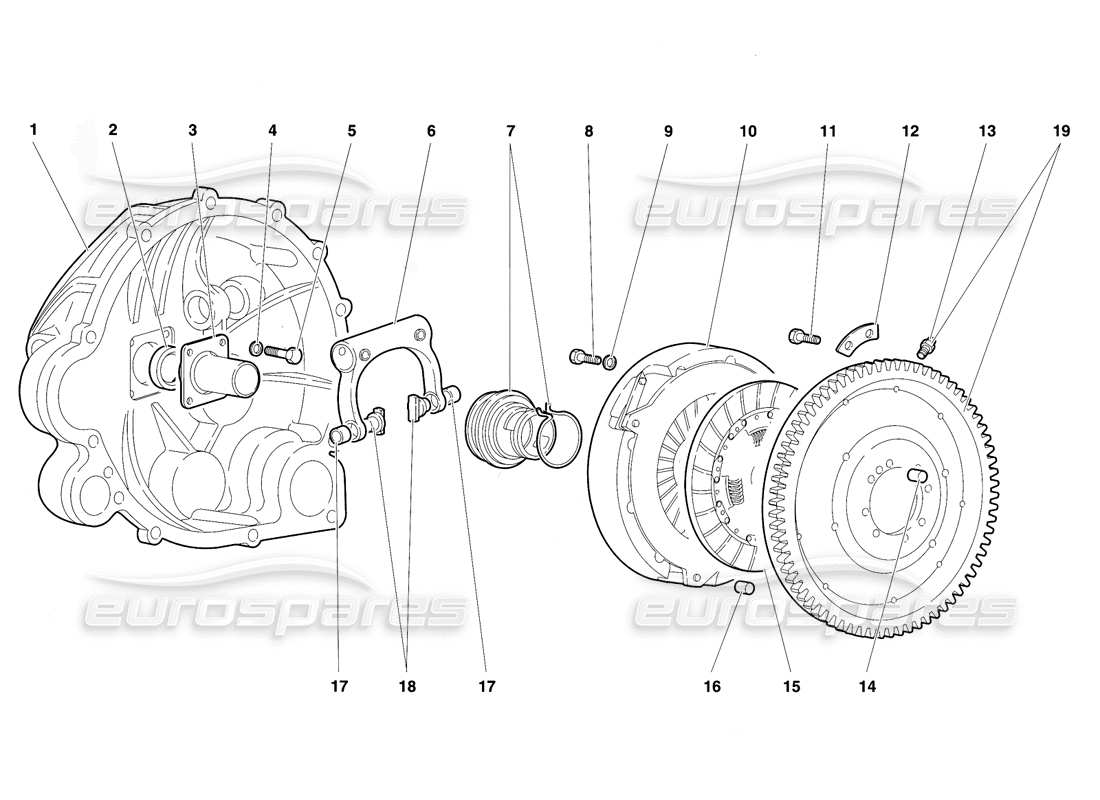

Lamborghini Diablo VT (1994) Clutch Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 002430772
BELL HOUSING
CAMPANA FRIZIONE
from £1,645.78
from £1,645.78
# 002
MPN: 008613206
SEAL
ANELLO TENUTA
from £12.15
from £12.15
# 003
MPN: 002428864
SUPPORT
SUPPORTO REGGISPINTA
from £1,164.91
from £1,164.91
# 004
MPN: WHT003053
LOCK WASHER
RONDELLA
from £2.01
from £2.01
This part replaces part number 008410603
# 005
MPN: 008100618
SCREW
VITE
Supersession
Supersession
# 006
MPN: 002121341
FORK
FORCELLA COMANDO FRIZIONE
from £845.70
from £845.70
# 007
MPN: 002129353
SLEEVE T/OBEARING
(Sachs)
from £1,318.29
from £1,318.29
# 008
MPN: 008100851
SCREW
VITE
from £0.51
from £0.51
# 009
MPN: WHT001514
WASHER
RONDELLA
from £15.09
from £15.09
This part replaces part number 008410805
# 010
MPN: 002132598
PRESSURE PLATE
(Sachs)
from £903.73
from £903.73
# 011
MPN: WHT002951
SCREW
VITE
from £11.41
from £11.41
This part replaces part number 008100802
# 012
MPN: 410141179
LOCKPLATE
from £38.40
from £38.40
This part replaces part number 008410811 - and 1 more. Click to view details
# 013
MPN: 07M105357
PIN
from £29.41
from £29.41
# 014
MPN: 008850806
DOWEL
GRANO
Supersession
Supersession
# 015
MPN: 002132599
CLUTCH DRIVEN
(Sachs)
from £2,033.92
from £2,033.92
# 016
MPN: 002132713
DOWEL
GRANO
from £34.61
from £34.61
# 017
MPN: 008801206
BUSHING
BOCCOLA
from £3.03
from £3.03
# 018
MPN: 002128866
PAWL
NOTTOLINO
from £286.04
from £286.04
# 019
MPN: 002132714
FLYWHEEL WITH PINS
VOLANO MOTORE CON PIOLI
from £1,127.59
from £1,127.59
This part replaces part number 002131489
