028 - REAR DIFFERENTIAL

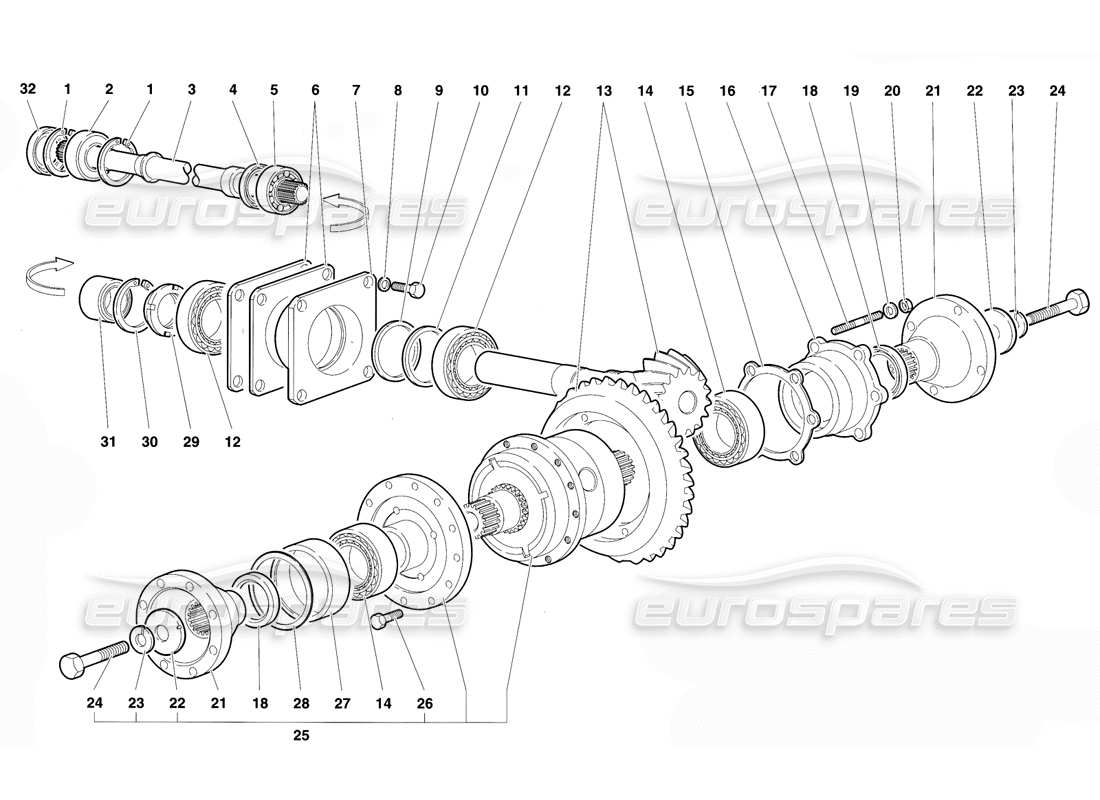

Lamborghini Diablo VT (1994) Rear Differential Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 008575501
      RETAINER RING
      ANELLO RITEGNO
      from £0.90
      from £0.90
      # 002
      MPN: 410103520
      BEARING
      CUSCINETTO
      from £42.29
      from £42.29
      This part replaces part number 008503013
      # 003
      MPN: 002330969
      SHAFT
      ALBERO Dl TRASMISSIONE
      from £964.09
      from £964.09
      # 004
      MPN: 008613508
      SEAL
      ANELLO TENUTA
      from £73.64
      from £73.64
      # 005
      MPN: 008503010
      BEARING
      CUSCINETTO
      from £13.72
      from £13.72
      # 006
      MPN: 002324939
      SHIM
      SPESSORE Dl REGISTRO
      from £25.17
      from £25.17
      # 007
      MPN: 002324938
      FLANGE
      FLANGIA PORTACUSCINETTI
      from £453.94
      from £453.94
      # 008
      MPN: 008410815
      WASHER
      RONDELLA
      from £0.53
      from £0.53
      # 009
      MPN: 002330693
      SHIM
      SPESSORE Dl REGISTRO 0,5 MM
      from £15.47
      from £15.47
      # 009
      MPN: 002330694
      SHIM
      SPESSORE Dl REGISTRO 0,3 MM
      from £23.00
      from £23.00
      # 009
      MPN: 002330695
      SHIM
      SPESSORE Dl REGISTRO 0,25 MM
      from £23.00
      from £23.00
      # 009
      MPN: 002330696
      SHIM
      SPESSORE Dl REGISTRO 0,2 MM
      from £23.00
      from £23.00
      # 009
      MPN: 002330697
      SHIM
      SPESSORE Dl REGISTRO 0,15 MM
      from £15.47
      from £15.47
      # 010
      MPN: 008100803
      SCREW
      VITE
      Supersession
      Supersession
      # 011
      MPN: 002328764
      SPACER
      DISTANZIALE
      from £39.14
      from £39.14
      # 012
      MPN: 008545004
      BEARING
      CUSCINETTO
      from £87.32
      from £87.32
      # 013
      MPN: 002333387
      CROWN AND PINION
      PIGNONE E CORONA
      from £2,723.63
      from £2,723.63
      # 014
      MPN: 008545002
      BEARING
      CUSCINETTO
      from £289.36
      from £289.36
      # 015
      MPN: 002324942
      SHIM
      SPESSORE Dl REGISTRO
      Supersession
      Supersession
      # 016
      MPN: 002324452
      FLANGE
      FLANGIA PORTACUSCINETTO
      from £160.02
      from £160.02
      # 017
      MPN: 008301032
      STUD
      PRIGIONIERO
      from £6.64
      from £6.64
      # 018
      MPN: 008614507
      SEAL
      ANELLO TENUTA
      from £31.31
      from £31.31
      This part replaces part number 008614509
      # 019
      MPN: WHT000768
      WASHER
      from £1.24
      from £1.24
      This part replaces part number 008410806 - and 1 more. Click to view details
      # 020
      MPN: N10155210
      NUT
      DADO
      from £1.28
      from £1.28
      This part replaces part number 008201001
      # 021
      MPN: 002333623
      FLANGE
      FLANGIA PORTA SEMIASSE
      from £229.67
      from £229.67
      # 022
      MPN: 002332653
      WASHER
      RONDELLA
      from £69.01
      from £69.01
      # 023
      MPN: 002332652
      WASHER
      RONDELLA
      from £6.10
      from £6.10
      # 024
      MPN: 002332651
      SCREW
      VITE
      from £14.09
      from £14.09
      # 025
      MPN: 002332210
      KIT DIFFERENTIAL
      KIT DIFFERENZIALE
      Supersession
      Supersession
      # 026
      MPN: 002332650
      SCREW
      VITE
      from £17.17
      from £17.17
      # 027
      MPN: 002324940
      BEARING CASE
      ANELLO PORTACUSCINETTO
      from £150.88
      from £150.88
      # 028
      MPN: 002331917
      SHIM
      SPESSORE Dl REGISTRO 0,50 MM
      from £16.14
      from £16.14
      # 028
      MPN: 002331918
      SHIM
      SPESSORE Dl REGISTRO 0,30 MM
      from £15.47
      from £15.47
      # 028
      MPN: 002331919
      SHIM
      SPESSORE Dl REGISTRO 0,25 MM
      from £15.47
      from £15.47
      # 028
      MPN: 002331920
      SHIM
      SPESSORE Dl REGISTRO 0,20 MM
      from £15.47
      from £15.47
      # 028
      MPN: 002331921
      SHIM
      SPESSORE Dl REGISTRO 0,15 MM
      from £15.47
      from £15.47
      # 029
      MPN: 008254503
      PLUG
      GHIERA
      from £109.38
      from £109.38
      # 030
      MPN: 008575002
      RETAINER RING
      ANELLO RITEGNO
      from £3.48
      from £3.48
      # 031
      MPN: 008524014
      BEARING
      CUSCINETTO
      from £128.52
      from £128.52
      # 032
      MPN: 086311819
      SEAL
      from £33.12
      from £33.12
      This part replaces part number 008613601
