lamborghini diablo vt (1994) front differential parts diagram

030 - FRONT DIFFERENTIAL

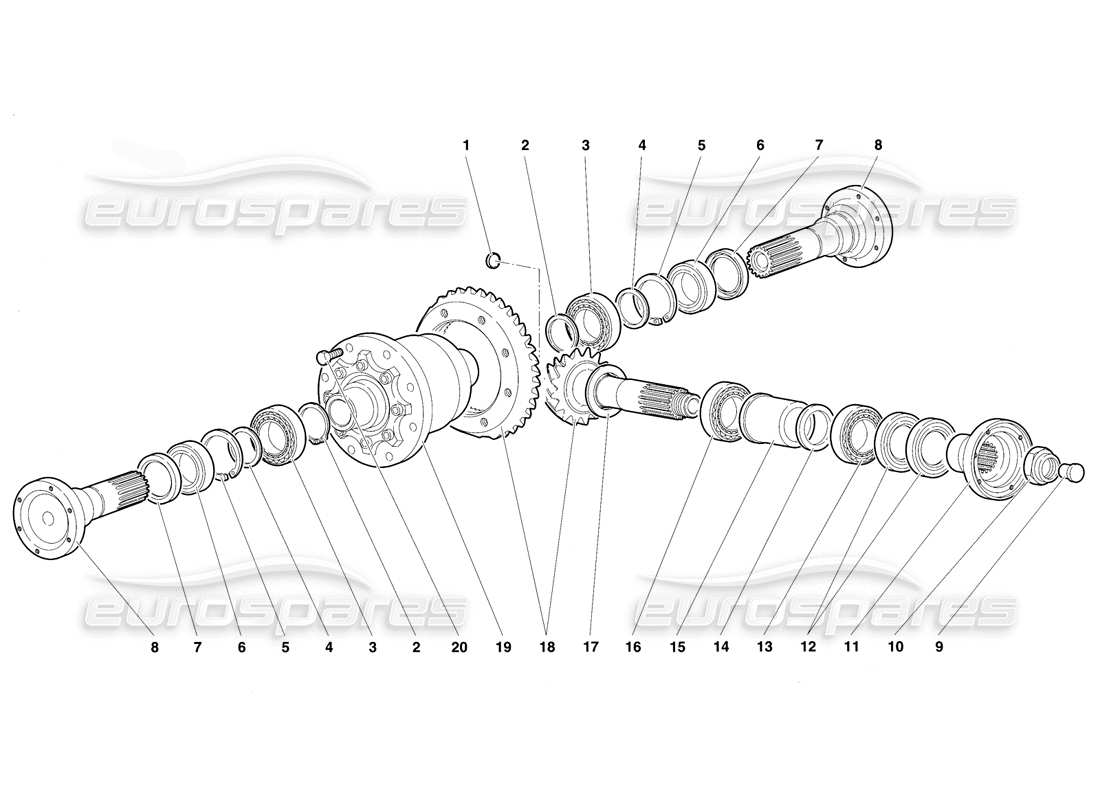

Lamborghini Diablo VT (1994) Front Differential Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 000
    MPN: 45Y8Q1320
    FRONT DIFFERENTIAL UNIT
    Lamborghini PART 45Y8Q1320 Genuine Lamborghini - New (to order)
    # 001
    MPN: 008932006
    PLUG
    TAPPO
    from £1.44
    from £1.44
    PLUG 20X1.5 Genuine Lamborghini - New (to order)
    # 002
    MPN: 008582701
    RETAINER RING
    ANELLO RITEGNO
    from £1.42
    from £1.42
    O-RING E 30 UNI 7435-75 Genuine Lamborghini - New In stock
    # 003
    MPN: 008544103
    BEARING
    CUSCINETTO
    from £78.43
    from £78.43
    BEARING Genuine Lamborghini - New (to order)
    # 004
    MPN: 002325826
    SPACER
    DISTANZIALE
    SPACER Genuine Lamborghini - New (to order)
    # 005
    MPN: 008576601
    RETAINER RING
    ANELLO RITEGNO
    from £0.53
    from £0.53
    O-RING I 62 UNI 3654 Genuine Lamborghini - New (to order)
    # 006
    MPN: 01S409144
    BEARING
    CUSCINETTO
    from £25.55
    from £25.55
    This part replaces part number 008503012
    BEARING Genuine Lamborghini - New In stock
    # 007
    MPN: 008613805
    SEAL
    ANELLO TENUTA
    from £12.15
    from £12.15
    OIL SEAL 38X52X7 MM Genuine Lamborghini - New (to order)
    # 008
    MPN: 002325830
    FLANGE
    FLANGIA
    FLANGE Genuine Lamborghini - New (to order)
    # 009
    MPN: 002334235
    RUBBER
    GOMMA
    from £7.13
    from £7.13
    FRONT PINION RUBBER WASHER Genuine Lamborghini - New (to order)
    # 010
    MPN: 008252505
    PLUG
    GHIERA
    from £49.64
    from £49.64
    D.25X1.5 UNI 5343 RING NUT Genuine Lamborghini - New (to order)
    # 011
    MPN: 002334024
    FLANGE
    FLANGIA
    from £569.61
    from £569.61
    FRONT TRANSMISSION ATTACHMENT FLANGE Genuine Lamborghini - New (to order)
    # 012
    MPN: 008614208
    SEAL
    ANELLO TENUTA
    from £55.60
    from £55.60
    OIL SEAL 42X72X8 MM Genuine Lamborghini - New In stock
    # 013
    MPN: 008543101
    BEARING
    CUSCINETTO
    from £85.41
    from £85.41
    BEARING Genuine Lamborghini - New (to order)
    # 014
    MPN: 002333787
    SHIM
    SPESSORE Dl REGISTRO 2,8 MM
    from £12.40
    from £12.40
    RING 2.8 MM Genuine Lamborghini - New (to order)
    # 014
    MPN: 002333788
    SHIM
    SPESSORE Dl REGISTRO 2,9 MM
    from £12.40
    from £12.40
    RING 2.9 MM Genuine Lamborghini - New (to order)
    # 014
    MPN: 002333789
    SHIM
    SPESSORE Dl REGISTRO 3,0 MM
    from £12.40
    from £12.40
    RING 3 MM Genuine Lamborghini - New (to order)
    # 014
    MPN: 002333790
    SHIM
    SPESSORE Dl REGISTRO 3,1 MM
    from £12.40
    from £12.40
    RING 3.1 MM Genuine Lamborghini - New (to order)
    # 014
    MPN: 002333791
    SHIM
    SPESSORE Dl REGISTRO 3,2 MM
    from £39.18
    from £39.18
    RING 3.2 MM Genuine Lamborghini - New (to order)
    # 014
    MPN: 002334258
    SHIM
    SPESSORE Dl REGISTRO 3,3 MM
    from £23.10
    from £23.10
    RING 3.3 MM Genuine Lamborghini - New (to order)
    # 014
    MPN: 002334350
    SHIM
    SPESSORE Dl REGISTRO 0,15 MM
    from £43.45
    from £43.45
    RING 0.15 MM Genuine Lamborghini - New (to order)
    # 015
    MPN: 002325825
    SPACER
    DISTANZIALE
    from £33.00
    from £33.00
    DIFFERENTIAL PINION SHIM Genuine Lamborghini - New (to order)
    # 016
    MPN: 008543401
    BEARING
    CUSCINETTO
    from £125.37
    from £125.37
    BEARING Genuine Lamborghini - New (to order)
    # 017
    MPN: 002333792
    SHIM
    SPESSORE Dl REGISTRO 2,4 MM
    from £15.25
    from £15.25
    RING 2.4 MM Genuine Lamborghini - New (to order)
    # 017
    MPN: 002333793
    SHIM
    SPESSORE Dl REGISTRO 2,5 MM
    from £15.25
    from £15.25
    RING 2.5 MM Genuine Lamborghini - New (to order)
    # 017
    MPN: 002333794
    SHIM
    SPESSORE Dl REGISTRO 2,6 MM
    from £34.25
    from £34.25
    RING 2.6 MM Genuine Lamborghini - New (to order)
    # 017
    MPN: 002333795
    SHIM
    SPESSORE Dl REGISTRO 2,7 MM
    from £34.25
    from £34.25
    RING 2.7 MM Genuine Lamborghini - New (to order)
    # 017
    MPN: 002333796
    SHIM
    SPESSORE Dl REGISTRO 2,8 MM
    from £34.25
    from £34.25
    RING 2.8 MM Genuine Lamborghini - New (to order)
    # 017
    MPN: 002334259
    SHIM
    SPESSORE Dl REGISTRO 2,3 MM
    from £55.39
    from £55.39
    RING 2.3 MM Genuine Lamborghini - New (to order)
    # 018
    MPN: 002329846
    BEVEL SET
    COPPIACONICA
    from £1,985.72
    from £1,985.72
    BEVEL GEAR Z-16 X Z-45 Genuine Lamborghini - New (to order)
    # 019
    MPN: 002325823
    KIT DIFFERENTIAL
    KIT DIFFERENZIALE ANTERIORE
    KIT DIFFERENTIAL Genuine Lamborghini - New (to order)
    # 020
    MPN: 008101062
    SCREW
    VITE
    from £3.03
    from £3.03
    SCREW 10X1.25X20 12.9HEXAG.AUT OB Genuine Lamborghini - New (to order)
