031 - Gearbox Control Tower

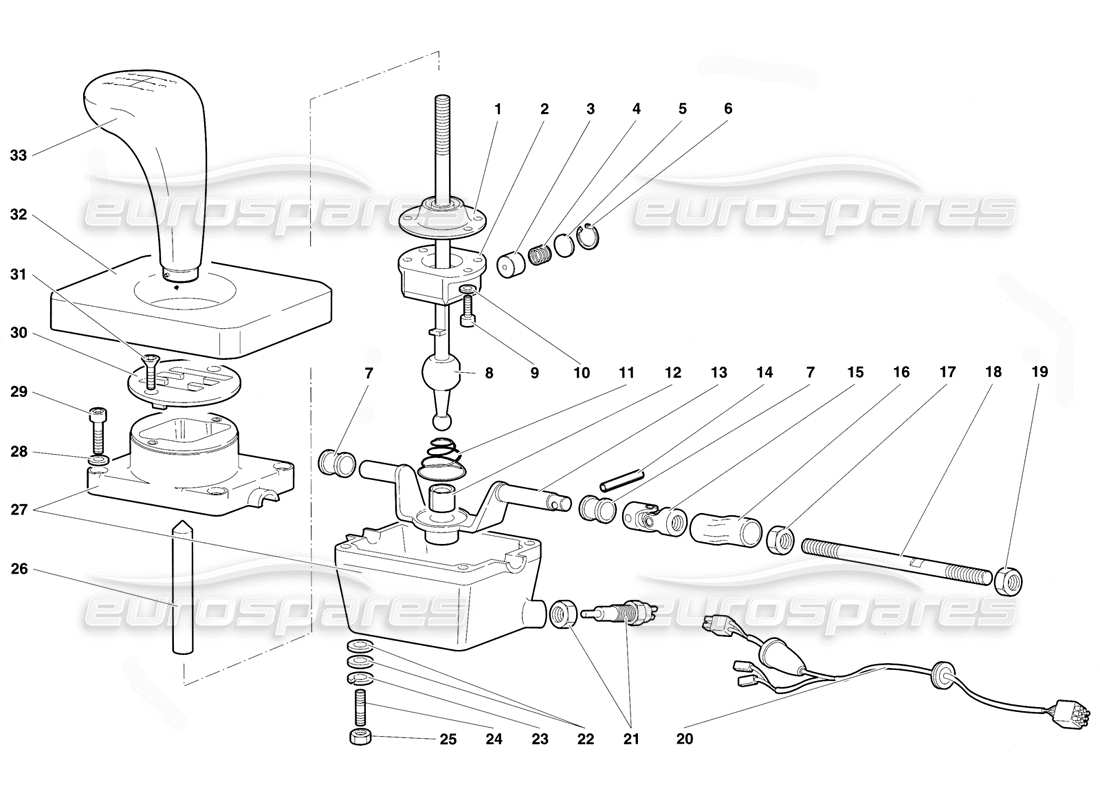

Lamborghini Diablo VT (1994) Gearbox Control Tower Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 002433043
BOOT
CUFFIA
from £67.01
from £67.01
# 002
MPN: 002434091
BALL SOCKFT
SEDE SFERICA
from £151.73
from £151.73
# 003
MPN: 002427202
CYLINDER
CILINDRO
from £53.57
from £53.57
# 004
MPN: 002432167
SPRING
MOLLA
from £7.63
from £7.63
# 005
MPN: 002427204
PLUG
TAPPO
from £1.02
from £1.02
# 006
MPN: 008572201
RETAINER RING
ANELLO RITEGNO
from £0.54
from £0.54
# 007
MPN: 002433020
BUSHING
BOCCOLA
from £20.24
from £20.24
# 008
MPN: 002433008
LEVER
LEVA
from £841.55
from £841.55
# 009
MPN: 008700646
SCREW
VITE
from £0.53
from £0.53
# 010
MPN: 008410602
WASHER
RONDELLA
from £28.28
from £28.28
# 011
MPN: 002429160
SPRING
MOLLA
from £96.84
from £96.84
# 012
MPN: 002427207
BUSHING
BOCCOLA
from £202.32
from £202.32
# 013
MPN: 002429161
SHAFT
ALBERO
from £191.95
from £191.95
# 014
MPN: 008900305
PIN
SPINA
from £0.54
from £0.54
# 015
MPN: 002430984
UNIVERSAL JOINT
See also 410711615
# 015
MPN: 410711615
UNIVERSAL JOINT
GIUNTO CARDANICO (DX)
from £655.41
from £655.41
# 016
MPN: 002432117
LINER
GUAINA IN GOMMA
from £41.62
from £41.62
# 017
MPN: 008201223
NUT
DADO (DX)
# 018
MPN: 002432435
ROD
ASIA
from £25.30
from £25.30
# 019
MPN: 008201224
NUT
DADO (SX)
# 020
MPN: 006133761
ELECT CABLE
CAVO ELETTRICO
from £59.61
from £59.61
# 021
MPN: 002408637
SWITCH
INTERRUTTORE RETROMARCIA
from £73.80
from £73.80
# 022
MPN: 008400607
WASHER
RONDELLA
Supersession
Supersession
# 023
MPN: WHT003053
LOCK WASHER
RONDELLA
from £2.01
from £2.01
This part replaces part number 008410603
# 024
MPN: 008300624
STUD
PRIGIONIERO
from £9.73
from £9.73
# 025
MPN: N01100637
NUT
DADO
from £0.53
from £0.53
This part replaces part number 008200604
# 026
MPN: 002432932
ADAPTER KNOB
ADATTATORE POMELLO
from £48.93
from £48.93
# 027
MPN: 240132003
CASE
SCATOLA LAVORATA
from £1,028.10
from £1,028.10
# 028
MPN: 008410810
WASHER
RONDELLA
Supersession
Supersession
# 029
MPN: 008700804
SCREW
VITE
from £1.03
from £1.03
# 030
MPN: 002433874
PLATE
PIASTRA Dl SELEZIONE
from £734.94
from £734.94
# 031
MPN: 008740613
SCREW
VITE
from £0.53
from £0.53
# 032
MPN: 002431785
FLEX PAD
SPESSORE IN GOMMA
Supersession
Supersession
# 033
MPN: 002428311
KNOB
POMELLO
from £448.76
from £448.76
