039 - Front Brakes

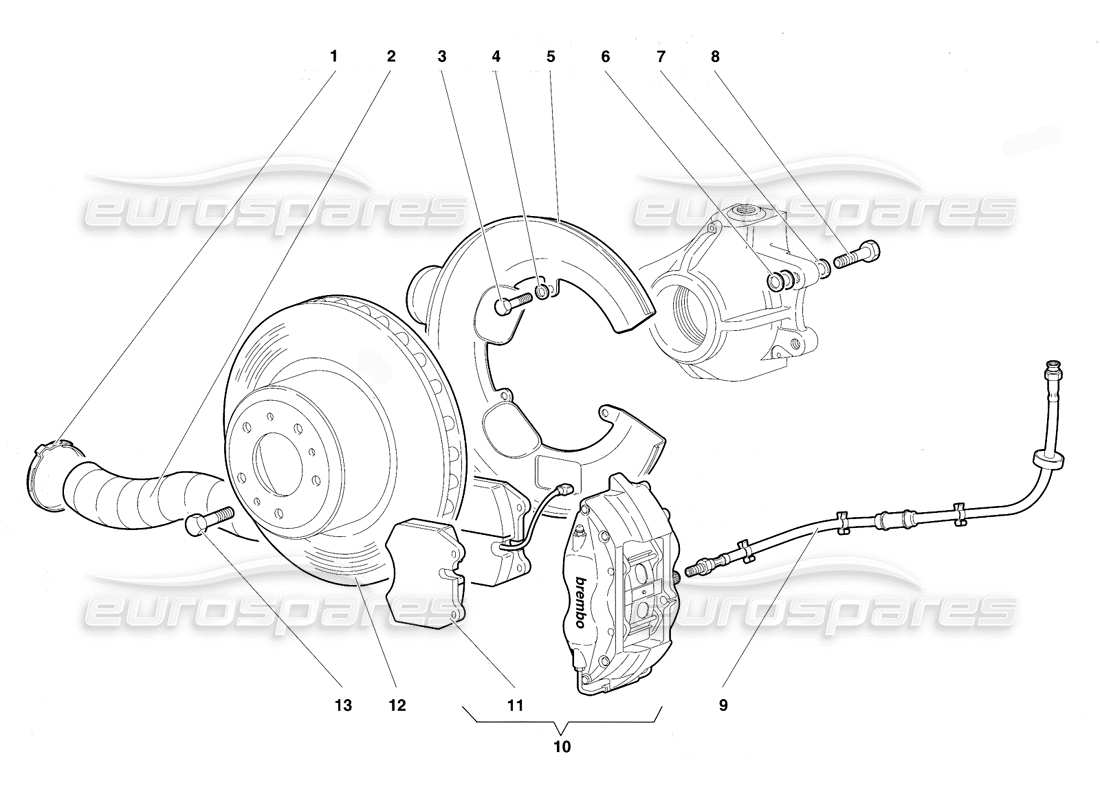

Lamborghini Diablo VT (1994) Front Brakes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008837501
STRAP
FASCETTA
from £9.60
from £9.60
# 002
MPN: 009453128
cooling air duct
from £112.40
from £112.40
# 003
MPN: N01020717
SCREW
VITE
from £0.52
from £0.52
This part replaces part number 008100504
# 004
MPN: 008410503
WASHER
RONDELLA
Supersession
Supersession
# 005
MPN: 003133481
LEFT MUDGUARDS
PARASPRUZZI SINISTRO
from £160.31
from £160.31
# 005
MPN: 003133482
RIGHT MUDGUARDS
PARASPRUZZI DESTRO
from £223.03
from £223.03
# 006
MPN: 003230720
SPACER
DISTANZIALE 0,1 MM
from £4.19
from £4.19
# 006
MPN: 003230721
SPACER
DISTANZIALE 0,2 MM
from £0.54
from £0.54
# 006
MPN: 003230724
SPACER
DISTANZIALE 0,5 MM
from £0.54
from £0.54
# 006
MPN: 003230727
SPACER
DISTANZIALE 1 MM
from £2.24
from £2.24
# 007
MPN: 008401306
WASHER
RONDELLA
from £1.49
from £1.49
# 008
MPN: 003132195
SCREW
VITE
from £19.41
from £19.41
# 009
MPN: 003229882
PIPE
Tubo
from £104.89
from £104.89
# 010
MPN: 003133609
BRAKE CALIPER CPL.
PINZA FRENI SINISTRA
from £1,728.70
from £1,728.70
# 010
MPN: 003133610
BRAKE CALIPER CPL.
PINZA FRENI DESTRA
from £1,728.70
from £1,728.70
# 011
MPN: 003134505
FRONT BRAK. PADS KIT
KIT PASTIGLIE FRENO PAGID
Supersession
Supersession
# 012
MPN: 003133607
FRONT BRAKE DISC
DISCO FRENO ANTERIORE
from £644.23
from £644.23
# 013
MPN: N01029315
SCREW
VITE
from £0.80
from £0.80
