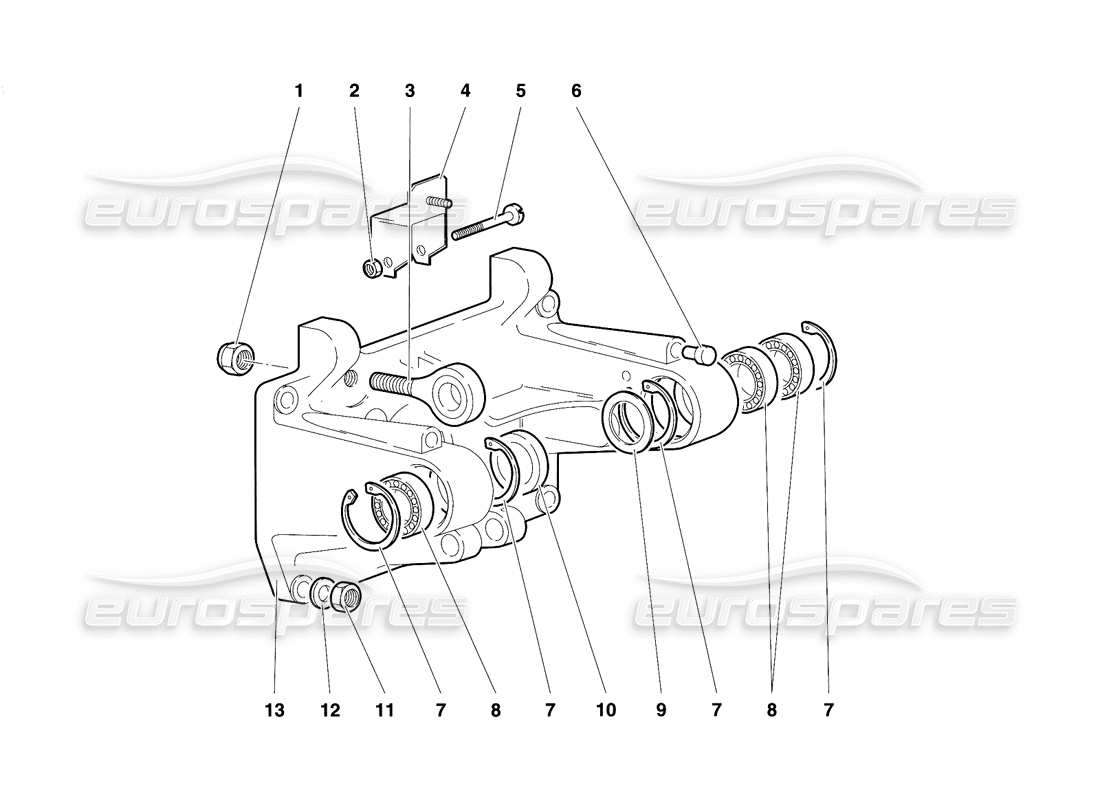

045 - Pedal Mounting
Lamborghini Diablo VT (1994) Pedal Mounting Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008201010
NUT
DADO
from £0.89
from £0.89
# 002
MPN: 008200606
NUT
Supersession
Supersession
# 003
MPN: 004229456
COUPLING
TESTA A SNODO
from £42.95
from £42.95
# 004
MPN: 004231515
SUPPORT
SUPPORTO
from £26.49
from £26.49
# 005
MPN: 008100654
SCREW
VITE
from £3.48
from £3.48
# 006
MPN: 410721381
PEDAL STOP
from £51.54
from £51.54
# 007
MPN: 008573701
RETAINER RING
ANELLO RITEGNO
from £0.53
from £0.53
# 008
MPN: 008502513
BEARING
CUSCINETTO
from £22.97
from £22.97
# 009
MPN: 008402507
SPACER
DISTANZIALE
from £17.59
from £17.59
# 010
MPN: 004230923
SPACER
DISTANZIALE
from £17.96
from £17.96
# 011
MPN: 008200804
NUT
DADO
from £0.71
from £0.71
# 012
MPN: 008400801
WASHER
RONDELLA
Supersession
Supersession
# 013
MPN: 004231558
PEDALS SUPPORT
SUPPORTO PEDALI
from £482.55
from £482.55
