054 - Climate Control

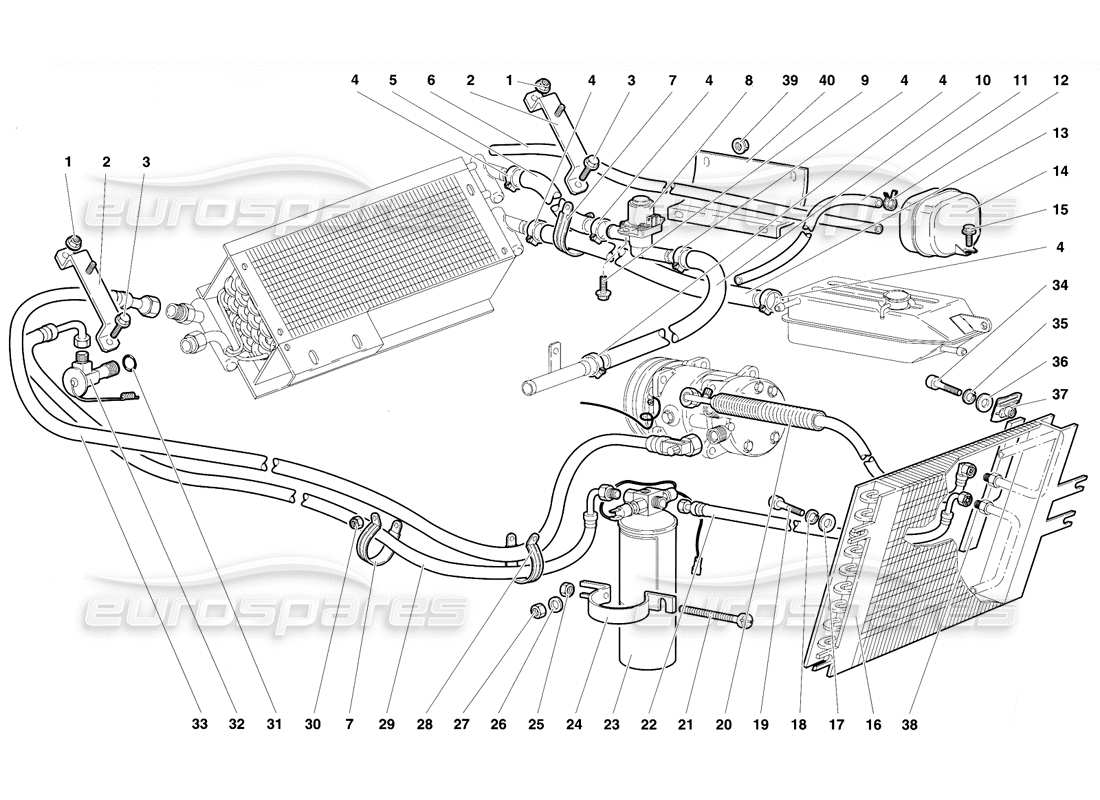

Lamborghini Diablo VT (1994) Climate Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008200606
NUT
Supersession
Supersession
# 002
MPN: 004131338
STRAP
FASCETTA
from £26.87
from £26.87
# 003
MPN: 008700663
SCREW
VITE
from £0.53
from £0.53
# 004
MPN: 008832003
STRAP
FASCETTA
from £28.65
from £28.65
# 005
MPN: 004734346
PIPE
Tubo
from £117.16
from £117.16
# 006
MPN: 009414600
PIPE
Tubo
from £25.16
from £25.16
# 007
MPN: 008834003
STRAP
FASCETTA
from £6.26
from £6.26
# 008
MPN: 006031658
ELECTRO-VALVE
ELETTROVALVOLA
from £118.03
from £118.03
# 009
MPN: 008700663
SCREW
VITE
from £0.53
from £0.53
# 010
MPN: 004734347
PIPE
Tubo
from £114.57
from £114.57
# 011
MPN: 006231411
PIPE
Tubo
from £8.05
from £8.05
# 012
MPN: 008830128
STRAP
FASCETTA
Supersession
Supersession
# 013
MPN: 001733231
PIPE
Tubo
from £122.36
from £122.36
# 014
MPN: 001323406
VACUUM TANK
SERBATOIO A DEPRESSIONE
from £29.52
from £29.52
# 015
MPN: 008700663
SCREW
VITE
from £0.53
from £0.53
# 016
MPN: 004531594
A/C CONDENSER
CONDENSATORE CONDIZIONATORE
from £224.81
from £224.81
# 017
MPN: 008400607
WASHER
RONDELLA
Supersession
Supersession
# 018
MPN: 008410611
WASHER
RONDELLA
from £0.53
from £0.53
# 019
MPN: 008700614
SCREW
VITE
Supersession
Supersession
# 020
MPN: 004530164
PIPE
Tubo
from £451.34
from £451.34
# 021
MPN: 008700542
SCREW
VITE
from £0.53
from £0.53
# 022
MPN: 004530165
PIPE
Tubo
from £141.37
from £141.37
# 023
MPN: 004535411
FILTER
FILTRO DEIDRATORE
from £220.49
from £220.49
This part replaces part number 004534692
# 024
MPN: 004531395
STRAP
FASCETTA
from £5.77
from £5.77
# 025
MPN: 008200580
NUT
DADO
# 026
MPN: 008400806
WASHER
RONDELLA
Supersession
Supersession
# 027
MPN: 008200804
NUT
DADO
from £0.75
from £0.75
# 028
MPN: 008834401
STRAP
FASCETTA
from £8.42
from £8.42
# 029
MPN: 004530166
PIPE
Tubo
from £236.05
from £236.05
# 030
MPN: 008200606
NUT
Supersession
Supersession

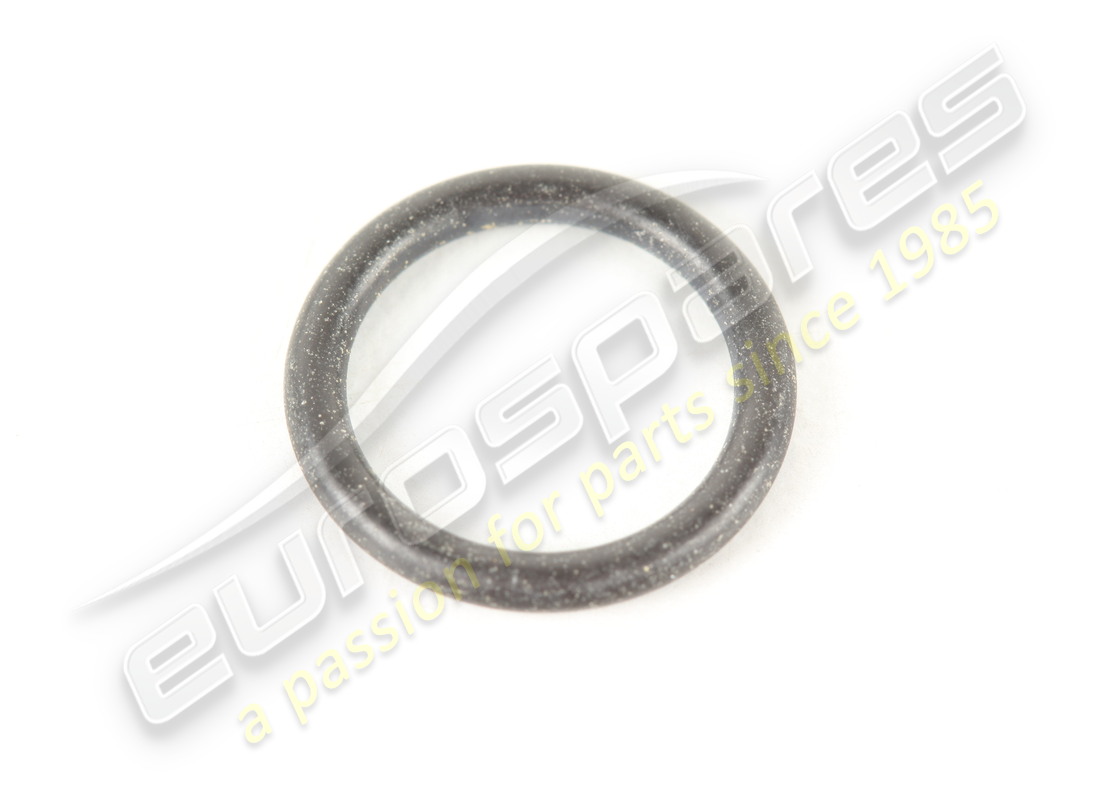

# 031
MPN: 008601103
SEAL
ANELLOTENUTA
from £6.84
from £6.84
# 032
MPN: 004530261
VALVE
VALVOLA Dl ESPANSIONE
from £208.94
from £208.94
# 033
MPN: 004530167
PIPE
Tubo
from £246.24
from £246.24
# 034
MPN: 008700614
SCREW
VITE
Supersession
Supersession
# 035
MPN: 008410611
WASHER .
RONDELLA
from £0.53
from £0.53
# 036
MPN: 008400607
WASHER
RONDELLA
Supersession
Supersession
# 037
MPN: N90327506
CLIP
MOLLETTA
from £0.64
from £0.64
# 038
MPN: 004531592
GASKET
Guarnizione
from £6.06
from £6.06
# 039
MPN: 008200614
NUT
DADO
Supersession
Supersession
# 040
MPN: 004133297
SHIELD
PROTEZIONE
