058 - Front Suspension

Lamborghini Diablo VT (1994) Front Suspension Parts Diagram

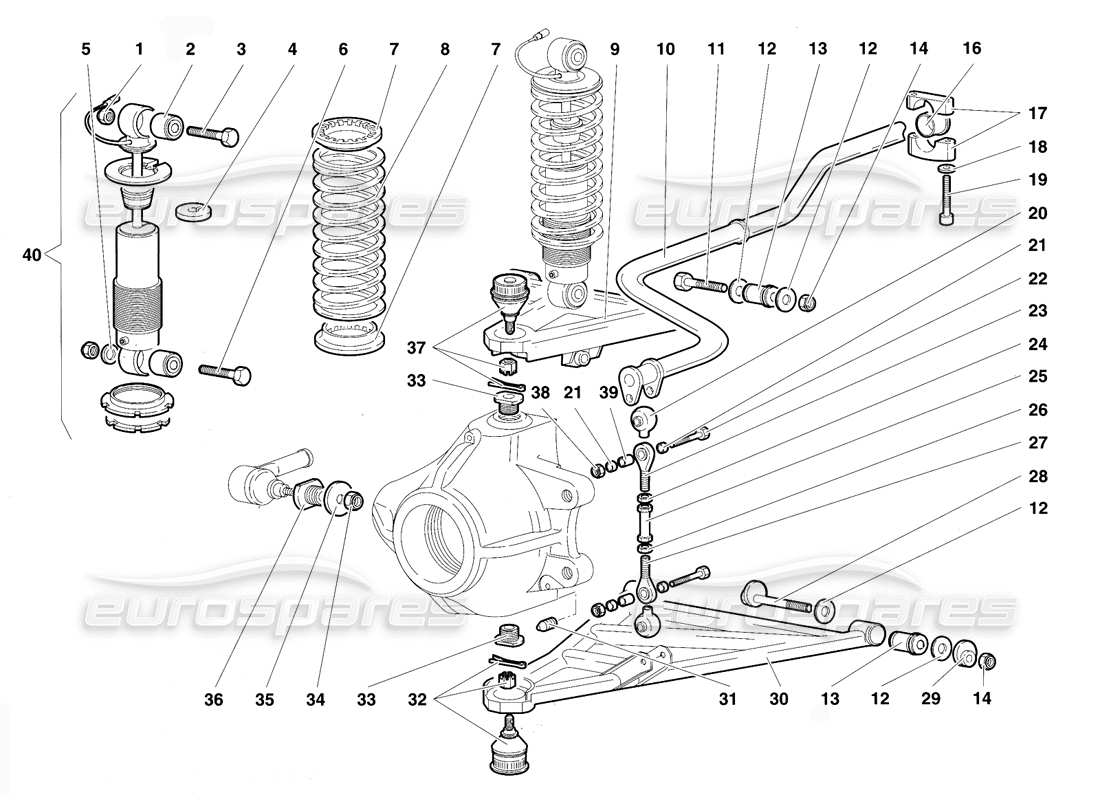

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: WHT003355
        NUT
        DADO
        from £13.28
        from £13.28
        # 002
        MPN: 410512383
        RESILIENT BUSHING
        from £356.24
        from £356.24
        # 003
        MPN: 008101259
        SCREW
        VITE
        from £9.74
        from £9.74
        # 004
        MPN: 005134315
        SPACER
        DISTANZIALE
        from £22.64
        from £22.64
        # 005
        MPN: 008401234
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 006
        MPN: 005133229
        SCREW
        VITE
        from £4.78
        from £4.78
        # 007
        MPN: 410512385
        RUBBER RING
        from £32.34
        from £32.34
        # 008
        MPN: 005133618
        SPRING
        MOLLA
        from £124.79
        from £124.79
        # 009
        MPN: 005133344
        ARM
        BRACCIO SUPERIORE DX
        from £518.36
        from £518.36
        # 009
        MPN: 005133345
        ARM
        BRACCIO SUPERIORE SX
        from £544.51
        from £544.51
        # 010
        MPN: 005134392
        TORSION BAR
        BARRA TORSIONE
        from £592.82
        from £592.82
        # 011
        MPN: 008101269
        SCREW
        VITE
        Supersession
        Supersession
        # 012
        MPN: 005133488
        SPACER
        DISTANZIALE 1 ,5 MM
        Supersession
        Supersession
        # 012
        MPN: 410407295
        SPACER
        DISTANZIALE 1 MM
        from £2.73
        from £2.73
        # 012
        MPN: 410407295B
        SPACER
        DISTANZIALE 2 MM
        from £2.39
        from £2.39
        # 012
        MPN: 410407295C
        SPACER
        DISTANZIALE 2,5
        from £2.64
        from £2.64
        # 012
        MPN: 410407295D
        SPACER
        DISTANZIALE 3 MM
        from £17.99
        from £17.99
        # 013
        MPN: 008921206
        RESILIENT BUSHING
        BOCCOLA ELASTICA
        from £29.93
        from £29.93
        # 014
        MPN: WHT003355
        NUT
        DADO
        from £13.28
        from £13.28
        # 016
        MPN: 005238302
        BUSHING
        BOCCOLA
        from £88.31
        from £88.31
        This part replaces part number 005230804
        # 017
        MPN: 005230258
        RETAINER
        CAVALLOTTO
        from £195.68
        from £195.68
        # 018
        MPN: 008410602
        WASHER
        RONDELLA
        from £28.28
        from £28.28
        # 019
        MPN: 008700609
        SCREW
        VITE
        Supersession
        Supersession
        # 020
        MPN: 005109714
        BOOT
        CAPPUCCIO
        from £16.55
        from £16.55
        # 021
        MPN: 005227297
        BUSHING
        BOCCOLA
        from £18.21
        from £18.21

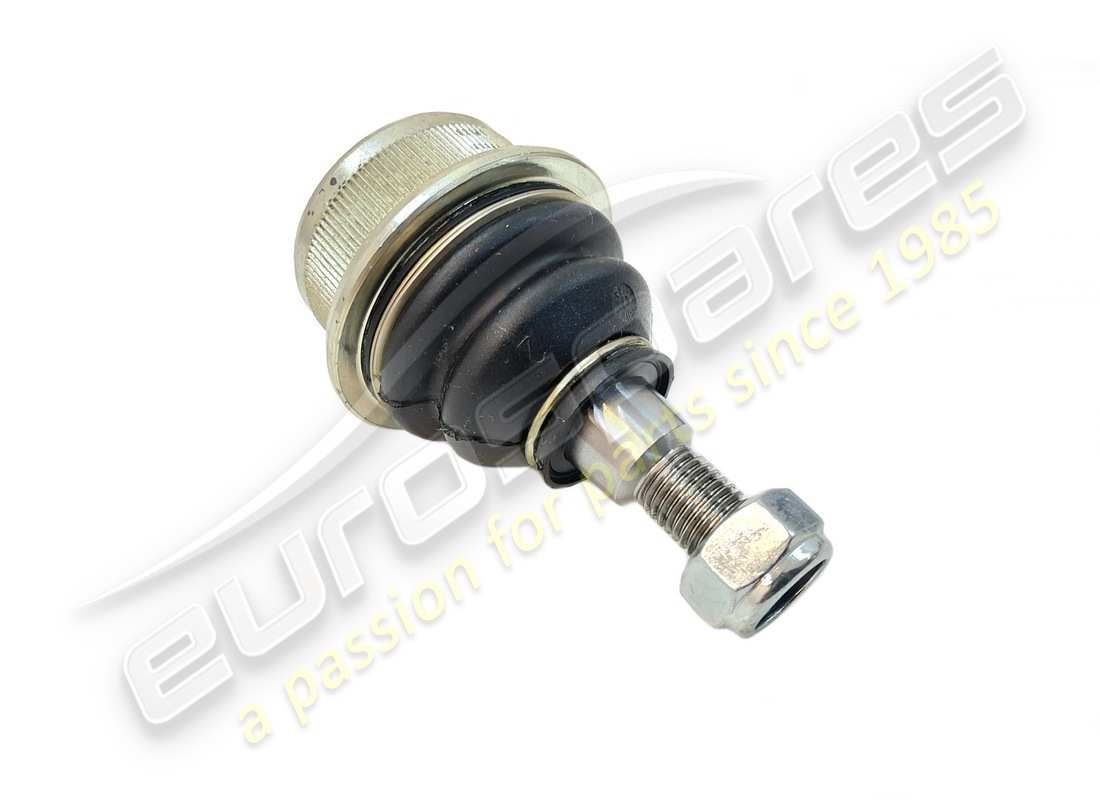

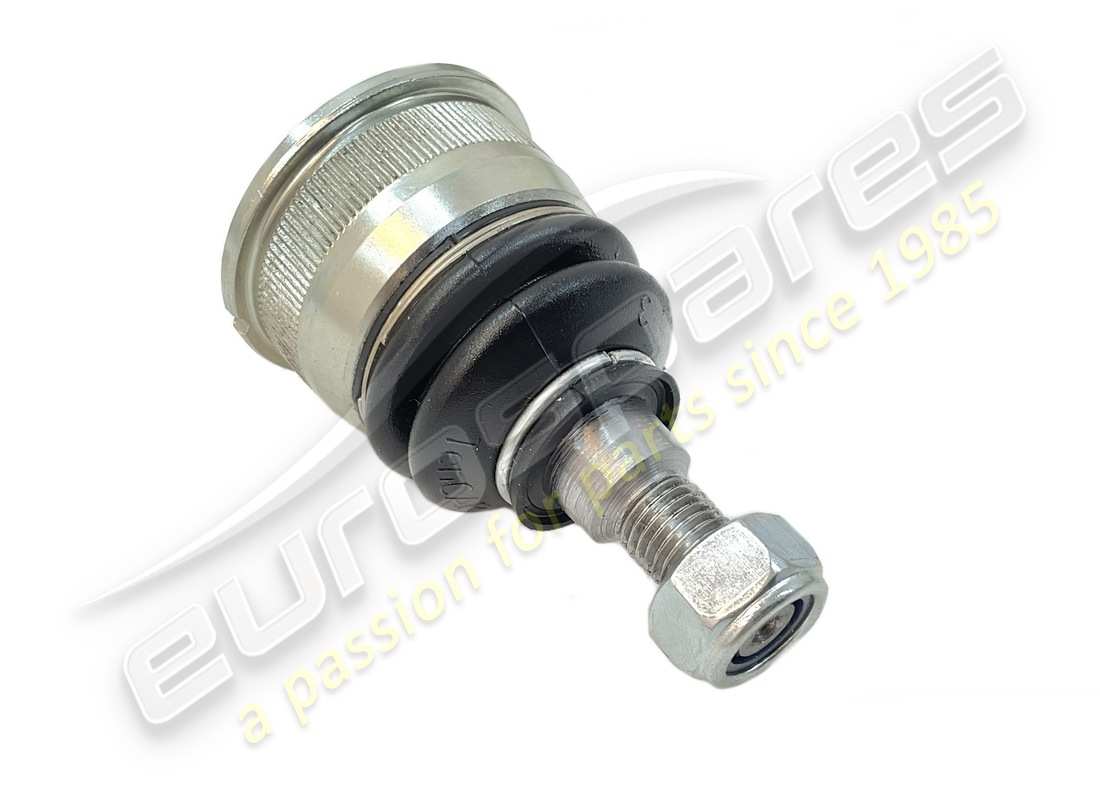

        # 023
        MPN: 417801931A
        BALL JOINT
        GIUNTO SFERICO
        from £160.39
        from £160.39
        This part replaces part number 005206963 - and 1 more. Click to view details
        # 024
        MPN: 008201014
        NUT
        DADO
        from £3.86
        from £3.86
        # 025
        MPN: 006209770
        TIE ROD
        TIRANTE
        # 026
        MPN: 008201016
        NUT
        DADO
        from £14.30
        from £14.30
        This part replaces part number 008201034

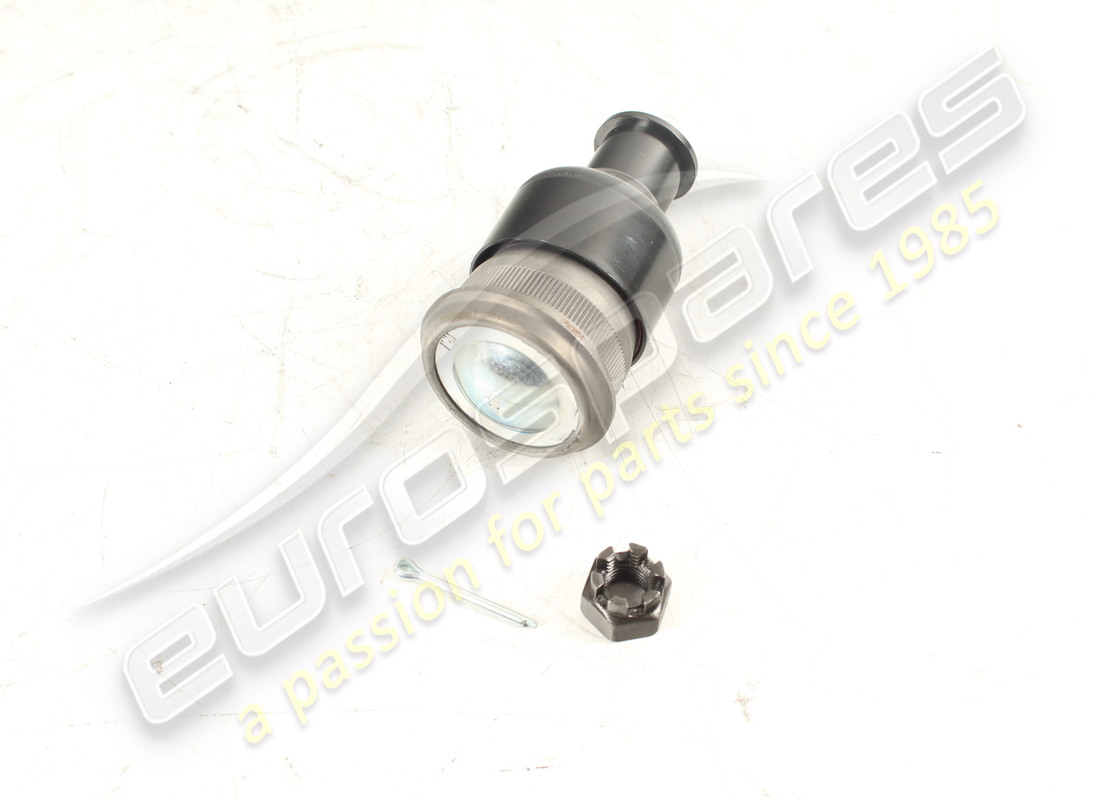

        # 027
        MPN: 005227295
        BALL JOINT
        GIUNTO SFERICO
        from £72.47
        from £72.47
        # 028
        MPN: 410407127A
        BOLT
        PERNO CON ECCENTRICO
        from £608.71
        from £608.71
        This part replaces part number 005231923
        # 029
        MPN: 410407127A
        BOLT
        ECCENTRICO
        from £608.71
        from £608.71
        This part replaces part number 005231923
        # 030
        MPN: 005133038
        ARM
        BRACCIO INFERIORE DX
        from £734.08
        from £734.08
        # 030
        MPN: 005133039
        ARM
        BRACCIO INFERIORE SX
        from £734.08
        from £734.08
        # 031
        MPN: 008700606
        SCREW
        VITE
        from £0.50
        from £0.50
        SCREW EI M6X1X10 12KD Genuine Lamborghini - New (other) In stock
        (Valid for June 1992 version) GRAND (dalla 12678)

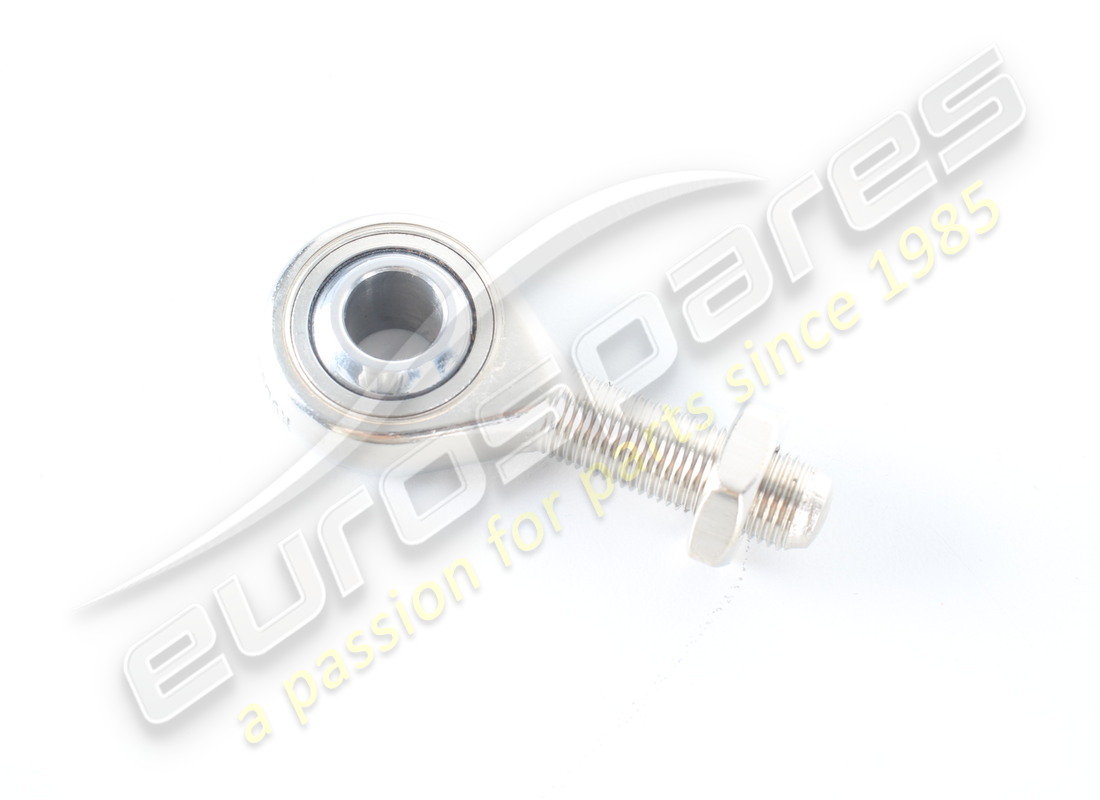

        # 032
        MPN: 410407361B
        COUPLING
        TESTA A SNODO
        from £254.24
        from £254.24
        This part replaces part number 410407361
        # 033
        MPN: 410407171C
        BUSHING
        BUSSOLA
        from £407.25
        from £407.25
        This part replaces part number 410407171
        # 034
        MPN: 008201003
        NUT
        DADO
        from £2.18
        from £2.18
        # 035
        MPN: WHT000919
        WASHER
        from £9.08
        from £9.08
        # 036
        MPN: 005129541
        BUSHING
        BUSSOLA
        from £29.81
        from £29.81
        # 037
        MPN: 410407365
        COUPLING
        TESTA A SNODO
        from £127.12
        from £127.12
        # 038
        MPN: 008200804
        NUT
        DADO
        from £0.71
        from £0.71
        # 039
        MPN: 005227298
        BUSHING
        BOCCOLA
        from £11.08
        from £11.08
        # 040
        MPN: 005133165
        SHOCK ABSORBERS KIT
        Replaced by 0R1320014
        from £806.71
        from £806.71
        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
