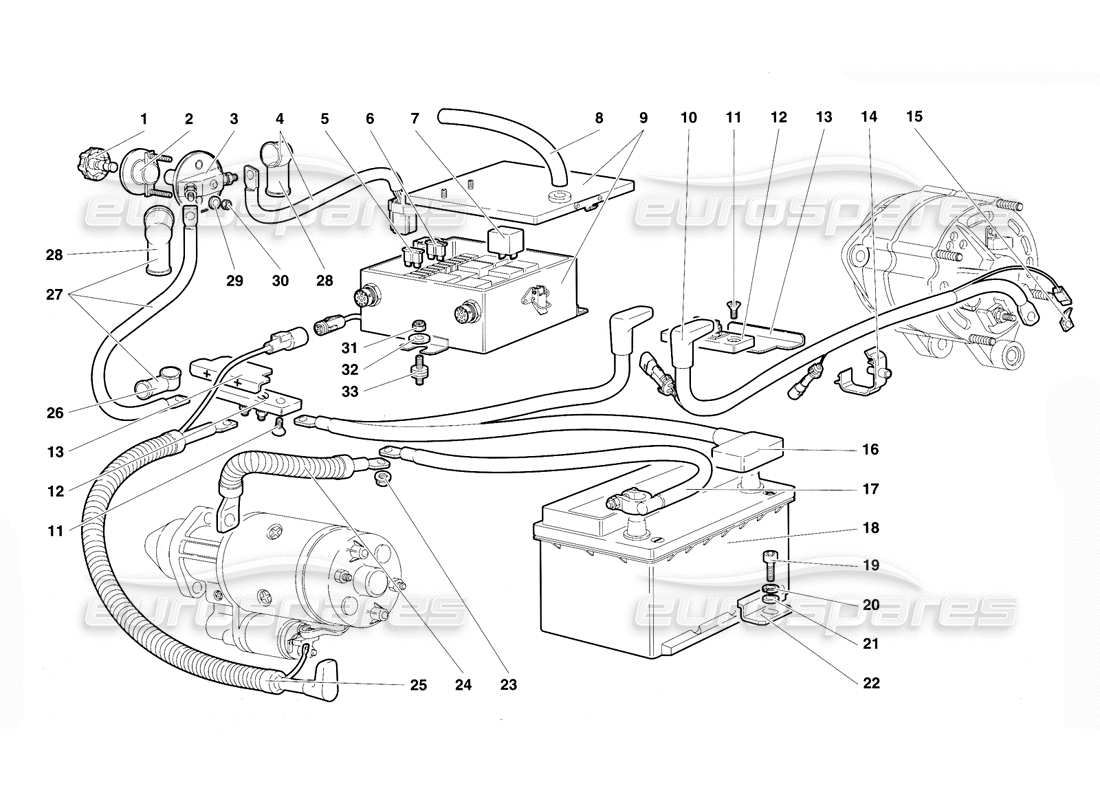

Lamborghini Diablo VT (1994) Electrical System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 005931167
    KNOB
    POMELLO
    from £56.47
    from £56.47
    # 002
    MPN: 005931299
    FLANGE
    FLANGIA
    from £146.75
    from £146.75
    # 003
    MPN: 005931163
    CONNECTING BLOCK
    BLOCCHETTO CONNESSIONE
    from £147.59
    from £147.59
    # 004
    MPN: 006133729
    ELECT CABLE
    CAVO ELETTRICO
    from £21.36
    from £21.36
    # 005
    MPN: 001626192
    FUSE
    FUSIBILEDA5AMP.
    from £0.54
    from £0.54
    # 005
    MPN: 001626193
    FUSE
    FUSIBILEDA15AMP.
    from £0.54
    from £0.54
    # 005
    MPN: 001626697
    FUSE
    FUSIBILEDA10AMP.
    from £0.54
    from £0.54
    # 005
    MPN: 001633966
    FUSE
    FUSIBILEDA25AMP.
    from £0.54
    from £0.54
    # 006
    MPN: 006134479
    DIODE
    DIODO
    from £25.58
    from £25.58
    # 007
    MPN: 006311154
    RELAY
    TELERUT. 87 BOSCH 0.332.014.151
    from £30.30
    from £30.30
    # 007
    MPN: 006311155
    RELAY
    TELERUT. 87b BOSCH 0.332.015.006
    from £36.37
    from £36.37
    # 007
    MPN: 006319913
    RELAY
    TELERUT. 87a BOSCH 0.332.204.151
    from £39.80
    from £39.80
    # 008
    MPN: 006134396
    PIPE
    Tubo
    from £66.17
    from £66.17
    # 009
    MPN: 006133752
    CASE
    SCATOLA
    from £182.87
    from £182.87
    # 010
    MPN: 006133727
    ELECT CABLE
    CAVO ELETTRICO
    from £397.97
    from £397.97
    # 011
    MPN: 008700801
    SCREW
    VITE
    from £0.53
    from £0.53
    # 012
    MPN: 001606170
    ELECTRIC CONNECT.
    CONNESSIONE ELETTRICA
    from £35.33
    from £35.33
    # 013
    MPN: 006132457
    PLATE
    TARGHETTA
    from £4.27
    from £4.27
    # 014
    MPN: 008832006
    STRAP
    FASCETTA
    from £1.94
    from £1.94
    # 015
    MPN: 006131975
    CONTACT PLATE
    PIASTRINA CONTATTO
    from £0.54
    from £0.54
    # 016
    MPN: 006134530
    ELECT CABLE
    CAVO ELETTRICO
    # 017
    MPN: 006134536
    ELECT CABLE
    CAVO ELETTRICO
    from £51.19
    from £51.19
    # 018
    MPN: 001624948
    Battery
    Batteria
    from £645.03
    from £645.03
    # 019
    MPN: 008700815
    SCREW
    VITE
    from £0.54
    from £0.54
    # 020
    MPN: 008410819
    WASHER
    RONDELLA
    from £1.55
    from £1.55
    # 021
    MPN: 008400816
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 022
    MPN: 004130608
    PLATE
    LAMIERINO
    from £18.29
    from £18.29
    # 023
    MPN: 008200824
    NUT
    DADO
    from £0.54
    from £0.54
    # 024
    MPN: 006130080
    ELECT CABLE
    CAVO ELETTRICO
    from £174.23
    from £174.23
    # 025
    MPN: 006133726
    ELECT CABLE
    CAVO ELETTRICO
    from £251.22
    from £251.22
    # 026
    MPN: 006134287
    SHIELD
    PROTEZIONE
    from £25.87
    from £25.87
    # 027
    MPN: 006133728
    ELECT CABLE
    CAVO ELETTRICO
    from £32.00
    from £32.00

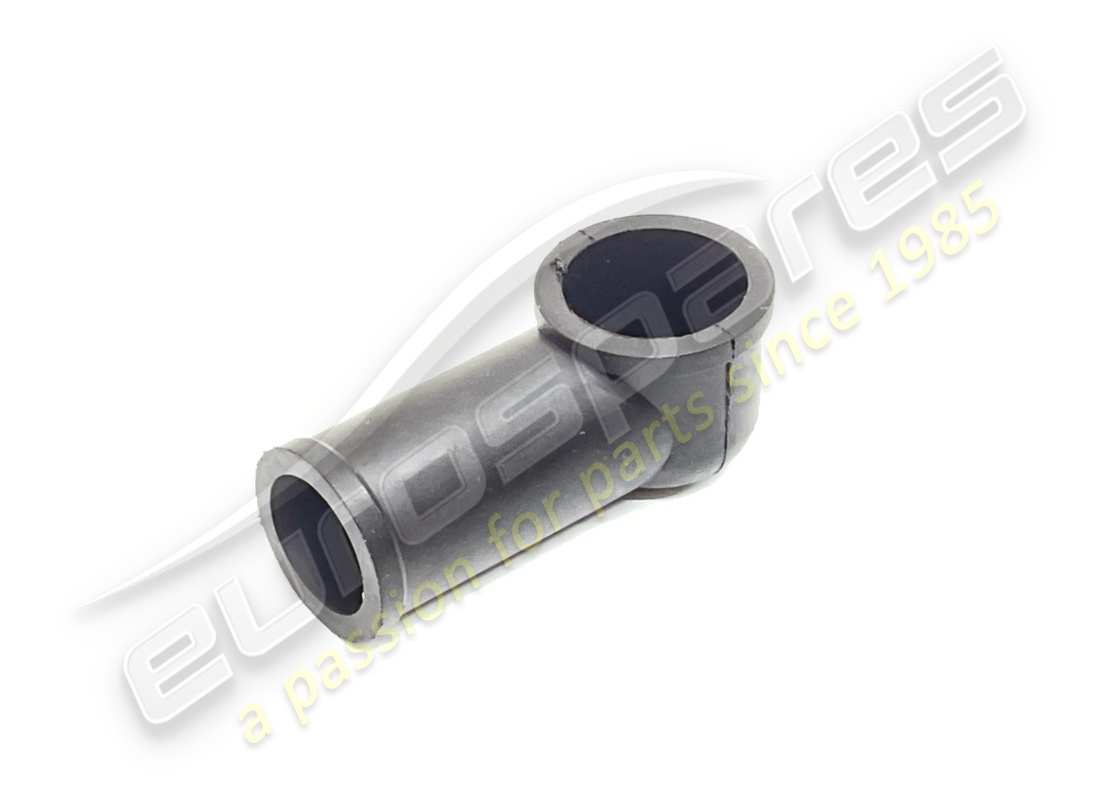

    # 028
    MPN: 006132132
    SHIELD
    PROTEZIONE
    from £2.41
    from £2.41
    # 029
    MPN: WHT001187
    WASHER
    RONDELLA
    from £0.55
    from £0.55
    This part replaces part number 008400502
    # 030
    MPN: N0211963
    NUT
    DADO
    from £0.53
    from £0.53
    # 031
    MPN: 008200606
    NUT
    Supersession
    Supersession
    # 032
    MPN: 008400607
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 033
    MPN: 008920602
    ELASTIC SUPPORT
    SUPPORTO ELASTICO
    from £8.91
    from £8.91
    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
