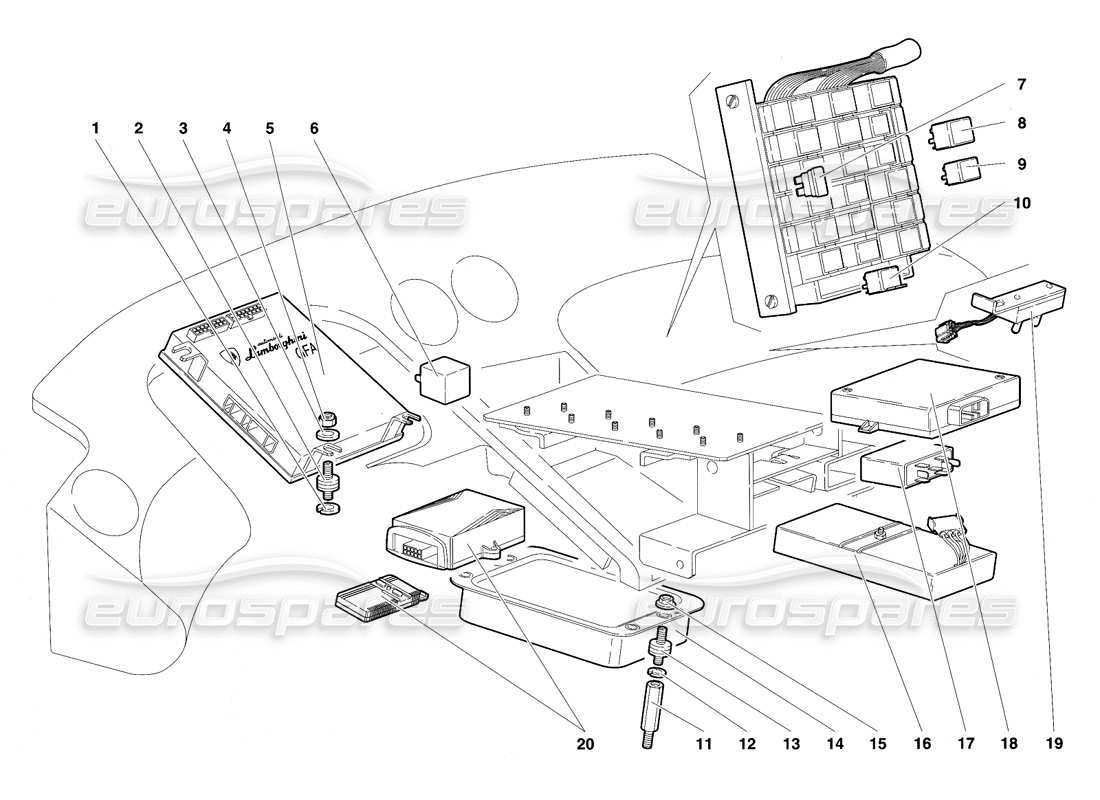

Lamborghini Diablo VT (1994) Electrical System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008410611
WASHER
RONDELLA
from £0.53
from £0.53
# 002
MPN: 008920602
ELASTIC SUPPORT
SUPPORTO ELASTICO
from £8.91
from £8.91
# 003
MPN: 008400607
WASHER
RONDELLA
Supersession
Supersession
# 004
MPN: 008200606
NUT
Supersession
Supersession
# 005
MPN: 006033362
E.C.U. GFA
CENTRALINA GFA
# 006
MPN: 006030676
RELAY
TELERUTTORE
from £99.08
from £99.08
# 007
MPN: 001626192
FUSE
FUSIBILE5AMP.
from £0.54
from £0.54
# 007
MPN: 001626193
FUSE
FUSIBILE15AMP.
from £0.54
from £0.54
# 007
MPN: 001626697
FUSE
FUSIBILE10AMP.
from £0.54
from £0.54
# 007
MPN: 001629257
FUSE
FUSIBILE7.5AMP.
from £1.03
from £1.03
# 007
MPN: 001629258
FUSE
FUSIBILE20AMP.
from £0.54
from £0.54
# 007
MPN: 001629259
FUSE
FUSIBILE30AMP.
from £0.54
from £0.54
# 007
MPN: 001633966
FUSE
FUSIBILE25AMP.
from £0.54
from £0.54
# 008
MPN: 006311154
RELAY
RELAY 87 BOSCH 0.332.014.151
from £30.30
from £30.30
# 008
MPN: 006319913
RELAY
RELAY 87A BOSCH 0.332.204.151
from £39.80
from £39.80
# 009
MPN: 006034961
DIODE
RELAY/DIODO 87 BOSCH 0.332.014.1 12
from £14.62
from £14.62
# 009
MPN: 006311155
RELAY
RELAY 87B BOSCH 0.332.015.006
from £36.37
from £36.37
# 010
MPN: 006033965
DIODES ASSEMBLY
GRUPPO DIODI (ITALAMEC 454/10)
from £47.68
from £47.68
# 011
MPN: 001128397
STUD
COLONNETTA
from £22.23
from £22.23
# 012
MPN: 008410611
WASHER
RONDELLA
from £0.53
from £0.53
# 013
MPN: 008920602
ELASTIC SUPPORT
SUPPORTO ELASTICO
from £8.91
from £8.91
# 014
MPN: 005133176
KONI E.C.U.
CENTRALINA KONI
from £1,011.52
from £1,011.52
# 015
MPN: 008200614
NUT
DADO
Supersession
Supersession
# 016
MPN: 006030677
E.C.U.
CENTRALINA LOW TIRE
from £425.34
from £425.34
# 017
MPN: 005929915
LOCKING E.C.U.
CENTR. CHIUSURA CENTR.
from £249.89
from £249.89
# 018
MPN: 006032856
E.C.U.
CENTRALINA ALZAVETRO (ANSOR)
from £796.34
from £796.34
# 019
MPN: 006133372
SWITCH
INTERRUTTORE
from £407.93
from £407.93
# 020
MPN: 005934376
REMO. LOCKING E.C.U.
CENTRALINA CHIUSURA CENTR.
from £1,060.67
from £1,060.67
