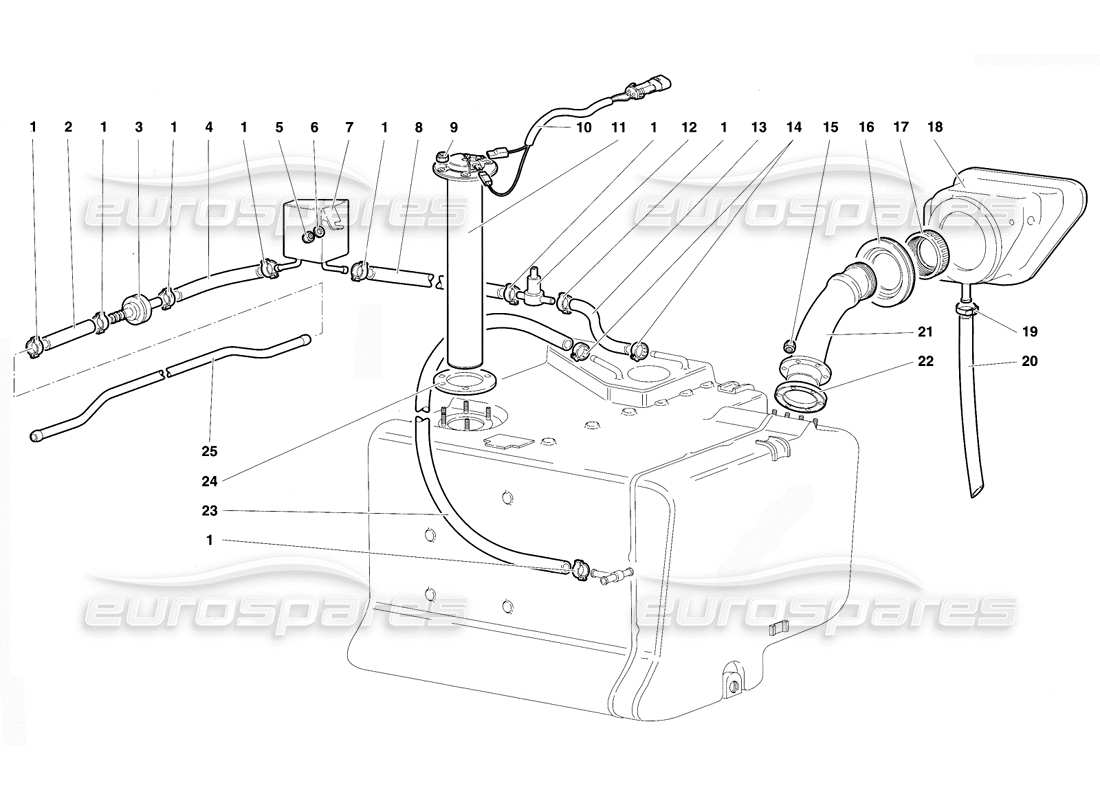

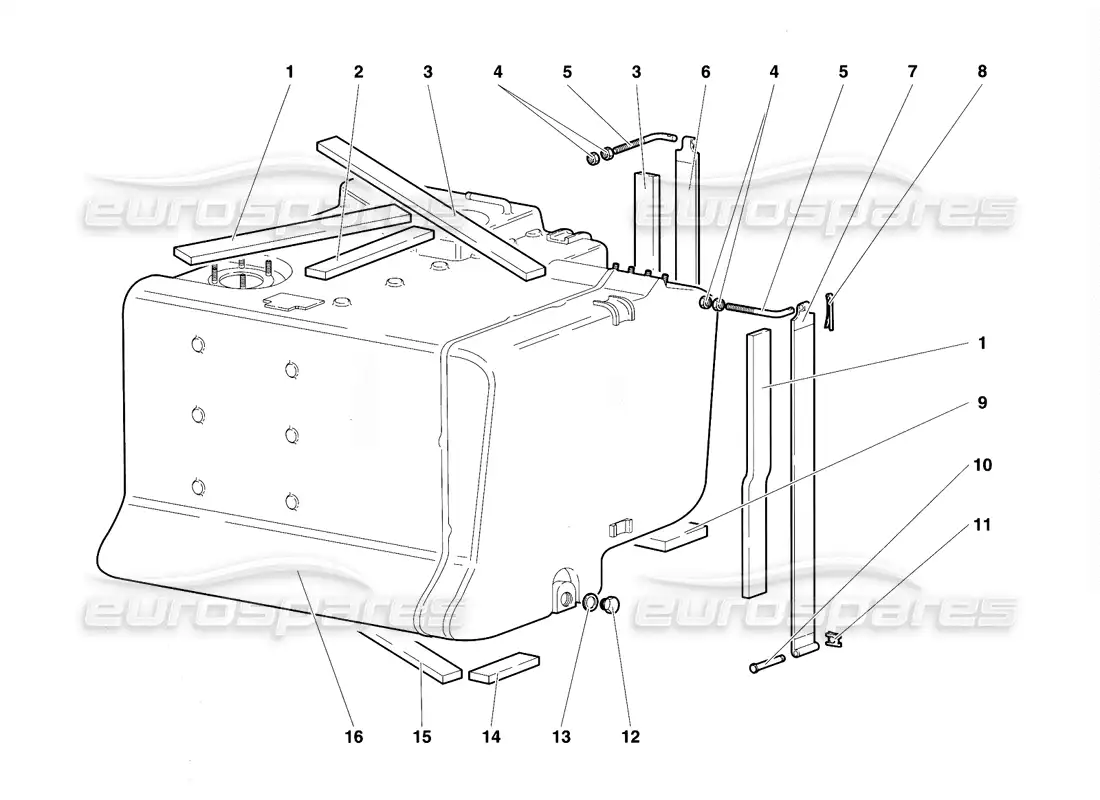

071 - fuel system
Lamborghini Diablo VT (1994) Fuel System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008830902
STRAP
FASCETTA
from £4.92
from £4.92
# 002
MPN: 006231442
PIPE
Tubo
from £4.44
from £4.44
# 003
MPN: 006229379
SAFETY VALVE
VALVOLA Dl SOVRAPRESSIONE
from £82.34
from £82.34
# 004
MPN: 006233893
PIPE
Tubo
from £27.57
from £27.57
# 005
MPN: 008200606
NUT
Supersession
Supersession
# 006
MPN: N01152427
WASHER
RONDELLA
from £0.47
from £0.47
This part replaces part number 008400606
# 007
MPN: 006233841
VAPOUR TANK
SEPARATORE VAPORI BENZINA
from £247.90
from £247.90
# 008
MPN: 006230437
PIPE
Tubo
from £22.28
from £22.28
# 009
MPN: N0211963
NUT
DADO
from £0.51
from £0.51
# 010
MPN: 006133765
ELECT CABLE
CABLAGGIO GALLEGGIANTE
from £30.10
from £30.10
# 011
MPN: 006229648
LEVEL GAUGE
INDICATORE LIVELLO
from £215.57
from £215.57
# 012
MPN: 006230531
SAFETY VALVE
VALVOLA SICUREZZA
from £185.31
from £185.31
# 013
MPN: 006230438
PIPE
Tubo
from £9.00
from £9.00
# 014
MPN: 008831117
STRAP
FASCETTA
Supersession
Supersession
# 015
MPN: WHT002959
NUT
DADO
from £0.53
from £0.53
# 016
MPN: 009409215
GASKET
Guarnizione
from £20.65
from £20.65
This part replaces part number 009404215
# 017
MPN: 400201587A
PLUG
TAPPO
from £567.22
from £567.22
# 018
MPN: 009490518
CASE
SCATOLA
from £515.33
from £515.33
This part replaces part number 009490506
# 019
MPN: 008832205
STRAP
FASCETTA
from £12.98
from £12.98
# 020
MPN: 009490516
PIPE
Tubo
from £8.38
from £8.38
# 021
MPN: 006221128
UNION
BOCCHETTONE
from £1,128.37
from £1,128.37
# 022
MPN: 006205360
GASKET
Guarnizione
from £34.74
from £34.74
# 023
MPN: 006230215
PIPE
Tubo
from £84.58
from £84.58
# 024
MPN: 006229649
GASKET
Guarnizione
from £9.77
from £9.77
# 025
MPN: 006231441
PIPE
Tubo
from £293.50
from £293.50
-part-diagram-072.webp "LAMBORGHINI DIABLO VT (1994) FUEL SYSTEM PARTS DIAGRAM")

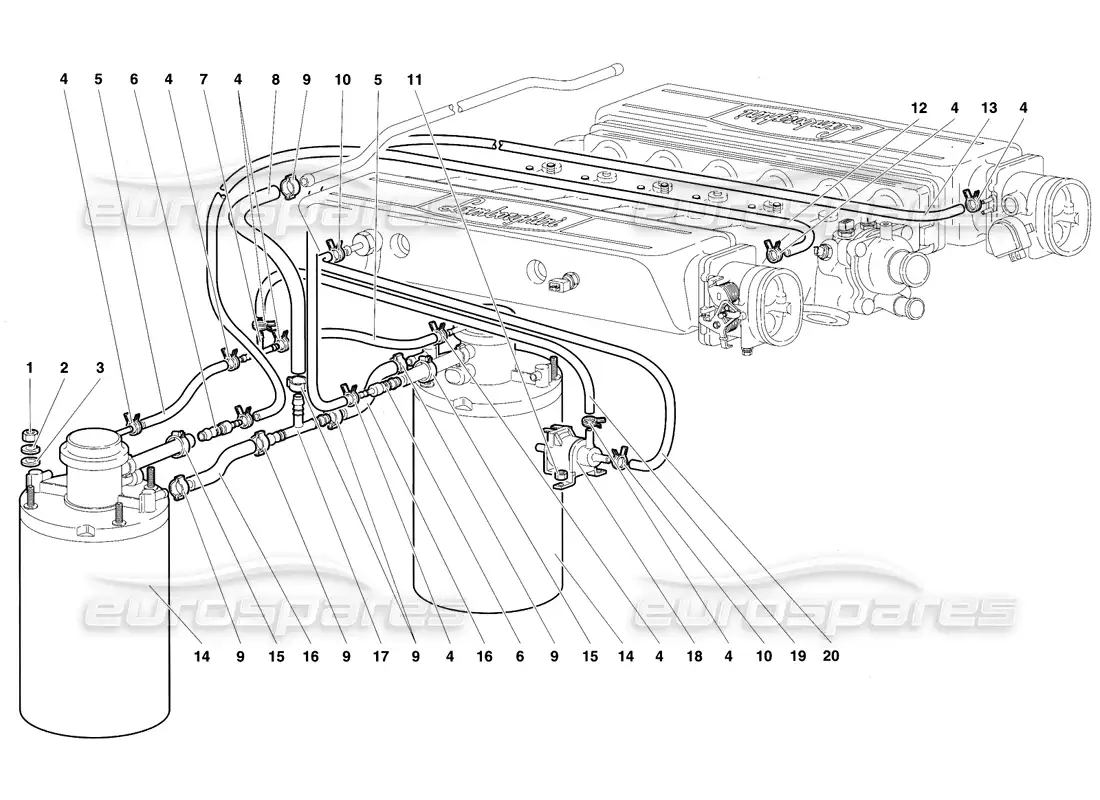

-part-diagram-073.webp "LAMBORGHINI DIABLO VT (1994) FUEL SYSTEM PARTS DIAGRAM")

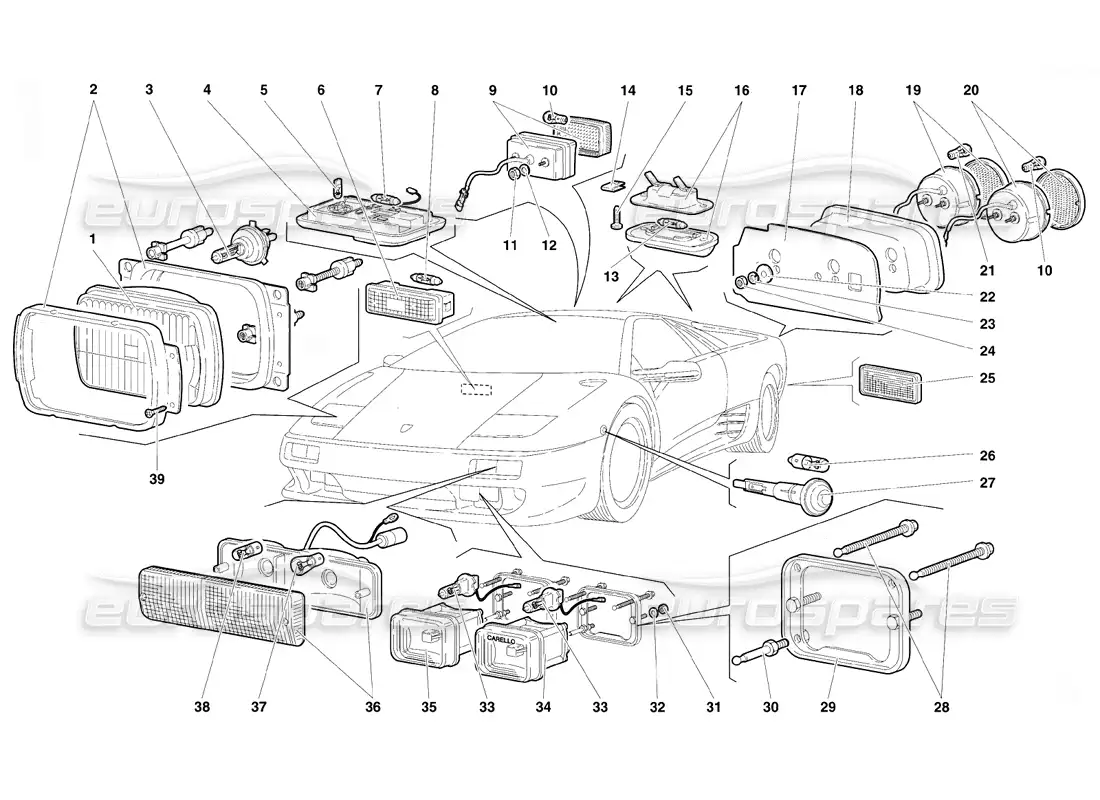

-part-diagram-074.webp "LAMBORGHINI DIABLO VT (1994) LIGHTS PARTS DIAGRAM")

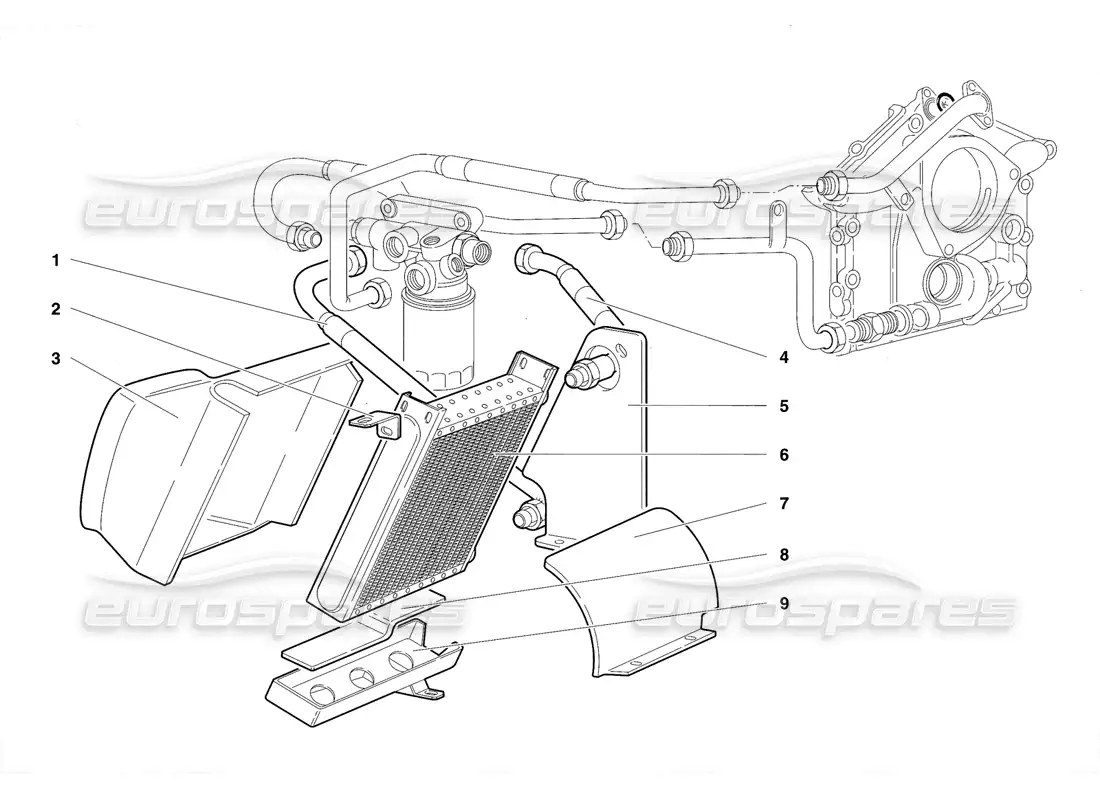

-part-diagram-075.webp "LAMBORGHINI DIABLO VT (1994) ENGINE OIL SYSTEM (VALID FOR USA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-076.webp "LAMBORGHINI DIABLO VT (1994) ELETRONIC INJECTION UNITS (VALID FOR USA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-077.webp "LAMBORGHINI DIABLO VT (1994) RADIO SET (VALID FOR USA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-078.webp "LAMBORGHINI DIABLO VT (1994) ACCESSORIES (VALID FOR USA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-079.webp "LAMBORGHINI DIABLO VT (1994) DASHBOARD INSTRUMENTS (VALID FOR USA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-080.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM (VALID FOR USA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-081.webp "LAMBORGHINI DIABLO VT (1994) LIGHTS (VALID FOR USA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-082.webp "LAMBORGHINI DIABLO VT (1994) DOORS (VALID FOR USA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-083.webp "LAMBORGHINI DIABLO VT (1994) PASSIVE RESTRAINT BELTS (VALID FOR USA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-084.webp "LAMBORGHINI DIABLO VT (1994) PASSENGER COMPARTMENT TRIM (VALID FOR USA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-085.webp "LAMBORGHINI DIABLO VT (1994) PASSENGER COMPARTMENT TRIM (VALID FOR USA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-086.webp "LAMBORGHINI DIABLO VT (1994) ENGINE HOOD (VALID FOR USA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-087.webp "LAMBORGHINI DIABLO VT (1994) BUMPERS (VALID FOR USA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-088.webp "LAMBORGHINI DIABLO VT (1994) ELETRONIC INJECTION UNITS (VALID FOR SWITZERLAND VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-089.webp "LAMBORGHINI DIABLO VT (1994) FRAME ELEMENTS (VALID FOR SWITZERLAND VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-090.webp "LAMBORGHINI DIABLO VT (1994) EXHAUST SYSTEM (VALID FOR SWITZERLAND VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-091.webp "LAMBORGHINI DIABLO VT (1994) EXHAUST SYSTEM (VALID FOR SWITZERLAND VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-092.webp "LAMBORGHINI DIABLO VT (1994) WHEEL AND HUB CARRIER (VALID FOR SWITZERLAND VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-093.webp "LAMBORGHINI DIABLO VT (1994) ACCESSORIES (VALID FOR SWITZERLAND VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-094.webp "LAMBORGHINI DIABLO VT (1994) BODY ELEMENTS (VALID FOR SWITZERLAND VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-095.webp "LAMBORGHINI DIABLO VT (1994) ENGINE OIL SYSTEM (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-096.webp "LAMBORGHINI DIABLO VT (1994) CLUTCH CONTROL LEVER (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-097.webp "LAMBORGHINI DIABLO VT (1994) BRAKE SYSTEM (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-098.webp "LAMBORGHINI DIABLO VT (1994) HANDBRAKE (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-099.webp "LAMBORGHINI DIABLO VT (1994) PEDALS (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-100.webp "LAMBORGHINI DIABLO VT (1994) PEDAL MOUNTING (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-101.webp "LAMBORGHINI DIABLO VT (1994) STEERING (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-102.webp "LAMBORGHINI DIABLO VT (1994) CLIMATE CONTROL (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-103.webp "LAMBORGHINI DIABLO VT (1994) CLIMATE CONTROL (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-104.webp "LAMBORGHINI DIABLO VT (1994) RADIO SET (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-105.webp "LAMBORGHINI DIABLO VT (1994) ACCESSORIES (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-106.webp "LAMBORGHINI DIABLO VT (1994) DASHBOARD INSTRUMENTS (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-107.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-108.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-109.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-110.webp "LAMBORGHINI DIABLO VT (1994) LIGHTS (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-111.webp "LAMBORGHINI DIABLO VT (1994) FRAME FLOOR PANELS (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-112.webp "LAMBORGHINI DIABLO VT (1994) WINDSCREEN WIPER AND HEADLAMP WASHERS (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-113.webp "LAMBORGHINI DIABLO VT (1994) DOORS (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-114.webp "LAMBORGHINI DIABLO VT (1994) DOORS (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-115.webp "LAMBORGHINI DIABLO VT (1994) PASSENGER COMPARTMENT TRIM (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-116.webp "LAMBORGHINI DIABLO VT (1994) PASSENGER COMPARTMENT TRIM (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-117.webp "LAMBORGHINI DIABLO VT (1994) FRONT HOOD (VALID FOR RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-118.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM (VALID FOR FRANCE VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-119.webp "LAMBORGHINI DIABLO VT (1994) DASHBOARD INSTRUMENTS - (VALID FOR AUSTRALIA - RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-120.webp "LAMBORGHINI DIABLO VT (1994) DOORS (VALID FOR AUSTRALIA - RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-121.webp "LAMBORGHINI DIABLO VT (1994) ENGINE HOOD (VALID FOR AUSTRALIA - RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-122.webp "LAMBORGHINI DIABLO VT (1994) BUMPERS (VALID FOR AUSTRALIA - RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-123.webp "LAMBORGHINI DIABLO VT (1994) DASHBOARD INSTRUMENTS - (VALID FOR SINGAPORE - RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-124.webp "LAMBORGHINI DIABLO VT (1994) ELECTRONIC INJECTION U. (VALID FOR FINLAND VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-125.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM (VALID FOR FINLAND VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-126.webp "LAMBORGHINI DIABLO VT (1994) ELECTRONIC INJECTION U. (VALID FOR DENMARK VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-127.webp "LAMBORGHINI DIABLO VT (1994) ELETRONIC INJECTION UNITS - (VALID FOR SOUTH AFRICA - RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-128.webp "LAMBORGHINI DIABLO VT (1994) EXHAUST SYSTEM - (VALID FOR SOUTH AFRICA - RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-129.webp "LAMBORGHINI DIABLO VT (1994) FUEL SYSTEM - (VALID FOR SOUTH AFRICA - RH D. VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-130.webp "LAMBORGHINI DIABLO VT (1994) ELECTRONIC INJECTION UNITS (VALID FOR SAUDI ARABIA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-131.webp "LAMBORGHINI DIABLO VT (1994) EXHAUST SYSTEM (VALID FOR SAUDI ARABIA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-132.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM (VALID FOR SAUDI ARABIA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-133.webp "LAMBORGHINI DIABLO VT (1994) FUEL SYSTEM (VALID FOR SAUDI ARABIA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-134.webp "LAMBORGHINI DIABLO VT (1994) BUMPERS (VALID FOR SAUDI ARABIA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-135.webp "LAMBORGHINI DIABLO VT (1994) REAR BODY ELEMENTS PARTS DIAGRAM")
-part-diagram-136.webp "LAMBORGHINI DIABLO VT (1994) FUEL CAP PARTS DIAGRAM")
-part-diagram-137.webp "LAMBORGHINI DIABLO VT (1994) FRONT BODY ELEMENTS PARTS DIAGRAM")
-part-diagram-138.webp "LAMBORGHINI DIABLO VT (1994) BODY ELEMENTS - LEFT FLANK PARTS DIAGRAM")
-part-diagram-139.webp "LAMBORGHINI DIABLO VT (1994) BODY ELEMENTS - RIGHT FLANK PARTS DIAGRAM")
-part-diagram-140.webp "LAMBORGHINI DIABLO VT (1994) FRAME FLOOR PANELS PARTS DIAGRAM")
-part-diagram-141.webp "LAMBORGHINI DIABLO VT (1994) ENGINE HOUSING PANELS PARTS DIAGRAM")
-part-diagram-142.webp "LAMBORGHINI DIABLO VT (1994) WINDOWS PARTS DIAGRAM")
-part-diagram-143.webp "LAMBORGHINI DIABLO VT (1994) WINDSCREEN WIPER AND HEADLAMP WASHERS PARTS DIAGRAM")
-part-diagram-144.webp "LAMBORGHINI DIABLO VT (1994) DOORS PARTS DIAGRAM")
-part-diagram-145.webp "LAMBORGHINI DIABLO VT (1994) DOORS PARTS DIAGRAM")
-part-diagram-146.webp "LAMBORGHINI DIABLO VT (1994) DOORS PARTS DIAGRAM")
-part-diagram-147.webp "LAMBORGHINI DIABLO VT (1994) REAR HOOD AND WING PARTS DIAGRAM")
-part-diagram-148.webp "LAMBORGHINI DIABLO VT (1994) SEATS AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-149.webp "LAMBORGHINI DIABLO VT (1994) HEAD LAMP LIFTING SYSTEM PARTS DIAGRAM")
-part-diagram-150.webp "LAMBORGHINI DIABLO VT (1994) PASSENGER COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-151.webp "LAMBORGHINI DIABLO VT (1994) PASSENGER COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-152.webp "LAMBORGHINI DIABLO VT (1994) PASSENGER COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-153.webp "LAMBORGHINI DIABLO VT (1994) FRONT HOOD PARTS DIAGRAM")
-part-diagram-154.webp "LAMBORGHINI DIABLO VT (1994) ENGINE HOOD PARTS DIAGRAM")
-part-diagram-155.webp "LAMBORGHINI DIABLO VT (1994) BUMPERS PARTS DIAGRAM")
-part-diagram-156.webp "LAMBORGHINI DIABLO VT (1994) FRAME ELEMENTS (VALID FOR JAPAN VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-157.webp "LAMBORGHINI DIABLO VT (1994) EXHAUST SYSTEM (VALID FOR JAPAN VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-158.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM (VALID FOR JAPAN VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-159.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM (VALID FOR JAPAN VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-160.webp "LAMBORGHINI DIABLO VT (1994) LIGHTS (VALID FOR JAPAN VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-161.webp "LAMBORGHINI DIABLO VT (1994) ENGINE OIL SYSTEM (VALID FOR CANADA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-162.webp "LAMBORGHINI DIABLO VT (1994) ELETRONIC INJECTION UNITS (VALID FOR CANADA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-163.webp "LAMBORGHINI DIABLO VT (1994) RADIO SET (VALID FOR CANADA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-164.webp "LAMBORGHINI DIABLO VT (1994) ACCESSORIES (VALID FOR CANADA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-165.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM (VALID FOR CANADA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-166.webp "LAMBORGHINI DIABLO VT (1994) LIGHTS (VALID FOR CANADA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-167.webp "LAMBORGHINI DIABLO VT (1994) DOORS (VALID FOR CANADA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-168.webp "LAMBORGHINI DIABLO VT (1994) SEATS AND SAFETY BELTS (VALID FOR CANADA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-169.webp "LAMBORGHINI DIABLO VT (1994) PASSENGER COMPARTMENT TRIM (VALID FOR CANADA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-170.webp "LAMBORGHINI DIABLO VT (1994) ENGINE HOOD (VALID FOR CANADA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-171.webp "LAMBORGHINI DIABLO VT (1994) BUMPERS (VALID FOR CANADA VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-172.webp "LAMBORGHINI DIABLO VT (1994) ELECTRONIC INJECTION U. (VALID FOR NORWAY VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-173.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM (VALID FOR NORWAY VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-174.webp "LAMBORGHINI DIABLO VT (1994) ELECTRONIC INJECTION U. (VALID FOR SWEDEN VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-175.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM (VALID FOR SWEDEN VERSION - APRIL 1994) PARTS DIAGRAM")
-part-diagram-001.webp "LAMBORGHINI DIABLO VT (1994) RIGHT CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-002.webp "LAMBORGHINI DIABLO VT (1994) LEFT CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-003.webp "LAMBORGHINI DIABLO VT (1994) ACCESSORIES FOR RIGHT CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "LAMBORGHINI DIABLO VT (1994) ACCESSORIES FOR LEFT CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "LAMBORGHINI DIABLO VT (1994) TIMING SYSTEM PARTS DIAGRAM")
-part-diagram-006.webp "LAMBORGHINI DIABLO VT (1994) TIMING SYSTEM PARTS DIAGRAM")
-part-diagram-007.webp "LAMBORGHINI DIABLO VT (1994) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-008.webp "LAMBORGHINI DIABLO VT (1994) AIR FILTERS PARTS DIAGRAM")
-part-diagram-009.webp "LAMBORGHINI DIABLO VT (1994) ACCELERATOR CABLES PARTS DIAGRAM")
-part-diagram-010.webp "LAMBORGHINI DIABLO VT (1994) CRANKGEARS PARTS DIAGRAM")
-part-diagram-011.webp "LAMBORGHINI DIABLO VT (1994) ENGINE OIL PUMP PARTS DIAGRAM")
-part-diagram-012.webp "LAMBORGHINI DIABLO VT (1994) ENGINE OIL SYSTEM PARTS DIAGRAM")
-part-diagram-013.webp "LAMBORGHINI DIABLO VT (1994) ENGINE OIL FILTER AND THERMOSTAT PARTS DIAGRAM")
-part-diagram-014.webp "LAMBORGHINI DIABLO VT (1994) ENGINE OIL BREATHING SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "LAMBORGHINI DIABLO VT (1994) IGNITION DISTRIBUTOR AND PHASE SENSORS PARTS DIAGRAM")
-part-diagram-016.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL COMPONENTS PARTS DIAGRAM")
-part-diagram-017.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL COMPONENTS PARTS DIAGRAM")
-part-diagram-018.webp "LAMBORGHINI DIABLO VT (1994) ALTERNATOR PARTS DIAGRAM")
-part-diagram-019.webp "LAMBORGHINI DIABLO VT (1994) ELECTRONIC INJECTION UNITS PARTS DIAGRAM")
-part-diagram-020.webp "LAMBORGHINI DIABLO VT (1994) WATER PUMP PARTS DIAGRAM")
-part-diagram-021.webp "LAMBORGHINI DIABLO VT (1994) WATER COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-022.webp "LAMBORGHINI DIABLO VT (1994) RADIATORS AND ELECTRO-FANS PARTS DIAGRAM")
-part-diagram-023.webp "LAMBORGHINI DIABLO VT (1994) CRANCASE PARTS DIAGRAM")
-part-diagram-024.webp "LAMBORGHINI DIABLO VT (1994) CRANCASE AND LOWER MOUNTING PARTS DIAGRAM")
-part-diagram-025.webp "LAMBORGHINI DIABLO VT (1994) OIL SUMP PARTS DIAGRAM")
-part-diagram-026.webp "LAMBORGHINI DIABLO VT (1994) CLUTCH PARTS DIAGRAM")
-part-diagram-027.webp "LAMBORGHINI DIABLO VT (1994) CLUTCH CONTROL LEVERS PARTS DIAGRAM")
-part-diagram-028.webp "LAMBORGHINI DIABLO VT (1994) REAR DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-029.webp "LAMBORGHINI DIABLO VT (1994) FRONT DIFFERENTIAL CASE PARTS DIAGRAM")
-part-diagram-030.webp "LAMBORGHINI DIABLO VT (1994) FRONT DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-031.webp "LAMBORGHINI DIABLO VT (1994) GEARBOX CONTROL TOWER PARTS DIAGRAM")
-part-diagram-032.webp "LAMBORGHINI DIABLO VT (1994) GEARBOX SHIFTING RODS AND FORKS PARTS DIAGRAM")
-part-diagram-033.webp "LAMBORGHINI DIABLO VT (1994) GEARBOX PARTS DIAGRAM")
-part-diagram-034.webp "LAMBORGHINI DIABLO VT (1994) GEARBOX OIL PUMP PARTS DIAGRAM")
-part-diagram-035.webp "LAMBORGHINI DIABLO VT (1994) MAIN SHAFT PARTS DIAGRAM")
-part-diagram-036.webp "LAMBORGHINI DIABLO VT (1994) DRIVEN SHAFT PARTS DIAGRAM")
-part-diagram-037.webp "LAMBORGHINI DIABLO VT (1994) VISCOUS COUPLING PARTS DIAGRAM")
-part-diagram-038.webp "LAMBORGHINI DIABLO VT (1994) DRIVESHAFTS AND PROPELLER SHAFT PARTS DIAGRAM")
-part-diagram-039.webp "LAMBORGHINI DIABLO VT (1994) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-040.webp "LAMBORGHINI DIABLO VT (1994) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-041.webp "LAMBORGHINI DIABLO VT (1994) REAR BRAKES PARTS DIAGRAM")
-part-diagram-042.webp "LAMBORGHINI DIABLO VT (1994) HANDBRAKE PARTS DIAGRAM")
-part-diagram-043.webp "LAMBORGHINI DIABLO VT (1994) FRAME ELEMENTS PARTS DIAGRAM")
-part-diagram-044.webp "LAMBORGHINI DIABLO VT (1994) PEDALS PARTS DIAGRAM")
-part-diagram-045.webp "LAMBORGHINI DIABLO VT (1994) PEDAL MOUNTING PARTS DIAGRAM")
-part-diagram-046.webp "LAMBORGHINI DIABLO VT (1994) STEERING PARTS DIAGRAM")
-part-diagram-047.webp "LAMBORGHINI DIABLO VT (1994) STEERING PARTS DIAGRAM")
-part-diagram-048.webp "LAMBORGHINI DIABLO VT (1994) STEERING PARTS DIAGRAM")
-part-diagram-049.webp "LAMBORGHINI DIABLO VT (1994) STEERING PARTS DIAGRAM")
-part-diagram-050.webp "LAMBORGHINI DIABLO VT (1994) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-051.webp "LAMBORGHINI DIABLO VT (1994) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-052.webp "LAMBORGHINI DIABLO VT (1994) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-053.webp "LAMBORGHINI DIABLO VT (1994) CLIMATE CONTROL PARTS DIAGRAM")
-part-diagram-054.webp "LAMBORGHINI DIABLO VT (1994) CLIMATE CONTROL PARTS DIAGRAM")
-part-diagram-055.webp "LAMBORGHINI DIABLO VT (1994) CLIMATE CONTROL PARTS DIAGRAM")
-part-diagram-056.webp "LAMBORGHINI DIABLO VT (1994) CLIMATE CONTROL PARTS DIAGRAM")
-part-diagram-057.webp "LAMBORGHINI DIABLO VT (1994) FRONT WHEEL AND HUB CARRIER PARTS DIAGRAM")
-part-diagram-058.webp "LAMBORGHINI DIABLO VT (1994) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-059.webp "LAMBORGHINI DIABLO VT (1994) REAR WHEEL AND HUB CARRIER PARTS DIAGRAM")
-part-diagram-060.webp "LAMBORGHINI DIABLO VT (1994) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-061.webp "LAMBORGHINI DIABLO VT (1994) RADIO SET PARTS DIAGRAM")
-part-diagram-062.webp "LAMBORGHINI DIABLO VT (1994) ACCESSORIES PARTS DIAGRAM")
-part-diagram-063.webp "LAMBORGHINI DIABLO VT (1994) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-064.webp "LAMBORGHINI DIABLO VT (1994) TUNNEL PANEL INSTRUMENTS PARTS DIAGRAM")

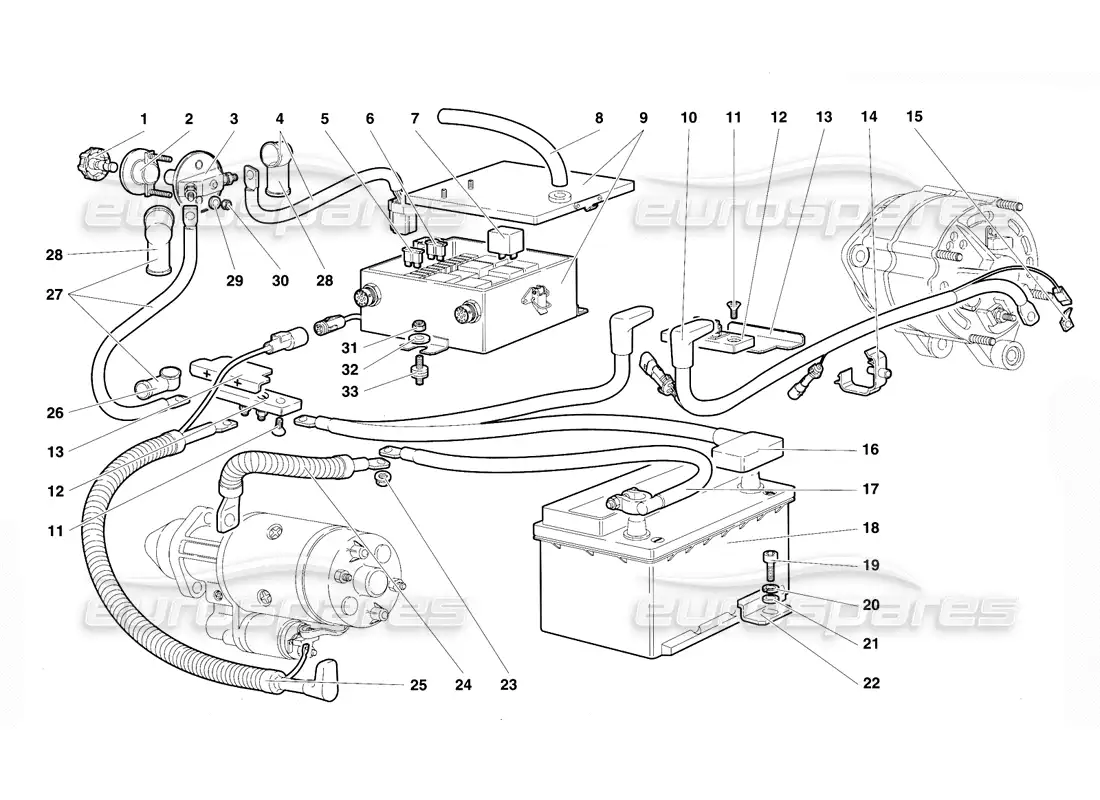

-part-diagram-065.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM PARTS DIAGRAM")

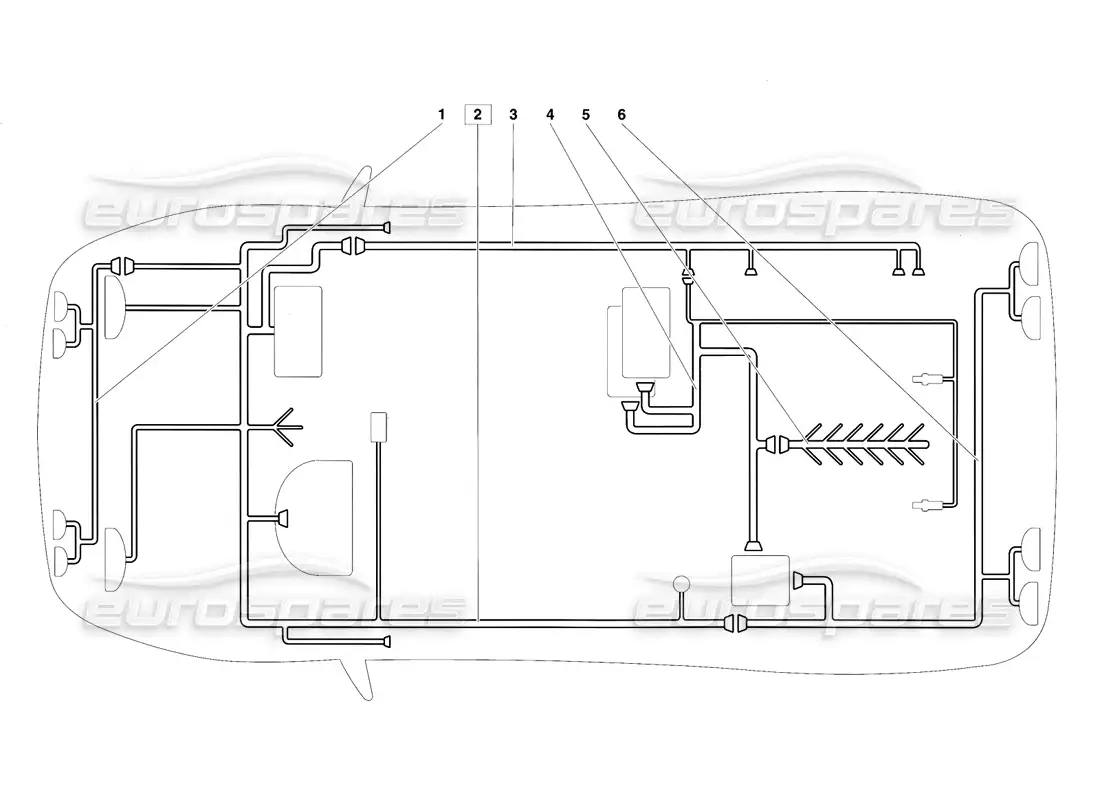

-part-diagram-066.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-067.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM PARTS DIAGRAM")

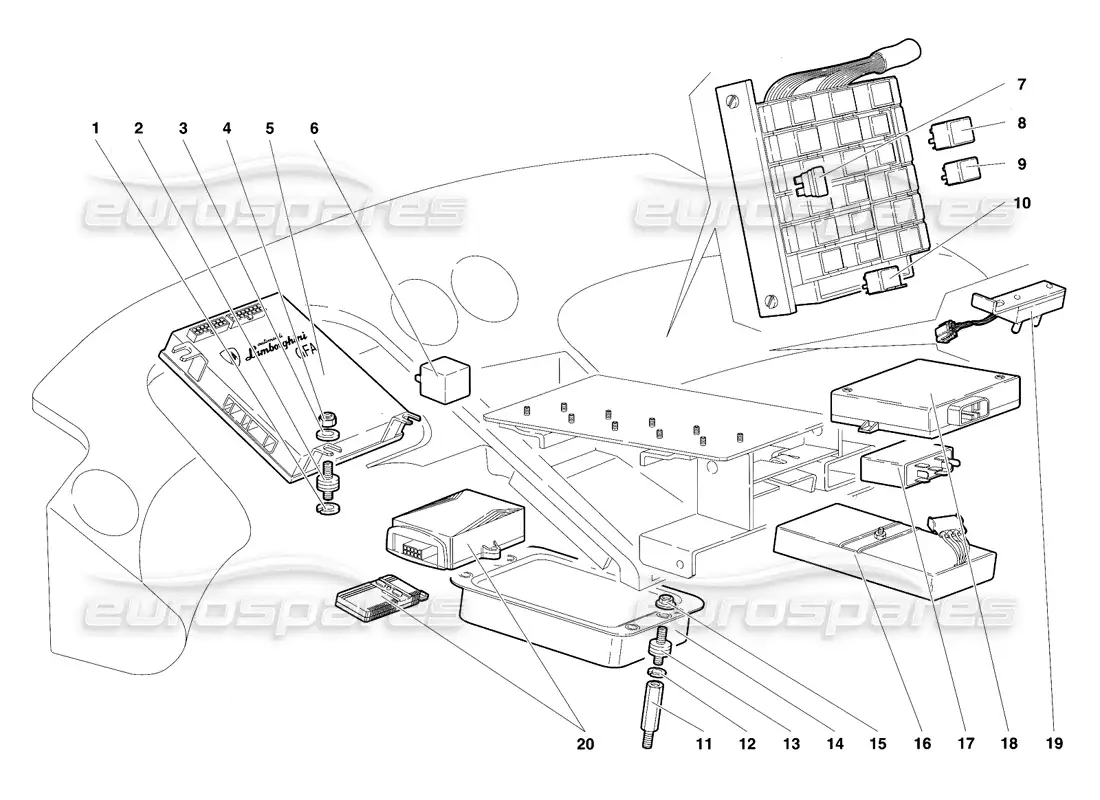

-part-diagram-068.webp "LAMBORGHINI DIABLO VT (1994) ELECTRICAL SYSTEM PARTS DIAGRAM")

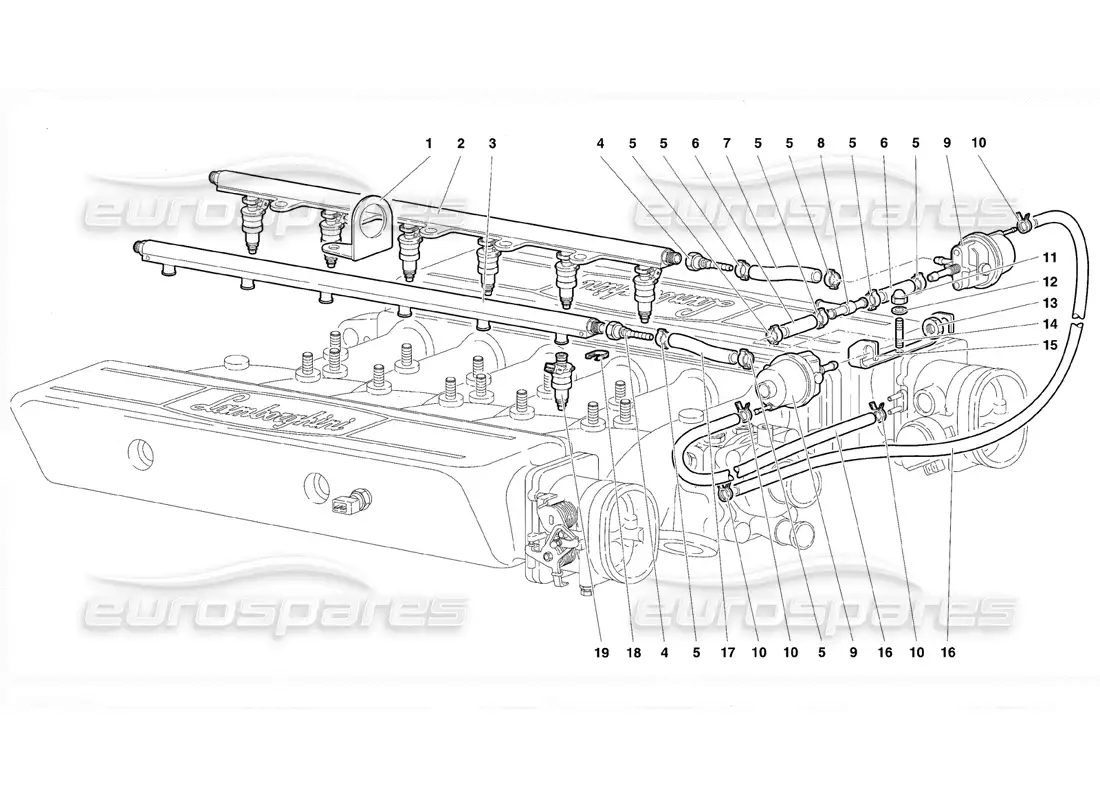

-part-diagram-069.webp "LAMBORGHINI DIABLO VT (1994) FUEL SYSTEM PARTS DIAGRAM")

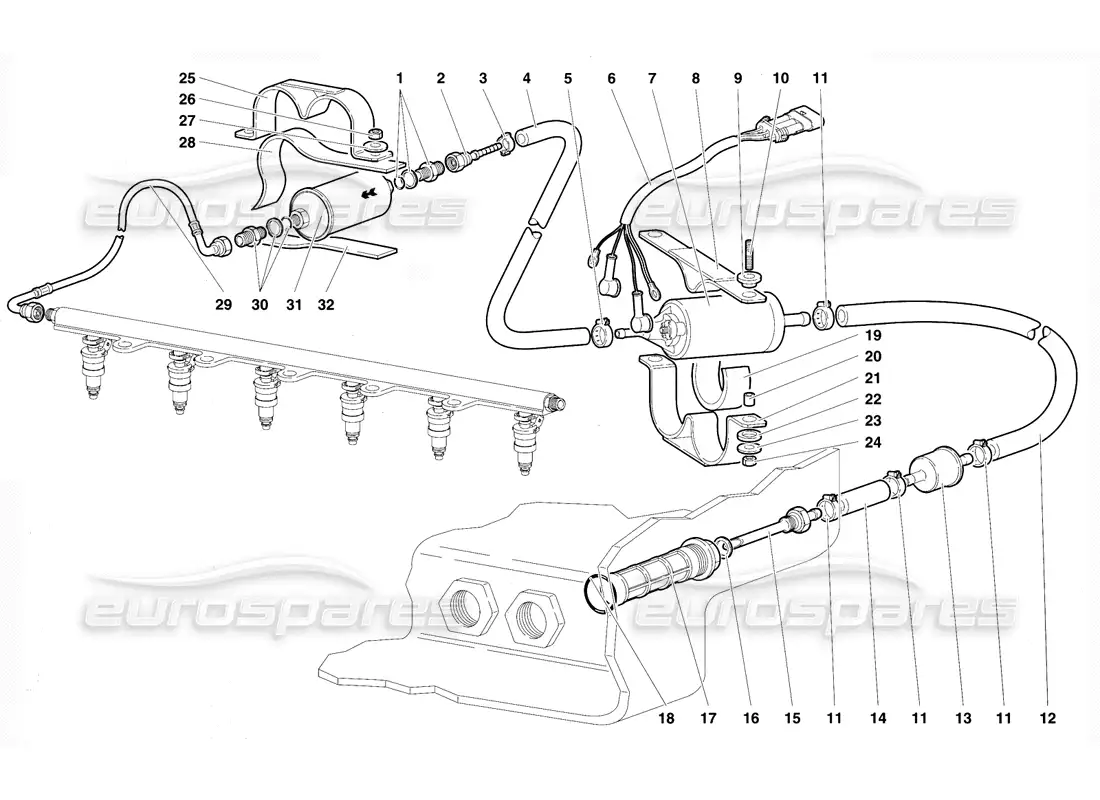

-part-diagram-070.webp "LAMBORGHINI DIABLO VT (1994) FUEL SYSTEM PARTS DIAGRAM")
