lamborghini diablo vt (1994) exhaust system (valid for switzerland version - april 1994) parts diagram

091 - Exhaust System (Valid for Switzerland Version - April 1994)

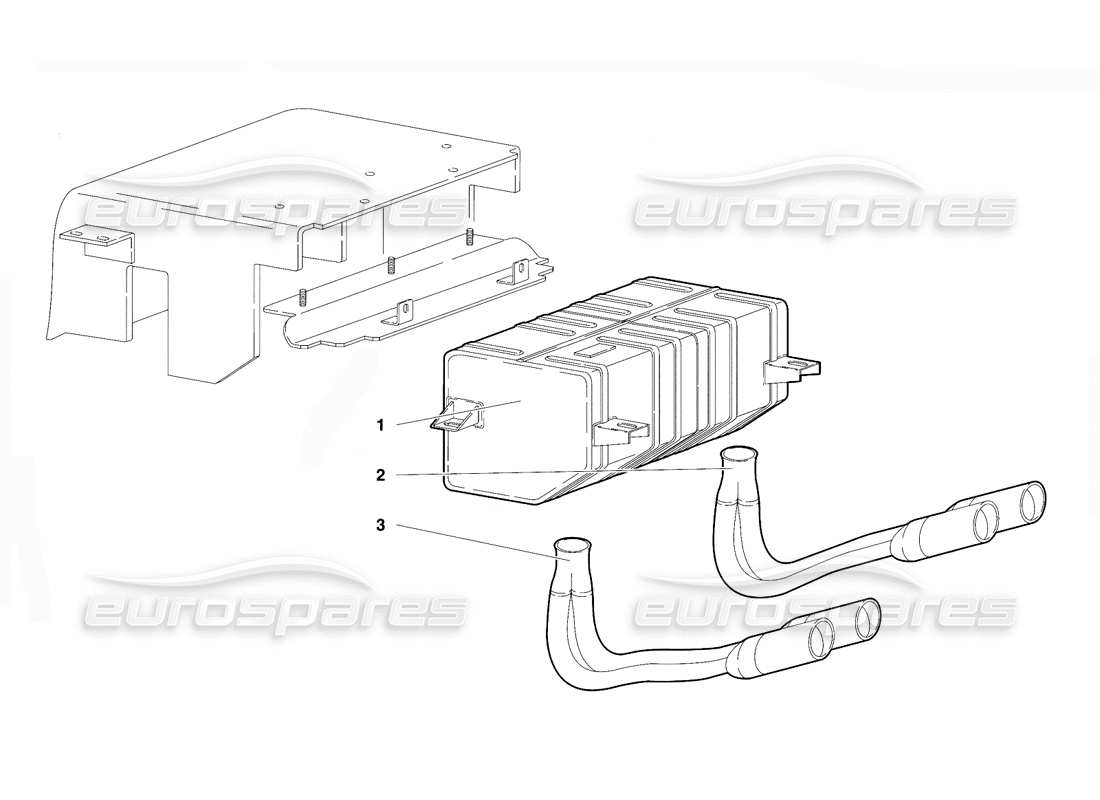

Lamborghini Diablo VT (1994) Exhaust System (Valid for Switzerland Version - April 1994) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 004432231
SILENCER
(Valid for SWITZERLAND version – April 1994) SILENZIATORE
from £4,510.36
from £4,510.36
# 002
MPN: 004433895
RIGHT TERMINAL
(Valid for SWITZERLAND version – April 1994) TERMINALE DX
from £296.83
from £296.83
# 003
MPN: 004433894
LEFT TERMINAL
(Valid for SWITZERLAND version – April 1994) TERMINALE SX
from £296.83
from £296.83
