154 - Engine Hood

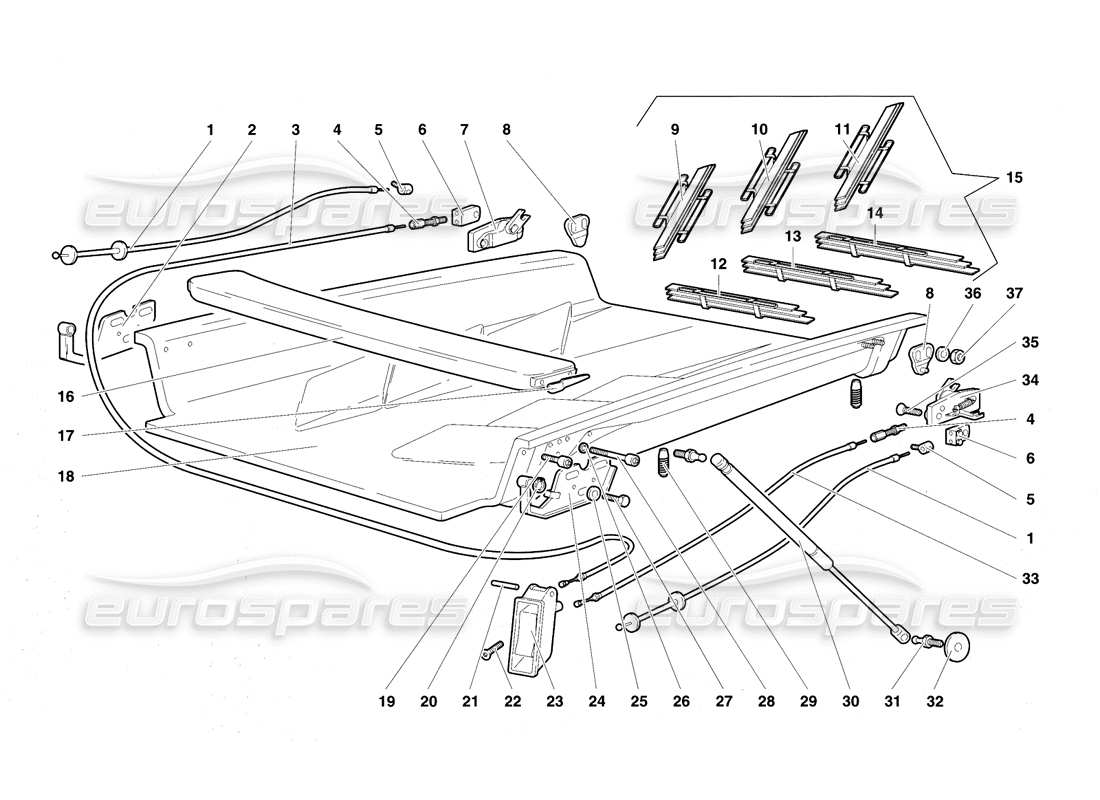

Lamborghini Diablo VT (1994) Engine Hood Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 009460003
CABLE
CAVO EMERGENZA
from £16.22
from £16.22
# 002
MPN: 009460319
RIGHT HINGE
CERNIERA DX
from £150.07
from £150.07
# 003
MPN: 009460006
RIGHT CABLE
CAVO DX
from £29.06
from £29.06
# 004
MPN: 009460213
ADJ/SCREW
VITE REGOLAZIONE
# 005
MPN: 009460210
CLAMP
MORSETTO
Supersession
Supersession
# 006
MPN: 009460212
DOUBLE CLAMP
USE 410814333
# 007
MPN: 009460200
Right lock
SERRATURA DX
from £407.93
from £407.93
# 008
MPN: 009460201
LOCK STRIKER
RISCONTRO
from £78.52
from £78.52
# 009
MPN: 009460400
GRILLE
GRIGLIA
Supersession
Supersession
# 010
MPN: 009460402
GRILLE
GRIGLIA
from £320.87
from £320.87
# 011
MPN: 009460404
GRILLE
GRIGLIA
from £75.12
from £75.12
# 012
MPN: 009460401
GRILLE
GRIGLIA
from £320.87
from £320.87
# 013
MPN: 009460403
GRILLE
GRIGLIA
from £75.12
from £75.12
# 014
MPN: 009460405
GRILLE
GRIGLIA
from £320.87
from £320.87
This part replaces part number 009460400
# 015
MPN: 009460410
GRILLES KIT
KITGRIGLIE
# 016
MPN: 009460101

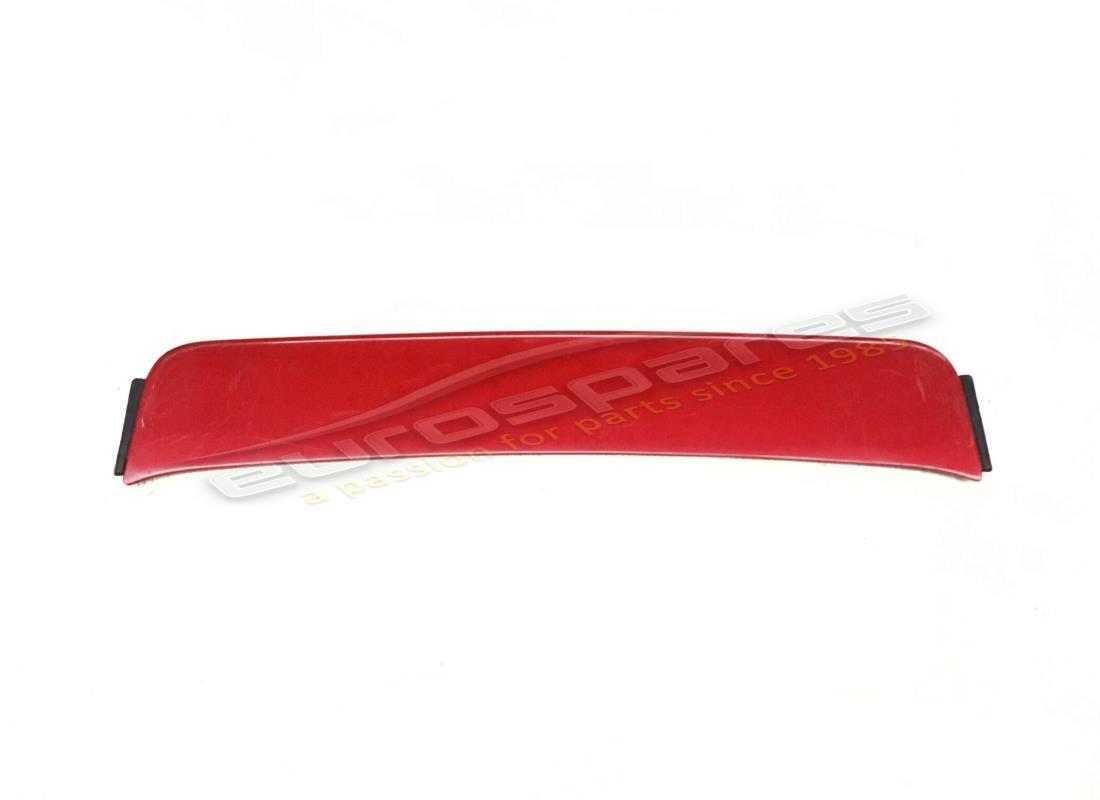

REAR WING
ALETTONE
from £818.54
from £818.54
# 017
MPN: 009460100
GASKET
Guarnizione
from £38.56
from £38.56
# 018
MPN: 009460000

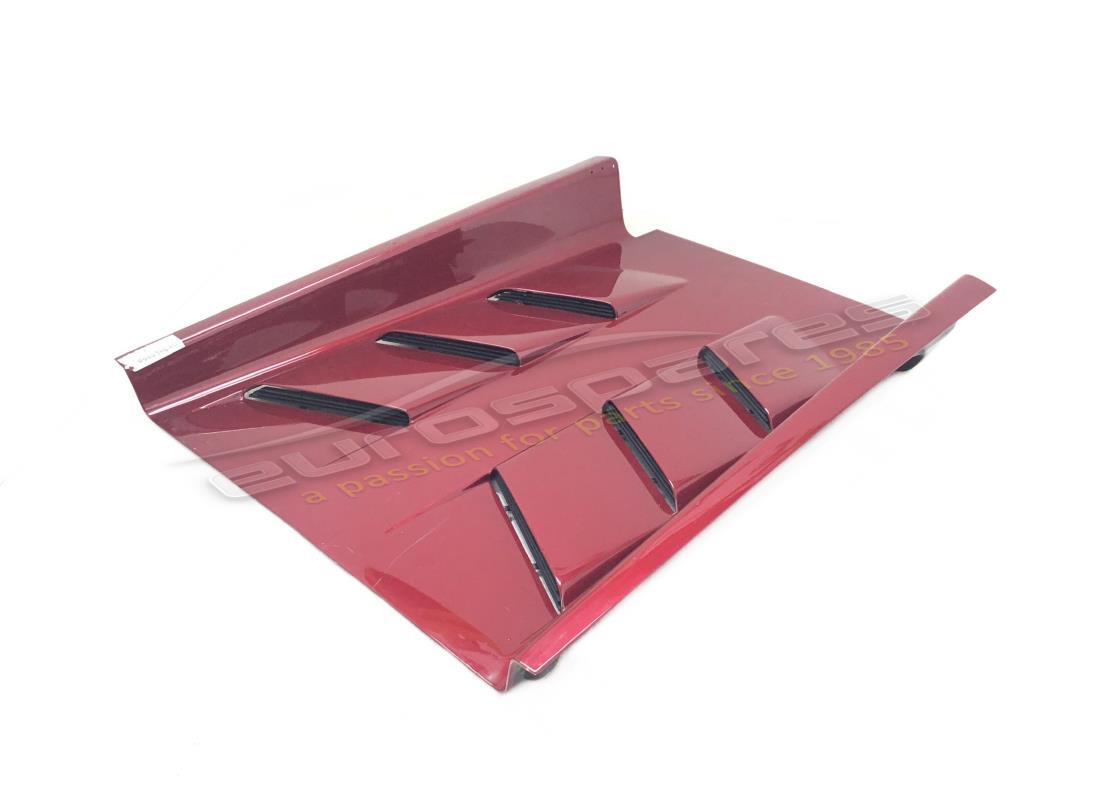

Engine Bonnet
COFANO MOTORE
from £4,987.50
from £4,987.50
# 019
MPN: 008700547
SCREW
VITE
from £0.51
from £0.51
# 020
MPN: 008580801
RETAINER RING
ANELLO RITEGNO
from £0.53
from £0.53
# 021
MPN: 008850304
PIN
SPINA
from £1.40
from £1.40
# 022
MPN: 008700539
SCREW
VITE
# 023
MPN: 410823537
HANDLE
from £766.08
from £766.08
# 024
MPN: 009460320
LEFT HINGE
CERNIERA SX
from £163.34
from £163.34
# 025
MPN: 008400626
WASHER
RONDELLA
from £24.21
from £24.21
# 026
MPN: 008400510
WASHER
RONDELLA
from £0.53
from £0.53
# 027
MPN: 008100656
SCREW
VITE
from £2.74
from £2.74
# 028
MPN: 008700549
SCREW
VITE
from £1.36
from £1.36
# 029
MPN: 009460214
RUBBER BUMPER
PARACOLPI GOMMA
from £4.88
from £4.88
# 030
MPN: 0092004388
ENGINE COVER STRUT
MARTINETTO
from £136.81
from £136.81
# 031
MPN: 009459305
BALL PIN
PERNO GIUNTO SFERICO
from £1.60
from £1.60
# 032
MPN: WHT001942
WASHER
RONDELLA
from £2.18
from £2.18
# 033
MPN: 009460007
LEFT CABLE
CAVO SX
from £29.06
from £29.06
# 034
MPN: 009460202
Left lock
SERRATURA SX
from £245.42
from £245.42
# 035
MPN: 008700613
SCREW
VITE
from £0.53
from £0.53
# 036
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 037
MPN: N02214812
NUT
DADO
from £1.10
from £1.10
This part replaces part number 008200612
