lamborghini diablo vt (1994) engine oil system (valid for canada version - april 1994) parts diagram

161 - Engine Oil System (Valid for Canada Version - April 1994)

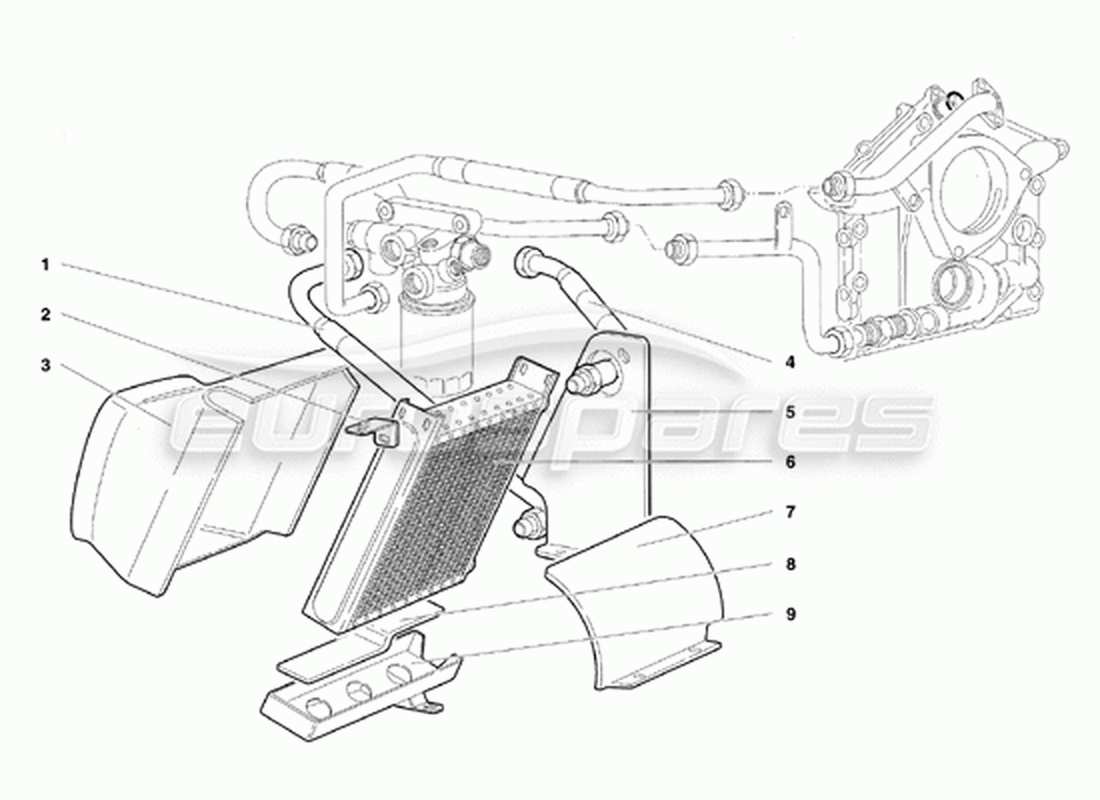

Lamborghini Diablo VT (1994) Engine Oil System (Valid for Canada Version - April 1994) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 001531829
PIPE
(Valid for CANADA version - April 1994) TUBO
from £564.61
from £564.61
# 002
MPN: 001533012
SUPPORT
(Valid for CANADA version - April 1994) SUPPORTO
from £6.06
from £6.06
# 003
MPN: 009453145
CONVEYOR
(Valid for CANADA version - April 1994) CONVOGLIATORE
from £141.37
from £141.37
# 004
MPN: 001531830
PIPE
(Valid for CANADA version - April 1994) TUBO
from £562.02
from £562.02
# 005
MPN: 009453119
SUPPORT
(Valid for CANADA version - April 1994) SUPPORTO
from £45.52
from £45.52
# 006
MPN: 001530766
OIL RADIATOR
(Valid for CANADA version - April 1994) RADIATORE OLIO
from £734.94
from £734.94
# 007
MPN: 009453117
CONVEYOR
(Valid for CANADA version - April 1994) CONVOGLIATORE
from £56.97
from £56.97
# 008
MPN: 001531195
INSULATOR
(Valid for CANADA version - April 1994) ISOLANTE
from £9.37
from £9.37
# 009
MPN: 004133628
SUPPORT
(Valid for CANADA version - April 1994) SUPPORTO
from £97.83
from £97.83
