lamborghini diablo vt (1995) right head accessories parts diagram

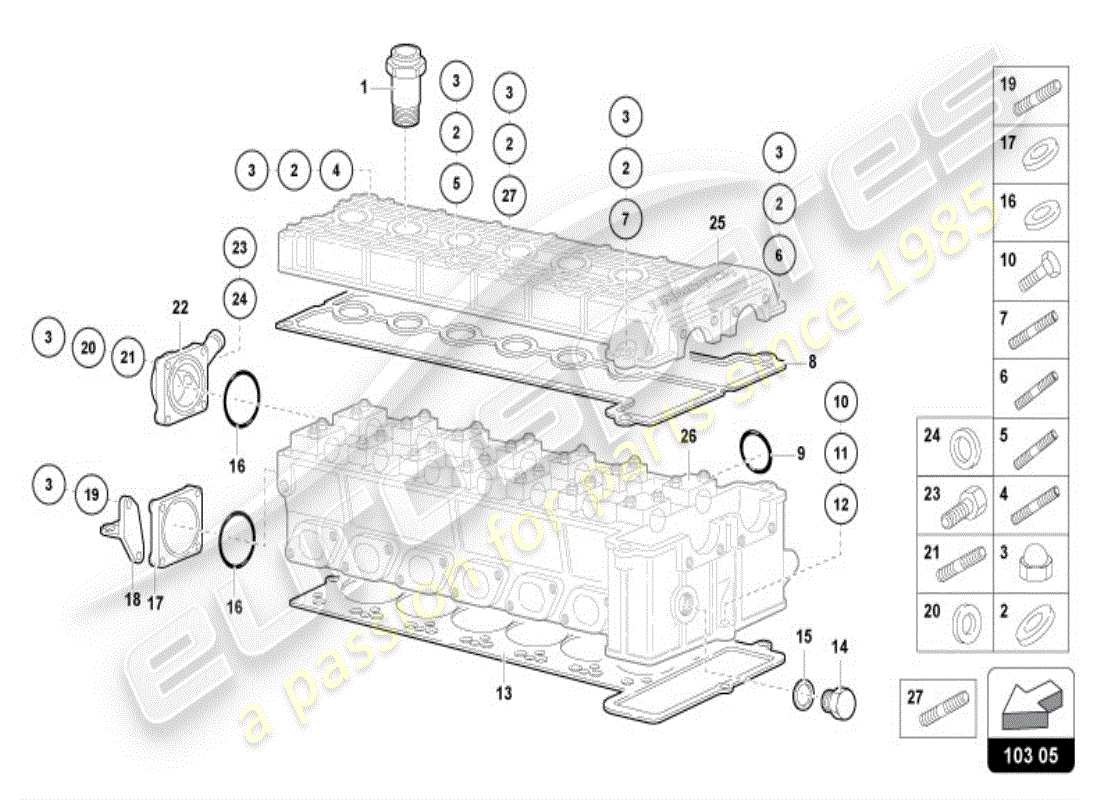

103.05.00 - RIGHT HEAD ACCESSORIES

Lamborghini Diablo VT (1995) RIGHT HEAD ACCESSORIES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 001
                                                MPN: 001120857
                                                PIPE UNION
                                                UNTIL VIN 12957
                                                from £97.89
                                                from £97.89
                                                COVER MOUNTING UNION Genuine Lamborghini - New (to order)
                                                # 001
                                                MPN: 001134281
                                                PIPE UNION
                                                FROM VIN 12958
                                                from £130.71
                                                from £130.71
                                                RH/LH HEAD COVER CONNECTION Genuine Lamborghini - New (to order)
                                                # 002
                                                MPN: 008400606
                                                WASHER
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 003
                                                MPN: 008200605
                                                DICE
                                                from £1.80
                                                from £1.80
                                                M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
                                                # 004
                                                MPN: 008300649
                                                PRISONER
                                                from £6.10
                                                from £6.10
                                                SPECIAL STUD M6X47 Genuine Lamborghini - New (to order)
                                                # 005
                                                MPN: 008300613
                                                PRISONER
                                                from £3.13
                                                from £3.13
                                                STUD M6X14 UNI 5911 8G/Z Genuine Lamborghini - New (to order)
                                                # 006
                                                MPN: 008300637
                                                PRISONER
                                                from £9.15
                                                from £9.15
                                                SPECIAL STUD M6X28 Genuine Lamborghini - New (to order)
                                                # 007
                                                MPN: 008300651
                                                PRISONER
                                                from £7.62
                                                from £7.62
                                                SPECIAL STUD M6X24 Genuine Lamborghini - New (to order)
                                                # 009
                                                MPN: 008604701
                                                RING
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 010
                                                MPN: 008100807
                                                QUICKLY
                                                from £0.58
                                                from £0.58
                                                SCREW M8X40 UNI 5737/8G ZD Genuine Lamborghini - New In stock
                                                # 011
                                                MPN: 008410806
                                                WASHER
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 012
                                                MPN: 008400806
                                                WASHER
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 013
                                                MPN: 001132416
                                                SEAL
                                                from £168.64
                                                from £168.64
                                                Genuine Lamborghini (no longer available to order)

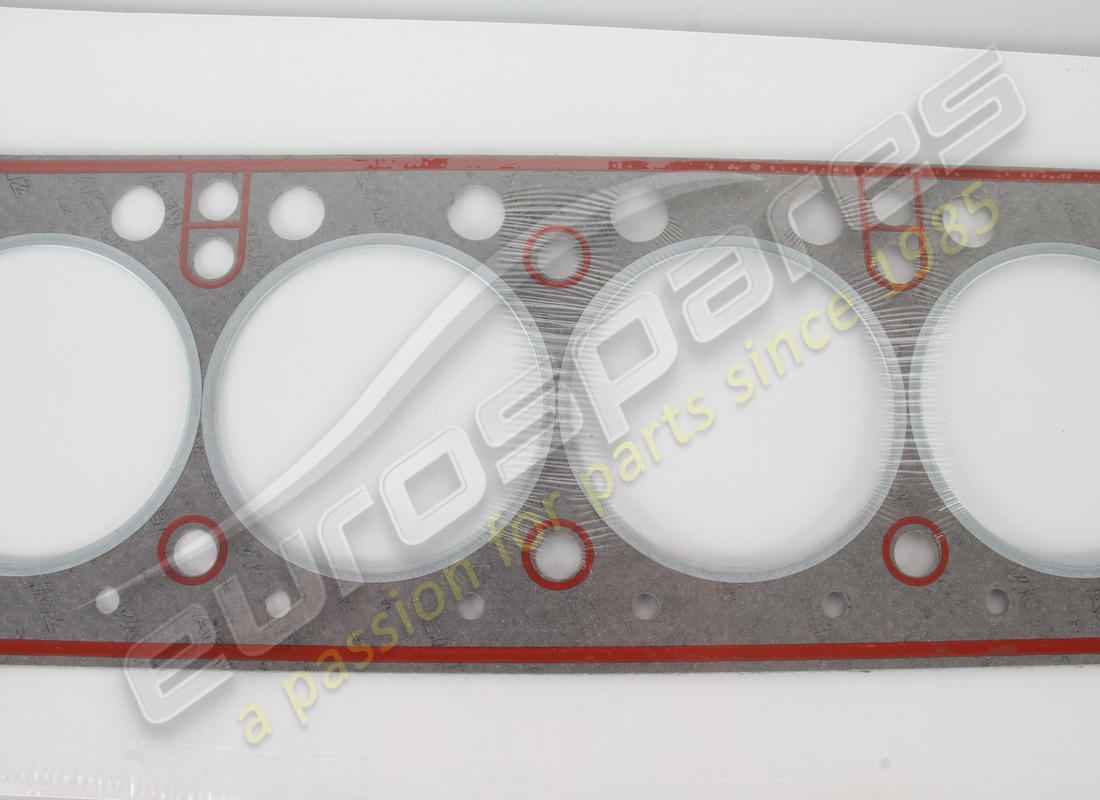

                                                RH HEAD GASKET Eurospares Approved Part - New In stock
                                                # 015
                                                MPN: 008402609
                                                WASHER
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 016
                                                MPN: 008606201
                                                RING
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 017
                                                MPN: 001114502
                                                COVER
                                                from £121.25
                                                from £121.25
                                                HEAD CLOSING COVER Genuine Lamborghini - New (to order)
                                                # 018
                                                MPN: 001131708
                                                FERMAGUAINA
                                                from £94.20
                                                from £94.20
                                                ACCELERATOR WIRE OUTER SHEATH STOPPER Genuine Lamborghini - New (to order)
                                                # 019
                                                MPN: 008300615
                                                PRISONER
                                                from £12.92
                                                from £12.92
                                                STUD 6X22 UNI 5911/8G/Z Genuine Lamborghini - New (to order)
                                                # 020
                                                MPN: 008400620
                                                WASHER
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 021
                                                MPN: 008300601
                                                PRISONER
                                                from £5.27
                                                from £5.27
                                                This part replaces part number 008300608
                                                STUD M6X20 UNI 5911/8G/ZD Genuine Lamborghini - New (to order)
                                                # 022
                                                MPN: 001133383
                                                TUBE
                                                from £111.45
                                                from £111.45
                                                OIL VENT COVER ASSEMBLY Genuine Lamborghini - New (to order)
                                                # 023
                                                MPN: 008100839
                                                QUICKLY
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 024
                                                MPN: 008400802
                                                WASHER
                                                from £1.09
                                                from £1.09
                                                COPPER WASHER 8.4X16X1.5 Genuine Lamborghini - New In stock
                                                # 025
                                                -
                                                head

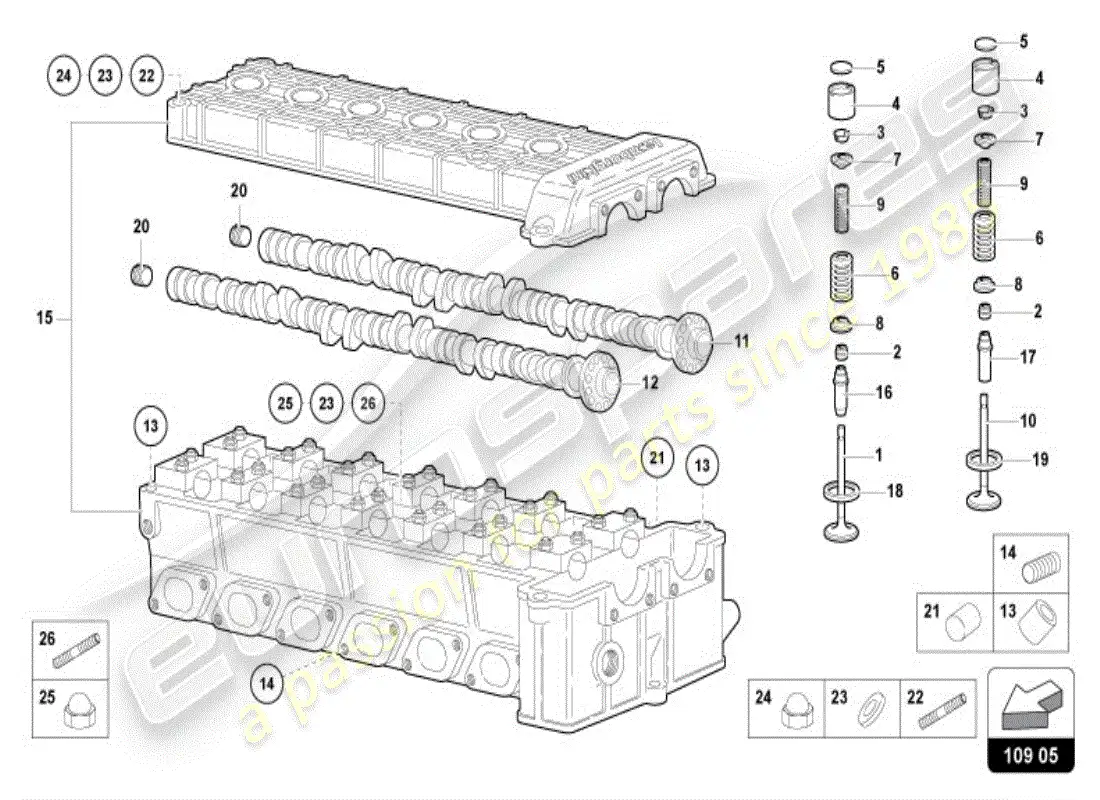

                                                SEE ILLUSTRATION: 109.05
                                                # 026
                                                -
                                                head
                                                SEE ILLUSTRATION: 109.05
                                                # 027
                                                -
                                                PRISONER
                                                NOT FOR THIS MODEL
