103.06.00 - LEFT HEAD ACCESSORIES

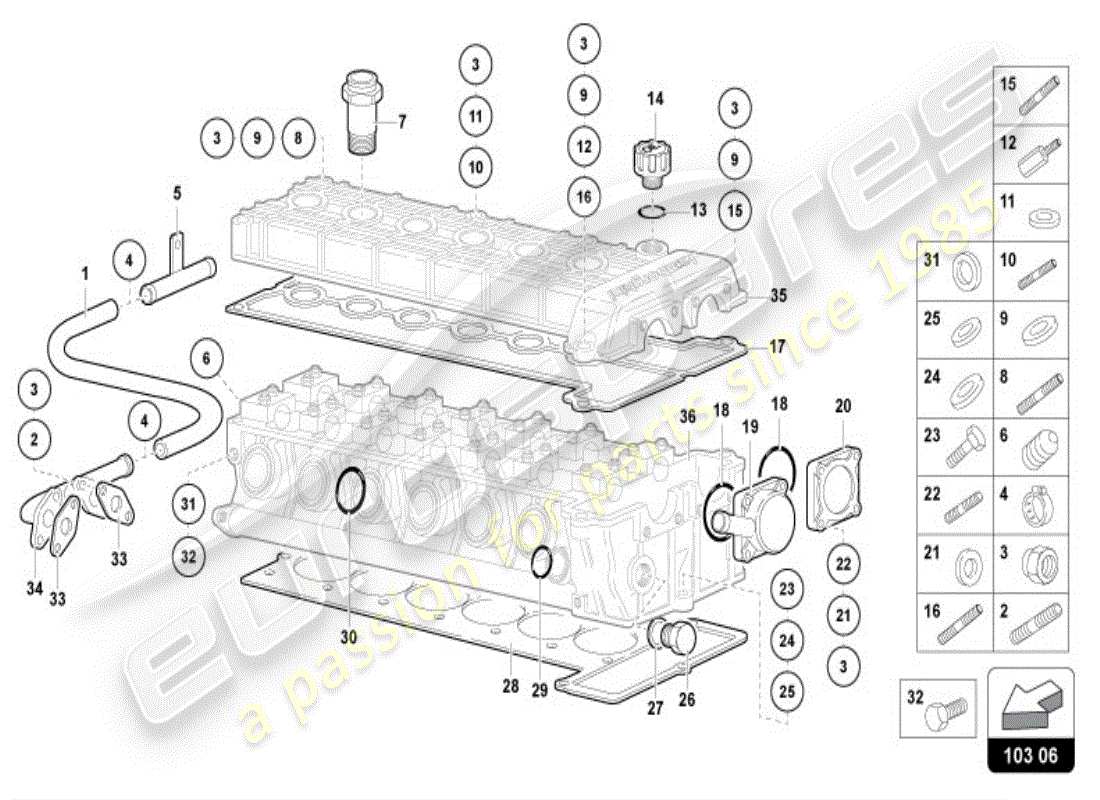

Lamborghini Diablo VT (1995) LEFT HEAD ACCESSORIES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 001731535
                                                                      TUBE
                                                                      # 002
                                                                      MPN: 008300610
                                                                      PRISONER
                                                                      from £15.81
                                                                      from £15.81
                                                                      # 003
                                                                      MPN: 008200605
                                                                      DICE
                                                                      from £1.79
                                                                      from £1.79
                                                                      # 004
                                                                      MPN: 008832003
                                                                      GIRDLE
                                                                      from £28.32
                                                                      from £28.32
                                                                      # 005
                                                                      MPN: 001730064
                                                                      JUNCTION
                                                                      from £15.08
                                                                      from £15.08
                                                                      # 006
                                                                      MPN: 008700852
                                                                      WHEAT
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 007
                                                                      MPN: 001120857
                                                                      PIPE UNION
                                                                      from £97.89
                                                                      from £97.89
                                                                      # 008
                                                                      MPN: 008300650
                                                                      PRISONER
                                                                      from £7.71
                                                                      from £7.71
                                                                      # 009
                                                                      MPN: 008410602
                                                                      WASHER
                                                                      from £29.00
                                                                      from £29.00
                                                                      # 010
                                                                      MPN: 008300613
                                                                      PRISONER
                                                                      from £3.13
                                                                      from £3.13
                                                                      # 011
                                                                      MPN: 008400606
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 012
                                                                      MPN: 001128397
                                                                      STUD
                                                                      from £22.63
                                                                      from £22.63
                                                                      # 013
                                                                      MPN: 008602801
                                                                      RING
                                                                      from £2.44
                                                                      from £2.44
                                                                      # 015
                                                                      MPN: 008300651
                                                                      PRISONER
                                                                      from £7.62
                                                                      from £7.62
                                                                      # 016
                                                                      MPN: 008300637
                                                                      PRISONER
                                                                      from £9.15
                                                                      from £9.15
                                                                      # 017
                                                                      MPN: 001120813
                                                                      SEAL
                                                                      from £53.19
                                                                      from £53.19
                                                                      # 018
                                                                      MPN: 008606201
                                                                      RING
                                                                      Supersession
                                                                      Supersession
                                                                      # 019
                                                                      MPN: 001133383
                                                                      TUBE
                                                                      from £111.45
                                                                      from £111.45
                                                                      # 020
                                                                      MPN: 001114502
                                                                      COVER
                                                                      from £121.25
                                                                      from £121.25
                                                                      # 021
                                                                      MPN: 008400620
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 022
                                                                      MPN: 008300601
                                                                      PRISONER
                                                                      from £5.27
                                                                      from £5.27
                                                                      # 023
                                                                      MPN: 008100807
                                                                      QUICKLY
                                                                      from £0.58
                                                                      from £0.58
                                                                      # 024
                                                                      MPN: 008410806
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 025
                                                                      MPN: 008400806
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 027
                                                                      MPN: 008402609
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 028
                                                                      MPN: 001132417
                                                                      SEAL
                                                                      from £164.30
                                                                      from £164.30
                                                                      # 029
                                                                      MPN: 008603501
                                                                      RING
                                                                      Supersession
                                                                      Supersession
                                                                      # 030
                                                                      MPN: 008604701
                                                                      RING
                                                                      Supersession
                                                                      Supersession
                                                                      # 031
                                                                      MPN: 008400802
                                                                      WASHER
                                                                      from £1.06
                                                                      from £1.06
                                                                      # 032
                                                                      MPN: 008100839
                                                                      QUICKLY
                                                                      Supersession
                                                                      Supersession
                                                                      # 033
                                                                      MPN: 001121254
                                                                      SEAL
                                                                      from £5.36
                                                                      from £5.36
                                                                      # 034
                                                                      MPN: 001734153
                                                                      TUBE
                                                                      from £426.03
                                                                      from £426.03
                                                                      # 035
                                                                      -
                                                                      head
                                                                      SEE ILLUSTRATION: 109.06
                                                                      # 036
                                                                      -
                                                                      head
                                                                      SEE ILLUSTRATION: 109.06
