103.07.00 - engine block

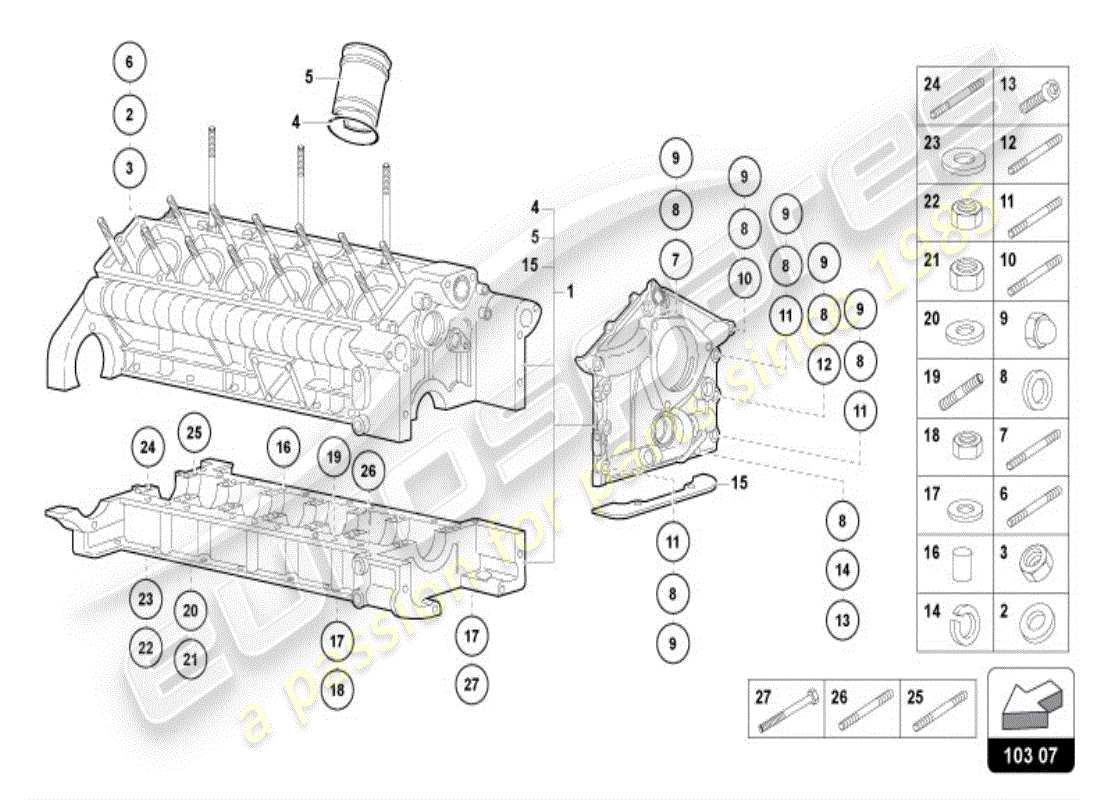

Lamborghini Diablo VT (1995) ENGINE BLOCK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 001
                                        MPN: 403400200
                                        MACHINED ENGINE CRANKCASE
                                        from £19,243.13
                                        from £19,243.13
                                        L522VT MACHINED CRANKCASE Genuine Lamborghini - New (to order)
                                        # 002
                                        MPN: 008401230
                                        WASHER
                                        from £33.35
                                        from £33.35
                                        WASHER Genuine Lamborghini - New In stock
                                        # 003
                                        MPN: 001824761
                                        PRISONER
                                        from £65.71
                                        from £65.71
                                        CYLINDER HEAD STUD ON CRANKCAS E Genuine Lamborghini - New In stock
                                        # 004
                                        MPN: 008608801
                                        SEAL RING
                                        FROM VT99 INCLUDED ALSO IN ENGINE GASKET KIT
                                        Lamborghini PART 008608801 Genuine Lamborghini - New (to order)
                                        # 005
                                        MPN: 001829442
                                        CYLINDER
                                        from £303.14
                                        from £303.14
                                        CYLINDER LINER Genuine Lamborghini - New In stock
                                        # 006
                                        MPN: 001120924
                                        DICE
                                        from £23.35
                                        from £23.35
                                        STUD NUT Genuine Lamborghini - New In stock
                                        # 007
                                        MPN: 008300904
                                        PRISONER
                                        45MM
                                        from £18.22
                                        from £18.22
                                        STUD M8X45 UNI 5914 8G/Z Genuine Lamborghini - New (to order)
                                        # 008
                                        MPN: 008400806
                                        WASHER
                                        Supersession
                                        Supersession
                                        Genuine Lamborghini (no longer available to order)
                                        # 009
                                        MPN: 008200816
                                        DICE
                                        from £2.94
                                        from £2.94
                                        SPECIAL NUT Genuine Lamborghini - New In stock
                                        # 010
                                        MPN: 008300905
                                        PRISONER
                                        55MM
                                        from £11.95
                                        from £11.95
                                        STUD 8X1.25X55 5914 8G ZG Genuine Lamborghini - New (to order)
                                        # 011
                                        MPN: 008300902
                                        PRISONER
                                        35MM
                                        from £5.94
                                        from £5.94
                                        STUD M8X35 UNI 5914 8G/Z Genuine Lamborghini - New (to order)
                                        # 012
                                        MPN: 008300903
                                        PRISONER
                                        40MM
                                        from £5.70
                                        from £5.70
                                        STUD M8X40 UNI 5914 8G/Z Genuine Lamborghini - New (to order)
                                        # 013
                                        MPN: 008700822
                                        QUICKLY
                                        from £0.53
                                        from £0.53
                                        SCREW M8X40 UNI 5931/8G ZD Genuine Lamborghini - New (to order)
                                        # 014
                                        MPN: 008410806
                                        WASHER
                                        Supersession
                                        Supersession
                                        Genuine Lamborghini (no longer available to order)
                                        # 015
                                        MPN: 001232219
                                        SEAL
                                        FROM VT99 INCLUDED ALSO IN ENGINE GASKET KIT
                                        from £4.56
                                        from £4.56
                                        TIMING CASE COVER GASKET Genuine Lamborghini - New (to order)
                                        # 017
                                        MPN: 008410815
                                        WASHER
                                        from £0.49
                                        from £0.49
                                        WASHER 8.4X15X0.5 DIN137/B C70 Genuine Lamborghini - New (to order)
                                        # 018
                                        MPN: 008200808
                                        DICE
                                        Supersession
                                        Supersession
                                        Genuine Lamborghini (no longer available to order)
                                        # 019
                                        MPN: 008300808
                                        PRISONER
                                        35MM
                                        Supersession
                                        Supersession
                                        Genuine Lamborghini (no longer available to order)
                                        # 019
                                        MPN: 008300809
                                        PRISONER
                                        25MM
                                        from £4.94
                                        from £4.94
                                        STUD M8X25 UNI 5911/8G/ZD Genuine Lamborghini - New (to order)
                                        # 020
                                        MPN: 008400820
                                        WASHER
                                        from £10.22
                                        from £10.22
                                        WASHER 8.5X18X3.5 Genuine Lamborghini - New (to order)
                                        # 021
                                        MPN: 008200805
                                        DICE
                                        from £0.49
                                        from £0.49
                                        M8X1X8 8G/B NUT Genuine Lamborghini - New In stock
                                        # 022
                                        MPN: 008201221
                                        DICE
                                        Supersession
                                        Supersession
                                        Genuine Lamborghini (no longer available to order)
                                        # 023
                                        MPN: 008401227
                                        WASHER
                                        from £9.55
                                        from £9.55
                                        FLAT WASHER 12.5X26X3 Genuine Lamborghini - New (to order)
                                        # 024
                                        MPN: 008301238
                                        PRISONER
                                        from £10.75
                                        from £10.75
                                        SPECIAL STUD M12X110 Genuine Lamborghini - New (to order)
                                        # 025
                                        MPN: 008300886
                                        PRISONER
                                        from £28.49
                                        from £28.49
                                        ZINC SPECIAL STUD 8X105 Genuine Lamborghini - New (to order)
                                        # 026
                                        MPN: 008300884
                                        PRISONER
                                        95MM
                                        from £21.43
                                        from £21.43
                                        SPECIAL STUD M8X95 Genuine Lamborghini - New (to order)
                                        # 027
                                        MPN: 008100871
                                        FAST 95MM
                                        from £2.64
                                        from £2.64
                                        SCREW M8X95 UNI 5737/8G ZD Genuine Lamborghini - New (to order)
