lamborghini diablo vt (1995) oil sump parts diagram

117.03.00 - oil sump

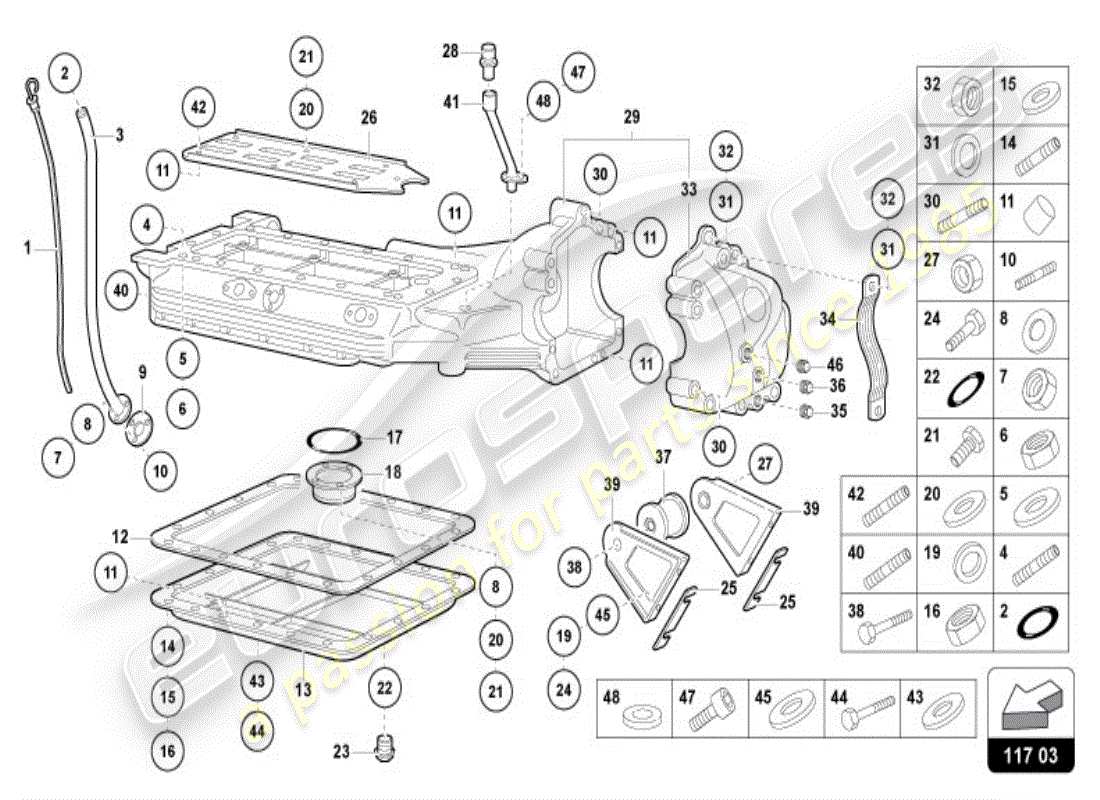

Lamborghini Diablo VT (1995) OIL SUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 001831041
                                                                    OIL LEVEL ROD
                                                                    from £198.89
                                                                    from £198.89
                                                                    # 002
                                                                    MPN: 008600701
                                                                    RING
                                                                    Supersession
                                                                    Supersession
                                                                    # 003
                                                                    MPN: 001831138
                                                                    PIPE
                                                                    from £399.83
                                                                    from £399.83
                                                                    # 004
                                                                    MPN: 008300806
                                                                    STUD
                                                                    L = 97 MM
                                                                    from £3.61
                                                                    from £3.61
                                                                    # 004
                                                                    MPN: 008300839
                                                                    STUD
                                                                    28 MM
                                                                    Supersession
                                                                    Supersession
                                                                    # 004
                                                                    MPN: 008300897
                                                                    STUD
                                                                    106 MM
                                                                    from £9.55
                                                                    from £9.55
                                                                    # 005
                                                                    MPN: 008410805
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 006
                                                                    MPN: 008200808
                                                                    NUT
                                                                    Supersession
                                                                    Supersession
                                                                    # 007
                                                                    MPN: 008200606
                                                                    NUT
                                                                    Supersession
                                                                    Supersession
                                                                    # 008
                                                                    MPN: 008400606
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 009
                                                                    MPN: 001830006
                                                                    GASKET
                                                                    INCLUDED IN ENGINE GASKET KIT
                                                                    from £4.78
                                                                    from £4.78
                                                                    # 010
                                                                    MPN: 008300601
                                                                    STUD
                                                                    from £5.27
                                                                    from £5.27
                                                                    # 011
                                                                    MPN: 008850806
                                                                    DOWEL
                                                                    Supersession
                                                                    Supersession
                                                                    # 012
                                                                    MPN: 001826521
                                                                    GASKET
                                                                    INCLUDED IN ENGINE GASKET KIT
                                                                    from £79.76
                                                                    from £79.76
                                                                    # 013
                                                                    MPN: 001831852
                                                                    COVER
                                                                    from £318.20
                                                                    from £318.20
                                                                    # 014
                                                                    -
                                                                    STUD
                                                                    NOT FOR THIS MODEL
                                                                    # 014
                                                                    MPN: 008300615
                                                                    STUD
                                                                    from £12.92
                                                                    from £12.92
                                                                    # 015
                                                                    -
                                                                    WASHER
                                                                    NOT FOR THIS MODEL
                                                                    # 015
                                                                    MPN: 008410602
                                                                    WASHER
                                                                    from £25.72
                                                                    from £25.72
                                                                    # 016
                                                                    -
                                                                    NUT
                                                                    NOT FOR THIS MODEL
                                                                    # 016
                                                                    MPN: 008200605
                                                                    NUT
                                                                    from £1.76
                                                                    from £1.76
                                                                    # 017
                                                                    MPN: 008609301
                                                                    RING
                                                                    Supersession
                                                                    Supersession
                                                                    # 018
                                                                    MPN: 001832017
                                                                    FLANGE
                                                                    from £209.75
                                                                    from £209.75
                                                                    # 019
                                                                    MPN: 008410801
                                                                    WASHER
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 020
                                                                    MPN: 008410603
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 021
                                                                    MPN: 008100604
                                                                    SCREW
                                                                    from £1.65
                                                                    from £1.65
                                                                    # 022
                                                                    MPN: 008402202
                                                                    WASHER
                                                                    INCLUDED IN ENGINE GASKET KIT
                                                                    from £2.73
                                                                    from £2.73
                                                                    # 022
                                                                    MPN: 008602002
                                                                    WASHER
                                                                    from £14.58
                                                                    from £14.58
                                                                    # 023
                                                                    MPN: 008932206
                                                                    CAP
                                                                    Supersession
                                                                    Supersession
                                                                    # 024
                                                                    MPN: 008100803
                                                                    SCREW
                                                                    Supersession
                                                                    Supersession
                                                                    # 025
                                                                    MPN: 004126766
                                                                    SHIM
                                                                    1.0 MM
                                                                    # 026
                                                                    MPN: 001827775
                                                                    PLATE
                                                                    from £54.80
                                                                    from £54.80
                                                                    # 027
                                                                    MPN: 008201416
                                                                    NUT
                                                                    from £1.25
                                                                    from £1.25
                                                                    # 028
                                                                    MPN: 002325257
                                                                    DIFFERENTIAL GEAR OIL VENT
                                                                    # 029
                                                                    MPN: 001825337
                                                                    oil sump
                                                                    ONLY LINKED TO 453400100
                                                                    # 029
                                                                    MPN: 453400100
                                                                    oil sump
                                                                    ONLY COUPLED
                                                                    Supersession
                                                                    Supersession
                                                                    # 030
                                                                    MPN: 008301002
                                                                    STUD
                                                                    from £21.18
                                                                    from £21.18
                                                                    # 030
                                                                    MPN: 008301033
                                                                    STUD
                                                                    from £23.43
                                                                    from £23.43
                                                                    # 031
                                                                    MPN: 008411002
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 032
                                                                    MPN: 008201001
                                                                    NUT
                                                                    Supersession
                                                                    Supersession
                                                                    # 033
                                                                    MPN: 001825336
                                                                    COVER
                                                                    ONLY LINKED TO 453400100
                                                                    from £432.58
                                                                    from £432.58
                                                                    # 034
                                                                    MPN: 001604328
                                                                    GROUND CABLE
                                                                    Supersession
                                                                    Supersession
                                                                    # 035
                                                                    MPN: 008932203
                                                                    CAP
                                                                    # 036
                                                                    MPN: 008931802
                                                                    CAP
                                                                    Supersession
                                                                    Supersession
                                                                    # 037
                                                                    MPN: 008921412
                                                                    RUBBER PAD
                                                                    Supersession
                                                                    Supersession
                                                                    # 038
                                                                    MPN: 008101430
                                                                    SCREW
                                                                    from £2.24
                                                                    from £2.24
                                                                    # 039
                                                                    MPN: 004126765
                                                                    BRACKET
                                                                    from £175.73
                                                                    from £175.73
                                                                    # 040
                                                                    MPN: 008300808
                                                                    STUD
                                                                    Supersession
                                                                    Supersession
                                                                    # 041
                                                                    MPN: 002334402
                                                                    PIPE
                                                                    from £174.92
                                                                    from £174.92
                                                                    # 042
                                                                    MPN: 008300809
                                                                    STUD
                                                                    from £4.94
                                                                    from £4.94
                                                                    # 043
                                                                    -
                                                                    WASHER
                                                                    NOT FOR THIS MODEL
                                                                    # 043
                                                                    MPN: 008410602
                                                                    WASHER
                                                                    from £25.72
                                                                    from £25.72
                                                                    # 044
                                                                    -
                                                                    SCREW
                                                                    NOT FOR THIS MODEL
                                                                    # 044
                                                                    MPN: 008100603
                                                                    SCREW
                                                                    from £1.00
                                                                    from £1.00
                                                                    # 045
                                                                    -
                                                                    WASHER
                                                                    NOT FOR THIS MODEL
                                                                    # 046
                                                                    MPN: 008932203
                                                                    CAP
                                                                    # 047
                                                                    -
                                                                    SCREW
                                                                    NOT FOR THIS MODEL
                                                                    # 048
                                                                    -
                                                                    WASHER
                                                                    NOT FOR THIS MODEL
