121.03.00 - COOLER FOR COOLANT

Lamborghini Diablo VT (1995) COOLER FOR COOLANT Parts Diagram

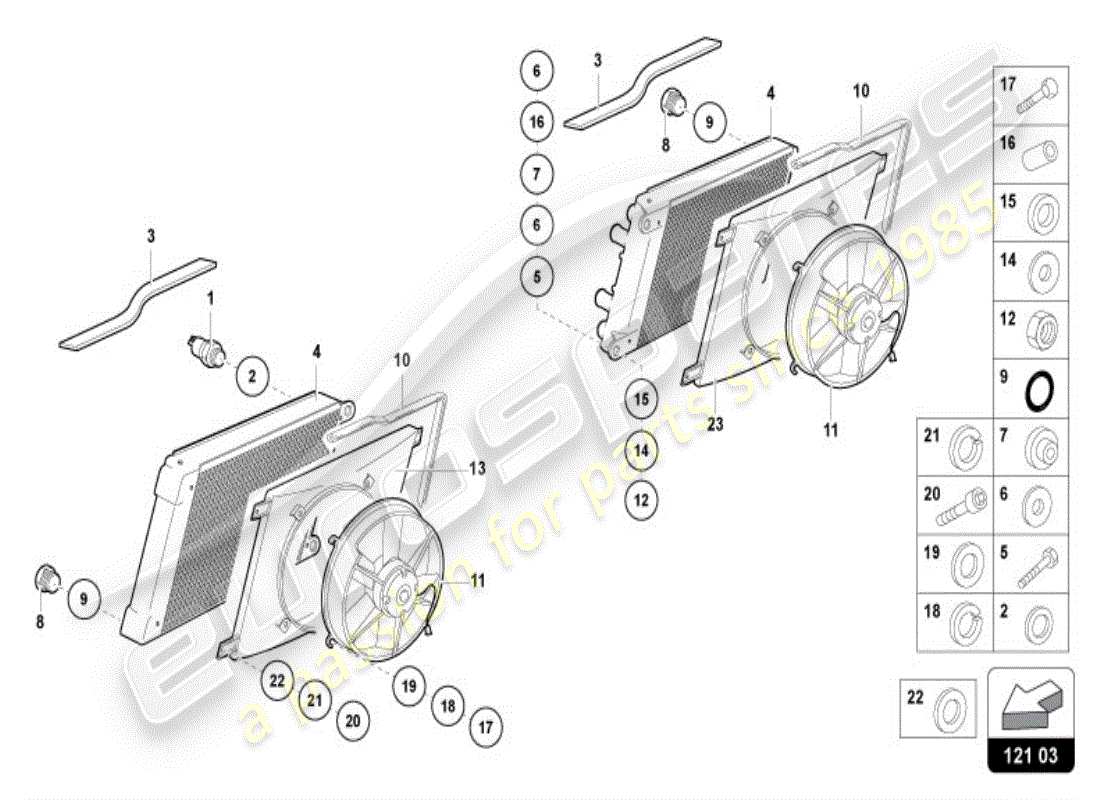

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Key
                                                  Price
                                                  # 002
                                                  MPN: 008402202
                                                  WASHER
                                                  from £2.73
                                                  from £2.73
                                                  ANNEALED COPPER WASHER.D.22X30 X1.5 Genuine Lamborghini - New In stock
                                                  # 003
                                                  MPN: 001731451
                                                  GASKET
                                                  SP 15 MM
                                                  from £9.46
                                                  from £9.46
                                                  COOLANT RADIATOR BRACKET SEAL Genuine Lamborghini - New (to order)
                                                  # 004
                                                  MPN: 001731654
                                                  RADIATOR
                                                  from £2,592.07
                                                  from £2,592.07
                                                  COOLANT RADIATOR ASSEMBLY Genuine Lamborghini - New (to order)
                                                  # 005
                                                  MPN: 008100824
                                                  SCREW
                                                  from £0.92
                                                  from £0.92

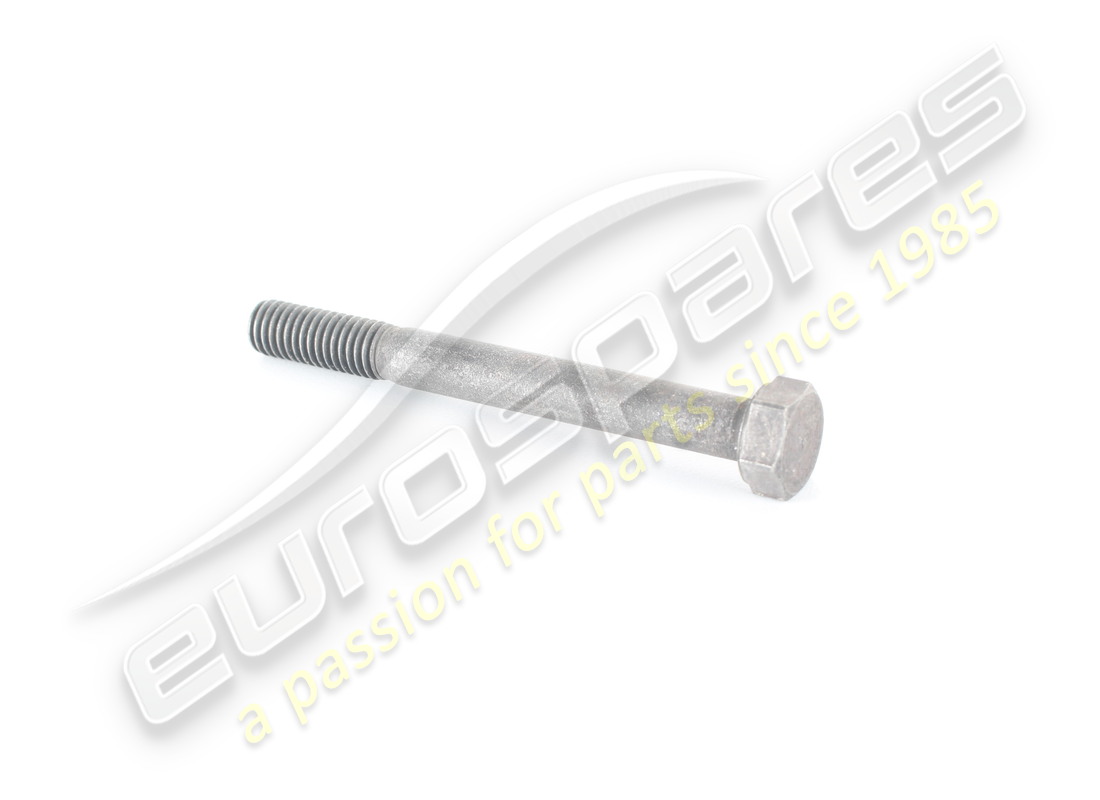

                                                  SCREW M8X75 UNI 5737-65A/F Genuine Lamborghini - New In stock
                                                  # 006
                                                  MPN: 008400804
                                                  WASHER
                                                  Supersession
                                                  Supersession
                                                  Genuine Lamborghini (no longer available to order)
                                                  # 007
                                                  MPN: 001733266
                                                  RUBBER BUSHING
                                                  from £4.19
                                                  from £4.19
                                                  RADIATOR BRACKET RING Genuine Lamborghini - New (to order)
                                                  # 008
                                                  MPN: 008932202
                                                  CAP
                                                  from £50.72
                                                  from £50.72
                                                  PLUG 22MB Genuine Lamborghini - New (to order)
                                                  # 009
                                                  MPN: 008602002
                                                  RING
                                                  from £14.58
                                                  from £14.58
                                                  RING 21 MM OR Genuine Lamborghini - New (to order)
                                                  # 010
                                                  MPN: 001731660
                                                  RUBBER WEATHER-
                                                  RUBBER WEATHER- Genuine Lamborghini - New (to order)
                                                  # 011
                                                  MPN: 001734039
                                                  ELECTROFAN
                                                  Supersession
                                                  Supersession
                                                  Genuine Lamborghini (no longer available to order)
                                                  # 012
                                                  MPN: 008200804
                                                  NUT
                                                  from £0.73
                                                  from £0.73
                                                  NUT Genuine Lamborghini - New In stock
                                                  # 013
                                                  MPN: 001730744
                                                  CONVEYOR
                                                  LEFT
                                                  CONVEYOR Genuine Lamborghini - New (to order)
                                                  # 014
                                                  MPN: 008400806
                                                  WASHER
                                                  Supersession
                                                  Supersession
                                                  Genuine Lamborghini (no longer available to order)
                                                  # 015
                                                  MPN: 008400804
                                                  SPACER
                                                  Supersession
                                                  Supersession
                                                  Genuine Lamborghini (no longer available to order)
                                                  # 016
                                                  MPN: 001733267
                                                  DOWEL
                                                  from £7.21
                                                  from £7.21
                                                  RADIATOR BRACKET RING SHIM Genuine Lamborghini - New (to order)
                                                  # 017
                                                  MPN: 008100502
                                                  SCREW
                                                  from £0.51
                                                  from £0.51
                                                  SCREW 5X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
                                                  # 018
                                                  MPN: 008410502
                                                  WASHER
                                                  Supersession
                                                  Supersession
                                                  Genuine Lamborghini (no longer available to order)
                                                  # 019
                                                  MPN: 008400506
                                                  WASHER
                                                  from £0.51
                                                  from £0.51
                                                  FLAT WASHER 5.3X1.5X15 Genuine Lamborghini - New (to order)
                                                  # 020
                                                  MPN: 008700614
                                                  SCREW
                                                  Supersession
                                                  Supersession
                                                  Genuine Lamborghini (no longer available to order)
                                                  # 021
                                                  MPN: 008410611
                                                  WASHER
                                                  from £0.51
                                                  from £0.51
                                                  SNAP RING D.6 DIN 7980 Genuine Lamborghini - New (to order)
                                                  # 022
                                                  MPN: 008400607
                                                  WASHER
                                                  Supersession
                                                  Supersession
                                                  Genuine Lamborghini (no longer available to order)
                                                  # 023
                                                  MPN: 001730743
                                                  CONVEYOR
                                                  RIGHT
                                                  CONVEYOR Genuine Lamborghini - New (to order)
                                                  # 024
                                                  MPN: 008400801
                                                  WASHER
                                                  Supersession
                                                  Supersession
                                                  Genuine Lamborghini (no longer available to order)
                                                  # 025
                                                  MPN: 001733004
                                                  GASKET
                                                  from £13.88
                                                  from £13.88
                                                  BRACKET SEAL Genuine Lamborghini - New (to order)
                                                  # 026
                                                  MPN: 008600901
                                                  RING
                                                  Supersession
                                                  Supersession
                                                  Genuine Lamborghini (no longer available to order)
                                                  # 027
                                                  MPN: 001731655
                                                  PLUG
                                                  PLUG Genuine Lamborghini - New (to order)
