121.04.00 - COOLANT PUMP

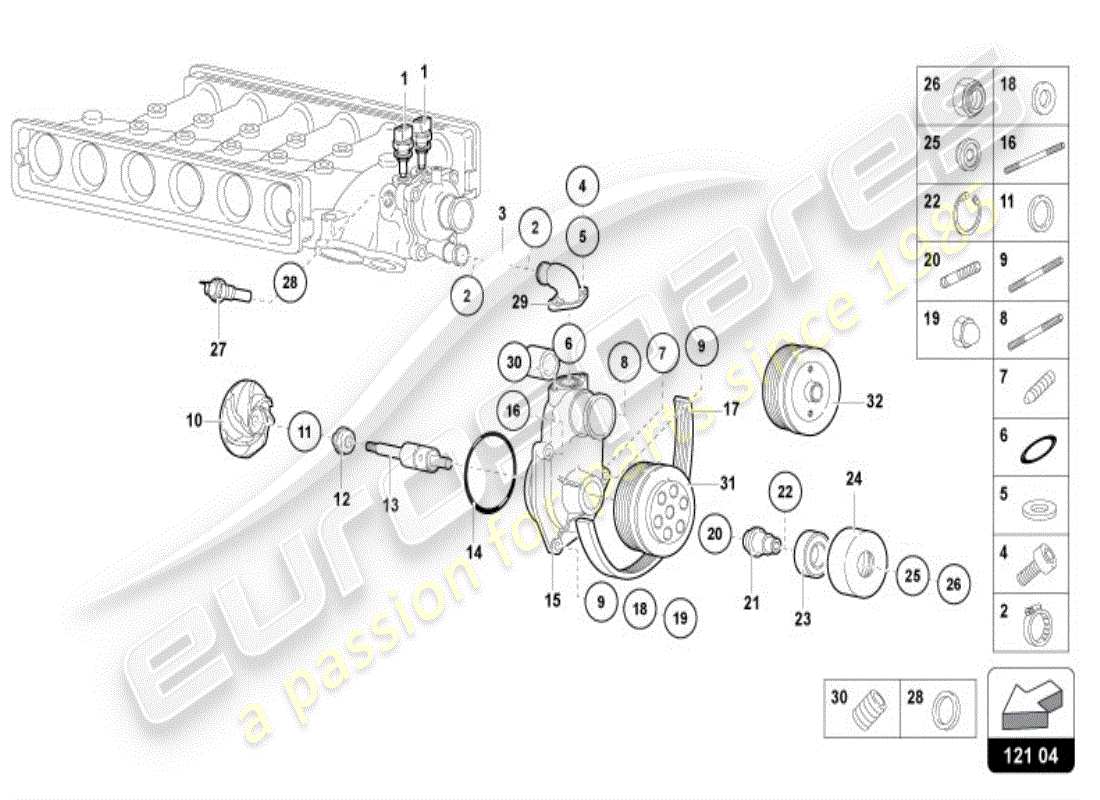

Lamborghini Diablo VT (1995) COOLANT PUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 001
                                                        MPN: 002024394
                                                        WATER TEMPERATURE SENSOR
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 002
                                                        MPN: 008832604
                                                        GIRDLE
                                                        from £2.37
                                                        from £2.37
                                                        CLAMP Genuine Lamborghini - New In stock
                                                        # 003
                                                        MPN: 001732811
                                                        TUBE
                                                        from £16.21
                                                        from £16.21
                                                        THERMOSTAT CONNECTING SLEEVE Genuine Lamborghini - New (to order)
                                                        # 004
                                                        MPN: 008700617
                                                        QUICKLY
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 008700670
                                                        SCREW M6X18 UNI 5931/8G/Z Genuine Lamborghini - New In stock
                                                        # 005
                                                        MPN: 008410602
                                                        WASHER
                                                        from £29.19
                                                        from £29.19
                                                        WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
                                                        # 006
                                                        MPN: 008602802
                                                        SEAL RING
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 007
                                                        MPN: 008700650
                                                        QUICKLY
                                                        from £1.70
                                                        from £1.70
                                                        SCREW M6 UNI 5925-67 Genuine Lamborghini - New In stock
                                                        # 008
                                                        MPN: 008301034
                                                        PRISONER
                                                        from £3.78
                                                        from £3.78
                                                        STUD M10X60 UNI 59118G Z Genuine Lamborghini - New (to order)
                                                        # 009
                                                        MPN: 008300809
                                                        PRISONER
                                                        from £4.94
                                                        from £4.94
                                                        STUD M8X25 UNI 5911/8G/ZD Genuine Lamborghini - New (to order)
                                                        # 010
                                                        MPN: 001733982
                                                        IMPELLER
                                                        UNTIL VIN 12283
                                                        Lamborghini PART 001733982 Genuine Lamborghini - New (to order)
                                                        # 010
                                                        MPN: 001734252
                                                        IMPELLER
                                                        FROM VIN 12284
                                                        from £361.79
                                                        from £361.79
                                                        Lamborghini PART 001734252 Genuine Lamborghini - New (to order)
                                                        # 011
                                                        MPN: 001734239
                                                        SHIM
                                                        1.0 MM
                                                        from £23.51
                                                        from £23.51
                                                        WASHER 1 MM Genuine Lamborghini - New (to order)
                                                        # 011
                                                        MPN: 001734240
                                                        SHIM
                                                        1.2 MM
                                                        from £23.51
                                                        from £23.51
                                                        WASHER 1.2 MM Genuine Lamborghini - New (to order)
                                                        # 011
                                                        MPN: 001734241
                                                        SHIM
                                                        1.4 MM
                                                        from £30.92
                                                        from £30.92
                                                        WASHER 1.4 MM Genuine Lamborghini - New (to order)
                                                        # 011
                                                        MPN: 001734242
                                                        SHIM
                                                        1.6 MM
                                                        from £23.51
                                                        from £23.51
                                                        WASHER 1.6 MM Genuine Lamborghini - New (to order)
                                                        # 011
                                                        MPN: 001734243
                                                        SHIM
                                                        1.8 MM
                                                        from £23.51
                                                        from £23.51
                                                        WASHER 1.8 MM Genuine Lamborghini - New (to order)
                                                        # 011
                                                        MPN: 001734244
                                                        SHIM
                                                        2.0 MM
                                                        from £23.51
                                                        from £23.51
                                                        WASHER 2 MM Genuine Lamborghini - New (to order)
                                                        # 011
                                                        MPN: 001734245
                                                        SHIM
                                                        2.2 MM
                                                        from £23.51
                                                        from £23.51
                                                        WASHER 2.2 MM Genuine Lamborghini - New (to order)
                                                        # 011
                                                        MPN: 001734246
                                                        SHIM
                                                        2.4 MM
                                                        from £23.51
                                                        from £23.51
                                                        WASHER.2.4 MM Genuine Lamborghini - New (to order)
                                                        # 011
                                                        MPN: 001734247
                                                        SHIM
                                                        2.6 MM
                                                        from £23.51
                                                        from £23.51
                                                        WASHER 2.6 MM Genuine Lamborghini - New (to order)
                                                        # 011
                                                        MPN: 001734248
                                                        SHIM
                                                        2.8 MM
                                                        from £23.51
                                                        from £23.51
                                                        WASHER 2.8 MM Genuine Lamborghini - New (to order)
                                                        # 012
                                                        MPN: 001726539
                                                        FRONT SEAL
                                                        UNTIL VIN 12283
                                                        from £140.75
                                                        from £140.75
                                                        MECHANICAL SEAL 361 Genuine Lamborghini - New (to order)
                                                        # 012
                                                        MPN: 001734675
                                                        FRONT SEAL
                                                        FROM VIN 12284
                                                        from £29.85
                                                        from £29.85
                                                        COOLANT PUMP FRONT MECHANICAL SEAL Genuine Lamborghini - New (to order)
                                                        # 013
                                                        MPN: 001727739
                                                        POST
                                                        from £404.16
                                                        from £404.16
                                                        BEARING WITH COOLANTPUMP SHAFT & PULLEY Genuine Lamborghini - New (to order)
                                                        # 014
                                                        MPN: 008609907
                                                        SEAL RING
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 015
                                                        MPN: 001732800
                                                        WATER PUMP BODY
                                                        UNTIL VIN 12283
                                                        Lamborghini PART 001732800 Genuine Lamborghini - New (to order)
                                                        # 015
                                                        MPN: 001734676
                                                        WATER PUMP BODY
                                                        FROM VIN 12284
                                                        Lamborghini PART 001734676 Genuine Lamborghini - New (to order)
                                                        # 016
                                                        MPN: 008300833
                                                        PRISONER
                                                        from £3.93
                                                        from £3.93
                                                        STUD M8X45 UNI 5911 8G Z Genuine Lamborghini - New (to order)
                                                        # 017
                                                        MPN: 001734069
                                                        WATER PUMP BELT AND TERNAT.
                                                        Lamborghini PART 001734069 Genuine Lamborghini - New (to order)
                                                        # 018
                                                        MPN: 008400806
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 019
                                                        MPN: 008200809
                                                        DICE
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 020
                                                        MPN: 008301008
                                                        PRISONER
                                                        from £6.82
                                                        from £6.82
                                                        STUD M10X90 UNI 59118GZ Genuine Lamborghini - New (to order)
                                                        # 021
                                                        MPN: 001232211
                                                        COMPASS
                                                        from £69.62
                                                        from £69.62
                                                        GUIDE BRACKET PIN Genuine Lamborghini - New (to order)
                                                        # 022
                                                        MPN: 008575201
                                                        RETAINER RING
                                                        from £0.76
                                                        from £0.76
                                                        O-RING I 52 UNI 3654 Genuine Lamborghini - New In stock
                                                        # 023
                                                        MPN: 008502501
                                                        BEARING
                                                        from £34.99
                                                        from £34.99
                                                        BEARING D.25X52X20.6 Genuine Lamborghini - New (to order)
                                                        # 024
                                                        MPN: 001228675
                                                        belt tensioner
                                                        from £240.89
                                                        from £240.89
                                                        TIMING BELT GUIDE Genuine Lamborghini - New (to order)
                                                        # 025
                                                        MPN: 001626949
                                                        WASHER
                                                        from £20.46
                                                        from £20.46
                                                        WASHER Genuine Lamborghini - New (to order)
                                                        # 026
                                                        MPN: 008201008
                                                        DICE
                                                        from £0.82
                                                        from £0.82
                                                        NUT Genuine Lamborghini - New (to order)
                                                        # 027
                                                        MPN: 001724221
                                                        THERMOCOUPLE
                                                        from £81.43
                                                        from £81.43
                                                        THERMOCOUPLE Genuine Lamborghini - New (to order)
                                                        # 028
                                                        MPN: 008401408
                                                        WASHER
                                                        from £1.29
                                                        from £1.29
                                                        ANNEALED COPPER WASHER 21X14X1 .5 Genuine Lamborghini - New In stock
                                                        # 029
                                                        MPN: 001732803
                                                        CONNECTION
                                                        from £211.35
                                                        from £211.35
                                                        UNION ON COOLANT PUMP Genuine Lamborghini - New (to order)
                                                        # 030
                                                        MPN: 008840601
                                                        HELI-COIL
                                                        from £1.74
                                                        from £1.74
                                                        HELI-COIL M6X9.6 Genuine Lamborghini - New In stock
                                                        # 031
                                                        MPN: 001733986
                                                        PULLEY
                                                        from £671.84
                                                        from £671.84
                                                        OIL PUMP PULLEY Genuine Lamborghini - New (to order)
                                                        # 032
                                                        -
                                                        PULLEY
                                                        NOT FOR THIS MODEL
