133.10.00 - FUEL SYSTEM

Lamborghini Diablo VT (1995) FUEL SYSTEM Parts Diagram

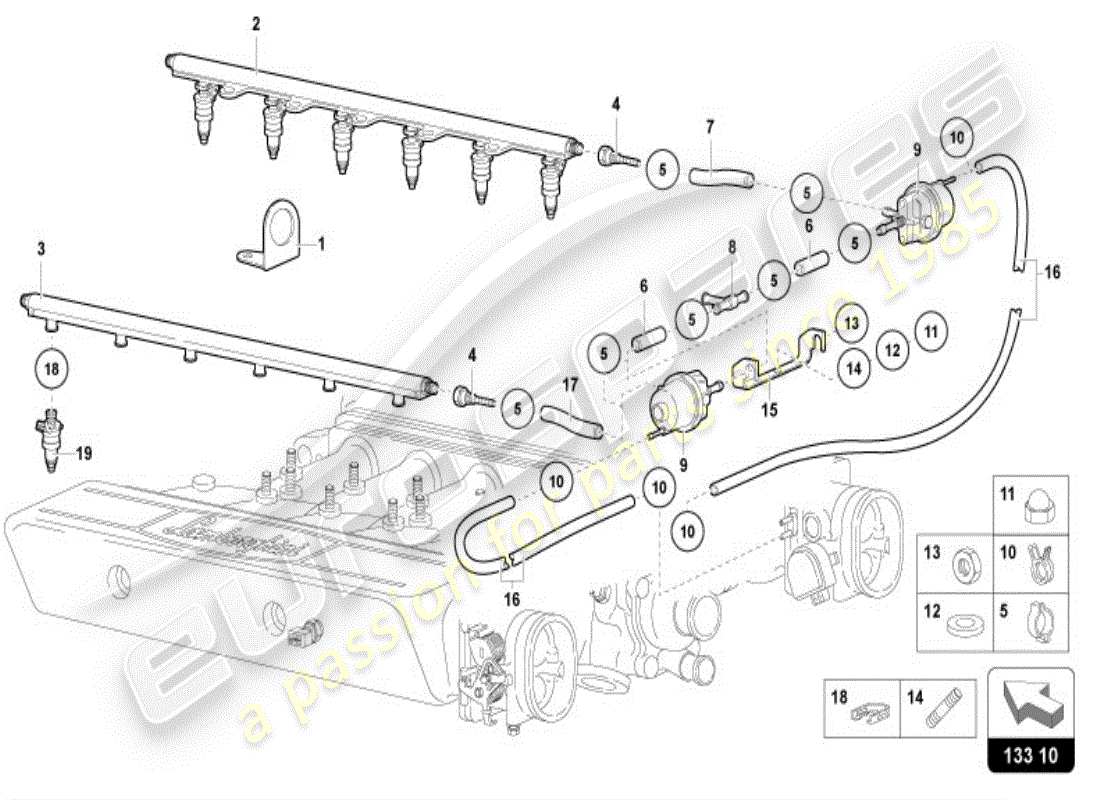

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 001
                                        MPN: 001633721
                                        SUPPORT
                                        from £20.54
                                        from £20.54
                                        INJECTION ECU WIRINGBRACKET Genuine Lamborghini - New (to order)
                                        # 002
                                        MPN: 002032514
                                        INJECTOR
                                        from £2,072.84
                                        from £2,072.84
                                        FUEL LINE ASSEMBLY Genuine Lamborghini - New (to order)
                                        # 003
                                        MPN: 002026178
                                        RIGID PIPE
                                        Supersession
                                        Supersession
                                        Genuine Lamborghini (no longer available to order)
                                        # 004
                                        MPN: 006227630
                                        CONNECTION
                                        from £8.63
                                        from £8.63
                                        UNION Genuine Lamborghini - New (to order)
                                        # 005
                                        MPN: 008830902
                                        STRAP
                                        from £3.27
                                        from £3.27
                                        CLAMP Genuine Lamborghini - New (to order)
                                        # 006
                                        MPN: 002033782
                                        PIPE
                                        from £19.34
                                        from £19.34
                                        PRESSURE REGULATOR VALVE CONNE CTION Genuine Lamborghini - New (to order)
                                        # 007
                                        MPN: 002033781
                                        PIPE
                                        from £110.16
                                        from £110.16
                                        FUEL PIPE/PRESSURE REGULATOR P IPE Genuine Lamborghini - New (to order)
                                        # 008
                                        MPN: 002033783
                                        CONNECTION
                                        from £17.25
                                        from £17.25
                                        THREE-WAY MANIFOLD UNION Genuine Lamborghini - New (to order)
                                        # 009
                                        MPN: 002027648
                                        PRESSURE REGULAT.
                                        from £295.28
                                        from £295.28

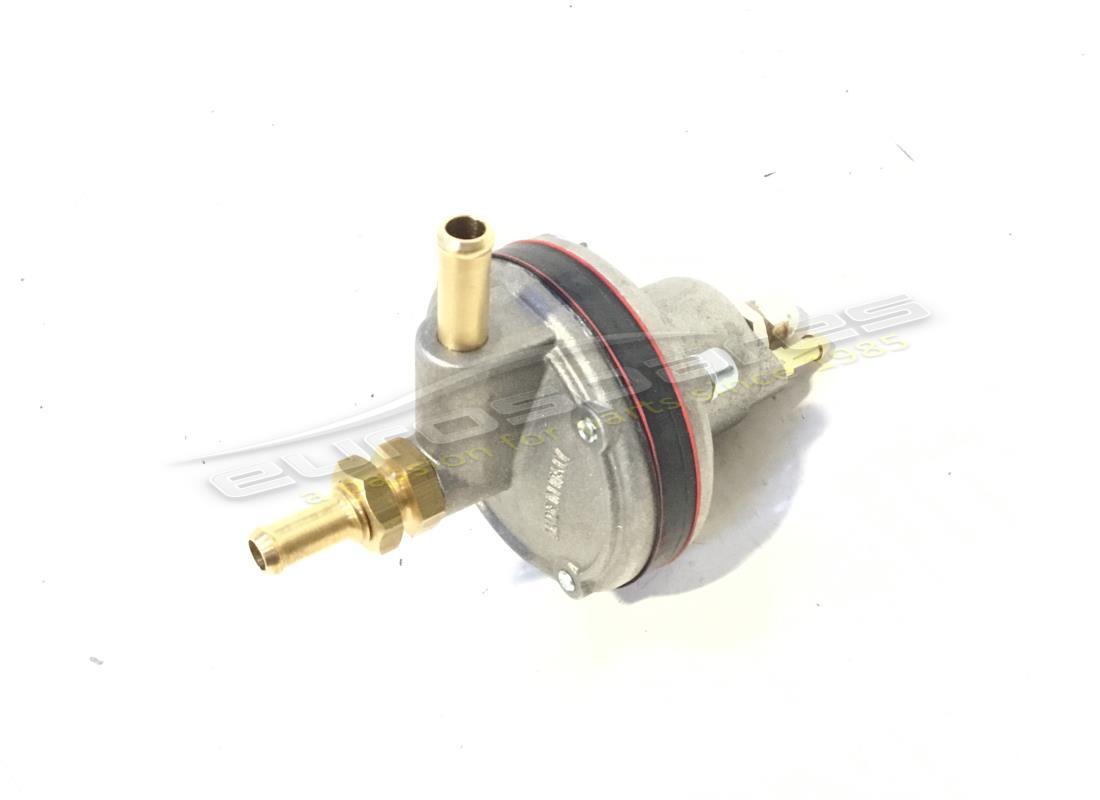

                                        PRESSURE REGULATOR VALVE Genuine Lamborghini - New (to order)
                                        PRESSURE REGULATOR VALVE Eurospares Approved Part - New In stock
                                        # 010
                                        MPN: 008830128
                                        STRAP
                                        Supersession
                                        Supersession
                                        Genuine Lamborghini (no longer available to order)
                                        # 011
                                        MPN: 008200605
                                        NUT
                                        from £1.83
                                        from £1.83
                                        M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
                                        # 012
                                        MPN: 008400606
                                        WASHER
                                        Supersession
                                        Supersession
                                        Genuine Lamborghini (no longer available to order)
                                        # 014
                                        MPN: 008300613
                                        STUD
                                        from £3.13
                                        from £3.13
                                        STUD M6X14 UNI 5911 8G/Z Genuine Lamborghini - New (to order)
                                        # 015
                                        MPN: 002033784
                                        BRACKET
                                        from £86.38
                                        from £86.38
                                        PRESSURE REGULATOR BRACKET Genuine Lamborghini - New (to order)
                                        # 016
                                        MPN: 001532659
                                        PIPE
                                        from £12.52
                                        from £12.52
                                        PIPE FROM THREE-WAY TO LH INTA KE MANIFO Genuine Lamborghini - New (to order)
                                        # 017
                                        MPN: 002033779
                                        PIPE
                                        from £82.73
                                        from £82.73
                                        HEAD PRESSURE PIPE Genuine Lamborghini - New (to order)
                                        # 018
                                        MPN: 002027642
                                        CLIP
                                        CLIP Genuine Lamborghini - New (to order)
                                        # 019
                                        MPN: 002032496
                                        INJECTOR
                                        INJECTOR Genuine Lamborghini - New (to order)
