201.03.00 - FUEL TANK

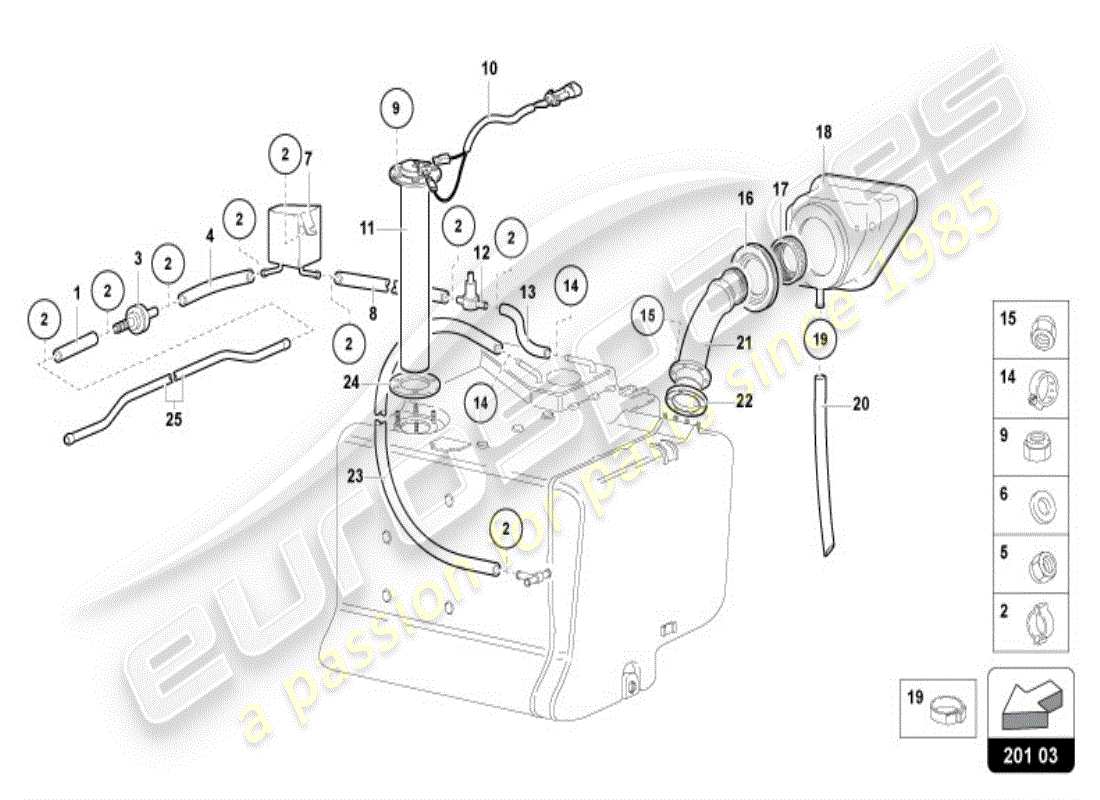

Lamborghini Diablo VT (1995) FUEL TANK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Key
                                                  Price
                                                  # 001
                                                  MPN: 006231442
                                                  PIPE
                                                  from £4.58
                                                  from £4.58
                                                  OVER-PRESSURE VALVE/COPPER PIP E Genuine Lamborghini - New (to order)
                                                  # 002
                                                  MPN: 008830902
                                                  STRAP
                                                  from £3.27
                                                  from £3.27
                                                  CLAMP Genuine Lamborghini - New (to order)
                                                  # 003
                                                  MPN: 006229379
                                                  SAFETY VALVE
                                                  from £84.02
                                                  from £84.02
                                                  BREATHER VALVE Genuine Lamborghini - New (to order)
                                                  # 004
                                                  MPN: 006233893
                                                  PIPE
                                                  from £28.08
                                                  from £28.08
                                                  FUEL VAPOUR SEPARATOR PIPE Genuine Lamborghini - New (to order)
                                                  # 005
                                                  MPN: 008200606
                                                  NUT
                                                  Supersession
                                                  Supersession
                                                  Genuine Lamborghini (no longer available to order)
                                                  # 006
                                                  MPN: 008400606
                                                  WASHER
                                                  Supersession
                                                  Supersession
                                                  Genuine Lamborghini (no longer available to order)
                                                  # 007
                                                  MPN: 006233841
                                                  VAPOUR TANK
                                                  from £252.35
                                                  from £252.35
                                                  FUEL VAPOUR SEPARATOR Genuine Lamborghini - New (to order)
                                                  # 008
                                                  MPN: 006230437
                                                  PIPE
                                                  from £15.10
                                                  from £15.10
                                                  FLEX. HOSE Genuine Lamborghini - New (to order)
                                                  # 009
                                                  MPN: 008200503
                                                  NUT
                                                  from £2.01
                                                  from £2.01
                                                  M5 UNI 7473 ZD SELF-LOCKIN GNUT Genuine Lamborghini - New (to order)
                                                  # 010
                                                  MPN: 006133765
                                                  ELECT CABLE
                                                  from £30.66
                                                  from £30.66
                                                  FUEL FLOAT WIRING Genuine Lamborghini - New (to order)
                                                  # 011
                                                  MPN: 006229648
                                                  LEVEL GAUGE
                                                  from £396.50
                                                  from £396.50
                                                  FUEL LEVEL GAUGE Genuine Lamborghini - New (to order)
                                                  Alternative (#EAP1404995) FUEL SENDER UNIT Eurospares Approved Part - New (to order)
                                                  # 012
                                                  MPN: 006230531
                                                  SAFETY VALVE
                                                  from £188.88
                                                  from £188.88
                                                  SAFETY VALVE Genuine Lamborghini - New (to order)
                                                  # 013
                                                  MPN: 006230438
                                                  PIPE
                                                  from £9.15
                                                  from £9.15
                                                  FUEL TANK/SAFETY VALVE PIPE Genuine Lamborghini - New (to order)
                                                  # 014
                                                  MPN: 008831117
                                                  STRAP
                                                  Supersession
                                                  Supersession
                                                  Genuine Lamborghini (no longer available to order)
                                                  # 015
                                                  MPN: 008200406
                                                  NUT
                                                  from £0.52
                                                  from £0.52
                                                  4X0.7X4.8 5S/Z NUT Genuine Lamborghini - New (to order)
                                                  # 016
                                                  MPN: 009409215
                                                  GASKET
                                                  from £21.03
                                                  from £21.03
                                                  This part replaces part number 009404215
                                                  WINDSCREEN WASHER BAG SEAL Genuine Lamborghini - New In stock
                                                  # 017
                                                  MPN: 006219224
                                                  PLUG
                                                  Supersession
                                                  Supersession
                                                  Genuine Lamborghini (no longer available to order)
                                                  # 018
                                                  MPN: 009490518
                                                  CASE
                                                  from £525.22
                                                  from £525.22
                                                  This part replaces part number 009490506 - and 1 more. Click to view details
                                                  FILLER COMPARTMENT INTERNAL PA NEL Genuine Lamborghini - New (to order)
                                                  # 019
                                                  MPN: 008832205
                                                  STRAP
                                                  from £13.24
                                                  from £13.24
                                                  CLAMP Genuine Lamborghini - New (to order)
                                                  # 020
                                                  MPN: 009490516
                                                  PIPE
                                                  from £8.51
                                                  from £8.51
                                                  FILLER COMPARTMENT DRAIN PIPE Genuine Lamborghini - New (to order)
                                                  # 021
                                                  MPN: 006221128
                                                  UNION
                                                  (EUROPE, USA spec vehicles)
                                                  from £1,150.55
                                                  from £1,150.55
                                                  FUEL FILLER Genuine Lamborghini - New (to order)
                                                  # 021
                                                  MPN: 006229650
                                                  UNION
                                                  (UK spec vehicles)
                                                  from £267.92
                                                  from £267.92
                                                  FUEL FILLER Genuine Lamborghini - New (to order)
                                                  # 022
                                                  MPN: 006205360
                                                  GASKET
                                                  from £47.36
                                                  from £47.36
                                                  FLOAT DIMMER SEAL Genuine Lamborghini - New (to order)
                                                  FLOAT DIMMER SEAL Eurospares Approved Part - New (to order)
                                                  # 023
                                                  MPN: 006230215
                                                  PIPE
                                                  from £86.02
                                                  from £86.02
                                                  THREE-WAY/TANK PIPE Genuine Lamborghini - New (to order)
                                                  # 024
                                                  MPN: 006229649
                                                  GASKET
                                                  from £9.97
                                                  from £9.97
                                                  FUEL LEVEL GAUGE FLANGE SEAL Genuine Lamborghini - New In stock
                                                  # 025
                                                  MPN: 006231441
                                                  PIPE
                                                  from £299.06
                                                  from £299.06
                                                  HOSE-TO-HOSE COPPER PIPE Genuine Lamborghini - New (to order)
