lamborghini diablo vt (1995) catalytic converter parts diagram

251.02.00 - CATALYTIC CONVERTER

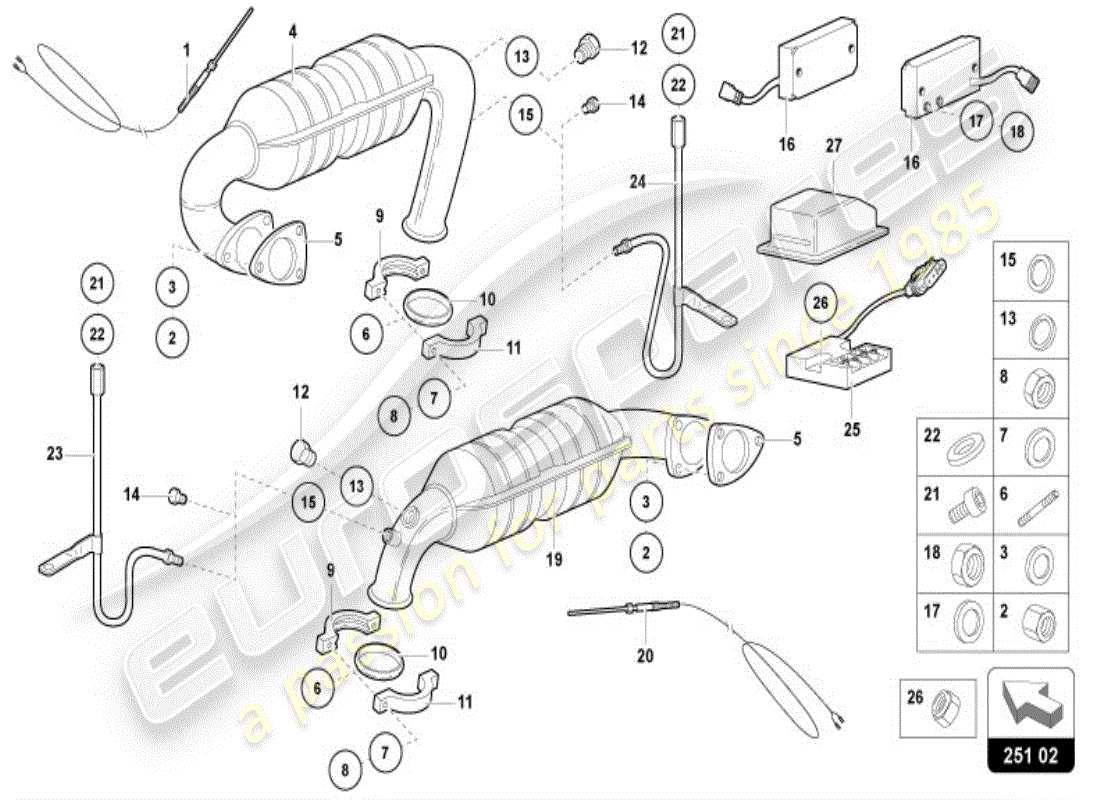

Lamborghini Diablo VT (1995) CATALYTIC CONVERTER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 001
                                MPN: 006033686
                                THERMOCOUPLE
                                Supersession
                                Supersession
                                Genuine Lamborghini (no longer available to order)
                                # 002
                                MPN: 008200825
                                NUT
                                from £1.45
                                from £1.45
                                8X1.25X10.4 NUT Genuine Lamborghini - New (to order)
                                # 003
                                MPN: 008440806
                                WASHER
                                from £0.52
                                from £0.52
                                STAINLESS STEEL WASHER 8.4X17. 4 UNI6592 Genuine Lamborghini - New (to order)
                                Alternative (#WHT001185) WASHER Genuine Lamborghini - New In stock
                                # 004
                                MPN: 004431146
                                RIGHT CATALYTIC CON.
                                RIGHT
                                from £1,973.75
                                from £1,973.75
                                Genuine Lamborghini (no longer available to order)
                                RH CATALYTIC CONVERTER ASSEMBLY Genuine Lamborghini - Used In stock
                                # 004
                                MPN: 004435461
                                RIGHT CATALYTIC CON.
                                RIGHT (USA spec vehicles)
                                from £1,946.13
                                from £1,946.13
                                RH REAR CATALYTIC CONVERTER AS SEMBLY Genuine Lamborghini - New (to order)
                                # 005
                                MPN: 004432145
                                GASKET
                                from £25.97
                                from £25.97
                                CATALYTIC CONVERTER SEAL Genuine Lamborghini - New In stock
                                # 006
                                MPN: 008300903
                                STUD
                                from £5.70
                                from £5.70
                                STUD M8X40 UNI 5914 8G/Z Genuine Lamborghini - New (to order)
                                # 007
                                MPN: 008440806
                                WASHER
                                from £0.53
                                from £0.53
                                STAINLESS STEEL WASHER 8.4X17. 4 UNI6592 Genuine Lamborghini - New (to order)
                                Alternative (#WHT001185) WASHER Genuine Lamborghini - New In stock
                                # 008
                                MPN: 008200825
                                NUT
                                from £1.41
                                from £1.41
                                8X1.25X10.4 NUT Genuine Lamborghini - New (to order)
                                # 010
                                MPN: 004424070
                                RING
                                from £95.84
                                from £95.84
                                EXHAUST PIPE MOUNTING DOUBLE T APER Genuine Lamborghini - New In stock
                                # 012
                                MPN: 004431147
                                CAP
                                from £30.75
                                from £30.75
                                see 008931808 Genuine Lamborghini - New (to order)
                                # 013
                                MPN: 008401819
                                WASHER
                                Supersession
                                Supersession
                                Genuine Lamborghini (no longer available to order)
                                # 014
                                MPN: 004431148
                                CAP
                                NOT FOR SWITZERLAND
                                from £21.66
                                from £21.66
                                CO INLET THREADED COUPLING CAP 10 M X 1 Genuine Lamborghini - New (to order)
                                # 015
                                MPN: 008401024
                                WASHER
                                NOT FOR SWITZERLAND
                                from £0.53
                                from £0.53
                                see 008401022 Genuine Lamborghini - New (to order)
                                # 016
                                -
                                ELECT. CONTROL UNIT
                                NOT FOR THIS MODEL
                                # 017
                                -
                                WASHER
                                NOT FOR THIS MODEL
                                # 018
                                -
                                NUT
                                NOT FOR THIS MODEL
                                # 019
                                MPN: 004431143
                                LEFT CATALYTIC CON.
                                LEFT
                                from £8,640.07
                                from £8,640.07
                                LH CATALYTIC CONVERTER ASSEMBLY Genuine Lamborghini - New In stock
                                # 019
                                MPN: 004435462
                                LEFT CATALYTIC CON.
                                LEFT (USA spec vehicles)
                                from £1,478.82
                                from £1,478.82
                                LH REAR CATALYTIC CONVERTER AS SEMBLY Genuine Lamborghini - New (to order)
                                # 020
                                MPN: 006033687
                                THERMOCOUPLE
                                Supersession
                                Supersession
                                Genuine Lamborghini (no longer available to order)
                                # 021
                                -
                                SCREW
                                ONLY FOR SWITZERLAND
                                # 021
                                MPN: 008700643
                                SCREW
                                ONLY FOR SWITZERLAND (EUROPE spec vehicles)
                                from £0.53
                                from £0.53
                                SCREW M6X8 UNI 5931/8G/Z Genuine Lamborghini - New (to order)
                                # 022
                                -
                                WASHER
                                ONLY FOR SWITZERLAND
                                # 022
                                MPN: 008400621
                                WASHER
                                ONLY FOR SWITZERLAND (EUROPE spec vehicles)
                                from £1.74
                                from £1.74
                                COPPER WASHER D.6.5X1X9 Genuine Lamborghini - New (to order)
                                # 023
                                -
                                PIPE
                                ONLY FOR SWITZERLAND - LEFT
                                # 023
                                MPN: 004432453
                                PIPE
                                ONLY FOR SWITZERLAND - LEFT (EUROPE spec vehicles)
                                from £244.17
                                from £244.17
                                LH CONVERTER CO TUBE Genuine Lamborghini - New (to order)
                                # 024
                                -
                                PIPE
                                ONLY FOR SWITZERLAND - RIGHT
                                # 024
                                MPN: 004432454
                                PIPE
                                ONLY FOR SWITZERLAND - RIGHT (EUROPE spec vehicles)
                                from £244.17
                                from £244.17
                                RH CONVERTER CO TUBE Genuine Lamborghini - New (to order)
                                # 025
                                MPN: 006033680
                                ELECT. CONTROL UNIT
                                Supersession
                                Supersession
                                Genuine Lamborghini (no longer available to order)
                                # 026
                                MPN: 008200406
                                NUT
                                from £0.53
                                from £0.53
                                4X0.7X4.8 5S/Z NUT Genuine Lamborghini - New (to order)
                                # 027
                                -
                                SHIELD
                                NOT FOR THIS MODEL
                                # 027
                                MPN: 005934453
                                SHIELD
                                from £27.77
                                from £27.77
                                DOOR SWITCH CAP Genuine Lamborghini - New (to order)
