311.06.00 - GEARBOX

Lamborghini Diablo VT (1995) GEARBOX Parts Diagram

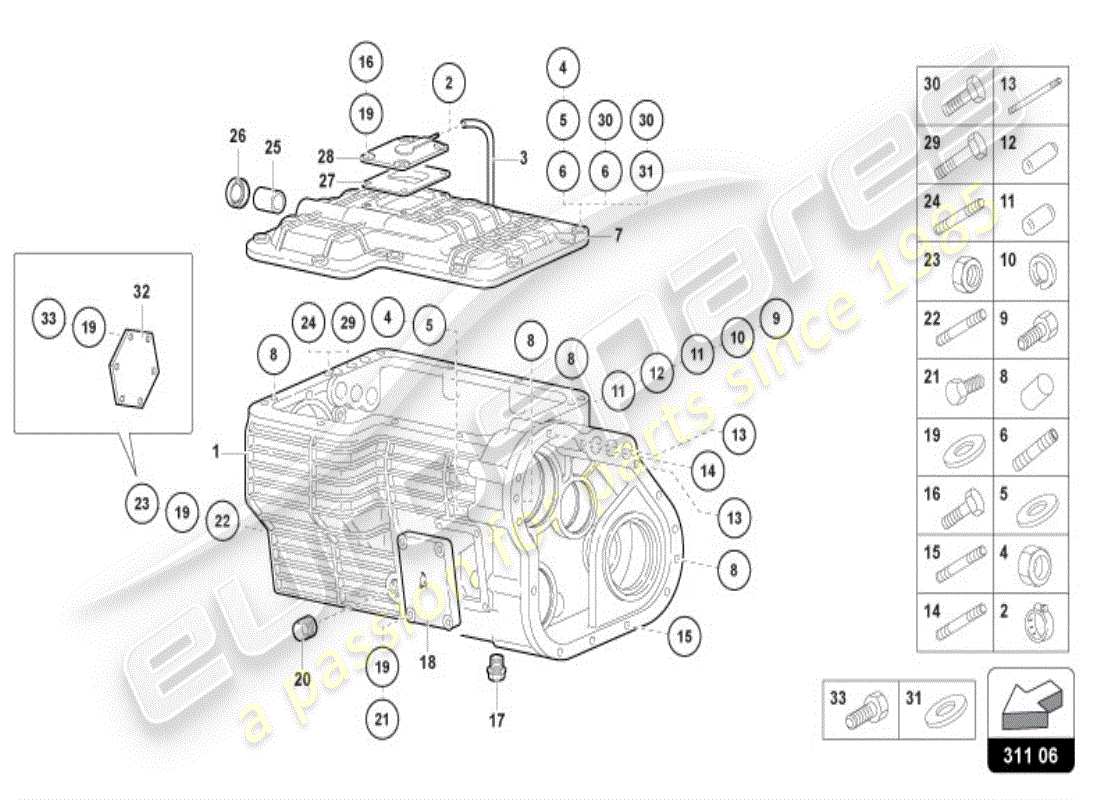

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 001
                                                        MPN: 002430746
                                                        GEAR BOX CASE
                                                        from £2,187.58
                                                        from £2,187.58
                                                        GEARBOX Genuine Lamborghini - New (to order)
                                                        # 002
                                                        MPN: 008830128
                                                        STRAP
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 004
                                                        MPN: 008200806
                                                        NUT
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 005
                                                        MPN: 008410805
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 006
                                                        MPN: 008300825
                                                        STUD
                                                        from £8.80
                                                        from £8.80
                                                        STUD M8X22 UNI 5911 10K Z Genuine Lamborghini - New In stock
                                                        # 007
                                                        MPN: 002424900
                                                        COVER
                                                        from £353.14
                                                        from £353.14
                                                        GEARBOX UPPER COVER Genuine Lamborghini - New (to order)
                                                        # 008
                                                        MPN: 008850806
                                                        DOWEL
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 009
                                                        MPN: 008100826
                                                        SCREW
                                                        from £0.54
                                                        from £0.54
                                                        SCREW M8X16 UNI 5739/8G/Z Genuine Lamborghini - New (to order)
                                                        # 010
                                                        MPN: 008400802
                                                        WASHER
                                                        from £1.09
                                                        from £1.09
                                                        COPPER WASHER 8.4X16X1.5 Genuine Lamborghini - New In stock
                                                        # 011
                                                        MPN: 002425223
                                                        ROD
                                                        from £17.97
                                                        from £17.97
                                                        DOWEL Genuine Lamborghini - New (to order)
                                                        # 012
                                                        MPN: 002425224
                                                        ROD
                                                        from £18.46
                                                        from £18.46
                                                        CENTRAL ROD STRUT Genuine Lamborghini - New (to order)
                                                        # 013
                                                        MPN: 008300895
                                                        STUD
                                                        from £5.13
                                                        from £5.13
                                                        STUD M8X65 UNI 5914 8G Genuine Lamborghini - New (to order)
                                                        # 014
                                                        MPN: 008300897
                                                        STUD
                                                        from £9.55
                                                        from £9.55
                                                        STUD M8X106 8G Genuine Lamborghini - New (to order)
                                                        # 015
                                                        MPN: 008300893
                                                        STUD
                                                        from £12.67
                                                        from £12.67
                                                        STUD M8X90 UNI 5911 8G Z Genuine Lamborghini - New (to order)
                                                        # 016
                                                        MPN: 008100604
                                                        SCREW
                                                        from £1.65
                                                        from £1.65
                                                        SCREW M6X14 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
                                                        # 017
                                                        MPN: 008932203
                                                        MAGNETIC PLUG
                                                        PLUG Genuine Lamborghini - New (to order)
                                                        # 018
                                                        MPN: 002430999
                                                        COVER
                                                        from £324.49
                                                        from £324.49
                                                        COVER Genuine Lamborghini - New (to order)
                                                        # 018
                                                        MPN: 002435931
                                                        COVER
                                                        from £21.10
                                                        from £21.10
                                                        REVERSE SIDE COVER Genuine Lamborghini - New (to order)
                                                        # 019
                                                        MPN: 008410602
                                                        WASHER
                                                        from £26.88
                                                        from £26.88
                                                        WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
                                                        # 020
                                                        MPN: 008931802
                                                        PLUG
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 021
                                                        MPN: 008100603
                                                        SCREW
                                                        from £0.92
                                                        from £0.92
                                                        SCREW M6X25 UNI 5739-8G ZG Genuine Lamborghini - New In stock
                                                        # 021
                                                        MPN: 008100861
                                                        SCREW
                                                        from £1.90
                                                        from £1.90
                                                        SCREW M8X90 CH13 5S Genuine Lamborghini - New In stock
                                                        # 022
                                                        MPN: 008300627
                                                        STUD
                                                        from £8.34
                                                        from £8.34
                                                        STUD M6X16 UNI 5917 8G ZD Genuine Lamborghini - New (to order)
                                                        # 023
                                                        MPN: 008200604
                                                        NUT
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 024
                                                        -
                                                        STUD
                                                        NOT FOR THIS MODEL
                                                        # 024
                                                        MPN: 008300862
                                                        STUD
                                                        Lamborghini PART 008300862 Genuine Lamborghini - New (to order)
                                                        # 025
                                                        MPN: 008801612
                                                        BUSHING
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 026
                                                        MPN: 008611605
                                                        SEAL
                                                        from £10.20
                                                        from £10.20
                                                        OIL SEAL 16X24X5 MM Genuine Lamborghini - New (to order)
                                                        # 027
                                                        MPN: 002428643
                                                        PAN
                                                        from £13.32
                                                        from £13.32
                                                        BREATHER COVER Genuine Lamborghini - New (to order)
                                                        # 028
                                                        MPN: 002428645
                                                        COVER
                                                        from £81.44
                                                        from £81.44
                                                        GEARBOX BREATHER COVER Genuine Lamborghini - New (to order)
                                                        # 029
                                                        -
                                                        SCREW
                                                        NOT FOR THIS MODEL
                                                        # 029
                                                        MPN: 008100807
                                                        SCREW
                                                        from £0.58
                                                        from £0.58
                                                        SCREW M8X40 UNI 5737/8G ZD Genuine Lamborghini - New In stock
                                                        # 030
                                                        -
                                                        SCREW
                                                        NOT FOR THIS MODEL
                                                        # 030
                                                        MPN: 008100803
                                                        SCREW
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 031
                                                        -
                                                        WASHER
                                                        NOT FOR THIS MODEL
                                                        # 032
                                                        -
                                                        COVER
                                                        NOT FOR THIS MODEL
                                                        # 033
                                                        -
                                                        SCREW
                                                        NOT FOR THIS MODEL
