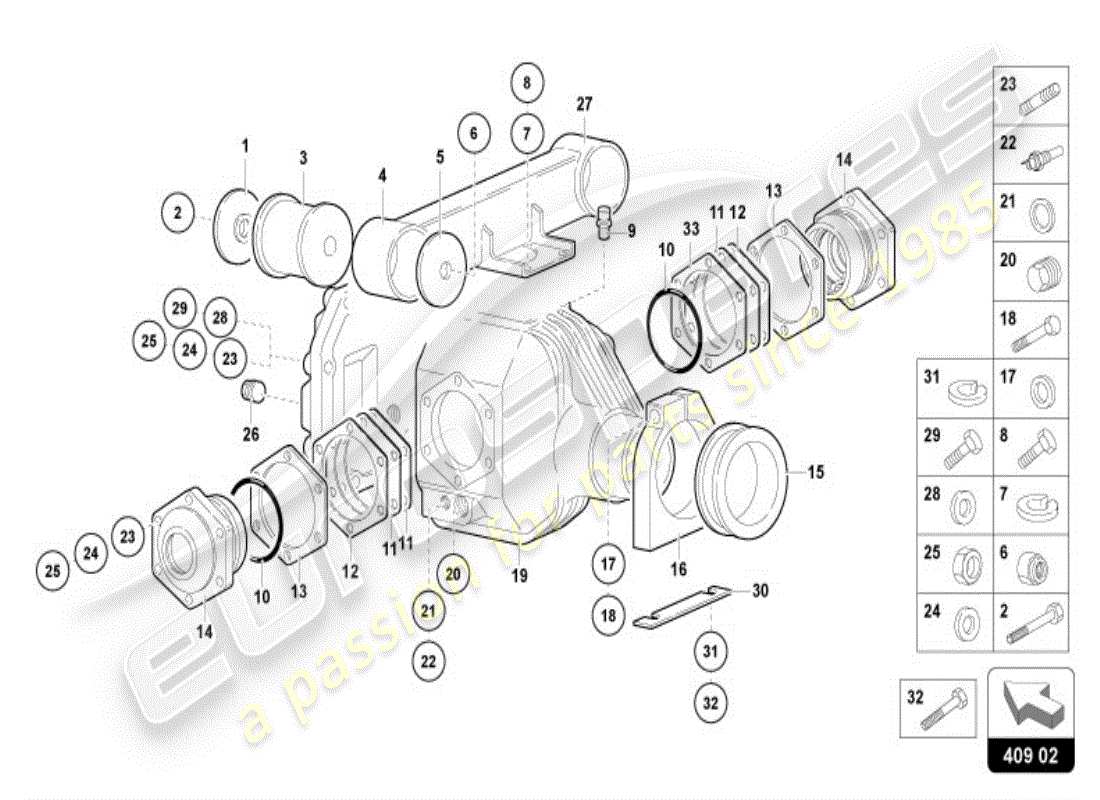

409.02.00 - FRONT AXLE DIFFERENTIAL BOX

Lamborghini Diablo VT (1995) FRONT AXLE DIFFERENTIAL BOX Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 001
                                                    MPN: 004134280
                                                    WASHER
                                                    from £28.80
                                                    from £28.80
                                                    FRONT DIFFERENTIAL BRACKET WAS HER Genuine Lamborghini - New (to order)
                                                    # 002
                                                    MPN: 008101432
                                                    SCREW
                                                    from £10.83
                                                    from £10.83
                                                    SCREW 14X2X120 UNI 5737-65 Genuine Lamborghini - New (to order)
                                                    # 003
                                                    MPN: 008921412
                                                    SILENTBLOC
                                                    Supersession
                                                    Supersession
                                                    Genuine Lamborghini (no longer available to order)
                                                    # 004
                                                    MPN: 002326142
                                                    SUPPORT
                                                    from £79.53
                                                    from £79.53
                                                    FRONT DIFFERENTIAL MOUNT Genuine Lamborghini - New (to order)
                                                    FRONT DIFFERENTIAL MOUNT Genuine Lamborghini - Used In stock
                                                    # 005
                                                    MPN: 008401415
                                                    WASHER
                                                    from £10.60
                                                    from £10.60
                                                    FLAT WASHER D.14X58X3 8G Genuine Lamborghini - New In stock
                                                    # 006
                                                    MPN: 008201416
                                                    NUT
                                                    from £1.22
                                                    from £1.22
                                                    14X2X14 8G/Z NUT Genuine Lamborghini - New (to order)
                                                    # 007
                                                    MPN: 008410806
                                                    WASHER
                                                    Supersession
                                                    Supersession
                                                    Genuine Lamborghini (no longer available to order)
                                                    # 008
                                                    MPN: 008100840
                                                    SCREW
                                                    from £0.53
                                                    from £0.53
                                                    SCREW M8X1.25X18 UNI5739/ Genuine Lamborghini - New In stock
                                                    # 009
                                                    MPN: 002325257
                                                    VENT PIPE
                                                    VENT PIPE Genuine Lamborghini - New (to order)
                                                    # 011
                                                    MPN: 002325831
                                                    SHIM
                                                    SHIM Genuine Lamborghini - New (to order)
                                                    # 011
                                                    MPN: 002336158
                                                    SHIM
                                                    2MM
                                                    SHIM Genuine Lamborghini - New (to order)
                                                    # 012
                                                    MPN: 002334027
                                                    SHIM
                                                    SHIM Genuine Lamborghini - New (to order)
                                                    # 012
                                                    MPN: 002336158
                                                    SHIM
                                                    2MM
                                                    SHIM Genuine Lamborghini - New (to order)
                                                    # 013
                                                    MPN: 002334026
                                                    SHIM
                                                    SHIM Genuine Lamborghini - New (to order)
                                                    # 014
                                                    MPN: 002334044
                                                    FLANGE
                                                    from £139.30
                                                    from £139.30
                                                    FRONT DIFFERENTIAL BOX FLANGE Genuine Lamborghini - New (to order)
                                                    # 015
                                                    MPN: 002325440
                                                    SILENTBLOC
                                                    from £31.92
                                                    from £31.92
                                                    COLLAR RUBBER RING Genuine Lamborghini - New (to order)
                                                    # 016
                                                    MPN: 002325441
                                                    CLAMP
                                                    from £171.63
                                                    from £171.63
                                                    FRONT DIFFERENTIAL MOUNTING CO LLAR Genuine Lamborghini - New (to order)
                                                    # 017
                                                    MPN: 008411002
                                                    WASHER
                                                    Supersession
                                                    Supersession
                                                    Genuine Lamborghini (no longer available to order)
                                                    # 018
                                                    MPN: 008101018
                                                    SCREW
                                                    from £0.54
                                                    from £0.54
                                                    SCREW M10X1.5X60 UNI5737/ Genuine Lamborghini - New In stock
                                                    # 019
                                                    MPN: 002325400
                                                    CASE
                                                    from £2,335.07
                                                    from £2,335.07
                                                    FRONT DIFFERENTIAL BOX Genuine Lamborghini - New (to order)
                                                    # 020
                                                    MPN: 008932203
                                                    MAGNETIC PLUG
                                                    PLUG Genuine Lamborghini - New (to order)
                                                    # 021
                                                    MPN: 008401408
                                                    WASHER
                                                    from £1.29
                                                    from £1.29
                                                    ANNEALED COPPER WASHER 21X14X1 .5 Genuine Lamborghini - New In stock
                                                    # 022
                                                    MPN: 006033681
                                                    TEMPERATURE SENS.
                                                    Supersession
                                                    Supersession
                                                    Genuine Lamborghini (no longer available to order)
                                                    # 023
                                                    MPN: 008300801
                                                    STUD
                                                    from £4.09
                                                    from £4.09
                                                    STUD M8X20 UNI 5911 8G ZD Genuine Lamborghini - New (to order)
                                                    # 024
                                                    MPN: 008410805
                                                    WASHER
                                                    Supersession
                                                    Supersession
                                                    Genuine Lamborghini (no longer available to order)
                                                    # 025
                                                    MPN: 008200801
                                                    NUT
                                                    Supersession
                                                    Supersession
                                                    Genuine Lamborghini (no longer available to order)
                                                    # 026
                                                    MPN: 008931802
                                                    PLUG
                                                    Supersession
                                                    Supersession
                                                    Genuine Lamborghini (no longer available to order)
                                                    # 027
                                                    MPN: 002325401
                                                    COVER
                                                    from £154.06
                                                    from £154.06
                                                    FRONT DIFFERENTIAL BOX COVER Genuine Lamborghini - New (to order)
                                                    # 028
                                                    -
                                                    WASHER
                                                    NOT FOR THIS MODEL
                                                    # 028
                                                    MPN: 008410805
                                                    WASHER
                                                    Supersession
                                                    Supersession
                                                    Genuine Lamborghini (no longer available to order)
                                                    # 029
                                                    -
                                                    SCREW
                                                    NOT FOR THIS MODEL
                                                    # 029
                                                    MPN: 002336158
                                                    SCREW
                                                    SHIM Genuine Lamborghini - New (to order)
                                                    # 030
                                                    -
                                                    SHIM
                                                    NOT FOR THIS MODEL
                                                    # 031
                                                    -
                                                    WASHER
                                                    NOT FOR THIS MODEL
                                                    # 032
                                                    -
                                                    SCREW
                                                    NOT FOR THIS MODEL
                                                    # 033
                                                    MPN: 002325831
                                                    SHIM
                                                    SHIM Genuine Lamborghini - New (to order)
                                                    # 033
                                                    MPN: 002336158
                                                    SHIM
                                                    2MM
                                                    SHIM Genuine Lamborghini - New (to order)
