512.01.00 - SUSPENSION REAR

Lamborghini Diablo VT (1995) SUSPENSION REAR Parts Diagram

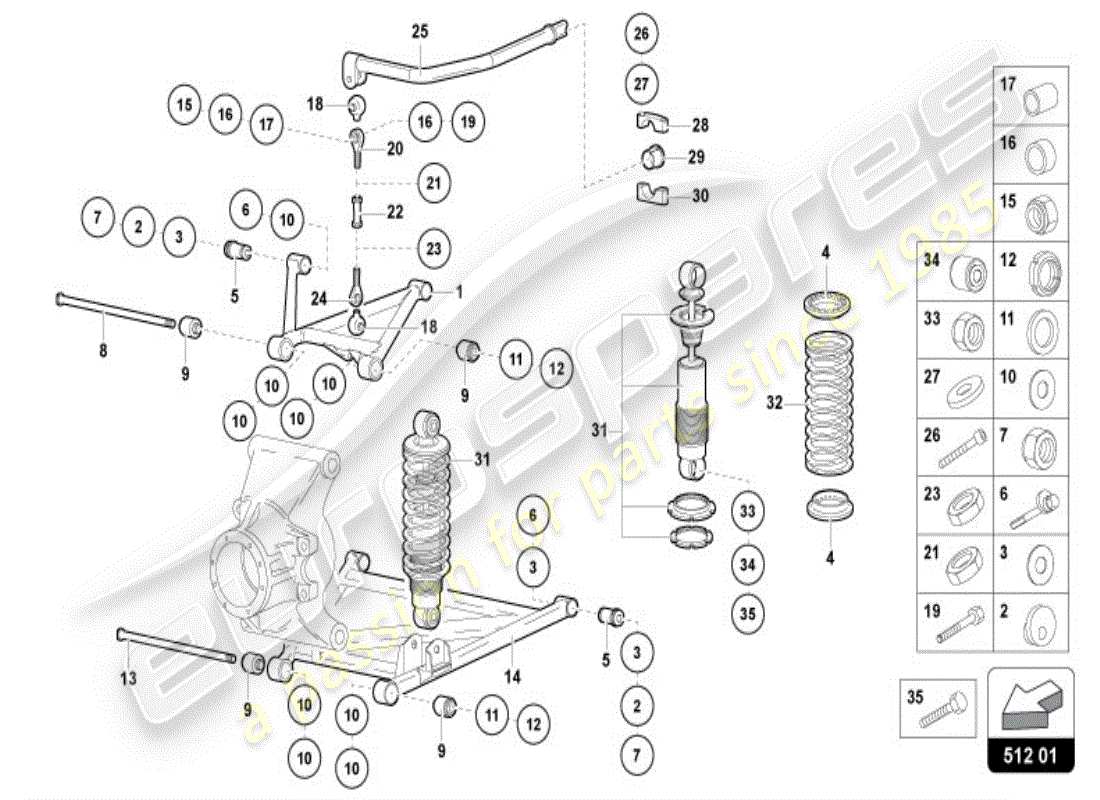

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 001
                                                        MPN: 005225908
                                                        UPPER ARM
                                                        RIGHT
                                                        from £1,372.99
                                                        from £1,372.99
                                                        RH UPPER ARM Genuine Lamborghini - New (to order)
                                                        # 001
                                                        MPN: 005225909
                                                        UPPER ARM
                                                        LEFT
                                                        from £1,522.71
                                                        from £1,522.71
                                                        LH UPPER ARM Genuine Lamborghini - New (to order)
                                                        # 002
                                                        MPN: 005231925
                                                        CAM
                                                        CAM Genuine Lamborghini - New (to order)
                                                        # 003
                                                        MPN: 005133169
                                                        SHIM
                                                        FROM 12678 - SP = 3 MM
                                                        from £3.10
                                                        from £3.10
                                                        CHASSIS ADJUSTMENT WASHER 3 MM Genuine Lamborghini - New (to order)
                                                        # 003
                                                        MPN: 005133170
                                                        SHIM
                                                        FROM 12678 - SP = 1 MM
                                                        from £1.69
                                                        from £1.69
                                                        CHASSIS ADJUSTMENT WASHER 1 MM Genuine Lamborghini - New (to order)
                                                        # 003
                                                        MPN: 005133488
                                                        SHIM
                                                        FROM 12678 - SP = 1,5 MM
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 003
                                                        MPN: 005133489
                                                        SHIM
                                                        FROM 12678 - SP = 2 MM
                                                        from £2.51
                                                        from £2.51
                                                        LOCK FLANGE ADJUSTMENT SHIM 2 MM Genuine Lamborghini - New (to order)
                                                        # 003
                                                        MPN: 005133490
                                                        SHIM
                                                        FROM 12678 - SP = 2,5 MM
                                                        from £2.84
                                                        from £2.84
                                                        LOCK FLANGE ADJUSTMENT SHIM 2. 5 MM Genuine Lamborghini - New (to order)
                                                        # 004
                                                        MPN: 005219380
                                                        RING
                                                        RING Genuine Lamborghini - New (to order)
                                                        # 005
                                                        MPN: 008921206
                                                        RESILIENT BUSHING
                                                        from £28.82
                                                        from £28.82
                                                        Flanblock Genuine Lamborghini - New (to order)
                                                        # 006
                                                        MPN: 005231923
                                                        CAM PIN
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 007
                                                        MPN: 008201226
                                                        NUT
                                                        from £2.63
                                                        from £2.63
                                                        12X1.25X14.8 8GZD SELF-LOCKI NGNUT Genuine Lamborghini - New In stock
                                                        # 008
                                                        MPN: 005225204
                                                        PIN
                                                        from £58.81
                                                        from £58.81
                                                        UPPER REAR ARM PIN Genuine Lamborghini - New (to order)
                                                        # 009
                                                        MPN: 005225207
                                                        RESILIENT BUSHING
                                                        from £128.75
                                                        from £128.75
                                                        JOINT Genuine Lamborghini - New (to order)
                                                        BUSH Eurospares Approved Part - New In stock
                                                        # 010
                                                        MPN: 008401710
                                                        SHIM
                                                        from £26.56
                                                        from £26.56
                                                        FLAT WASHER 17X34X1 Genuine Lamborghini - New (to order)
                                                        # 011
                                                        MPN: 008401708
                                                        WASHER
                                                        from £1.65
                                                        from £1.65
                                                        WASHER 17.5X26X3 AQ42 Genuine Lamborghini - New In stock
                                                        # 012
                                                        MPN: 008251702
                                                        PLUG
                                                        from £2.49
                                                        from £2.49
                                                        This part replaces part number 008251701
                                                        M17X1X28 SELF-LOCKING RING NUT Genuine Lamborghini - New In stock
                                                        # 013
                                                        MPN: 005225205
                                                        PIN
                                                        from £58.81
                                                        from £58.81
                                                        UPPER ARM PIN Genuine Lamborghini - New (to order)
                                                        # 014
                                                        MPN: 005225906
                                                        Lower Arm
                                                        RIGHT
                                                        from £1,142.00
                                                        from £1,142.00
                                                        RH LOWER ARM Genuine Lamborghini - New (to order)
                                                        # 014
                                                        MPN: 005225907
                                                        Lower Arm
                                                        LEFT
                                                        from £1,129.19
                                                        from £1,129.19
                                                        LH LOWER ARM Genuine Lamborghini - New (to order)
                                                        # 015
                                                        MPN: 008200804
                                                        NUT
                                                        REPLACE 008200809
                                                        from £0.73
                                                        from £0.73
                                                        NUT Genuine Lamborghini - New In stock
                                                        # 016
                                                        MPN: 005227297
                                                        BUSHING
                                                        from £18.60
                                                        from £18.60
                                                        BALL JOINT BUSHING Genuine Lamborghini - New (to order)
                                                        # 017
                                                        MPN: 005227298
                                                        BUSHING
                                                        from £11.27
                                                        from £11.27
                                                        TORSION BAR ADAPTER BUSHING Genuine Lamborghini - New (to order)
                                                        # 018
                                                        MPN: 005109714
                                                        BOOT
                                                        from £16.85
                                                        from £16.85
                                                        BOOT Genuine Lamborghini - New In stock
                                                        # 019
                                                        MPN: 008100810
                                                        SCREW
                                                        REPLACE 008100807
                                                        Lamborghini PART 008100810 Genuine Lamborghini - New (to order)
                                                        # 020
                                                        MPN: 005227296
                                                        BALL JOINT
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 021
                                                        MPN: 008201014
                                                        NUT
                                                        from £3.93
                                                        from £3.93
                                                        M10X1X6 UNI 5589/5S/Z NUT Genuine Lamborghini - New (to order)
                                                        # 022
                                                        MPN: 005209770
                                                        TIE ROD
                                                        from £73.18
                                                        from £73.18
                                                        TORSION BAR TIEROD Genuine Lamborghini - New (to order)
                                                        # 023
                                                        MPN: 008201016
                                                        NUT
                                                        from £14.61
                                                        from £14.61
                                                        This part replaces part number 008201034
                                                        10X1X6 S LEFT NUT Genuine Lamborghini - New (to order)
                                                        # 025
                                                        MPN: 005234393
                                                        TORSION BAR
                                                        from £2,203.96
                                                        from £2,203.96
                                                        ROLL BAR Genuine Lamborghini - New (to order)
                                                        # 026
                                                        MPN: 008700609
                                                        SCREW
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 027
                                                        MPN: 008410602
                                                        WASHER
                                                        from £28.03
                                                        from £28.03
                                                        WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
                                                        # 028
                                                        -
                                                        RETAINER
                                                        NOT FOR THIS MODEL
                                                        # 029
                                                        MPN: 005230804
                                                        BUSHING
                                                        Supersession
                                                        Supersession
                                                        Genuine Lamborghini (no longer available to order)
                                                        # 030
                                                        -
                                                        RETAINER
                                                        NOT FOR THIS MODEL
                                                        # 031
                                                        MPN: 005233166
                                                        DAMPER
                                                        from £3,389.90
                                                        from £3,389.90
                                                        SHOCK ABSORBER (LIFTING SYSTEM) VEDI/SEE CODE FOR KIT 6 PCS 0R1320014 Genuine Lamborghini - New (to order)
                                                        # 032
                                                        MPN: 005226157
                                                        SPRING
                                                        from £244.17
                                                        from £244.17
                                                        REAR SPRING Genuine Lamborghini - New In stock
                                                        # 033
                                                        MPN: 008201226
                                                        NUT
                                                        REPLACE 008201206
                                                        from £2.63
                                                        from £2.63
                                                        12X1.25X14.8 8GZD SELF-LOCKI NGNUT Genuine Lamborghini - New In stock
                                                        # 034
                                                        MPN: 005131666
                                                        RESILIENT BUSHING
                                                        RESILIENT BUSHING Genuine Lamborghini - New (to order)
                                                        # 035
                                                        MPN: 008101259
                                                        SCREW
                                                        REPLACE 008101274
                                                        from £9.95
                                                        from £9.95
                                                        SCREW 12X1.25X70UNI5738ZG8G Genuine Lamborghini - New In stock
                                                        # 036
                                                        MPN: 005230258
                                                        RETAINER
                                                        from £199.48
                                                        from £199.48
                                                        TORSION BAR BRACKET ASSEMBLY Genuine Lamborghini - New (to order)
