lamborghini diablo vt (1995) brake disc front parts diagram

615.05.00 - BRAKE DISC FRONT

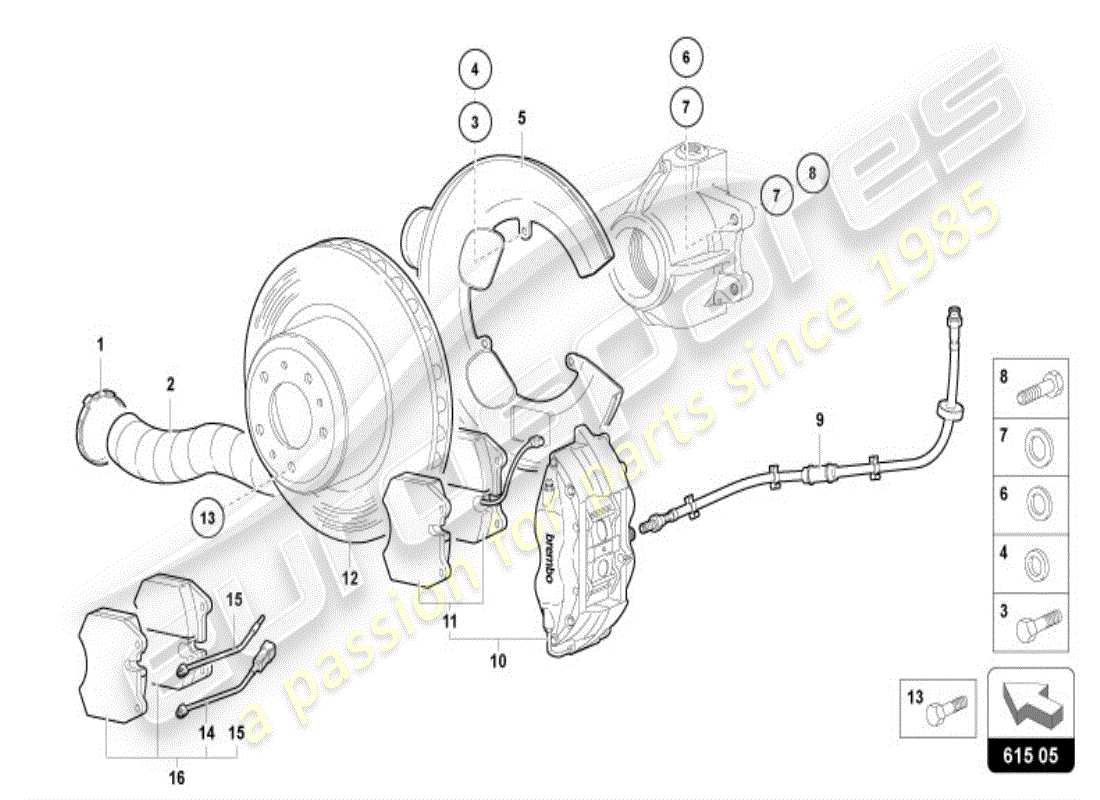

Lamborghini Diablo VT (1995) BRAKE DISC FRONT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 001
                        MPN: 008837501
                        STRAP
                        from £9.81
                        from £9.81
                        CLAMP Genuine Lamborghini - New (to order)
                        # 002
                        MPN: 009453128
                        FLEX. HOSE
                        from £114.61
                        from £114.61
                        BRAKE AIR DELIVERY PIPE Genuine Lamborghini - New (to order)
                        # 003
                        MPN: 008100504
                        SCREW
                        Supersession
                        Supersession
                        Genuine Lamborghini (no longer available to order)
                        # 004
                        MPN: 008410503
                        WASHER
                        Supersession
                        Supersession
                        Genuine Lamborghini (no longer available to order)
                        # 005
                        MPN: 003133481
                        LEFT MUDGUARDS
                        from £160.31
                        from £160.31
                        LH MUDGUARD ASSEMBLY Genuine Lamborghini - New In stock
                        # 005
                        MPN: 003133482
                        RIGHT MUDGUARDS
                        from £226.91
                        from £226.91
                        RH MUDGUARD ASSEMBLY Genuine Lamborghini - New (to order)
                        # 006
                        MPN: 003230720
                        SPACER
                        from £4.25
                        from £4.25
                        WASHER SHIM 0.1 Genuine Lamborghini - New In stock
                        # 006
                        MPN: 003230721
                        SPACER
                        from £0.54
                        from £0.54
                        WASHER SHIM 0.2 Genuine Lamborghini - New In stock
                        # 006
                        MPN: 003230724
                        SPACER
                        from £0.54
                        from £0.54
                        WASHER SHIM 0.5 Genuine Lamborghini - New In stock
                        # 006
                        MPN: 003230727
                        SPACER
                        from £2.34
                        from £2.34
                        WASHER SHIM 1. Genuine Lamborghini - New In stock
                        # 007
                        MPN: 008401306
                        WASHER
                        from £1.48
                        from £1.48
                        WASHER D.13X24X3 8G Genuine Lamborghini - New (to order)
                        # 008
                        MPN: 003132195
                        SCREW
                        from £19.74
                        from £19.74
                        SHOE/HUB FASTENING SCREW Genuine Lamborghini - New (to order)
                        # 009
                        MPN: 003229882
                        PIPE
                        from £106.96
                        from £106.96
                        REAR BRAKE SHOE PIPE Genuine Lamborghini - New In stock
                        # 010
                        MPN: 003133609
                        BRAKE CALIPER GPL.
                        LEFT
                        from £1,761.50
                        from £1,761.50
                        LH FRONT SHOE Genuine Lamborghini - New (to order)
                        # 010
                        MPN: 003133610
                        BRAKE CALIPER CPL.
                        RIGHT
                        from £1,761.50
                        from £1,761.50
                        RH FRONT SHOE Genuine Lamborghini - New (to order)
                        # 011
                        -
                        FRONT BRAK. PADS KIT
                        SEE REF. 10
                        # 011
                        MPN: 003134505
                        FRONT BRAK. PADS KIT
                        Supersession
                        Supersession
                        Genuine Lamborghini (no longer available to order)
                        # 011
                        MPN: 003134511
                        FRONT BRAK. PADS KIT
                        Lamborghini PART 003134511 Genuine Lamborghini - New (to order)
                        # 012
                        MPN: 003133607
                        FRONT BRAKE DISC
                        from £656.28
                        from £656.28
                        RH/LH FRONT DISC Genuine Lamborghini - New (to order)
                        # 013
                        MPN: 008100826
                        SCREW
                        from £0.52
                        from £0.52
                        SCREW M8X16 UNI 5739/8G/Z Genuine Lamborghini - New (to order)
                        # 014
                        -
                        ELECT CABLE
                        NOT FOR THIS MODEL
                        # 014
                        MPN: 003135644
                        ELECT CABLE
                        from £226.11
                        from £226.11
                        WORN PADS SENSOR Genuine Lamborghini - New (to order)
                        # 015
                        -
                        ELECT CABLE
                        NOT FOR THIS MODEL
                        # 015
                        MPN: 003135643
                        ELECT CABLE
                        from £19.74
                        from £19.74
                        GALFER SENSOR Genuine Lamborghini - New (to order)
                        # 016
                        -
                        FRO. BRAK. PADS KIT
                        NOT FOR THIS MODEL
                        # 016
                        MPN: 003136085
                        FRO. BRAK. PADS KIT
                        Pagid
                        from £661.98
                        from £661.98
                        This part replaces part number 003134505 - and 1 more. Click to view details
                        PAGID PAD & WIRE KIT Genuine Lamborghini - New (to order)
                        # 016
                        MPN: 003136086
                        FRO. BRAK. PADS KIT
                        GALFER
                        Supersession
                        Supersession
                        Genuine Lamborghini (no longer available to order)
