615.06.00 - BRAKE DISC REAR

Lamborghini Diablo VT (1995) BRAKE DISC REAR Parts Diagram

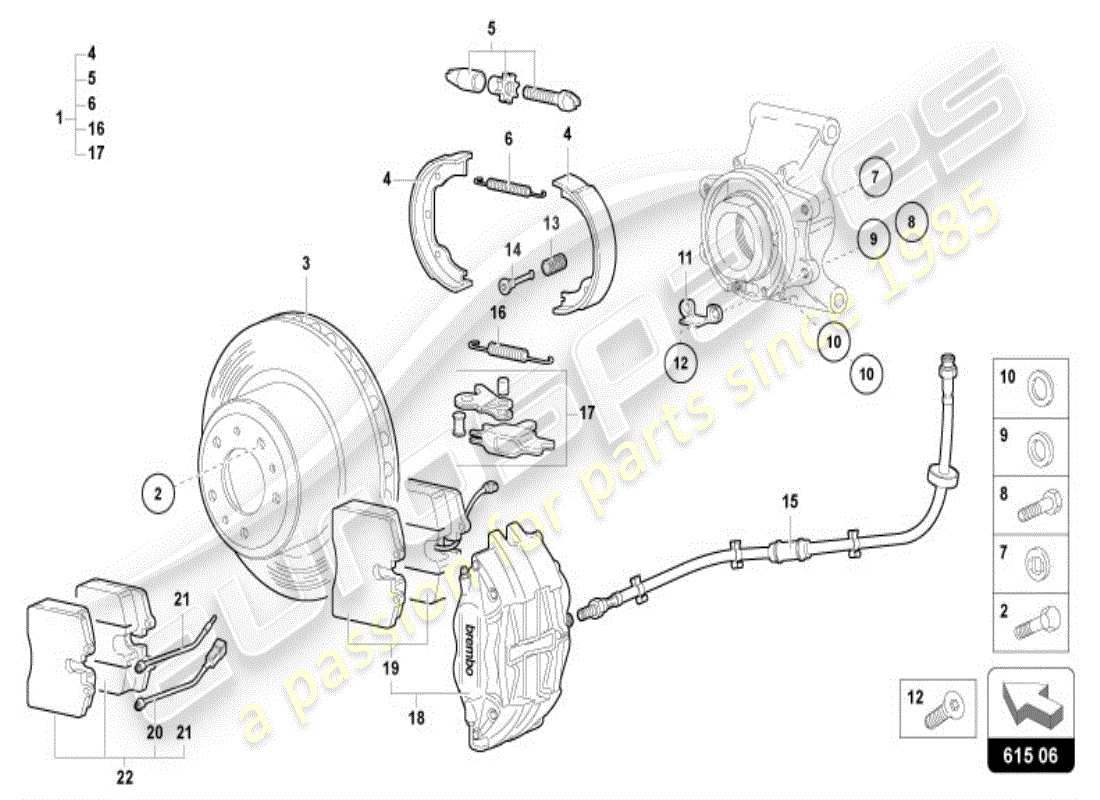

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 001
                                  MPN: 003334400
                                  KIT HAND BRAKE SYS.
                                  from £585.11
                                  from £585.11
                                  DRUM BRAKE ASSEMBLY KIT Genuine Lamborghini - New (to order)
                                  # 002
                                  MPN: 008100826
                                  SCREW
                                  from £0.52
                                  from £0.52
                                  SCREW M8X16 UNI 5739/8G/Z Genuine Lamborghini - New (to order)
                                  # 003
                                  MPN: 003233608
                                  REAR BRAKE DISC
                                  from £623.47
                                  from £623.47
                                  RH/LH REAR DISC Genuine Lamborghini - New (to order)
                                  RH/LH REAR DISC Genuine Lamborghini - New (other) In stock
                                  Price per disc
                                  # 004
                                  MPN: 003334931
                                  BRAKE SHOE
                                  from £131.25
                                  from £131.25
                                  BRAKE SHOE Genuine Lamborghini - New (to order)
                                  HANDBRAKE SHOES (SET OF 4) Eurospares Approved Part - New In stock
                                  # 005
                                  MPN: 003334935
                                  ADJ/SCREW
                                  from £85.22
                                  from £85.22
                                  WHEEL ADJUSTMENT Genuine Lamborghini - New (to order)
                                  # 006
                                  MPN: 003334934
                                  SPRING
                                  from £25.68
                                  from £25.68
                                  SPRING Genuine Lamborghini - New (to order)
                                  # 007
                                  MPN: 003332391
                                  CLIP
                                  from £5.85
                                  from £5.85
                                  LOCK PIN WASHER Genuine Lamborghini - New (to order)
                                  # 008
                                  MPN: 003132195
                                  SCREW
                                  from £19.74
                                  from £19.74
                                  SHOE/HUB FASTENING SCREW Genuine Lamborghini - New (to order)
                                  # 009
                                  MPN: 008401306
                                  WASHER
                                  from £1.48
                                  from £1.48
                                  WASHER D.13X24X3 8G Genuine Lamborghini - New (to order)
                                  # 010
                                  MPN: 003230720
                                  SHIM
                                  0,1 MM
                                  from £4.25
                                  from £4.25
                                  WASHER SHIM 0.1 Genuine Lamborghini - New In stock
                                  # 010
                                  MPN: 003230721
                                  SHIM
                                  0,2 MM
                                  from £0.54
                                  from £0.54
                                  WASHER SHIM 0.2 Genuine Lamborghini - New In stock
                                  # 010
                                  MPN: 003230724
                                  SHIM
                                  0,5 MM
                                  from £0.54
                                  from £0.54
                                  WASHER SHIM 0.5 Genuine Lamborghini - New In stock
                                  # 010
                                  MPN: 003230727
                                  SHIM
                                  1 MM
                                  from £2.34
                                  from £2.34
                                  WASHER SHIM 1. Genuine Lamborghini - New In stock
                                  # 011
                                  MPN: 003332388
                                  SUPPORT
                                  from £134.40
                                  from £134.40
                                  SHOE REST BLOCK Genuine Lamborghini - New (to order)
                                  # 012
                                  MPN: 008701023
                                  SCREW
                                  from £0.53
                                  from £0.53
                                  SCREW M10X25 UNI 5933/8G/Z D Genuine Lamborghini - New In stock
                                  # 013
                                  MPN: 003332390
                                  SPRING
                                  from £12.84
                                  from £12.84
                                  SHOE FASTENING PIN SPRING Genuine Lamborghini - New (to order)
                                  SHOE FASTENING PIN SPRING Genuine Lamborghini - Used In stock
                                  # 014
                                  MPN: 003332389
                                  PIN
                                  from £33.14
                                  from £33.14
                                  SHOE HOLDER FASTENING PIN Genuine Lamborghini - New (to order)
                                  SHOE HOLDER FASTENING PIN Genuine Lamborghini - Used In stock
                                  # 015
                                  MPN: 003229882
                                  PIPE
                                  from £106.96
                                  from £106.96
                                  REAR BRAKE SHOE PIPE Genuine Lamborghini - New In stock
                                  # 016
                                  MPN: 003334933
                                  SPRING
                                  from £25.68
                                  from £25.68
                                  SPRING Genuine Lamborghini - New (to order)
                                  # 017
                                  MPN: 003334932
                                  IDLE LEVER
                                  from £86.82
                                  from £86.82
                                  LINKAGE Genuine Lamborghini - New (to order)
                                  # 018
                                  MPN: 003233611
                                  BRAKE CALIPER
                                  LEFT
                                  from £901.27
                                  from £901.27
                                  LH REAR SHOE Genuine Lamborghini - New (to order)
                                  LH REAR SHOE Genuine Lamborghini - Used In stock
                                  # 018
                                  MPN: 003233612
                                  BRAKE CALIPER
                                  RIGHT
                                  from £1,298.60
                                  from £1,298.60
                                  RH REAR SHOE Genuine Lamborghini - New (to order)
                                  # 019
                                  -
                                  KIT PADS BRAKE
                                  NOT FOR THIS MODEL
                                  # 019
                                  MPN: 003234508
                                  PAGID KIT PADS BRAKE
                                  Supersession
                                  Supersession
                                  Genuine Lamborghini (no longer available to order)
                                  # 019
                                  MPN: 003234514
                                  GULFER KIT PADS BRA.
                                  Supersession
                                  Supersession
                                  Genuine Lamborghini (no longer available to order)
                                  # 020
                                  -
                                  ELECT CABLE
                                  NOT FOR THIS MODEL
                                  # 020
                                  MPN: 003135644
                                  ELECT CABLE
                                  from £226.11
                                  from £226.11
                                  WORN PADS SENSOR Genuine Lamborghini - New (to order)
                                  # 021
                                  -
                                  ELECT CABLE
                                  NOT FOR THIS MODEL
                                  # 021
                                  MPN: 003135643
                                  ELECT CABLE
                                  from £19.74
                                  from £19.74
                                  GALFER SENSOR Genuine Lamborghini - New (to order)
                                  # 022
                                  -
                                  FRO. BRAK. PADS KIT
                                  NOT FOR THIS MODEL
                                  # 022
                                  MPN: 003236088
                                  FRO. BRAK. PADS KIT
                                  GALFER
                                  from £421.74
                                  from £421.74
                                  This part replaces part number 003234508 - and 1 more. Click to view details
                                  PAGID PAD & WIRE KIT Genuine Lamborghini - New (to order)
                                  # 022
                                  MPN: 003236089
                                  FRO. BRAK. PADS KIT
                                  Pagid
                                  Supersession
                                  Supersession
                                  This part replaces part number 003234514
                                  Genuine Lamborghini (no longer available to order)
