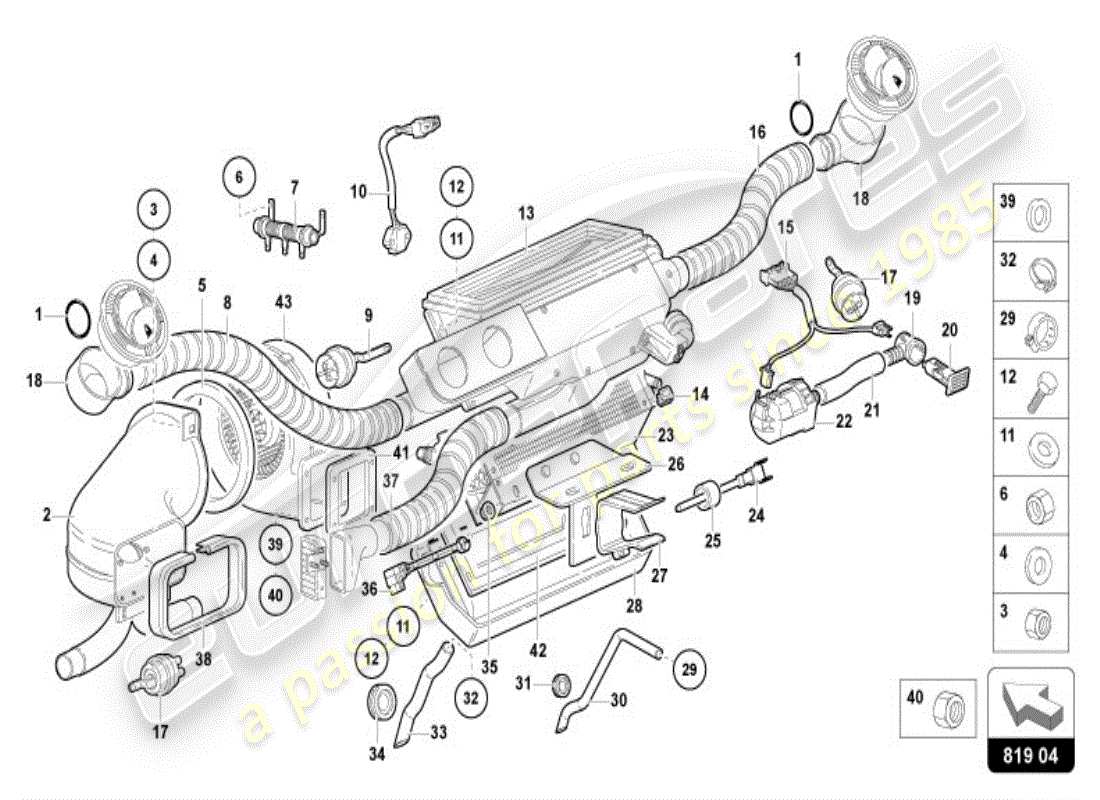

819.04.00 - AIR GUIDE CHANNEL

Lamborghini Diablo VT (1995) AIR GUIDE CHANNEL Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Key
                                                                          Price
                                                                          # 001
                                                                          MPN: 008604401
                                                                          SEAL
                                                                          from £0.53
                                                                          from £0.53
                                                                          RING 44 MM OR Genuine Lamborghini - New In stock
                                                                          # 002
                                                                          MPN: 009453112
                                                                          CONVEYOR
                                                                          (EUROPE, USA spec vehicles)
                                                                          from £477.66
                                                                          from £477.66
                                                                          EXTERNAL AIR INTAKE VENT Genuine Lamborghini - New (to order)
                                                                          # 002
                                                                          MPN: 009453131
                                                                          CONVEYOR
                                                                          (UK spec vehicles)
                                                                          from £1,290.42
                                                                          from £1,290.42
                                                                          EXTERNAL AIR INTAKE DUCT Genuine Lamborghini - New (to order)
                                                                          # 003
                                                                          MPN: 008200606
                                                                          NUT
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Lamborghini (no longer available to order)
                                                                          # 004
                                                                          MPN: 008400607
                                                                          WASHER
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Lamborghini (no longer available to order)
                                                                          # 005
                                                                          MPN: 009490202
                                                                          GASKET
                                                                          from £6.74
                                                                          from £6.74
                                                                          MANIFOLD-A/C FAN SEAL Genuine Lamborghini - New (to order)
                                                                          # 006
                                                                          MPN: 008200503
                                                                          NUT
                                                                          from £2.19
                                                                          from £2.19
                                                                          M5 UNI 7473 ZD SELF-LOCKIN GNUT Genuine Lamborghini - New (to order)
                                                                          # 007
                                                                          MPN: 001619328
                                                                          RESISTANCE
                                                                          from £87.72
                                                                          from £87.72
                                                                          SPEED ADJUSTMENT RESISTOR Genuine Lamborghini - New (to order)
                                                                          # 008
                                                                          MPN: 009414532
                                                                          PIPE
                                                                          from £48.84
                                                                          from £48.84
                                                                          DASH AIR VENT PIPE Genuine Lamborghini - New (to order)
                                                                          # 009
                                                                          MPN: 009014529
                                                                          CONTROL
                                                                          from £74.22
                                                                          from £74.22
                                                                          ACTUATOR Genuine Lamborghini - New (to order)
                                                                          # 010
                                                                          MPN: 004526662
                                                                          TEMPERATURE SENS.
                                                                          from £200.82
                                                                          from £200.82
                                                                          OIL SEAL RACE Genuine Lamborghini - New (to order)
                                                                          # 011
                                                                          MPN: 008400506
                                                                          WASHER
                                                                          from £0.51
                                                                          from £0.51
                                                                          FLAT WASHER 5.3X1.5X15 Genuine Lamborghini - New (to order)
                                                                          # 012
                                                                          MPN: 008100502
                                                                          SCREW
                                                                          from £0.51
                                                                          from £0.51
                                                                          SCREW 5X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
                                                                          # 013
                                                                          MPN: 009414003
                                                                          CONVEYOR
                                                                          (EUROPE, USA spec vehicles)
                                                                          from £689.43
                                                                          from £689.43
                                                                          UPPER AIR VENT Genuine Lamborghini - New (to order)
                                                                          UPPER AIR VENT Genuine Lamborghini - Used In stock
                                                                          # 013
                                                                          MPN: 009414027
                                                                          CONVEYOR
                                                                          (UK spec vehicles)
                                                                          from £1,829.54
                                                                          from £1,829.54
                                                                          CONVEYOR Genuine Lamborghini - New (to order)
                                                                          CONVEYOR Genuine Lamborghini - Used In stock
                                                                          # 014
                                                                          MPN: 008220503
                                                                          CLIP
                                                                          from £6.74
                                                                          from £6.74
                                                                          SPRING Genuine Lamborghini - New (to order)
                                                                          # 015
                                                                          MPN: 006130619
                                                                          ELECT CABLE
                                                                          from £34.82
                                                                          from £34.82
                                                                          INTERNAL TEMPERATURE& FAN SENS OR WIRING Genuine Lamborghini - New (to order)
                                                                          # 016
                                                                          MPN: 009414531
                                                                          PIPE
                                                                          from £53.44
                                                                          from £53.44
                                                                          DASH AIR VENT PIPE Genuine Lamborghini - New (to order)
                                                                          # 017
                                                                          MPN: 007014137
                                                                          CONTROL
                                                                          from £71.50
                                                                          from £71.50
                                                                          ACTUATOR UNDER RH VENT Genuine Lamborghini - New (to order)
                                                                          # 018
                                                                          MPN: 007014135
                                                                          CONNECTION
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Lamborghini (no longer available to order)
                                                                          # 019
                                                                          MPN: 004526666
                                                                          CONNECTION
                                                                          from £22.23
                                                                          from £22.23
                                                                          UNION Genuine Lamborghini - New (to order)
                                                                          # 020
                                                                          MPN: 004526661
                                                                          TEMPERATURE SENS.
                                                                          from £108.96
                                                                          from £108.96
                                                                          INTERNAL TEMPERATURESENSOR Genuine Lamborghini - New (to order)
                                                                          # 021
                                                                          MPN: 006032223
                                                                          PIPE
                                                                          from £6.18
                                                                          from £6.18
                                                                          SENSOR/FAN PIPE Genuine Lamborghini - New (to order)
                                                                          # 022
                                                                          MPN: 004526665
                                                                          ELECTROFAN
                                                                          from £217.13
                                                                          from £217.13
                                                                          TEMPERATURE SENSOR SOLENOID VA LVE Genuine Lamborghini - New (to order)
                                                                          # 023
                                                                          MPN: 004530210
                                                                          RADIATOR
                                                                          (EUROPE, USA spec vehicles)
                                                                          from £1,111.29
                                                                          from £1,111.29
                                                                          HEATER EVAPORATOR Genuine Lamborghini - New (to order)
                                                                          # 023
                                                                          MPN: 004532449
                                                                          RADIATOR
                                                                          (UK spec vehicles)
                                                                          from £327.70
                                                                          from £327.70
                                                                          evaporator Genuine Lamborghini - New (to order)
                                                                          # 023
                                                                          MPN: 004535410
                                                                          RADIATOR
                                                                          (EUROPE, USA spec vehicles)
                                                                          from £271.21
                                                                          from £271.21
                                                                          EVAPORATOR HEATER Genuine Lamborghini - New (to order)
                                                                          # 023
                                                                          MPN: 004535864
                                                                          RADIATOR
                                                                          (UK spec vehicles)
                                                                          from £271.21
                                                                          from £271.21
                                                                          MY '95 RHD EVAPORATOR HEATER Genuine Lamborghini - New (to order)
                                                                          # 024
                                                                          MPN: 004526663
                                                                          TEMPERATURE SENS.
                                                                          from £1,129.19
                                                                          from £1,129.19
                                                                          TEMPERATURE SENSOR Genuine Lamborghini - New (to order)
                                                                          # 025
                                                                          MPN: 004532839
                                                                          PIPE
                                                                          from £6.42
                                                                          from £6.42
                                                                          EVAPORATOR TEMPERATURE SENSOR GUARD PIPE Genuine Lamborghini - New (to order)
                                                                          # 026
                                                                          MPN: 005931538
                                                                          SUPPORT
                                                                          (EUROPE, USA spec vehicles)
                                                                          from £25.59
                                                                          from £25.59
                                                                          EVAPORATOR BRACKET Genuine Lamborghini - New (to order)
                                                                          # 026
                                                                          MPN: 005932695
                                                                          SUPPORT
                                                                          (UK spec vehicles)
                                                                          from £103.67
                                                                          from £103.67
                                                                          CONDITIONER BRACKET Genuine Lamborghini - New (to order)
                                                                          # 027
                                                                          MPN: 005931539
                                                                          SUPPORT
                                                                          from £1.79
                                                                          from £1.79
                                                                          RADIO BRACKET Genuine Lamborghini - New In stock
                                                                          # 028
                                                                          MPN: 009414505
                                                                          CONVEYOR
                                                                          (EUROPE, USA spec vehicles)
                                                                          from £175.73
                                                                          from £175.73
                                                                          A/C RADIATOR VENT AIR MANIFOLD Genuine Lamborghini - New (to order)
                                                                          # 028
                                                                          MPN: 009414539
                                                                          CONVEYOR
                                                                          (UK spec vehicles)
                                                                          from £51.27
                                                                          from £51.27
                                                                          SIDE CONDITIONER RESERVOIR Genuine Lamborghini - New In stock
                                                                          # 029
                                                                          MPN: 008831117
                                                                          STRAP
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Lamborghini (no longer available to order)
                                                                          # 030
                                                                          MPN: 009414537
                                                                          PIPE
                                                                          from £24.79
                                                                          from £24.79
                                                                          A/C RADIATOR CONDENSE DRAIN PI PE Genuine Lamborghini - New (to order)
                                                                          # 031
                                                                          MPN: 008612507
                                                                          GASKET
                                                                          from £11.80
                                                                          from £11.80
                                                                          see 008612804 Genuine Lamborghini - New (to order)
                                                                          # 032
                                                                          MPN: 008832806
                                                                          STRAP
                                                                          from £2.15
                                                                          from £2.15
                                                                          CLAMP Genuine Lamborghini - New (to order)
                                                                          # 033
                                                                          MPN: 009414540
                                                                          PIPE
                                                                          from £40.84
                                                                          from £40.84
                                                                          RADIATOR CONDENSE DRAIN PIPE Genuine Lamborghini - New (to order)
                                                                          # 034
                                                                          MPN: 008611606
                                                                          GASKET
                                                                          from £1.25
                                                                          from £1.25
                                                                          GROMMET Genuine Lamborghini - New In stock
                                                                          # 035
                                                                          MPN: 008200614
                                                                          NUT
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Lamborghini (no longer available to order)
                                                                          # 036
                                                                          MPN: 004526664
                                                                          TEMPERATURE SENS.
                                                                          from £25.36
                                                                          from £25.36
                                                                          BLOWER AIR SENSOR Genuine Lamborghini - New (to order)
                                                                          # 037
                                                                          MPN: 009414536
                                                                          PIPE
                                                                          from £62.10
                                                                          from £62.10
                                                                          AIR PIPE UNDER DASHBOARD Genuine Lamborghini - New (to order)
                                                                          # 038
                                                                          MPN: 009490201
                                                                          GASKET
                                                                          from £28.08
                                                                          from £28.08
                                                                          A/C FAN OUTER MANIFOLD SEAL Genuine Lamborghini - New (to order)
                                                                          # 039
                                                                          MPN: 008400401
                                                                          WASHER
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Lamborghini (no longer available to order)
                                                                          # 040
                                                                          MPN: 008200406
                                                                          NUT
                                                                          from £0.53
                                                                          from £0.53
                                                                          4X0.7X4.8 5S/Z NUT Genuine Lamborghini - New (to order)
                                                                          # 041
                                                                          MPN: 004731661
                                                                          GASKET
                                                                          from £6.10
                                                                          from £6.10
                                                                          AERSTOP FA CN/20 3 MM Genuine Lamborghini - New (to order)
                                                                          # 042
                                                                          MPN: 009414534
                                                                          CONVEYOR
                                                                          (UK spec vehicles)
                                                                          from £190.09
                                                                          from £190.09
                                                                          VENT/RAD AIR MANIFOLD Genuine Lamborghini - New (to order)
                                                                          # 043
                                                                          MPN: 004729406
                                                                          ELECTROFAN
                                                                          (UK spec vehicles)
                                                                          from £166.73
                                                                          from £166.73
                                                                          RH SCROLL SOLENOID VALVE Genuine Lamborghini - New (to order)
